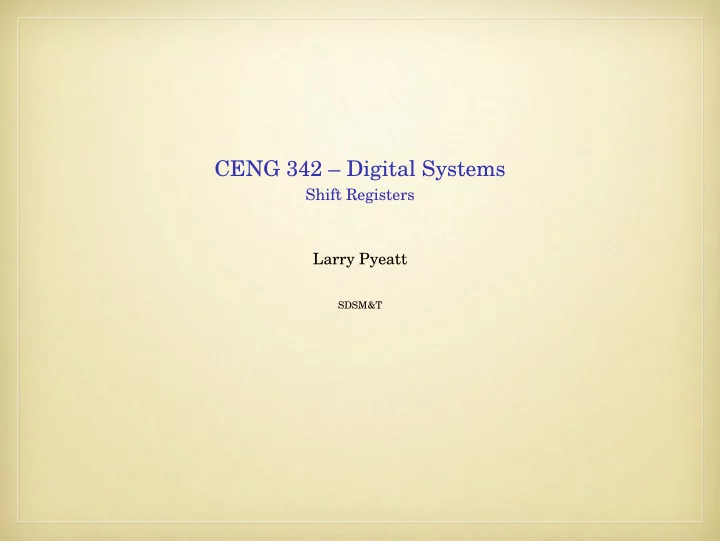

CENG 342 – Digital Systems
Shift Registers Larry Pyeatt
SDSM&T
CENG 342 Digital Systems Shift Registers Larry Pyeatt SDSM&T - - PowerPoint PPT Presentation
CENG 342 Digital Systems Shift Registers Larry Pyeatt SDSM&T - - PowerPoint PPT Presentation
CENG 342 Digital Systems Shift Registers Larry Pyeatt SDSM&T Compare Two Circuits What is the difference between these two circuits? What are their functions? d q d q d q d q I 3 I 2 I 1 I 0 clk clk clk clk R Q 3 Q 2 Q 1 Q
SLIDE 2
SLIDE 3
Basic Shift Register
Free-running shift register: the simplest shift register that shift 1 bit to right or left in each clock cycle. No control signal is required. N-bit free-running shift-right register: serial mode (one input and one output, the register is shifted in the same direction) Example: 4-bit shift-right register
d q clk d q clk d q clk d q clk In Out Q4 Q1 Q2 Q3
In Out Q1 Q2 Q3 Q4 t0 1 U U U U t1 1 U U U t2 1 1 U U t3 1 1 1 U t4 1 1 1 1 t5 1 1 1 t6 1 1 1 t7 1 1
SLIDE 4
Implementation
It can be implemented as a sequential circuit with a 4-bit D register.
d q rst clk 1-bit right shifter Output Logic reset clk d q
1 4 4 4 1
SLIDE 5
VHDL Implementation
1 library ieee; 2 use ieee.std_logic_1164.all; 3 4 entity free_run_shift_reg is 5
generic(N: integer := 4);
6
port(
7
clk, reset: in std_logic;
8
s_in: in std_logic;-- one bit
9
s_out: out std_logic--one bit
10
);
11 end free_run_shift_reg; 13 architecture arch of free_run_shift_reg is 14
signal r_reg: std_logic_vector(N-1 downto 0);
15
signal r_next: std_logic_vector(N-1 downto 0);
16 begin 17
- - register
18
process(clk,reset)
19
begin
20
if (reset=’1’) then
21
r_reg <= (others=>’0’);
22
elsif (clk’event and clk=’1’) then
23
r_reg <= r_next;
24
end if;
25
end process;
26 27
- - next-state logic
28
r_next <= s_in & r_reg(N-1 downto 1);
29 30
- - output
31
s_out <= r_reg(0);
32 end arch;
SLIDE 6
Universal Shift Register
A register capable of shifting in one direction is a unidirectional shift register. A bidirectional shift register is able to shift in both directions. A universal shift register can load parallel data, shift left, shift right, or simply retain its contents.
A 2-bit control signal is used to determine the specific operation at each clock cycle. Function Table for universal shift register: Control Operation No change 1 Shift Left 1 Shift Right 1 1 Parallel load
SLIDE 7
Universal Shift Register – Block diagram
d q rst clk
4 4
11 01 10 00
4 4 4 4 1 4 4 2 4 1
1-bit right shifter shifter 1-bit left q control d reset clk d3 d0
SLIDE 8
VHDL Implementation – Part 1
1 library ieee; 2 use ieee.std_logic_1164.all; 3 4 entity univ_shift_reg is 5
generic(N: integer := 4);
6
port(
7
clk, reset: in std_logic;
8
ctrl: in std_logic_vector(1 downto 0);
9
d: in std_logic_vector(N-1 downto 0);
10
q: out std_logic_vector(N-1 downto 0)
11
);
12 end univ_shift_reg;
SLIDE 9
VHDL Implementation – Part 2
14 architecture arch of univ_shift_reg is 15
signal r_reg: std_logic_vector(N-1 downto 0);
16
signal r_next: std_logic_vector(N-1 downto 0);
17 begin 18
- - register
19
process(clk,reset)
20
begin
21
if (reset=’1’) then
22
r_reg <= (others=>’0’);
23
elsif (clk’event and clk=’1’) then
24
r_reg <= r_next;
25
end if;
26
end process;
27
- - next-state logic
28
with ctrl select
29
r_next <= r_reg when "00", --no op
30
r_reg(N-2 downto 0) & d(0) when "01", --shift left and insert d(0)
31
d(N-1) & r_reg(N-1 downto 1) when "10",--shift right and insert d(N-1)
32
d when others; -- load
33
- - output
34
q <= r_reg;
35 end arch;
