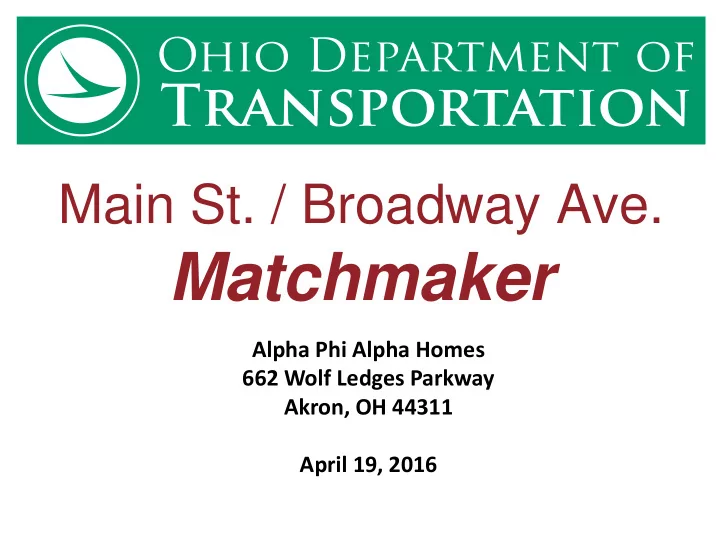

Main St. / Broadway Ave. Matchmaker Alpha Phi Alpha Homes 662 Wolf Ledges Parkway Akron, OH 44311 April 19, 2016

Project Overview The purpose of the project is for the reconstruction of the Main/Broadway Interchange along I-76. Project will remove interchanges at Wolf Ledges Pkwy. and Grant St. and reconstruct access points and re-align Main/Broadway at I-76. • Physical Construction cost $106.1mil • Construction Inspection Cost $5.4mil • Railroad Reimbursement Cost $1.1mil Estimated Cost $112.6M

Project Site Plan

Project Schedule SUM-76-10.00 (PID 77269) • Sale Date: 5/12/16 • Award Date: 5/23/16 • Estimated Begin Construction 07/11/16 Title • Estimated End Construction 06/30/20 Title Subtitle Date Subtitle Date

Anticipated Project Work Types: CODE DESCRIPTION CODE DESCRIPTION 1 Clearing & Grubbing 28 Caissons/Drilled Shafts 2 Building Removal 34 Earth Retaining Structures 3 Gas, Oil, water well abandonments 35 Drainage (culverts, misc.) 4 Roadway Excavation & Embankment 36 Guardrail/Attenuators 7 Soil Stabilization 37 Fence 8 Temp. soil erosion and sediment control 38 Misc. Concrete 9 Aggregate Bases 39 Maintenance of Traffic 10 Flexible Paving 40 waterproofing 12 Rigid Paving 41 raised pavement markers 13 Pavement Planning, Milling, Scarification 42 Signing 14 Concrete texturing 43 Highway Lighting 15 Sawing 44 Traffic Signals-Standard 19 Structure Removal 45 Pavement Markings 21 Level 2 Bridge 46 Landscaping 22 Level 3 Bridge 47 Mowing 23 Reinforcing Steel 48 Trucking 24 Structural Steel Erection 53 Piling 25 Stud Welding Fiber Optic Cable Installations, Splicing, 26 Structural Steel Painting 55 Termination and Testing - Traffic Signal System Sealing of Concrete Surfaces with Epoxy or Expansion & Contraction Joints, Joint Sealers, 57 non-epoxy Sealers 27 Bearing Devices

Roadway & Pavement Work Types 1 – Clearing & Grubbing 2 – Building Removal 3 – Gas, Oil, Water Well Abandonment 4 – Roadway Excavation and Embankment 9 – Aggregate Base 10 – Flexible Paving 12 – Rigid Paving Title 13 – Pavement Planning, Milling, Title Scarification Subtitle 14 – Concrete texturing Date Subtitle 15 – Sawing Roadway & Pavement work Date 36 – Guardrail/Attenuators Estimated Cost $15.0 M 37 – Fence

Structures Work Types 19 – Structure Removal 21 – Level 2 Bridge 22 – Level 3 Bridge 23 – Reinforcing Steel 24 – Structural Steel Erection 25 – Stud Welding 26 – Structural Steel Painting 27 – Expansion & Contraction Joints, Joint Sealers, Bearing Devices Title 28 – Caissons/Drilled Shafts 34 – Earth Retaining Structures Title 38 – Misc. Concrete Subtitle 40 – Waterproofing Date 53 – Piling Structure work Subtitle 57 – Sealing of Concrete Surfaces with Epoxy Date or Non-Epoxy Sealers Estimated Cost $43.2 M

Drainage, Erosion Control & Waterwork Work Types 7 – Soil Stabilization 8 – Temp. Soil Erosion and Sediment Control 35 – Drainage (Culverts, misc.) 46 – Landscaping 47 - Mowing Title Title Subtitle Date Subtitle Drainage, Erosion Control & Date Waterwork Estimated Cost $9.5 M

Traffic Control, Signals, Lighting Work Types 41 – Raised Pavement Markers 42 – Signing 43 – Highway Lighting 44 – Traffic Signals, Standard 45 – Pavement Markings Title 55 – Fiber Optic Cable Installations, Splicing, Title Termination and Testing – Traffic Signal System Subtitle Date Subtitle Traffic Control, Signals, Date Lighting Work Estimated Cost $4.5 M

Maintenance of Traffic Work Types 39 – Maintenance of Traffic Phases and Detours EMS Coordination Title Title Subtitle Date Subtitle Maintenance of Traffic Work Date Estimated Cost $8.9 M

Disadvantage Business Enterprise (DBE) • Contains the Proposal Note 013 - Disadvantaged Business Enterprise (DBE) Utilization Plan And Good Faith Efforts, updated 05/29/2015 • All Bidders shall submit a DBE Utilization Plan at the time of bid setting forth specific information demonstrating how the Bidder will achieve the DBE goal . • DBE Goal 15%

DBE Certified firms DBE Certification Directory • http://www.dot.state.oh.us/Divisions/ODI/SDBE/Pages/DBE- Directory.aspx

How to find project documents Plan holders list http://www.dot.state.oh.us/divisions/contractadmin/Contracts/Planholders/160219bi d.txt Addenda http://contracts.dot.state.oh.us/search.jsp?cabinetId=1000&PROJECT_NUM=160219 Plans http://contracts.dot.state.oh.us/search.jsp?cabinetId=1002&PROJECT_NUM=160219 Proposal http://contracts.dot.state.oh.us/search.jsp?cabinetId=1003&PROJECT_NUM=160219
