COS SR 16/541 08.99/19.10 INTERCHANGE UPGRADE PROJECT MATCHMAKER EVENT DISTRICT 5- SONJA SIMPSON, DEPUTY DIRECTOR DECEMBER 14, 2017 ODOT S M ISSION To provide easy movement of people and goods from place to place, we will:

slide-1
SLIDE 1

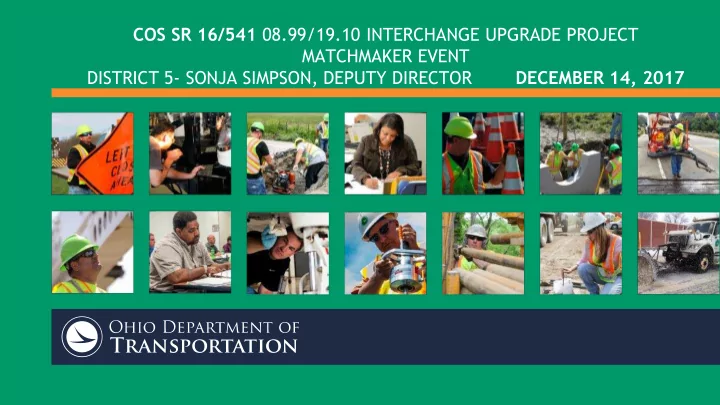

COS SR 16/541 08.99/19.10 INTERCHANGE UPGRADE PROJECT MATCHMAKER EVENT DISTRICT 5- SONJA SIMPSON, DEPUTY DIRECTOR DECEMBER 14, 2017

slide-2
SLIDE 2

2 | COS SR 16/541 08.99/19.10

To provide easy movement

  • f people and goods from

place to place, we will:

__________________________________

Take care of what we have;

_________________________________

Make our system work better;

_________________________________

Improve safety;

_________________________________

Enhance capacity.

ODOT’ S M ISSION

slide-3
SLIDE 3

3 |

DISTRICT 5

COS SR 16/541 08.99/19.10

  • Seven Counties
  • 3,731 miles of roads
  • 1,094 Bridges
  • 20 Garages/Outposts
  • Operating Budget
  • approx. $34 million
  • CAPITAL PROGRAM
  • Over 55 Construction Projects
  • Over 165 Million Dollars
slide-4
SLIDE 4

4 |

PROJECT MANAGER & ENGINEERS

COS SR 16/541 08.99/19.10

Heather Gilbert, P.E. ,Project Manager Dave Johnson, P.E. ,Construction Area Engineer Steve Miller, P.E. ,Construction Project Engineer

slide-5
SLIDE 5

5 |

PROJECT LOCATION

COS SR 16/541 08.99/19.10

  • Proj. No. 180001

COS-16/541- 8.99/19.10 PID 93263

slide-6
SLIDE 6

6 |

PROJECT OVERVIEW

COS SR 16/541 08.99/19.10

ESTIMATED COST

$20.5 Million

Purpose: Replacement of the SR 541/16 overpass bridge and deck replacement of the Three Rivers bridge. Reconstruction of the SR 541/16 interchange to a tight diamond

  • configuration. Approximately 1 mile of full depth pavement replacement on SR 16.
slide-7
SLIDE 7

7 |

PROJECT SCHEMATIC

COS SR 16/541 08.99/19.10

  • Proj. No. 180001

COS-16/541- 8.99/19.10 PID 93263

SR 16 SR 541

slide-8
SLIDE 8

8 |

PROJECT WORK

COS SR 16/541 08.99/19.10

WORK WILL INCLUDE:

ORK WILL INCLUDE:

Bridge replacement of SR 16/541 overpass Deck replacement of SR 541 river bridge Interchange ramps reconfigured to tight diamond Full-depth pavement replacement on SR 16 for approx. 1 mile Pedestrian tunnel under SR 541 with retaining wall and parking lot Two new mast arm signal installations Decorative street lighting and sidewalks

slide-9
SLIDE 9

9 |

SCHEDULE

COS SR 16/541 08.99/19.10

Sale Date: 01/11/2018 Award Date: 01/22/2018 Construction Start: 04/01/2018 Construction End: 07/31/2020

slide-10
SLIDE 10

10 |

ROADWAY PAVEMENT TYPES

COS SR 16/541 08.99/19.10

206 Cement Stabilization, 14”: 59,433 SY 203 Excavation/Embankment: 5,989 CY Waste Material 304 Aggregate Base: 9,860 CY 301 Asphalt Concrete Base: 7,415 CY 441 & 442 Inter. Asphalt: 2,188 CY 441 & 442 Surface Asphalt: 2,490 CY 452 Concrete Pavement: 10,198 SY

Roadway & Pavement Work

Estimated Cost $5.5 M

slide-11
SLIDE 11

11 |

STRUCTURES WORK TYPES

COS SR 16/541 08.99/19.10

SR 541/16 Bridge Replacement: concrete slab bridge with wall type piers SR 541/River Bridge Deck Replacement Pedestrian Tunnel: 12’x10’ Box Culvert 145 ft. Cast In Place Retaining Wall

Structures Work

Estimated Cost $10.9M

slide-12
SLIDE 12

12 |

DRAINAGE & EROSION CONTROL TYPES

COS SR 16/541 08.99/19.10

605 Underdrains: 22,649 FT

  • Misc. 8 in. to 30 in. drainage conduit: 1,296 FT
  • Misc. Catch Basins, Inlets & Manholes: 20 EA

Drainage & Erosion Control

Estimated Cost $1.0 M

slide-13
SLIDE 13

13 |

TRAFFIC CONTROL, TRAFFIC SIGNALS & LIGHTING WORK TYPES

COS SR 16/541 08.99/19.10

  • Misc. overhead and ground mounted signs

LED Decorative Street Lights: 44 EA 2 Decorative Mast Arm Signalized Intersections

Traffic Control, Traffic Signals & Lighting Work

Estimated Cost $1.0 M

slide-14
SLIDE 14

14 |

MAINTENANCE OF TRAFFIC WORK TYPES

COS SR 16/541 08.99/19.10

614 Maintaining Traffic 622 Port. Concrete Barrier: 22,710 FT.

Maintenance of Traffic Work

Estimated Cost $1.2 M

slide-15
SLIDE 15

15 |

DISADVANTAGE BUSINESS ENTERPRISE (DBE)

COS SR 16/541 08.99/19.10

DBE Goal 11%

Contains the Proposal Note 013 - Disadvantaged Business Enterprise (DBE) Utilization Plan and Good Faith Efforts, updated 05/29/2015 All bidders shall submit a DBE Utilization Plan at the time of bid setting forth specific information demonstrating how the bidder will achieve the DBE goal.

DBE Certified Firms:

slide-16
SLIDE 16

16 |

QUESTIONS

COS SR 16/541 08.99/19.10

How to Find US ODOT District 5 9600 Jacksontown Road SE Jacksontown, OH 43030 740-323-4400

slide-17
SLIDE 17

17 |

QUESTIONS

COS SR 16/541 08.99/19.10

THANK YOU FOR ATTENDING!
