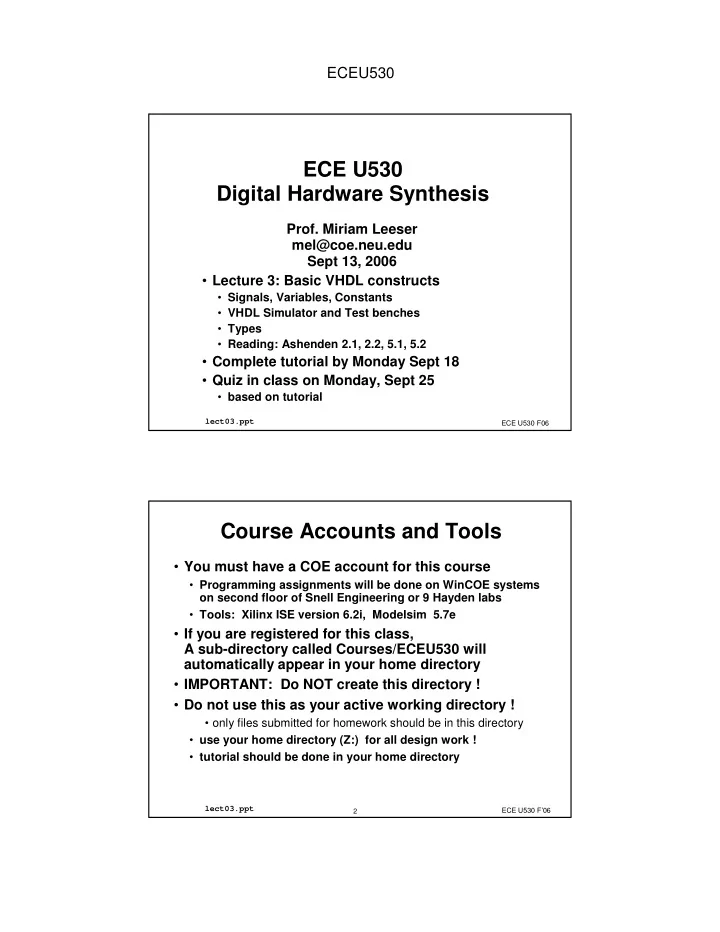

ECE U530 Digital Hardware Synthesis

• Lecture 3: Basic VHDL constructs
• Signals, Variables, Constants
• VHDL Simulator and Test benches
• Types
• Reading: Ashenden 2.1, 2.2, 5.1, 5.2
• Complete tutorial by Monday Sept 18
• Quiz in class on Monday, Sept 25
• based on tutorial

ECE U530 F06

lect03.ppt

• Prof. Miriam Leeser

mel@coe.neu.edu Sept 13, 2006

ECE U530 F’06 2

lect03.ppt

Course Accounts and Tools

• You must have a COE account for this course
• Programming assignments will be done on WinCOE systems
• n second floor of Snell Engineering or 9 Hayden labs
• Tools: Xilinx ISE version 6.2i, Modelsim 5.7e
• If you are registered for this class,

A sub-directory called Courses/ECEU530 will automatically appear in your home directory

• IMPORTANT: Do NOT create this directory !
• Do not use this as your active working directory !
• only files submitted for homework should be in this directory
• use your home directory (Z:) for all design work !
• tutorial should be done in your home directory

ECEU530

ECE U530 F’06 3

lect03.ppt

Xilinx and Modelsim Tutorial

• Create a directory for this course in your COE home

directory:

• Open an Explorer window

(right click on Start and choose Explore)

• Navigate to Coewin
• winusers
• User_Name

This is your directory on the COE system

• Create a new folder called 530local:

right click in the directory and choose New

• Folder
• (You may already have a folder called ECEU530)
• Note: It is important that you not put empty spaces in

any directory in the path for this course. The software tools do not recognize empty spaces. All names must be 8 characters or less.

ECE U530 F’06 4

lect03.ppt

For Help with Tools

• For help with Xilinx or Modelsim:
• send an email to mel@coe.neu.edu
• Tell me, as specifically as possible:
• what the problem is
• what machine you are running on and where
• Is it a problem in Modelsim or Xilinx ...
• For help with login, coe account,etc. send email to:
• help@coe.neu.edu

ECEU530

ECE U530 F’06 5

lect03.ppt

ECE U530 F’06 6

lect03.ppt

ECEU530

ECE U530 F’06 7

lect03.ppt

ECE U530 F’06 8

lect03.ppt

Design Processing

• Analysis
• Elaboration
• Simulation
• Synthesis

ECEU530

ECE U530 F’06 9

lect03.ppt

Analysis

• Check for syntax and semantic errors
• syntax: grammar of the language
• semantics: the meaning of the model
• Analyze each design unit separately
• entity declaration
• architecture body
• …
• Analyzed design units are placed in a library

in an implementation dependent internal form

• current library is called work

ECE U530 F’06 10

lect03.ppt

Elaboration

• “Flattening” the design hierarchy
• create ports
• create signals and processes within architecture body
• for each component instance, copy instantiated entity and

architecture body

• repeat recursively
• bottom out at purely behavioral architecture bodies
• Final result of elaboration
• flat collection of signal nets and processes

ECEU530

ECE U530 F’06 11

lect03.ppt

Elaboration Example

int_clk d0 d1 d2 d3 en clk q0 q1 q2 q3 bit0 d_latch d clk q bit1 d_latch d clk q bit2 d_latch d clk q bit3 d_latch d clk q gate and2 a b y reg4(struct)

ECE U530 F’06 12

lect03.ppt

Elaboration Example

int_clk d0 d1 d2 d3 en clk q0 q1 q2 q3 bit0 bit1 bit2 bit3 gate reg4(struct) d_latch(basic) d clk q d_latch(basic) d clk q d_latch(basic) d clk q d_latch(basic) d clk q and2(basic) a b y

process with variables and statements

ECEU530

ECE U530 F’06 13

lect03.ppt

Simulation

• Execution of the processes in the elaborated model
• Discrete event simulation
• time advances in discrete steps
• when signal values change—events
• A processes is sensitive to events on input signals
• specified in wait statements
• resumes and schedules new values on output signals
• schedules transactions
• event on a signal if new value different from old value

ECE U530 F’06 14

lect03.ppt

ECEU530

ECE U530 F’06 15

lect03.ppt

Test Benches

• Testing a design by simulation
• Use a test bench model
• an architecture body that includes an instance of the design

under test

• applies sequences of test values to inputs
• monitors values on output signals
• either using simulator
• or with a process that verifies correct operation

ECE U530 F’06 16

lect03.ppt

Test Bench Example

entity test_bench is end entity test_bench; architecture test_reg4 of test_bench is signal d0, d1, d2, d3, en, clk, q0, q1, q2, q3 : bit; begin dut : entity work.reg4(behav) port map ( d0, d1, d2, d3, en, clk, q0, q1, q2, q3 ); stimulus : process is begin d0 <= ’1’; d1 <= ’1’; d2 <= ’1’; d3 <= ’1’; wait for 20 ns; en <= ’0’; clk <= ’0’; wait for 20 ns; en <= ’1’; wait for 20 ns; clk <= ’1’; wait for 20 ns; d0 <= ’0’; d1 <= ’0’; d2 <= ’0’; d3 <= ’0’; wait for 20 ns; en <= ’0’; wait for 20 ns; … wait; end process stimulus; end architecture test_reg4;

ECEU530

ECE U530 F’06 17

lect03.ppt

Regression Testing

• Test that a refinement of a design is correct
• that lower-level structural model does the same as a

behavioral model

• Test bench includes two instances of design under

test

• behavioral and lower-level structural
• stimulates both with same inputs
• compares outputs for equality
• Need to take account of timing differences

ECE U530 F’06 18

lect03.ppt

Regression Test Example

architecture regression of test_bench is signal d0, d1, d2, d3, en, clk : bit; signal q0a, q1a, q2a, q3a, q0b, q1b, q2b, q3b : bit; begin dut_a : entity work.reg4(struct) port map ( d0, d1, d2, d3, en, clk, q0a, q1a, q2a, q3a ); dut_b : entity work.reg4(behav) port map ( d0, d1, d2, d3, en, clk, q0b, q1b, q2b, q3b ); stimulus : process is begin d0 <= ’1’; d1 <= ’1’; d2 <= ’1’; d3 <= ’1’; wait for 20 ns; en <= ’0’; clk <= ’0’; wait for 20 ns; en <= ’1’; wait for 20 ns; clk <= ’1’; wait for 20 ns; … wait; end process stimulus; ...

ECEU530

ECE U530 F’06 19

lect03.ppt

Regression Test Example

… verify : process is begin wait for 10 ns; assert q0a = q0b and q1a = q1b and q2a = q2b and q3a = q3b report ”implementations have different outputs” severity error; wait on d0, d1, d2, d3, en, clk; end process verify; end architecture regression;

ECE U530 F’06 20

lect03.ppt

ECEU530

ECE U530 F’06 21

lect03.ppt

Synthesis

• Register Transfer Level Synthesis:
• Translates register-transfer-level (RTL) design into gate-level

netlist

• Restrictions on coding style for RTL model
• Tool dependent
• High Level Synthesis
• Translate behavioral code to RTL level
• Beyond the scope of this course
• Logic Level Synthesis
• Tranlate gate-level net list into implementation technology

ECE U530 F’06 22

lect03.ppt

Basic Design Methodology

Requirements Simulate RTL Model Gate-level Model Synthesize Simulate Test Bench ASIC or FPGA Place & Route Timing Model Simulate

ECEU530

ECE U530 F’06 23

lect03.ppt

Modeling Digital Systems: Definitions

• System is made up of components connected by

signals

• Model interface to components (entity)

and their behavior (architecture)

• A signal carries logical values
• logical values: ‘1’ and ‘0’
• these are abstractions for real voltage values
• convenient for modeling digital systems
• Signals change value over time
• a change in value is an event
• A time ordered sequence of events on a signal

produces a waveform

ECE U530 F’06 24

lect03.ppt

Example: Half Adder

Inputs Outputs a b s c 0 0 0 1 1 0 1 1 0 0 1 0 1 0 0 1

c = a b s = a b . + Half adder a b c s

ECEU530

ECE U530 F’06 25

lect03.ppt

Half Adder Timing

• Event on b: XOR evaluates

causes s to change value

• There is a propagation delay associated with

a logic gate evaluating

a b c s

a b s c time

ECE U530 F’06 26

lect03.ppt

Events and Signals

• Event: 0 1 transition

1 0 transition

• Signal values: 0, 1
• When simulator starts, signals are undefined: U
• What happens if I have a short circuit?
• Driving both 0 and 1 on same wire: X
• (meaning for simulation, not for synthesis)
• High Impedance output: Z
• Don’t Care:

ECEU530

ECE U530 F’06 27

lect03.ppt

Signal Types

• In VHDL all signals have types
• We use the type std_logic
• It is defined in a package:
• ieee.std_logic_1164.all
• It defines a std_logic signal to be able to have values:
• 0, 1, X, U, Z,

and 3 others

ECE U530 F’06 28

lect03.ppt

Half Adder in VHDL

• Describe entity, architecture

library ieee; use ieee.std_logic_1164.all; entity half_adder is port (a,b: in std_logic; sum, carry: out std_logic); end entity half_adder;

• half_adder is the name of the entity
• port ( ); is the port list

ECEU530

ECE U530 F’06 29

lect03.ppt

VHDL syntax

• VHDL syntax:

− − − − − − − − coment ; ends a line

• VHDL is case INsensitive
• halfADDer is the same as HALFADDER is the same as

halfadder

• From the language templates in the Xilinx tool:

entity ENTITY_NAME is port ( <port_declarations> ); end ENTITY_NAME;

ECE U530 F’06 30

lect03.ppt

VHDL ports

port (a,b: in std_logic; sum, carry: out std_logic);

• A port is described as:
• A signal name
• A mode: in, out or inout

(many synthesis tools do not allow inout)

• A type
• we are using std_logic

library ieee; use ieee.std_logic_1164.all;

• ieee package defines the type std_logic and operators on

std_logic (and, or, ...)

• Packages are stored in a library

ECEU530

ECE U530 F’06 31

lect03.ppt

Half Adder Architecture

• So far we have only described the interface
• Architecture describes how the half adder behaves

architecture blogic of half_adder is begin sum <= (a xor b) after 5 ns; carry <= (a and b) after 5 ns; end architecture blogic;

• Boolean logic operators:
• and, or, nand, nor, xor, xnor, not
• these are defined in package std_logic

ECE U530 F’06 32

lect03.ppt

Signal Assignment

sum <= (a xor b) after 5 ns;

• <= is signal assignment
• signal assignment always has some delay associated

with it

sum <= (a xor b) after 5 ns;

• gets evaluated whenever a or b change
• sum gets updated 5 nseconds later (simulator)
• To understand this, need to know something about

how the simulator works

ECEU530

ECE U530 F’06 33

lect03.ppt

Events

• Event: 0 1 transition

1 0 transition

• Over time, a sequence of events on a signal produce

a waveform on that signal

• The effects of an event propagate through the circuit:
• events on inputs cause changes on internal signals

and on output signals

• ouputs are inputs to other circuits
• ...
• Digital circuits are modeled with:
• events, delays, concurrent operation, waveforms

ECE U530 F’06 34

lect03.ppt

VHDL Simulator

• Assumption:
• All gates have some delay between input changing and
• utput changing
• minimum delay is δ

δ δ δ

• Simulator models delays, events, concurrency
• Events change in value at a discrete point in time
• In other words, transitions are instantaneous
• There is no delay for the transition itself

ECEU530

ECE U530 F’06 35

lect03.ppt

VHDL’s Simulation Model

• 1. Initialize all signals, set time to t =0
• 2. For all signals that have events at time t,

activate processes, statements or gates triggered by those signals

• 3. Evaluate processes and schedule events on
• utputs to occur at future time (never NOW !)

by putting events in time queue

• 4. If there are more events (or simulation time not over)

Then update t to next event and go to step 2 Else simulation over Next event may be at t + δ δ δ δ, t + 5ns, t + 2 minutes ...

ECE U530 F’06 36

lect03.ppt

VHDL Simulation

• This is discrete event simulation:
• Advance time to next event
• Only model events or changes in the circuit
• Alternative: advance time to next possible time and simulate.

This is NOT used in VHDL.

• Two stages:
• propagate events and signals and evaluate their effects
• Schedule outputs to change some time in the future

ECEU530

ECE U530 F’06 37

lect03.ppt

Simulation Definitions

• Signals are values on wires that change over time
• Components (gates, flip-flops,...) take signals as

inputs and generate signals as outputs

• A system is a set of components connected by wires
• An event occurs on a signal when it changes value
• An event has a time associated with it

ECE U530 F’06 38

lect03.ppt

Discrete Event Simulation

• Discrete Event Simulation (DES) has an event list data

structure:

• Ordered list of future events
• Ordered by time stamp of event
• time stamp is time in future that event will occur
• Simulator clock keeps track of current time in system
• State of simulation:
• value of all signals at current time
• Initially all signals are uninitialized

ECEU530

ECE U530 F’06 39

lect03.ppt

ECE U530 F’06 40

lect03.ppt

ECEU530

ECE U530 F’06 41

lect03.ppt

How to use the simulator

• Describe circuit in VHDL
• Describe inputs to circuit for simulation purposes
• How are input events described?
• In simulator, manually set inputs look at outputs
• r
• write a testbench to set inputs monitor outputs
• User writes a testbench:
• Can be written in VHDL
• Includes Design Under Test (DUT) as a component
• Specifies input stimuli, may check outputs
• Usually no ports in a testbench
• Usually NOT synthesizable

ECE U530 F’06 42

lect03.ppt

Xilinx has a tool for creating a testbench

• The Xilinx suite has a tool that will automatically

create a testbench for you:

• You create a waveform using a graphical display
• The Xilinx Tools automatically translate this into VHDL
• See ECEU323 lab 1 for using the testbench generator

and for automatically launching Modelsim from the Xilinx tools:

• ECEU323 Lab 1 Section 5.1
• You can do the same thing for a VHDL design!
• This is in the tutorial
• ECEU323 Lab 2 Section 4.1 explains how to print out the

bitmap from your Modelsim waveform window

ECEU530

ECE U530 F’06 43

lect03.ppt

Testbench

TESTBENCH MODEL

VHDL Part Model

Stimuli Results File Input File / Graphical Output

ECE U530 F’06 44

lect03.ppt

VHDL Features

• Designs may be decomposed hierarchically
• Each design element has both an interface and an

architectural specification

• Architectural specifications can use an algorithm or a

structure to define the element's operation, or a mix

• f the two
• Concurrency, timing, and clocking can be modelled
• The logical operation and timing behavior of a design

can be simulated

ECEU530

ECE U530 F’06 45

lect03.ppt

Behavioral Architecture

Dataflow Architecture Structural Architecture

Package Entity Generic Ports

Functional Architecture

Modeling Hardware With VHDL

ECE U530 F’06 46

lect03.ppt

• Modeling Hardware with VHDL (2)

ECEU530

ECE U530 F’06 47

lect03.ppt

ECE U530 F’06 48

lect03.ppt

ECEU530

Hierarchical Design

• An architecture may use other

entities.

• A high-level architecture may

use a lower-level entity multiple times

• Multiple top-level architectures

may use the same lower-level entity

• This forms the basis for

hierarchical system design

• The language is not case sensitive
• Comments begin with 2 hyphens (--) and finish at the end of the

line.

• VHDL defines many reserved words (port, is, in, out,

begin, end, entity, architecture, if, case, ...).

VHDL Language Details

• In the text file of a VHDL program, the entity

declaration and the architecture definition are separated

ECEU530

• mode specifies the signal direction:
• in: input to the entity
• out: output of the entity
• inout: input and output of the entity
• signal-type is a built-in or user-defined signal type

Entity Declaration Syntax

• The declarations can appear in any order
• In signal declarations, internal signals to the architecture are

defined: signal signal-names : signal-type;

Architecture Definition Syntax

ECEU530

ECE U530 F’06 53

lect03.ppt

ECE U530 F’06 54

lect03.ppt

ECEU530

ECE U530 F’06 55

lect03.ppt

Signals, Variables, Constants

• A signal describes a waveform
• A signal is a series of time, event pairs
• Signals correspond to wires in a circuit
• A variable is a value
• Variables have no notion of time associated with them
• Variables do not directly model something in a circuit
• Variables are “helpers” for programming constructs
• A constant is a variable that cannot be changed
• Signals and variables can be initialized
• (Many synthesis tools do not allow signals to be initialized)
• Constants MUST be initialized, and can never be

changed

• integer includes the range
• 2 147 483 647 through +2 147 483 647
• boolean has two values, true and false
• character includes the characters in the

ISO 8-bit character set

VHDL Types

• All signals, variables, and constants MUST have an

associated type

• A type specifies the set of valid values for the object and the
• perators that can be applied to it
• VHDL is a strongly typed language
• VHDL has several pre-defined types:

ECEU530

VHDL Operators

• Built-in operators for integer and boolean types

Enumerated Types

• Enumerated types are defined by listing the allowed

values

• STD_ULOGIC is an enumerated type in VHDL

ECEU530

type traffic_light_state is (reset, stop, start, go); subtype bitnum is integer range 31 downto 0; constant BUS_SIZE: integer := 32;

User Defined Types

• User-defined types are common in VHDL programs
• User defined types can be enumerated types or

subtypes of an existing type

VHDL Array Types

• Array types are also user-defined

ECEU530

ECE U530 F’06 61

lect03.ppt

VHDL Types

scalar types types

real time integer severity_level file_open_status file_open_kind character boolean bit

access types file types discrete types integer types enumeration types floating- point types physical types composite types array types unconstrained array types constrained array types record types

bit_vector string ECE U530 F’06 62

lect03.ppt

Constants, Variables, Signals

• constants have type and value
• the value never changes
• variables have type, initial value (optional)
• updated without delay
• signals have type
• always delay before updating
• variable assignment: sequential statement :=
• evaluates when you come across it in the code
• signal assignment: concurrent statement <=
• evaluates when signal on right hand side (RHS) changes
• I can mix variables and signals
• I cannot mix types !

ECEU530

ECE U530 F’06 63

lect03.ppt

Variables vs. Signals

• Variables have a current value, changes immediately
• used in behavioral style code
• auxilliary functions
• Signals are a sequence of (value, time) pairs
• used for wires in a circuit
• values on signals can be viewed as a waveform

ECE U530 F’06 64

lect03.ppt

Concurrent vs. Sequential

• Concurrent VHDL statements are active all the time
• whenever inputs change, outputs can be scheduled to change
• Sequential VHDL statements are evaluated when they

are reached in the program

• Concurrent and sequential statements can be used to

describe combinational hardware

• Concurrent and sequential statements can be used to

describe sequential hardware

• Type of VHDL statement is about the code, not the

circuit !

ECEU530

ECE U530 F’06 65

lect03.ppt

VHDL concurrent statements

• A signal assignment is a concurrent statement:

Y <= ((not sel) and A) or (sel and B));

• statement is evaluated whenever sel, A, or B change
• A process statement is a concurrent statement

process( A, B, sel) is begin Y <= ((not sel) and A) or (sel and B)); end process;

ECE U530 F’06 66

lect03.ppt

Process statement

process ( ) <declarations> sensitivity begin list <sequential statements> end process;

• If signal on sensitivity list changes, evaluate process
• A signal assignment statement is a one-line process
• all signals on the RHS of the signal assignment statement

are automatically in the sensitivity list

ECEU530

ECE U530 F’06 67

lect03.ppt

Signal Assignment is a Process

• The signal assignment:

Y <= ((not sel) and A) or (sel and B));

• Is the SAME as the process statement:

process( A, B, sel) is begin Y <= (A and (not sel)) or (B and sel); end process; NOTE: <= -- signal assignment := -- variable assignment = -- comparison if sel = ‘0’

ECE U530 F’06 68

lect03.ppt

Sequential Statements

• Must be inside a process
• Why?
• so simulator knows when to evaluate them
• Sequential statements:
• variable assignment
• if ... then ... else

ECEU530

ECE U530 F’06 69

lect03.ppt

Libraries and Packages

• Libraries provide a set of hardware designs,

components, and functions that simplify the task of designing

• Packages provide a collection of commonly used data

types and subprograms used in a design

• The following is an example of the use of the IEEE

library and its STD_LOGIC_1164 package:

LIBRARY ieee; USE ieee.std_logic_1164.ALL;

ECE U530 F’06 70

lect03.ppt

Signals

• Signals represent wires and storage elements within

a VHDL design

• Signals may only be defined inside architectures
• Signals are associated with a data type
• Signals may have attributes
• VHDL is a strongly typed language:
• Explicit type conversion is supported
• Implicit type conversion is not supported

ECEU530

ECE U530 F’06 71

lect03.ppt

Signal Representations

‘0’ Forcing 0 ‘1’ Forcing 1 Binary

• Binary number representations are sufficient for

software programming languages

• Physical wires cannot be modelled accurately using a

binary number representation

• Additional values are necessary to accurately

represent the state of a wire

ECE U530 F’06 72

lect03.ppt

IEEE Packages

• IEEE defined a 9 valued logic system
• IEEE developed two packages for this system
• STD_LOGIC_1164.VHD
• Defines the basic value system and associated

functions

• Used as is by vendors
• NUMERIC_STD.VHD
• Provides overloaded arithmetic and other operators

for synthesis

• Vendors have developed their own versions of this

ECEU530

ECE U530 F’06 73

lect03.ppt

STD_LOGIC_1164 Data Types

• STD_LOGIC_1164 is a standardized package that

implements a set of data types

MVL – 9, Resolved, Array STD_LOGIC_VECTOR MVL – 9, Resolved STD_LOGIC MVL – 9, Unresolved, Array STD_ULOGIC_VECTOR MVL – 9, Unresolved STD_ULOGIC Characteristics Data Type

• IEEE recommends the use of the STD_LOGIC and

STD_LOGIC_VECTOR data types

ECE U530 F’06 74

lect03.ppt

STD_LOGIC_1164 - Logic Values

IEEE Standard type STD_ULOGIC is ( ‘U’,-- Uninitialized ‘X’,-- Forcing Unknown ‘0’,-- Forcing 0 ‘1’, -- Forcing 1 ‘Z’,-- High Impedance ‘W’,-- Weak Unknown ‘L’,-- Weak 0 ‘H’,-- Weak 1 ‘-’,-- Don’t care );

ECEU530

ECE U530 F’06 75

lect03.ppt

Signal Strengths

• Needed to model bus contention
• Logic values have strength
• 0 strong zero; 1 strong one
• L weak zero; H weak one
• Models the effect of source impedance
• Suppose R is the resolution function, then strong

dominates weak, i.e.

• 0 R H = H R 0 = 0
• 1 R L = L R 1 = 1

ECE U530 F’06 76

lect03.ppt

Unknown Values

• X: value is 0 or 1 W: value is L or H
• X and W are unknown values that arise from:
• Bus contention, i.e. resolving opposite values of the same

strength yields unknowns of that strength

• 0 R 1 = 1 R 0 = X L R H = H R L = W
• error conditions, e.g, a flip flop has an unknown state
• Strength and weakness applied among values and unknowns

also, e.g.:

• L R X = X, 1 R W = 1

ECEU530

ECE U530 F’06 77

lect03.ppt

Z and ‘’

• Z represents high impedance, i.e., the output of a tri-

state buffer that is turned off

• ‘’ represents don’t care
• synthesis: represents a logic don’t care that can be used for

logic minimization

• Can cause trouble in comparison statements
• simulation: sometimes acts like an X, is converted to an X

when operated on

ECE U530 F’06 78

lect03.ppt

What happens if we connect the outputs

• f two logic gates to the same point?

ECEU530

ECE U530 F’06 79

lect03.ppt

Tristate Logic and Z

The most common tristate device is the tristate buffer

• When E’=0, Y = A, i.e. this is a noninverting buffer
• When E’=1, the output is in the high-Z state

ECE U530 F’06 80

lect03.ppt

Tristate logic

• Multiple tristate gates can have their outputs

connected together, provided that at most one of them is enabled at any one time

• If you enable more than one of the gates, you are

back to the same old problem of devices fighting one another

• It is therefore important to design the “enable” logic

correctly

ECEU530

ECE U530 F’06 81

lect03.ppt

Resolution

CONSTANT resolution_table : stdlogic_table := (

• | U X 0 1 Z W L H -

| |

• ( 'U', 'U', 'U', 'U', 'U', 'U', 'U', 'U', 'U' ), -- | U |

( 'U', 'X', 'X', 'X', 'X', 'X', 'X', 'X', 'X' ), -- | X | ( 'U', 'X', '0', 'X', '0', '0', '0', '0', 'X' ), -- | 0 | ( 'U', 'X', 'X', '1', '1', '1', '1', '1', 'X' ), -- | 1 | ( 'U', 'X', '0', '1', 'Z', 'W', 'L', 'H', 'X' ), -- | Z | ( 'U', 'X', '0', '1', 'W', 'W', 'W','W', 'X' ), -- | W | ( 'U', 'X', '0', '1', 'L', 'W', 'L', 'W', 'X' ), -- | L | ( 'U', 'X', '0', '1', 'H', 'W', 'W', 'H', 'X' ), -- | H | ( 'U', 'X', 'X', 'X', 'X', 'X', 'X', ’ X', 'X' ) -- | - | );

ECE U530 F’06 82

lect03.ppt

STD_LOGIC Definition

• - *** industry standard logic type ***
• SUBTYPE std_logic IS resolved std_ulogic;
• - unconstrained array of std_logic for use
• - in declaring signal arrays
• TYPE std_logic_vector IS

ARRAY ( NATURAL RANGE <>) OF std_logic;

ECEU530

ECE U530 F’06 83

lect03.ppt

Resolution Function - Resolved

FUNCTION resolved ( s : std_ulogic_vector ) RETURN std_ulogic IS VARIABLE result: std_ulogic := 'Z'; -- weakest state default BEGIN

• - the test for a single driver is essential
• - otherwise the loop would return 'X' for a single
• - driver of '-' and that would conflict with the
• - value of a single driver unresolved signal

IF (s'LENGTH = 1) THEN RETURN s(s'LOW); ELSE FOR i IN s'RANGE LOOP result := resolution_table(result, s(i)); END LOOP; END IF; RETURN result; END resolved;
