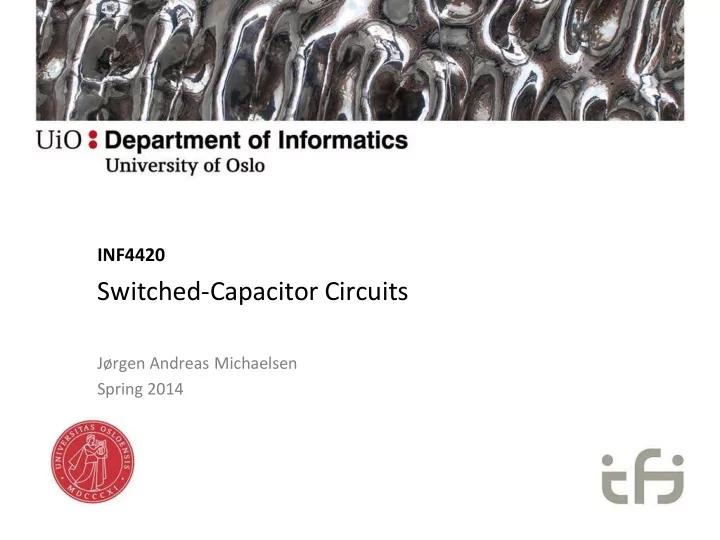

SLIDE 1
Spring 2014 Switched-Capacitor Circuits 2
Outline
- Introduction (why and how)
- Integrators and filters
- Gain circuits
- Noise and charge injection
Switched-Capacitor Circuits Jrgen Andreas Michaelsen Spring 2014 - - PowerPoint PPT Presentation
Switched-Capacitor Circuits Jrgen Andreas Michaelsen Spring 2014 - - PowerPoint PPT Presentation
INF4420 Switched-Capacitor Circuits Jrgen Andreas Michaelsen Spring 2014 Outline Introduction (why and how) Integrators and filters Gain circuits Noise and charge injection Spring 2014 Switched-Capacitor Circuits 2
SLIDE 2
SLIDE 3
Introduction
Spring 2014 Switched-Capacitor Circuits 3
Discrete time analog signal processing
Why?
SLIDE 4
Introduction
Spring 2014 Switched-Capacitor Circuits 4
The arrangement of switches and the capacitor approximates a resistor.
SLIDE 5
Introduction
Spring 2014 Switched-Capacitor Circuits 5
SLIDE 6
Introduction
RC accuracy (matching). Large time constants implies large passive components. With SC the time constant is set by capacitor ratio and clock frequency (both precisely controlled).
Spring 2014 Switched-Capacitor Circuits 6
SLIDE 7
Introduction
Spring 2014 Switched-Capacitor Circuits 7
SLIDE 8
Building blocks
Spring 2014 Switched-Capacitor Circuits 8
SLIDE 9
Integrators
Spring 2014 Switched-Capacitor Circuits 9
SLIDE 10
Discrete integrators
Analyze each clock phase separately
Spring 2014 Switched-Capacitor Circuits 10
SLIDE 11
Discrete integrators
Spring 2014 Switched-Capacitor Circuits 11
SLIDE 12
Discrete integrators
Spring 2014 Switched-Capacitor Circuits 12
Discrete time time constant
SLIDE 13
Discrete integrators
The discrete time equivalent time constant is defined by the capacitor ratio and clock frequency.
- Allows precise time constant definition.
- Allows large time constants without excessively
large passive components.
Spring 2014 Switched-Capacitor Circuits 13
SLIDE 14
Integrator parasitic capacitance
Spring 2014 Switched-Capacitor Circuits 14
Poorly controlled and non-linear
SLIDE 15
Parasitic insensitive integrators
Again, we analyze the charge transfer from one clock phase to the next to find the transfer function.
Spring 2014 Switched-Capacitor Circuits 15
Critical for performance Turn off first (bottom plate sampling)
SLIDE 16
Parasitic insensitive integrators
Spring 2014 Switched-Capacitor Circuits 16
SLIDE 17
Parasitic insensitive integrators
The parasitic capacitors still affect settling, but not the signal charge transfer.
Spring 2014 Switched-Capacitor Circuits 17
SLIDE 18
Delay free integrator
Same circuit as before, but modified clocking of the switches.
Spring 2014 Switched-Capacitor Circuits 18
SLIDE 19
Signal flow graph analysis
- Now we have the fundamental building blocks
(discrete time integrators), to realize filters.
- We need a more convenient tool to analyze large
systems.
- Signal flow graph (SFG) analysis allows us to
graphically analyze SC systems.
Spring 2014 Switched-Capacitor Circuits 19
SLIDE 20
Signal flow graph analysis
Spring 2014 Switched-Capacitor Circuits 20
SLIDE 21
SC filters
A simple design strategy:
- Start with a continuous time prototype
- Replace resistors with SC resistor equivalents
The resulting circuit is similar for input frequencies much lower than the sampling frequency
- Use SFG to determine the z-domain transfer
function Accurate description of the transfer function
Spring 2014 Switched-Capacitor Circuits 21
SLIDE 22
First order filters
Filter design example. Start with the continuous time circuit. In this case:
Spring 2014 Switched-Capacitor Circuits 22
SLIDE 23
First order filters
Replace the resistors with SC elements
Spring 2014 Switched-Capacitor Circuits 23
SLIDE 24
First order filters
Spring 2014 Switched-Capacitor Circuits 24
SLIDE 25
Switch sharing
Some switches are redundant, we use this to simplify the circuit:
Spring 2014 Switched-Capacitor Circuits 25
SLIDE 26
Biquad filters
Spring 2014 Switched-Capacitor Circuits 26
SLIDE 27
Low-Q biquad
Spring 2014 Switched-Capacitor Circuits 27
SLIDE 28
Low-Q biquad
Spring 2014 Switched-Capacitor Circuits 28
SLIDE 29
Low-Q biquad
Spring 2014 Switched-Capacitor Circuits 29
SLIDE 30
High-Q biquad
Spring 2014 Switched-Capacitor Circuits 30
SLIDE 31
High-Q biquad
Spring 2014 Switched-Capacitor Circuits 31
SLIDE 32
Gain
- Resettable gain circuit
- Samples offset voltage during reset (reduces
flicker noise)
Spring 2014 Switched-Capacitor Circuits 32
SLIDE 33
Gain
Amplifier slew-rate requirement is high.
Spring 2014 Switched-Capacitor Circuits 33
SLIDE 34
Capacitive-reset gain
Include a capacitor to hold the output during the reset phase. Avoid excessive slewing. Configurable positive or negative gain.
Spring 2014 Switched-Capacitor Circuits 34
SLIDE 35
Noise
Spring 2014 Switched-Capacitor Circuits 35
SLIDE 36
Noise
Spring 2014 Switched-Capacitor Circuits 36
SLIDE 37
Correlated double sampling (CDS)
Spring 2014 Switched-Capacitor Circuits 37
SLIDE 38
Fully differential circuits
Real circuits are almost always fully differential. Coupled noise, power supply noise, substrate noise will mostly affect the common mode, while our signal is in the differential mode. Also, cancels even
- rder harmonics.
Spring 2014 Switched-Capacitor Circuits 38
SLIDE 39
Charge injection
Spring 2014 Switched-Capacitor Circuits 39
SLIDE 40
Bootstrapped switch
Spring 2014 Switched-Capacitor Circuits 40
SLIDE 41
SC amplifier design
Spring 2014 Switched-Capacitor Circuits 41
SLIDE 42
Further reading
Sansen, Analog Design Essentials, Springer, 2006,
- Ch. 17
Spring 2014 Switched-Capacitor Circuits 42
