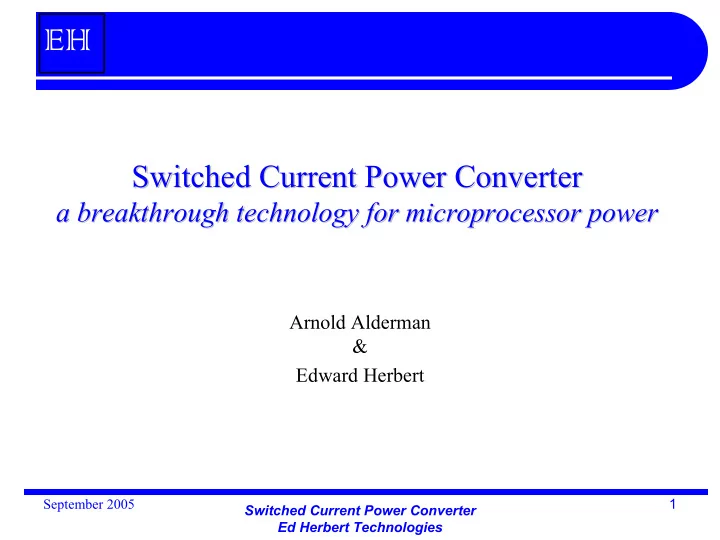

September 2005 Switched Current Power Converter Ed Herbert Technologies 1

EH

Switched Current Power Converter Switched Current Power Converter

a breakthrough technology for microprocessor power a breakthrough technology for microprocessor power

Arnold Alderman & Edward Herbert

slide-2
SLIDE 2

September 2005 Switched Current Power Converter Ed Herbert Technologies 2

EH

Arnold Alderman Arnold Alderman

  • CEO of Anagenesis, Inc., a technical marketing consulting firm

located in Los Angeles and Phoenix

  • 22 years engineering and management at Boeing, GE, and

Emerson Electric and other US power conversion companies

  • 16 years technical, product, and strategic marketing at Fairchild

Semiconductor and International Rectifier

  • Author of numerous conference papers and articles
  • Has been conference keynote speaker, plenary speaker in

conferences globally

  • Board Chairperson of the Power Sources Manufacturers

Association (PSMA)

slide-3
SLIDE 3

September 2005 Switched Current Power Converter Ed Herbert Technologies 3

EH

Edward Herbert Edward Herbert

  • Inventor, 34 issued patents - several applications

pending

  • Held both design and engineering management

positions at: IBM; Sundstrand Aviation; Hamilton Standard; Raytheon Submarine Signal Div.; Sikorsky Aircraft; and Dynamic Controls Corp.

  • Invented the Matrix transformer in late 80s
  • Founder and President of FMTT, Inc.
  • Inventor of several power factor correction circuits
slide-4
SLIDE 4

September 2005 Switched Current Power Converter Ed Herbert Technologies 4

EH

Statement of purpose Statement of purpose

  • Seeking an established company in the power

supply industry that will license this technology and :

– Develop the Switched Current Power Converter (SCPC) into a commercial product platform – Establish markets for SCPC – Work in partnership with us to license other industry suppliers – Establish the SCPC as an industry standard

slide-5
SLIDE 5

September 2005 Switched Current Power Converter Ed Herbert Technologies 5

EH

Target applications & market Target applications & market

  • Power converters for microprocessors

(VRMs, VRDs, EVRDs)

  • Video processors
  • Game console processors
  • Other applications requiring high di/dt, high dv/dt

and fast turn on and off

slide-6
SLIDE 6

September 2005 Switched Current Power Converter Ed Herbert Technologies 6

EH

Market trends Market trends

  • Faster di/dt
  • Faster dv/dt
  • Reducing system power consumption
  • Higher efficiency: Lower idle and standby power
  • Dynamically tailored power management: varying the

processor clock frequency and the core voltage to core processing activity

  • Operating system (OS) power management: moved from

the system bios

  • Increasing number of multi-core processors
slide-7
SLIDE 7

September 2005 Switched Current Power Converter Ed Herbert Technologies 7

EH

Reducing system power consumption Reducing system power consumption

  • The greatest dividend for reducing system power

comes from enabling the processor to operate at lower power most of the time

– 1.Very fast recovery. A processor must not enter a low power state unless it can resume processing quickly enough for the task – 2. Faster dv/dt. Allows better dynamic tracking of processor operational load – 3. Fast turn on and off: The most power is saved if the processor core is turned off. A very fast turn on is necessary to resume processing without dead time

slide-8
SLIDE 8

September 2005 Switched Current Power Converter Ed Herbert Technologies 8

EH

Present Present dv/dt dv/dt requirements: requirements:

  • VR 10.2:

– 2.5 mV/µs – 450 mV in 36 steps of 12.5 mV – 5 µs/step plus 50 us settling time = 230 µs

  • VR 11 (inferred):

– 6.7 mV/µs – 67 µs for 450 mV – settling time is not known

slide-9
SLIDE 9

September 2005 Switched Current Power Converter Ed Herbert Technologies 9

EH

Present di/dt requirements Present di/dt requirements

  • VR 10.2:

– Max current slew rate: 1,200 A/µs – Max current step within 1 µs: 100 A

  • Decoupling capacitors on motherboard:

– up to 16 x 560 µF Aluminum polymer – plus 54 x 10 µF MLCC

slide-10
SLIDE 10

September 2005 Switched Current Power Converter Ed Herbert Technologies 10

EH

Wasted processor power Wasted processor power

This processor is wasting power most of the time. A power supply with very fast transition time would allow it to be turned off most of the time, for very significant system power reduction

From Lawrence Berkeley Labs report to CEC

slide-11
SLIDE 11

September 2005 Switched Current Power Converter Ed Herbert Technologies 11

EH

Reduce clock and voltage Reduce clock and voltage

  • Significant system power savings result from operating the

processor with a slower clock and reduced voltage

  • With a very fast dv/dt, the processor can operate at

reduced power much more of the time

From Intel paper at IBM Symposium 2004

slide-12
SLIDE 12

September 2005 Switched Current Power Converter Ed Herbert Technologies 12

EH

Series sleep transistor in processor Series sleep transistor in processor

  • "Another innovative technique is the Dynamic Sleep

Transistor, which adds a transistor in series with the power supply that can be turned off when a block of logic circuitry is in idle mode” (Technology@Intel Magazine,

October 2005)

  • A power supply with fast dv/dt (1,500 mV/µs) and very fast

transition time (2 µs) makes the series transistor unnecessary for turning power off. This saves significant power within the processor during operation

slide-13
SLIDE 13

September 2005 Switched Current Power Converter Ed Herbert Technologies 13

EH

Dynamic clock and voltage Dynamic clock and voltage

  • AMD: " … AMD Cool ‘n’ Quiet™ technology controls

your system’s level of processor performance automatically, dynamically adjusting the operating frequency and voltage up to 30 times per second, according to the task at hand. When an application does not require full performance, significant amounts of power can be saved."

  • With the SCPC, the voltage can be adjusted continuously at

up to 1500 mV/µs, or it can be turned off entirely in 2 µs, and restored to VID voltage and full current capability in 2 µs

slide-14
SLIDE 14

September 2005 Switched Current Power Converter Ed Herbert Technologies 14

EH

Too many power states Too many power states

  • There is a proliferation of power states: system

states, sleeping states, processor power states, performance states and so forth. (A representative list is in the in the handout notes)

  • With very fast voltage tracking and very fast

transitions, many of these states are unneeded, as many are poor compromises necessitated only by poor power supply dynamics

slide-15
SLIDE 15

September 2005 Switched Current Power Converter Ed Herbert Technologies 15

EH

The Solution The Solution

  • The Switched Current Power Converter with

Switched Charge Circuit voltage control is a true break-through technology providing: – Fastest possible di/dt – Fastest possible dv/dt – Fastest possible transition times (on, off, step voltage) – Easily expandable to multiple outputs – Very low standby power

slide-16
SLIDE 16

September 2005 Switched Current Power Converter Ed Herbert Technologies 16

EH

Key benefits Key benefits

  • Saves power:

– Very fast dynamic response allows the processor to remain off or in lower power states for a greater percentage of the time

  • Saves board area:

– The bulk capacitors can be eliminated

  • Saves cost:

– Trades off capacitors for silicon – Less heat sinking

  • Increased flexibility:

– System will benefit from individual high di/dt and high dv/dt power control for each core

slide-17
SLIDE 17

September 2005 Switched Current Power Converter Ed Herbert Technologies 17

EH

SCPC impedance curve SCPC impedance curve

  • Dynamic and static impedance remains below 0.5 mΩ to 5 MHz.

(Spice model with representative parasitic impedances per Intel VR 10.2.)

  • Conditions: 50 A peak-peak ac on 50 A dc
  • No bulk capacitors, only 560 µF MLCC
slide-18
SLIDE 18

September 2005 Switched Current Power Converter Ed Herbert Technologies 18

EH

Impedance comparison Impedance comparison

  • SCPC impedance on Intel graph:

Performance with all MLCC capacitors removed

slide-19
SLIDE 19

September 2005 Switched Current Power Converter Ed Herbert Technologies 19

EH

SCPC step response SCPC step response

  • Current step is 35 A to 85 A, 100 A/µs

(Spice model with representative parasitic impedances.)

  • At 100 A/µs, the output voltage Vo is regulated throughout

the transient.

slide-20
SLIDE 20

September 2005 Switched Current Power Converter Ed Herbert Technologies 20

EH

Step response comparison Step response comparison

  • SCPC step response on Intel graph:
slide-21
SLIDE 21

September 2005 Switched Current Power Converter Ed Herbert Technologies 21

EH

SCPC voltage step response with SCC SCPC voltage step response with SCC

Switched Current Power Converter with binary switched charge

(Spice model with representative parasitic impedances.)

  • Blue curve is digital

VID input command

  • Green curve is Vo
  • Red curve is load, Io
  • VID slew: 1,500 mV/µs

(point Y)

  • No overshoot
  • Full rated current is

immediately available

Voltage adjust for high load (Y) SCC = Switch Charge Circuit

slide-22
SLIDE 22

September 2005 Switched Current Power Converter Ed Herbert Technologies 22

EH

Voltage step response, Intel graph Voltage step response, Intel graph

  • Voltage overshoot per Intel VR 10.2: 50 mv, 25 µs!
slide-23
SLIDE 23

September 2005 Switched Current Power Converter Ed Herbert Technologies 23

EH

SCPC components SCPC components

Switched Current Power Converter Block Diagram

  • Converter

– Current sources – Current switches

  • Measurement
  • Control
slide-24
SLIDE 24

September 2005 Switched Current Power Converter Ed Herbert Technologies 24

EH

Basic SCPC Basic SCPC

  • The SCPC controls the output current and steady state

voltage by switching currents with solid-state switches

  • There is no faster converter!
slide-25
SLIDE 25

September 2005 Switched Current Power Converter Ed Herbert Technologies 25

EH

Voltage measurement Voltage measurement

  • The output voltage is measured using a flash a-d converter
  • There is no faster voltage measurement!
slide-26
SLIDE 26

September 2005 Switched Current Power Converter Ed Herbert Technologies 26

EH

SCPC control SCPC control

  • The outputs of the flash a-d directly control the current

switches

  • There is no faster control!
slide-27
SLIDE 27

September 2005 Switched Current Power Converter Ed Herbert Technologies 27

EH

Total charge measurement Total charge measurement

  • With distributed capacitors and parasitic inductance, the
  • utput voltage is not stable enough to use as control input.
  • The answer: measure total charge as the control input.
  • There is no faster measurement for control!
slide-28
SLIDE 28

September 2005 Switched Current Power Converter Ed Herbert Technologies 28

EH

Switched Charge Circuits Switched Charge Circuits

  • Switched Charge Circuits can be added to the SCPC for very fast dv/dt,

with no changes to the other circuits

  • There is no faster upgrade!
slide-29
SLIDE 29

September 2005 Switched Current Power Converter Ed Herbert Technologies 29

EH

The Switched Charge Circuit The Switched Charge Circuit

  • The output voltage can be stepped very quickly and

accurately, up or down, using the Switched Charge Circuit. A precise charge Q is added to the output capacitor Co.

  • There is no faster way to step the output voltage!
slide-30
SLIDE 30

September 2005 Switched Current Power Converter Ed Herbert Technologies 30

EH

Binary Switched Charge Binary Switched Charge

  • Digital VID controls

the binary switched charge circuits

  • Digital VID change

causes a rapid voltage step (< 0.5 µs)

  • Output voltage can

slew very rapidly (up to 1500 mV/µs) when the digital VID is sequenced

slide-31
SLIDE 31

September 2005 Switched Current Power Converter Ed Herbert Technologies 31

EH

Multiple outputs are easy! Multiple outputs are easy!

  • For multiple voltage outputs,

just divide the SCPC into multiple parts

  • Each has its own voltage reference (VID) and flash a-d converter

SCPC#1 SCPC#2

Vo1 Vo2

slide-32
SLIDE 32

September 2005 Switched Current Power Converter Ed Herbert Technologies 32

EH

Idle current Idle current

  • Increasing efficiency in low power modes:

If the primary current is reduced, fewer switches carry circulating current, and the circulating current is lower

slide-33
SLIDE 33

September 2005 Switched Current Power Converter Ed Herbert Technologies 33

EH

Coaxial transformer module Coaxial transformer module

The logic is simple:

  • The “Clock” is

synchronized to the primary switching

  • The “On” is the

flash a-d comparator

  • utput
  • The “On” bandwidth

is not limited by the “Clock”

slide-34
SLIDE 34

September 2005 Switched Current Power Converter Ed Herbert Technologies 34

EH

Summary Summary

  • Market trends: Faster di/dt; Faster dv/dt; More multiple
  • utputs
  • The SCPC: There is no faster converter
  • Flash A/D connected directly to current switches: There is

no faster control

  • Total Charge Measurement: There is no faster

measurement for control

  • Adding the Switched Charge Circuit: There is no faster

upgrade!

slide-35
SLIDE 35

September 2005 Switched Current Power Converter Ed Herbert Technologies 35

EH

Patent Status Patent Status

  • This technology is covered in part by U. S. Patent No.

6,121,761, "Fast Transition Power Supply", issued 19 September, 2000

  • Other patents have been allowed and more are pending

Thank You Thank You – – Any Questions? Any Questions?
