Remote Sensing and Optical Imaging/Sensing -- Introduction -- Sarun Sumriddetchkajorn NSTDA Research Fellow National Electronics and Computer Technology Center (NECTEC) National Science and Technology Development Agency (NSTDA) Ministry of

slide-1
SLIDE 1

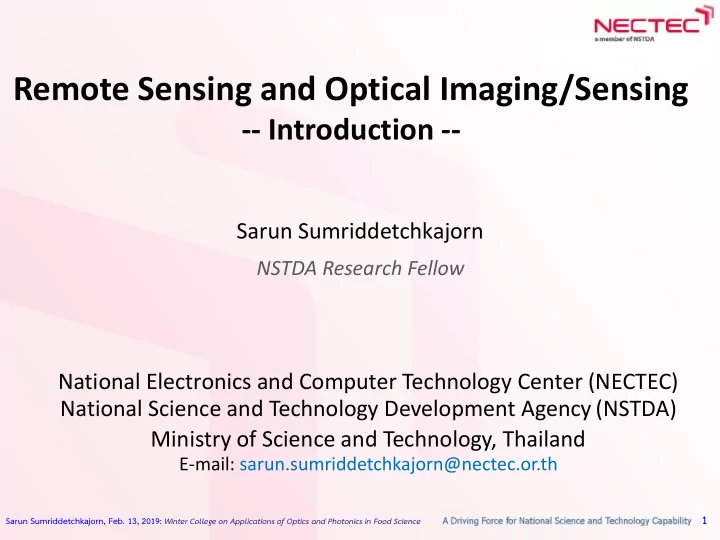

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

1

Remote Sensing and Optical Imaging/Sensing

  • - Introduction --

Sarun Sumriddetchkajorn

NSTDA Research Fellow

National Electronics and Computer Technology Center (NECTEC) National Science and Technology Development Agency (NSTDA) Ministry of Science and Technology, Thailand

E-mail: sarun.sumriddetchkajorn@nectec.or.th

slide-2
SLIDE 2

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

2

Outlines

  • Brief Introduction about NSTDA, NECTEC
  • (Far) Remote Sensing and Optical Imaging -- Satellites
  • (Not Far) Remote Sensing and Optical Imaging -- Drones
  • (Near you) Local Sensors and Systems
  • Conclusion
slide-3
SLIDE 3

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

3

slide-4
SLIDE 4

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

4

  • Thailand Science Park (47 Acres)
  • 30 km from downtown Bangkok
  • 440 research staff and 227 support staff

NECTEC

slide-5
SLIDE 5

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

5

Demand nd

slide-6
SLIDE 6

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

6

Speech and Text Understanding

AI & Computing Advanced Electronic Sensing Intelligent Systems & Networks

Language and Semantic Technology Image Processing and Understanding Data-Driven Simulation and Systems Knowledge Elicitation and Archiving Neural Signal Processing Human Behavior Analytics Opto-Electrochemical Sensing Photonics Technology Terahertz Technology Design, Simulation, Characterization, and Circuit Design Silicon Technology Industrial Fabrication Machines and Power Conversions Intelligent SCADA Embedded System Technology Smart Machine and Mixed Reality Machine Vision

AI Data Science and Analytics Spectroscopic and Sensing Devices Thai Microelectronics Center Intelligent Systems

Strategic Analytics Networks with Machine Learning and AI

Data Communication and Networks

Internet Innovation Location and Automatic Identification Systems Intelligent Transportation Systems Information Security RF Electronics

NSTDA-Supercomputer Center Center for Cyber-Physical Systems

National S&T Infrastructure

Solar Technology Engineering Surface and Microfluidic Device Innovation

National Computing and Cyber-Physical Infrastructure

slide-7
SLIDE 7

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

7

slide-8
SLIDE 8

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

8

Optics and Photonics in Food Science We want to do Food Science in a more Precise Way

slide-9
SLIDE 9

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

9

Precision Agriculture is about whole farm management with the

goal of optimizing returns on inputs while preserving resources

http://en.wikipedia.org/wiki/Precision_agriculture Precision agriculture aims to optimize field-level management with regard to: Crop Science: by matching farming practices more closely to crop needs (e.g. fertilizer inputs); Environmental Protection: by reducing environmental risks and footprint of farming (e.g. limiting leaching of nitrogen); Economics: by boosting competitiveness through more efficient practices (e.g. improved management of fertilizer usage and other inputs).

  • Collection of real-time data on weather, soil and air quality, crop maturity

and even equipment and labor costs and availability

  • Predictive analytics for smarter decision making

http://www.research.ibm.com/articles/precision_agriculture.shtml

slide-10
SLIDE 10

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

10

slide-11
SLIDE 11

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

11

  • Sa

Satellit ites es

  • Airplan

anes/ s/Dr Dron

  • nes

es

  • Local Se

Sensors

Closer and Better Resolution

Customers Farms

slide-12
SLIDE 12

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

12

Photonics in Precision Agriculture

  • It helps carry information (optical, chemical, physical, biological properties).
  • Its module/system can process the information at a very fast speed via high-

speed large-data-packet communications or parallel processing.

  • Real module/system involves other disciplinary such as Chemistry, Biology,

Electronics, Computer Sciences, Mechanics,… Non Contact High Sensitivity High Resolution High Specificity High Dynamic Range Robustness

slide-13
SLIDE 13

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

13

http://www.newworldencyclopedia.org/entry/Image:EM_Spectrum3-new.jpg

Reflection, Refraction, Absorption, Scattering Interference, Diffraction, Polarization, Quantum

slide-14
SLIDE 14

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

14

dedunn.edublogs.org

slide-15
SLIDE 15

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

15

slide-16
SLIDE 16

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

16

VHI: Vegetation Health Index

Laser Focus World, p. 51-57, Apr. 2014

Normalized Difference Vegetation Index (NDVI)

slide-17
SLIDE 17

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

17

Panchr nchromati tic c and Multispectra

ctral 4 Bands (nm): Blue (450-520), Green (520-600), Red (630-690), IR (760-900)

Point nt Target: et: 16.5 km Panchr nchromati tic c and Multispectra

ctral 8 Bands (nm): Blue (400-450), Blue (450-510), Green (510-580), Yellow (585-625), Red (630- 690), IR (705-745), (770-895), (895-1040)

Panchr nchromati tic c and Multispectra

ctral 11 Bands (nm): Blue (430-450), Blue (450-515), Blue (500-680), Green (530-590), Red (640-670), IR (850-880), IR (1570-1650), IR (1360-1380), IR (2110-2290), IR (10600-11190), IR (11150-12510)

Panchr nchromati tic c and Multispectra

ctral 7 Bands (nm): Blue (450-520), Green (520-600), Red (600-690), IR (770-900), IR (1550-1750), IR (10400-12500), IR (20800-23500)

Point nt Target: et: 80 m

slide-18
SLIDE 18

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

18

Blue (450-515) Green (525-605) Red (630-69 690) IR (775-900) IR (1550-17 1750) 0) IR (10400-12500) IR (20900-23500)

Coastal, Type of Plant, Greeness Type of Plants Chlorophyll Absorption Land & Water Soil Moisture Heat Surface, Soil Moisture, Plant Stress Type of Rocks

Image e Processin ssing

  • Feature

Classification

  • Feature

Extraction

  • Mathematical

Models

  • Geographic

Information System Mapping

slide-19
SLIDE 19

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

19

Rice Cassava Corn Sugarcane Rice Cassava Corn Sugarcane

Water Usage

Agriculture Area Damaged from Flood

Total Planting Area

Normalized Difference Vegetation Index (NDVI)

GIST STDA: A: Agonlin ine e for monito torin ring g crops

slide-20
SLIDE 20

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

20

Plant Disease Status

GIST STDA: A: Cmet for monitori

  • ring

ng crop status us

slide-21
SLIDE 21

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

21

Temperature Relative Humidity Rain Gauge

GIST STDA: A: Cmet for monitori

  • ring

ng crop status us

slide-22
SLIDE 22

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

22

01-15 Jan.19 16-30 Sep.18

GIST STDA: A: Rice for monitor

  • rin

ing g the growth th of rice

slide-23
SLIDE 23

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

23

slide-24
SLIDE 24

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

24

R2 = 0.65 R2 = 0.76 R2 = 0.75

Wavele leng ngth th: 400 400-245 450 0 nm

slide-25
SLIDE 25

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

25

R2 = 0.94 R2 = 0.54 R2 = 0.76 R2 = 0.93

slide-26
SLIDE 26

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

26

slide-27
SLIDE 27

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

27

Wavelength Selection & Math Models are Very Important for Specific Fields of Interest

slide-28
SLIDE 28

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

28

  • Monitoring
  • Mapping
  • Evaluating
  • Controllin

ing

https://www.itu.int/pub/D-STR-E_AGRICULT.02-2018

slide-29
SLIDE 29

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

29

https://www.itu.int/pub/D-STR-E_AGRICULT.02-2018

slide-30
SLIDE 30

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

30

https://www.itu.int/pub/D-STR-E_AGRICULT.02-2018

slide-31
SLIDE 31

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

31

Many Startups in Drone Business for Agriculture

https://www.disruptordaily.com/10-companies-using-drones-disrupt-agriculture-industry/

slide-32
SLIDE 32

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

32

Examples of Local Sensors and Systems

slide-33
SLIDE 33

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

33

slide-34
SLIDE 34

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

34

agriphotonics.com philips.com/horti

Horticulture

slide-35
SLIDE 35

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

35 Light Source Light Guide Teat Monochromator

vision-systems.com

Mastitis Analysis

slide-36
SLIDE 36

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

36

Thermal Imaging Applications

InfraMation, 2007, ITC121A

(Heat t St Stress Manag agem emen ent) Poultry Viticulture

J Expt. Botany 58, 815–825, 2007.

slide-37
SLIDE 37

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

37

slide-38
SLIDE 38

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

38

slide-39
SLIDE 39

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

39

Two-Dimensional Fruit Ripeness Analyzer

Features

  • 2-D ripeness estimation
  • Ripeness levels: immature to overripe
  • Y. Intaravanne, S. Sumriddetchkajorn, and J. Nukeaw, Sensors and Actuators B: Chemical, Vol. 168, pp. 390-394, 2012.

Fluorescent Imaging + Spectral Imaging + Image Processing

VIS UV Proposed Concept Immature Immature Ripe Overripe Ripe Overripe Ripe Overripe Ripe Overripe Ripe Overripe Immature Ripe Overripe Immature Ripe Overripe Immature

slide-40
SLIDE 40

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

40

Need to measure shape and size easily

Conservation of Unique Thai Buffalo

Measuring Tape?

slide-41
SLIDE 41

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

41

Optical al Pat attern from Kinect 3D F Fringe Pat attern

slide-42
SLIDE 42

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

42

3D Sc Scanner ers: s: Bi Big Object (e.g., ., Bu Buffalo) lo)

slide-43
SLIDE 43

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

43

Leads to simple e evaluat ation

  • n of the

body weight t and body surfa face ce area

slide-44
SLIDE 44

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

44

Feat atures & S Specificat atio ions

  • 2 HD video recorder
  • Scan volume: 1x1x1 m
  • Maximum weight of root: 10 kg
  • Scanning time: 4 sec
  • Evaluation: structure of root system

architecture, root length, root width Allian ance & Customers

  • BIOTEC / NSTDA
  • Forschungszentrum Jülich, Germany
  • Rayong Field Crops Research Center

Plan ant P t Phenoty typing: Cas asav ava Root T t Trai aits ts

slide-45
SLIDE 45

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

45

3D Scanner and Plant Phenomics

  • Volumetric analysis: 110 microns resolution and 50 microns

accuracy

  • Analysis: Leaft area, leaf color levels, size of nods, branch

length, height

slide-46
SLIDE 46

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

46

Surface Enhanced Raman Scattering (SERS) Chips

  • N. Nuntawong, M. Horprathum, P. Eiamchai, K. Wong-ek, V. Patthanasettakul, P. Chindaudom, Vacc., Vol. 84, pp. 1415-

1418, 2010.

Nanotechnology + Optical Spectroscopy

  • Narcotic Drug Detection
  • Explosive Material Analysis
slide-47
SLIDE 47

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

47

slide-48
SLIDE 48

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

48

THz Spectroscopy for Water Content Analysis in Leave

slide-49
SLIDE 49

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

49

slide-50
SLIDE 50

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

50

Conclusion

  • Optical sensors and systems for agriculture can be
  • perated from… far away

not too far away in the farm Satellites Airplanes/Drones Local sensors and systems

  • It is not only about Optics and Photonics but

Multidisciplinary (Biology, Chemistry, Electronics Engineering, Mechanical Engineering,…)

  • We should choose the right spectra with appropriate

sensing & systems to answer the needs in each application
