Remote Sensing and Optical Imaging/Sensing -- Applications on Rice -- Sarun Sumriddetchkajorn NSTDA Research Fellow National Electronics and Computer Technology Center (NECTEC) National Science and Technology Development Agency (NSTDA)

slide-1
SLIDE 1

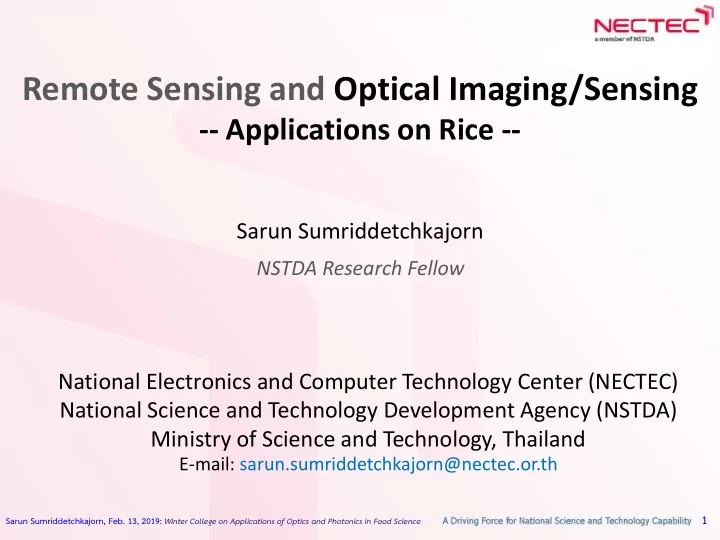

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

1

Remote Sensing and Optical Imaging/Sensing

  • - Applications on Rice --

Sarun Sumriddetchkajorn

NSTDA Research Fellow

National Electronics and Computer Technology Center (NECTEC) National Science and Technology Development Agency (NSTDA) Ministry of Science and Technology, Thailand

E-mail: sarun.sumriddetchkajorn@nectec.or.th

slide-2
SLIDE 2

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

2

We would like to acknowledge all staff from Rice Department of Thailand

slide-3
SLIDE 3

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

3

We should choose the right spectra with appropriate sensing & systems to answer theNeeds in each agricultural application Reminder from the 1st Lecture  Simplicity in Design and Implementation  Ease of Use and Operation  Affordability  Scalability

slide-4
SLIDE 4

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

4

slide-5
SLIDE 5

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

5

Thai Hom Mali Rice

  • Thai jasmine rice or Khao Dawk Mali (KDML105)
  • Good cooking quality
  • Impressive fragrance
  • One of the most popular rice varieties
  • USD 1.73 Billion export
slide-6
SLIDE 6

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

6

Nitrogen (N) Deficiency Issue

N is one of the important elements for growth of rice crops

To help balance between the real N demand of rice and N available from soil and additional fertilizers

  • Cost of rice crop is high
  • Efficiency of N fertilizer is degraded
  • The risk of NO3 pollution is high

To achieve high yields

Farmers apply too much N fertilizer disadvantage

Several groups try to use tools and management plans in monitoring the N status of the rice field

slide-7
SLIDE 7

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

7

Based on the fact that…

Chlorophyll content

strongly correlated

Leaf N concentration

  • Expensive
  • in a few-thousand USD
  • Transmissive operation
  • both sides of the leaf under the

evaluation are clean and no defect

disadvantage

  • Chlorophyll meter
  • A simple
  • Fast
  • Non-destructive way

Proposed approach:

advantage

: 650 nm + 940 nm

SPAD

slide-8
SLIDE 8

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

8

  • Leaf Color Chart (LCC)
  • Very cheap (USD1)
  • No waste produced
  • Easy to use

Low-cost approach:

advantage

slide-9
SLIDE 9

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

9

A more accurate but not expensive tool is needed

Incorrect visual reading of colors Improper application of N fertilizers

leads to

slide-10
SLIDE 10

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

10

Our Solution

Analyzed Scattering Light from Leaf

LED

562-nm

Si-Photodetector Microcontroller

controlling and processing

Simple Electrical Noise Rejector

+ + +

slide-11
SLIDE 11

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

11

6x1 LED Panel “Measure” Button Plastic Clip Holder

PVC material; 25-mm wide; one arm 60-mm long;

  • ther arm 30-mm long; 8-tilted angle

Measuring Area

Ø5-mm

  • A compact 4012025-mm3 plastic box
  • 120 grams of weight
  • ~USD39 of total cost

Red LED

Low battery alarm/ Measuring status

Outside View of Our Low-Cost LED-based Leaf Color Meter Prototype

  • S. Sumriddetchkajorn and Y. Intaravanne, Optics and Lasers in Engineering, Vol. 53, pp. 179-184, February 2014.
slide-12
SLIDE 12

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

12

slide-13
SLIDE 13

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

13

y = 8.3469x2 - 14.2468x + 6.4994 R2 = 0.979 y = 1.1828x2 - 10.946x + 8.1912 R2 = 0.977

1 2 3 4 5 6 7 0.000 0.100 0.200 0.300 0.400 0.500 0.600 0.700 0.800 Voltage Visibility Color Level

VV = (Vmeas-Vdark)/Vdark

Calibration Curve

Stored in Our Prototype

slide-14
SLIDE 14

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

15

Examples of fertilization rates:

  • Tillering Stage

Color level < 3: Urea fertilizer 12 kg/rai Color level = 3: Urea fertilizer 8.5 kg/rai Color level > 3: Urea fertilizer 5 kg/rai

  • Panicle Initiation Stage

Color level < 3: Urea fertilizer 16 kg/rai Color level = 3: Urea fertilizer 12.5 kg/rai Color level > 3: Urea fertilizer 9 kg/rai

  • High accuracy with 6 levels of color
  • Low energy consumption:

5VDC 20 mA (operating mode) 5VDC 10 mA (standby mode)

  • Compact and lightweight:

(WxLxH) 40×120 ×25 mm3 120 grams

Features

Bai-Khao: Nitrogen Esitmator for Rice Field

slide-15
SLIDE 15

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

16

How to deliver to all farmers?

  • Easy to scale it up
  • Fast calibration
  • Fast delivery
slide-16
SLIDE 16

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

17

Mobile Device-based Nitrogen Estimator for Rice Field

  • Y. Intaravanne and S. Sumriddetchkajorn, Proc. SPIE, Vol. 8558, pp. 85580F, Beijing, China, November 2012.
  • Y. Intaravanne and S. Sumriddetchkajorn, Comp. Elect. in Agriculture, Vol. 116, pp. 228-233,2015.
  • High accuracy with 5 color levels of

the rice leaf

  • Estimation of potassium deficiency
  • Operated
  • n

a mobile device equipped with at least Android 2.2

  • perating system

Features Examples of fertilization rates:

  • Tillering Stage

Color level < 3: Urea fertilizer 12 kg/rai Color level = 3: Urea fertilizer 8.5 kg/rai Color level > 3: Urea fertilizer 5 kg/rai

  • Panicle Initiation Stage

Color level < 3: Urea fertilizer 16 kg/rai Color level = 3: Urea fertilizer 12.5 kg/rai Color level > 3: Urea fertilizer 9 kg/rai

slide-17
SLIDE 17

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

18

slide-18
SLIDE 18

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

19

Average Weight  0.0213 g/grain Average Length  0.772 mm/grain Average Width  0.206 mm/grain

CNT1 PTT1

Average Weight  0.0174 g/grain Average Length  0.723 mm/grain Average Width  0.209 mm/grain

Mixed Mixed

KDML105

Average Weight  0.0216 g/grain Average Length  0.734 mm/grain Average Width  0.216 mm/grain

Problem

  • False mixture with other rice

varieties having similar dimensions and weight/seed as well as amylose content

  • Unqualified milled rice products for export
  • Unwanted rice seed for next plants

Unwanted Mixture of Rice Varieties

slide-19
SLIDE 19

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

20

Widely Used Destructive Identification Methods

Spreading 1 Spreading 5

  • Alkaline Spreading Value
  • DNA Technology

Advantage

  • 100% accuracy

Disadvantages

  • Expensive
  • Time consuming (3-5 days)

Advantages

  • ~ 70% accuracy

KDML105 CNT1

For example

Level 6-7  Level 5

Disadvantage

  • Time consuming (at least 23 hrs.)
slide-20
SLIDE 20

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

21

KDML105 High amylose rice

  • Iodine Binding Technique

Advantage

  • Easy

Disadvantage

  • Good for only rice varieties

having large difference in amylose content

  • Boiling Technique

Advantage

  • Easy
  • ~ 90% accuracy

Disadvantages

  • Time consuming

(at least 17 minutes)

  • High energy

consumption

slide-21
SLIDE 21

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

22

Current Non-Destructive Identification Methods

  • Reflectance Near Infrared Spectroscopy
  • Slow
  • Needs Complicated mathematical analysis
  • Slow
  • Suitable for milled rice grains with large difference in amount
  • f amylose content or level of glutinousness
  • Photoluminescent Technique
slide-22
SLIDE 22

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

23

Our Need

  • No Waste Produced

(i.e., non destructive approach)

  • Fast Enough
  • Moderate Accuracy

How ?

High Energy Excitation

(induced fluorescent radiation)

Multispectral Imaging Technology and Analytics

(only two-wavelength is needed)

+

slide-23
SLIDE 23

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

24

Our Proposed Rice Breed Identification System

slide-24
SLIDE 24

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

25

Acquires Image at a Desired Wavelength Spectrum Image Thresholding Filtering Done? Locations of KDML105 Milled Rice Grains Blob Filtering Image Normalization Start End Yes No Area Filtering Perimeter Filtering Eccentricity Neural Network Analysis

slide-25
SLIDE 25

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

26

CNT1: Chai Nat 1 HPSL: Hom Pitsanulok HSPR: Hom Supanburi KDML105: Khao Dawk Mali 105 PTT1: Pathumthani 1 RD6: Thai Sticky Rice RD15: Ko Kor 15 RD23: Ko Kor 23

slide-26
SLIDE 26

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

27

UVC Light Source Milled Rice Grains 2-D Camera Tunable Optical Filter Camera Lens UV Block Filter

slide-27
SLIDE 27

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

28

slide-28
SLIDE 28

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

29

Image under Visible Light Fluorescent Image

slide-29
SLIDE 29

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

30

slide-30
SLIDE 30

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

31

slide-31
SLIDE 31

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

32

Thai Jasmine Rice Identification System

Accuracy: 80% Calculation time: 25 ms

  • K. Suwansukho, S. Sumriddetchkajorn and P. Buranasiri, Applied Optics, Vol. 50, No. 21, pp. 4024-4030, July 2011.

Fluorescent Imaging + Neural Network Analysis Improvement is still needed for practical use

slide-32
SLIDE 32

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

33 Disadvantages  Requires a well-trained person  Takes a long time (20 seconds) to measure for one rice sample

Quality Control of Rice Seeds/Grains

  • Physical Dimensions Parameter
slide-33
SLIDE 33

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

34

Width Length Thickness

Mirror Rice Slot Handle

  • S. Sumriddetchkajorn, Y. Intaravanne, and S. Chanhorm, Proc. SPIE, Vol. 8883, pp. 88830M, Chonburi, Thailand, May 2013.

Proposed Solution

slide-34
SLIDE 34

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

35

S-Rice: Rice Quality Analyzer

  • Simultaneous analysis of width, length, thickness of rice grains
  • Simultaneous analysis of width, length, and thickness of rice seeds
  • Fast and high accuracy
  • Future analysis relates to Yellowish and Chalkiness of Rice Grains

Key features:

slide-35
SLIDE 35

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

36

  • Unwanted sticky and red rice seeds in non-glutinous rice seeds

Sticky Rice? Nonglutinous Rice? Red Rice?

Analyzes Light Passing through Rice Seeds

slide-36
SLIDE 36

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

37

Proposed Solution

slide-37
SLIDE 37

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

38

C-Rice: Rice Seed Quality Analyzer

  • Identification of non-glutinous rice seeds from unwanted sticky and red rice seeds
  • Fast and high accuracy

Key features:

slide-38
SLIDE 38

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

39 shoot root Embryo: The shoot and the root parts of a seedling Endosperm: Food needed for germination Nutrition -> Embryo: protein, fat, dietary fiber, vitamins, and minerals Endosperm: starch (almost 80%), sugar, protein, and fat

  • Size of Embryo/Endosperm

Physical Dimensions are related to Healthiness of Seedling and Nutrition

slide-39
SLIDE 39

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

40

Destructive Approaches

http://eujime.com.my (2014)

  • J. Cereal Sci. 59, 211–218

(2014)

By hands then manually measuring By machines then manually measuring

slide-40
SLIDE 40

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

41

Proposed Arrangement of a Two-Dimensional Embryo Area Estimator

Light Source Linear Polarizer 2 Sample Lens Module Smart-Mobile Device Application Program Linear Polarizer 1

slide-41
SLIDE 41

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

42

Rice Color Image Rice Color Image Blue Plane Image Blue Plane Image Thresholding Method Thresholding Method Blob Analysis Method Blob Analysis Method

Proposed Processing Steps

for separating and analyzing embryo and endosperm areas

Contour of Embryo

slide-42
SLIDE 42

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

43

KDML 105 PSL 2 PTT 1 RD 47 RD 41

The Result of Automatic Measurement

slide-43
SLIDE 43

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

44

A-Rice: Rice Embryo Analyzer

  • Area analysis of the

embryo and endosperm

  • Fast and high accuracy

Key features:

  • Y. Intaravanne, S. Sumriddetchkajorn, K. Chaitavon, S. Chanhorm, P. Pongsoon, and A. Prasertsak, Proc. SPIE, Vol. 9273, pp. 92730T, Beijing, China, October.

2014.

slide-44
SLIDE 44

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

45

Rice Variety Manual Measurement Our Approach %Em %En %Em %En STD %Em %En STD KDML 105 6.6 93.4 1.09 7.1 92.9 1.90 7.9 0.6 PSL 2 6.4 93.6 1.28 6.4 93.6 1.33 0.0 0.0 PTT1 7.4 92.6 1.56 6.8 93.2 1.93 8.3 0.7 RD 47 6.9 93.1 1.48 7.4 92.6 1.55 6.9 0.5 RD 41 7.8 92.2 1.66 8.1 91.9 1.72 4.1 0.3

% = |(Manual-Auto)|100/Manual %Em = The percentage of embryo area %Em = The percentage of endosperm area

Result Comparison between Manual Measurement and Our Prototype

Error < 9%.

Causes of Error

  • Fragment tissues left: they looks like the embryo area under our

proposed approach

  • Change of orientation of rice grain: image contrast is reduced
slide-45
SLIDE 45

Sarun Sumriddetchkajorn, Feb. 13, 2019: Winter College on Applications of Optics and Photonics in Food Science

46

Conclusion

  • Nitrogen (N) Deficiency Issue
  • Unwanted Mixture of Rice Varieties
  • Quality Control of Rice Seeds and Grains

With examples of Real Needs

Optical imaging/sensing can answer

Photonics Electronics Computer Science Chemistry Biology Mechanics To make the ideas/concepts practical Prototype Design UI/UX
