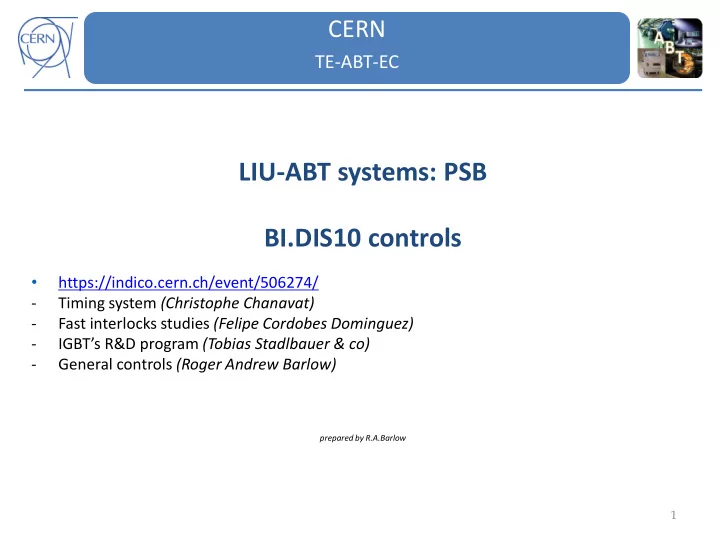

LIU-ABT systems: PSB BI.DIS10 controls

• https://indico.cern.ch/event/506274/
• Timing system (Christophe Chanavat)
• Fast interlocks studies (Felipe Cordobes Dominguez)
• IGBT’s R&D program (Tobias Stadlbauer & co)
• General controls (Roger Andrew Barlow)

prepared by R.A.Barlow

1

CERN

TE-ABT-EC

2

BI.DIS10

Generator prototype, Jura 6 Controls:

• Jitter, optical links suppression (still to be

explored)

• IGBT drivers PS protection done, missing

new delta electronica integration + Fsu job

• We are now protected by PS crate interlock

system

• PFN earthing switch and EDS now connected

into controls

• Issues with CT signal, BNC on PP (isolated

BNC vs non-isolated) Software:

• Software Interlock OV, OI, S/C for power

supplies to be realised

• REMOTE RESET issue with TECHNIX – Solved
• PFN voltage to acquire into slow control

when AFO output is available

3

BI.DIS10

Generator prototype, Jura 6 Final version for Engineering Specification:

• On-going, EC wants to check it before it

goes to EDMS check Project planning:

• New Gantt chart to be done that

encompasses this years workload and LIU scenario planning for 2017.

• To get in touch with EN/EL to re-assess

cabling strategy

• PDC system with CL, meeting soon to

discuss with him

• TS discussed new requirements in the

controls – To be gathered and integrated.
