CERN TE-ABT-EC LIU-ABT systems: PSB BI.DIS controls Session indico.389747 Wednesday, May 27 th From 10:00 to 11:00 Room: 864/2-B14 prepared by R.A.Barlow (May 2015) 1 BI.DIS Controls task distribution PLC systems Fast interlocks Power

slide-1

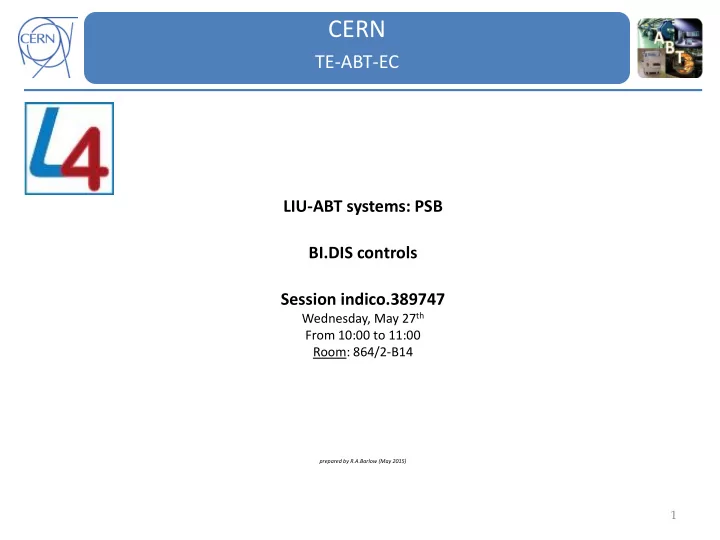

SLIDE 1

LIU-ABT systems: PSB BI.DIS controls Session indico.389747

Wednesday, May 27th From 10:00 to 11:00 Room: 864/2-B14

prepared by R.A.Barlow (May 2015)

1

CERN

TE-ABT-EC

slide-2
SLIDE 2

2

BI.DIS

Controls task distribution

PLC systems Fast interlocks Power Supply IGBT trigger system Timing PDC IPOC/OASIS BIS Design RAB FCD RAB LS CC RAB + ? ? CM Development RAB FCD/JS RAB LS CC ? ? CM/RAB Commissioning RAB FCD/JS/RAB RAB LS/RAB CC RAB + ? ? CM/RAB

slide-3
SLIDE 3

3

BI.DIS

PFN patch panel design Signals list:

  • Ross relay for EDS, Fire protection system, HV cable presence,

housing temperature, uswitches for doors and panels, fan power and controls, measurements of freewheel and dump diode,

  • ptical inks for IGBT triggers and status read back, HV divider for

IGBT,s and PFN signals.

slide-4
SLIDE 4

4

BI.DIS

Controls racks layout

slide-5
SLIDE 5

5

BI.DIS

Cabling news

  • DEC, waiting for manpower to help identify all old cable to be removed from

BI.DIS system, with in mind keeping a few that the current BI.DIS

  • uses. Estimation of cables to be removed, approximatively 500.
  • DIC, on-going, I believe we have till end 2015 for finalizing the document,

however and in the meantime , an estimate of approximatively 200 cables (including inter-rack cables) has been made

  • DIR, the controls racks and positioning has been devised and sent to EN/EL
  • DIF, Optic fibers to be sent shortly for the optic fibers between racks and PFN’s

units.

slide-6
SLIDE 6

6

BI.DIS

Visit to Technix 12/05/2015

22Ω Modular approach We retain Burndy connectors Some high quality components here !

slide-7
SLIDE 7

7

BI.DIS

Visit to Technix

Front and rear panel assembly

slide-8
SLIDE 8

8

BI.DIS

Visit to Technix

Profibus interface MODBUS / Serial GSF file Instruction mapping

slide-9
SLIDE 9

BI.DIS

Dummy load issues, HV cable detection

9

8 x 6 cables to encode (48) 6bit min (64) encoding, hence 6 digital channels per encoding scheme Means 288 channels, hence 9 DI32 modules This is complicated !!! Cable plate option for 8 cables ? 4 dig channels x 6 -> 1 DI module

slide-10
SLIDE 10

10

BI.DIS

Outstanding issues

?
