Landmarks Preservation Commission Presentation 2 May 2017 710 Greenwich Street Greenwich Village Historic District Extension Ascher Davis Architects www.ad-arch.com LOT 7501 LOT 7501 Zoning Map: 12a Source: NYC DCP 710 GNW LOT 7501

slide-1

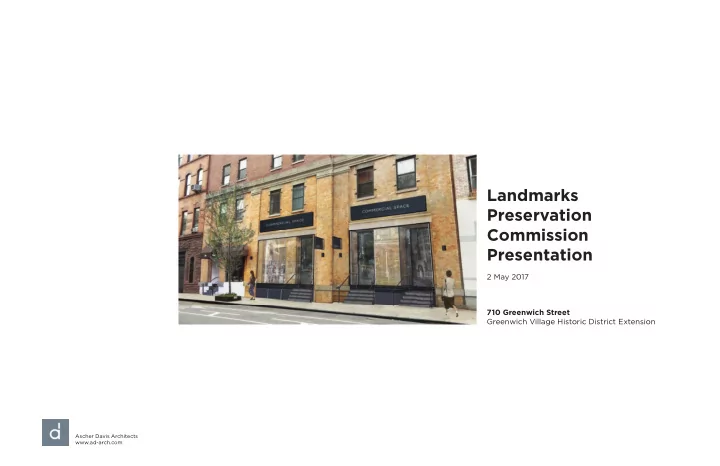

SLIDE 1

Ascher Davis Architects www.ad-arch.com

Landmarks Preservation Commission Presentation

2 May 2017 710 Greenwich Street Greenwich Village Historic District Extension

slide-2
SLIDE 2

Ascher Davis Architects www.ad-arch.com

1

710 Greenwich Street Greenwich Village His. District Ext.

Location Maps

LPC Presentation / 2 May 2017 Greenwich Village Historic District and District Extension Boundaries Source: NYC LPC Zoning Map: 12a Source: NYC DCP NYC Digital Tax Map Block: 631 Lot: 7501 Source: NYC DOF LOT 7501 710 GNW LOT 7501 LOT 7501

slide-3
SLIDE 3

Ascher Davis Architects www.ad-arch.com

2

710 Greenwich Street Greenwich Village His. District Ext.

Tax Photographs

LPC Presentation / 2 May 2017 Tax Photo Ca. 1940 Source: NYC DOF Tax Photo Ca. 1980 Source: NYC DOF

slide-4
SLIDE 4

Ascher Davis Architects www.ad-arch.com

3

710 Greenwich Street Greenwich Village His. District Ext.

Existing Conditions Photographs

LPC Presentation / 2 May 2017 Key Plan of Views

A B C D

A B C D

7 1 G N W

slide-5
SLIDE 5

Ascher Davis Architects www.ad-arch.com

4

710 Greenwich Street Greenwich Village His. District Ext.

Historic Neighborhood Photographs

LPC Presentation / 2 May 2017 West 10th Street & Greenwich Street - Greenwich Village His. Dist. Ext. Work storage warehouse Source: www.oldnyc.org 719 Greenwich Street - Greenwich Village Historic District, 1940s Warehouse building with loading docks Source: NYPL Digital Collection Greenwich Street - Greenwich Village His. District Extension Loading trucks along the elevated subway Source: www.oldnyc.org

slide-6
SLIDE 6

Ascher Davis Architects www.ad-arch.com

5

710 Greenwich Street Greenwich Village His. District Ext.

Existing Site Plan

LPC Presentation / 2 May 2017 0' 25' 100' 50' 10'

C H A R L E S S T R E E T

L O T 2 4 E X I S T I N G B U I L D I N G 1

  • S

T O R Y L O T 7 5 1 E X I S T I N G B U I L D I N G 5

  • S

T O R Y R O O F E X I S T I N G B U I L D I N G 6

  • S

T O R Y H T : + 7 4 ’

  • 3

” L O T 1 8 E X I S T I N G B U I L D I N G 5

  • S

T O R Y

105’-0”

L O T 1 7 E X I S T I N G B U I L D I N G 5

  • S

T O R Y 8 7 ’ T O C O R N E R O F W 1 T H

75’-0”

6 5 ’ T O C O R N E R O F C H A R L E S

40’-0” 10’-0” 10’-0”

L O T 3 7 E X I S T I N G B U I L D I N G 2

  • S

T O R Y L O T 3 4 E X I S T I N G B U I L D I N G 3

  • S

T O R Y L O T 3 E X I S T I N G B U I L D I N G 8

  • S

T O R Y

WEST 10TH STREET

BLOCK 631 LOT 7501 710 GREENWICH

G R E E N W I C H S T R E E T

slide-7
SLIDE 7

0' 6' 24' 12' Ascher Davis Architects www.ad-arch.com

6

710 Greenwich Street Greenwich Village His. District Ext.

Existing Greenwich Street Elevation

LPC Presentation / 2 May 2017 W 10TH STREET CHARLES STREET 15’-0” 60’-0” 74’-3” 60’-0” 60’-0” 19' 50' 75' 25' 40'

slide-8
SLIDE 8

Ascher Davis Architects www.ad-arch.com

7

710 Greenwich Street Greenwich Village His. District Ext.

Proposed Greenwich Street Elevation

LPC Presentation / 2 May 2017 0' 6' 24' 12' W 10TH STREET CHARLES STREET 15’-0” 60’-0” 74’-3” 60’-0” 60’-0” 19' 50' 75' 25' 40'

slide-9
SLIDE 9

Ascher Davis Architects www.ad-arch.com

8

710 Greenwich Street Greenwich Village His. District Ext.

Existing Elevation Photograph

LPC Presentation / 2 May 2017

slide-10
SLIDE 10

Ascher Davis Architects www.ad-arch.com

9

710 Greenwich Street Greenwich Village His. District Ext.

Demolition Elevation Drawing

LPC Presentation / 2 May 2017

AREA OF WORK AT FACADE

DRAWING KEY

AREA OF DEMOLITION WORK ADJACENT BUILDING (NO WORK) 4' 8' 16' 0'

slide-11
SLIDE 11

Ascher Davis Architects www.ad-arch.com

10

710 Greenwich Street Greenwich Village His. District Ext.

Diagramatic Study Drawing

LPC Presentation / 2 May 2017 4' 8' 16' 0'

ORIGINAL 1909 BUILDING 1912 ADDITION 708 GREENWICH ST 710 GREENWICH ST 712 GREENWICH ST X Y Z Z AA BB EQ EQ EQ ‘A’ = 24’-10” EQ ‘A’ = 24’-10” 25’-4” BAY 01 BAY 02 BAY 03 C L C L

slide-12
SLIDE 12

Ascher Davis Architects www.ad-arch.com

11

710 Greenwich Street Greenwich Village His. District Ext.

Proposed Elevation Photograph

LPC Presentation / 2 May 2017

slide-13
SLIDE 13

Ascher Davis Architects www.ad-arch.com

12

710 Greenwich Street Greenwich Village His. District Ext.

Proposed Elevation Drawing

LPC Presentation / 2 May 2017 4' 8' 16' 0'

AREA OF WORK AT FACADE

DRAWING KEY

AREA OF NEW GLAZING (IN FRONT OF BRICK) LOCATION OF NEW METAL STOREFRONT & SIGNAGE AREA OF NEW GLAZING ADJACENT BUILDING (NO WORK)

slide-14
SLIDE 14

Ascher Davis Architects www.ad-arch.com

13

710 Greenwich Street Greenwich Village His. District Ext.

Partial Elevation Drawings

LPC Presentation / 2 May 2017 0' 3' 12' 6'

708 708

Elevation - Partial - Demolition

DRAWING KEY

Elevation - Partial - Construction

NEW BLADESIGN, TYP. NEW METAL NON-ILLUMINATED SIGNAGE PANEL, TYP. NEW METAL FASCIA PANEL BASE, TYP. NEW CONTINUOUS STONE LINTEL NEW METAL STAIRS, LANDING &

  • RAILINGS. STAIR RISERS TO BE

PERFORATED MATERIAL, TYP. NEW BRICK MASONRY VENEER IN AREAS TO MATCH EXISTING PIERS IN TYPE, COLOR, ETC., TYP.

AREA OF DEMOLITION WORK AREA OF NEW GLAZING (IN FRONT OF BRICK) LOCATION OF NEW METAL STOREFRONT & SIGNAGE AREA OF NEW GLAZING ADJACENT BUILDING (NO WORK)

NEW WALL SCONCE, TYP. 2’-0” 13’-0” 4’-7” 4’-11” 5’-4” 5’-4” 5’-11” 4’-7” 6’-6” 4’-0” 6’-0” 8’-10” 3’-2” 10’-0” 9’-11”

slide-15
SLIDE 15

Ascher Davis Architects www.ad-arch.com

14

710 Greenwich Street Greenwich Village His. District Ext.

Proposed Plan Drawing

LPC Presentation / 2 May 2017 0' 3' 12' 6'

DN

DRAWING KEY

ADJACENT BUILDING (NO WORK) EXISTING CONSTRUCTION PROPOSED CONSTRUCTION PROPOSED METAL STAIRS & LANDING INDICATES DEMOLITION

NOT IN SCOPE PUBLIC SIDEWALK GREENWICH STREET RESIDENTIAL EGRESS HALL UP UP UP UP TREE PIT

AREA NOT IN SCOPE

COMMERCIAL SPACE SIDE B COMMERCIAL SPACE SIDE A

slide-16
SLIDE 16

Ascher Davis Architects www.ad-arch.com

15

710 Greenwich Street Greenwich Village His. District Ext.

Partial Plan Drawings

LPC Presentation / 2 May 2017 0' 3' 12' 6'

P

DRAWING KEY

ADJACENT BUILDING (NO WORK) EXISTING CONSTRUCTION PROPOSED CONSTRUCTION PROPOSED METAL STAIRS & LANDING INDICATES DEMOLITION Plan - Partial - Demolition Plan - Partial - Construction

NOT IN SCOPE PUBLIC SIDEWALK GREENWICH STREET NOT IN SCOPE PUBLIC SIDEWALK GREENWICH STREET NEW METAL AND GLASS STOREFRONT & DOOR SYSTEM (SEE ELEVATIONS) NEW METAL STAIRS, RAILING & LANDING UP UP UP EXISTING BRICK PIERS TO REMAIN, TYP. UP UP UP TREE PIT TREE PIT

AREA NOT IN SCOPE

2’-0” 13’-0” 4’-7” 4’-11” 5’-4” 5’-4” 5’-11” 3’-0” 5’-3” 5’-7” 4’-6” 6’-2”

slide-17
SLIDE 17

Ascher Davis Architects www.ad-arch.com

16

710 Greenwich Street Greenwich Village His. District Ext.

Proposed Section Drawing

LPC Presentation / 2 May 2017 0' 6" 3' 1' Section - Proposed Entry

NEW HAMMERED METAL DOOR HARDWARE METAL STOREFRONT FRAME & FASCIA BOARD EXISTING BRICK PIER TO REMAIN NEW HAMMERED METAL HANDRAIL NEW STOREFRONT GLAZING NEW STONE LINTEL TO MATCH EXISTING NEW RECESSED LIGHT FIXTURE 10’-5”

5’-9” 10’-0”

slide-18
SLIDE 18

Ascher Davis Architects www.ad-arch.com

17

710 Greenwich Street Greenwich Village His. District Ext.

Partial Axonometric at Storefront

LPC Presentation / 2 May 2017

PROPOSED STOREFRONT COMPONENTS

Proposed Clear Low-E Glazing at Storefront Proposed Steel Stained Natural Black Metal Fascia Board & Storefront System Surrounding Existing Brick Pier to Remain 1. 2. 3.

1 2 3

slide-19
SLIDE 19

Ascher Davis Architects www.ad-arch.com

18

710 Greenwich Street Greenwich Village His. District Ext.

Proposed Materials

LPC Presentation / 2 May 2017

PROPOSED MATERIALS & FINISHES KEY

Existing Brick Masonry (New Face Brick Infill to Match Existing) Clear Glass Storefront & Glass Door System Steel Stained Natural Black Metal Storefront System Steel Stained Natural Black Perforated Stair Risers 1. 2. 3. 4.

1 2 3 4

slide-20
SLIDE 20

Ascher Davis Architects www.ad-arch.com

19

710 Greenwich Street Greenwich Village His. District Ext.

Proposed Lighting & Signage

LPC Presentation / 2 May 2017 Elevation - Proposed Signage Panel, Non-Illuminated

NEW SURFACE BOLT FOR ATTACHMENT

Elevation - Proposed Bladesign, Non-Illuminated

1’-6” 1’-6” VARIES 2’-4” NEW FLAT BAR STOCK FRAME, 2.5” THICK

Proposed Exterior Entry Recessed Light BEGA Outdoor Recessed Luminaire, Graphite Proposed Exterior Wall Sconce BEGA Outdoor Luminare, Graphite

NEW FLAT BAR STOCK FRAME, 2.5” THICK OPEN TO BEYOND

slide-21
SLIDE 21

Ascher Davis Architects www.ad-arch.com 710 Greenwich Street Greenwich Village His. District Ext.

Proposed Perspective Rendering

LPC Presentation / 2 May 2017

20

slide-22
SLIDE 22

Ascher Davis Architects www.ad-arch.com

APPENDIX 710 Greenwich Street Greenwich Village Historic District Extension

slide-23
SLIDE 23

Ascher Davis Architects www.ad-arch.com

A1

710 Greenwich Street Greenwich Village His. District Ext.

Historic District References - Current Storefronts

LPC Presentation / 2 May 2017 27 Ninth Avenue - Gansevoort Market Historic District Steel storefront system 401 West 14th Street - Gansevoort Market Historic District Metal storefront with frame reveal 401 West 14th Street - Gansevoort Market Historic District Detail at frame reveal 702 Greenwich Street - Greenwich Village His. District Ext. Metal storefront system 702 Greenwich Street - Greenwich Village His. District Ext. Interior view of metal storefront system 407 West 14th Street - Gansevoort Market Historic District Metal storefront system over existing brick masonry

slide-24
SLIDE 24

Ascher Davis Architects www.ad-arch.com

A2

710 Greenwich Street Greenwich Village His. District Ext.

Historic District References - Original Warehouse Buildings

LPC Presentation / 2 May 2017 726 Greenwich Street - Greenwich Village Historic District Ext. Source: NYC LPC 277 West 10th Street - Greenwich Village Historic District Ext. Source: NYC LPC 720 Greenwich Street - Greenwich Village Historic District Ext. Source: NYC LPC

slide-25
SLIDE 25

Ascher Davis Architects www.ad-arch.com

A3

710 Greenwich Street Greenwich Village His. District Ext.

Historic District References - Lighting / Hardware

LPC Presentation / 2 May 2017 Exterior Sconce - Greenwich Village His. Dist. Ext. BEGA light fixture Exterior Sconce - Greenwich Village His. Dist. Ext. BEGA light fixture Door Hardware - Greenwich Village His. Dist. Ext. Modern metal entry door hardware
