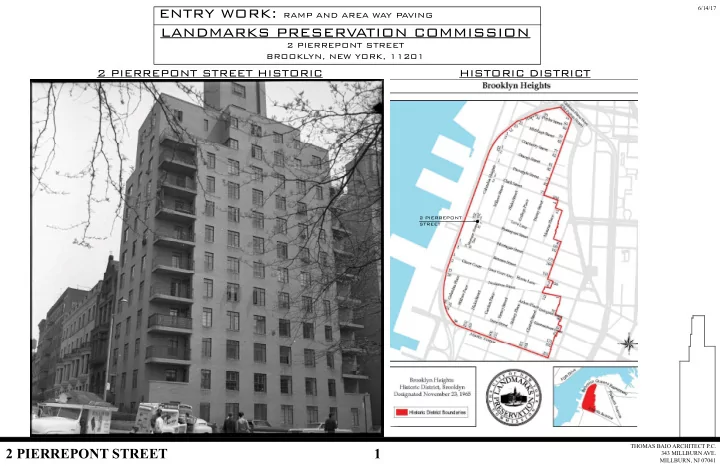

ENTRY WORK: RAMP AND AREA WAY PAVING 6/14/17 LANDMARKS PRESERVATION COMMISSION 2 PIERREPONT STREET BROOKLYN, NEW YORK, 11201 HISTORIC DISTRICT 2 PIERREPONT STREET HISTORIC 2 PIERREPONT STREET THOMAS BAIO ARCHITECT P.C. 2 PIERREPONT STREET

SLIDE 1

2 PIERREPONT STREET 1

2 PIERREPONT STREET

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041 6/14/17

ENTRY WORK: RAMP AND AREA WAY PAVING LANDMARKS PRESERVATION COMMISSION

2 PIERREPONT STREET BROOKLYN, NEW YORK, 11201

2 PIERREPONT STREET HISTORIC HISTORIC DISTRICT

SLIDE 2

2

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET

BLOCK: 241 CONSTRUCTION CLASS: FP STORIES: 12 LOT: 20 MAP:12D ZONE: R-6,L-H11

4 2 ’ 100’

EXISTING SURVEY: 2 PIERREPONT 2 PIERREPONT STREET SITE PLAN

SLIDE 3

3

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET

EXISTING PERSPECTIVE PROPOSED PERSPECTIVE

SLIDE 4

4

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET

EXISTING NORTH ELEVATION EXISTING WEST ELEVATION

SLIDE 5

5

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET

2 PIERREPONT STREET ENTRY CONDITION EXISTING ENTRY DOORS EXISTING FLAGSTONE

SCOPE OF WORK

1: REPAIR,CLEAN,PATCH MISCELLANEOUS HOLES, AND RESTORE CAST STONE TO MATCH ORIGINAL 2: SALVAGE DOOR FRAME, SIDE LIGHTS, TRANSOM, AND GLASS 3: EXISTING FLAGSTONE TO BE CAREFULLY REMOVED,SALVAGED,RESTORED,CLEANED, DOCUMENTED, AND STORED CAREFULLY TO BE RELAYED IN THE SAME PATTERN ON NEW 4” CONCRETE PAD WITH INTERGRATED SNOW MELT SYSTEM

SLIDE 6

6

SCOPE OF WORK

1: CONTRACTOR TO REPAIR AND RESTORE TREADS AND FACES OF RISERS TO MATCH ORIGINAL CONDITION 2: CONTRACTOR TO TEMPORARILY REMOVE, SALVAGE, RESTORE AND INSTALL RAILINGS IN EXISTING LOCATION

2 PIERREPONT STREET

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET ENTRY CONDITION

1 2 2 2 1

2

SLIDE 7

7

SCOPE OF WORK

1: DEMO RETAINING WALL AND CONSTRUCT HANDICAP RAMP (SEE HANDICAP RAMP DETAILS) 2: REPAIR,CLEAN,PATCH MISCELLANEOUS HOLES, AND RESTORE CAST STONE TO ORIGINAL CONDITION

REMOVE EXISTING MISCELLANEOUS HARDWARE

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET

2 PIERREPONT STREET ENTRY CONDITION

EXISTING MISCELLANEOUS HARDWARE DEMO FOR HANDICAP RAMP

2 2 2 1 2 2

SLIDE 8

8

SCOPE OF WORK

1: DEMO RETAINING WALL AND CONSTRUCT HANDICAP RAMP (SEE HANDICAP RAMP DETAILS) 2: CONTRACTOR TO REPAIR AND RESTORE EXISTING ROD IRON TO ORIGINAL CONDITION

CONTRACTOR TO DEMO ROD IRON AS MINIMAL AS POSSIBLE AT ENTRY TO THE RAMP

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET

EXISTING NORTH RETAINING CONDITION EXISTING WEST RETAINING CONDITION

DEMO FOR HANDICAP RAMP

1 2 2 2

SLIDE 9

9

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET

AREAS TO REPAIR AND RE-JOINT WITH SOFT MORTAR

SLIDE 10

10 PIERREPONT PLACE

EXISTING FIRST FLOOR PLAN

24 27 25 26 22 29 30 28 21 17 1 14 2 3 4 6 9 13 16 20 11 12 19 10 31 15 5 8 18 23

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET

SLIDE 11

11 PIERREPONT PLACE A B

PROPOSED FIRST FLOOR PLAN

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET

25 22 29 28 17 1 7 2 3 4 6 9 13 20 11 12 31 8 18 15 30

BATH

9'-6" x 6'-6" (CER. TILE)

CL CL CL BATH

9'-1" x 8'-5" (CER. TILE)

LIVING ROOM

14'-3" x 10'-2" (HARDWOOD)

KITCHEN

13'-3" x 10'-3"

CER. TILE

23 26

BEDROOM

(18'-10" x 11'-7") (HARDWOOD)

CL KITCHEN

13'-2" x 8'-5"

CER. TILE

8'-0"

CLG. HT.

8'-0"

CLG. HT.

8'-6"

CLG. HT.

8'-0"

CLG. HT.

8'-0"

CLG. HT.

LIVING ROOM

17'-0" x 11'-3" (HARDWOOD)

BEDROOM

(13'-4" x 9'-8") (HARDWOOD) 27 21 14 16 19 10 5

MAILROOM

(8'-9" x 8'-4") (HARDWOOD)

LOBBY

(30'-3 1/2" x 8'-11") (STONE)

H A L L W A Y

(29'-3" X 4'-1 1/2") (STONE)

KITCHEN

(6'-11 1/2" X 14'-11")

BATH

(5'-4" X 6'-9 1/2") 8'-6"

CLG. HT.

8'-0"

CLG. HT.

TRASH ROOM

7'-9"

CLG. HT.

7'-9"

CLG. HT.

UNIT B

685 SQFT

UNIT C

510 SQFT

BEDROOM

(10'-5 1/2" x 9'-7")

BATH

(7'-1" X 4'-1")

BEDROOM

(11'-7 1/2" x 16'-0 1/2")

LIVING SPACE

(19'-10 1/2" X 11'-6 1/2")

CL. CL. CL. CL. CL.

UP 14R DN 14R UP 14R

R.S. TENANT 1

830 SQFT 24

SLIDE 12

12

1 2 3 4 1 2 3 4

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

LANDMARKS PRESERVATION COMMISSION

GROUND LEVEL ENTRY REMOVAL AND RESTORATIVE WORK

2. CONTRACTOR TO SALVAGE, RESTORE, CLEAN,DOCUMENT PATTERN,

AND CAREFULL Y STORE THE EXISTING MULTI-COLORED FLAGSTONE TO BE RELAYED IN THE SAME PATTERN ON NEW 4” CONCRETE PAD W . INTEGRATED SNOW MELT SYSTEM(SEE SNOW MELT DETAIL)

EXISTING STAIRS AND RAILINGS TO BE REPAIRED AND RESTORED

TO ORIGINAL CONDITION

3. CONTRACTOR TO REPAIR AND RE-JOINT EXISTING RETAINING WALL.

SALVAGE AND RESTORE EXISTING ROD IRON ORNAMENTATION. (DEMO ONLY AT THE START OF HANDICAP RAMP)

4. NEW 4” CONCRETE RAMP TO HAVE INTEGRATED SNOW MELT

SYSTEM AND TO HAVE A SLOPE NO GREATER THAN 1/12.

1. PARTIALLY REMOVE MASONRY AND VEGETATION FOR ADDITION OF

NEW RAMP . NEW BRICK RETAINING WALL TO MATCH ORIGINAL BRICK RETAINING WALL. MASONRY AND MORTAR USE TO MATCH ORIGINAL.

NEW RAMP RAILINGS TO BE 2” PIPE RAILINGS PAINTED BLACK 36”

OFF FINISHED RAMP .

SLIDE 13

13

EXISTING NORTH ELEVATION PROPOSED SECTION A PROPOSED SECTION B EXISTING WEST ELEVATION PROPOSED WEST ELEVATION

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

Two Pierrepont Street

SLIDE 14

14

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET

HANDICAP RAMP DETAIL GRADE BEAM SCHEMATIC GRADE BEAM DETAIL

NEW ALUMINUM RAILINGS 36” ABOVE FINISHED RAMP

SLIDE 15

15

2 PIERREPONT STREET MATERIALS

HISTORIC BLACK FOR RAILINGS SOFT MORTAR MIX RECIPE SNOW MELT SYSTEM DETAIL

THOMAS BAIO ARCHITECT P.C. 343 MILLBURN AVE. MILLBURN, NJ 07041

2 PIERREPONT STREET

SOFT MORTAR IS MOST COMMONLY USED TO RE-POINT MOST 19TH-CENTURY BUILDINGS. FOR 20TH-CENTURY BUILDINGS, MORTAR TYPICALLY IS COMPRISED OF 1 PART LIME, OR THE EQUIVALENT OF TYPE N MORTAR. SOFT MORTAR MIX RECIPE: 1 PART WHITE PORTLAND CEMENT 2 1 2 PARTS LIME 5-6 PARTS SAND PARTS ARE BY VOLUME. MIX DRY INGREDIENTS FIRST, BEFORE ADDING POTABLE WATER. USE DRY PIGMENTS (NATURAL OR SYNTHETIC STABLE OXIDE PIGMENTS) TO TINE OR COLOR MORTAR. MIX ALL INGREDIENTS THOROUGHLY.
