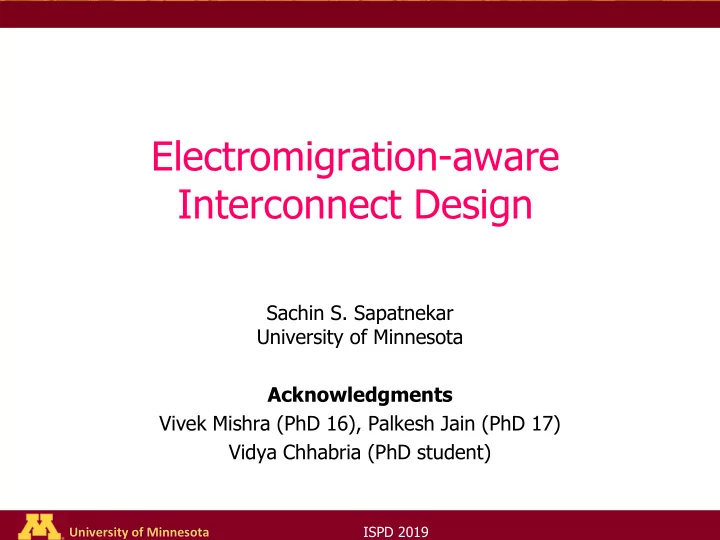

Electromigration-aware Interconnect Design

Sachin S. Sapatnekar University of Minnesota Acknowledgments Vivek Mishra (PhD 16), Palkesh Jain (PhD 17) Vidya Chhabria (PhD student)

University of Minnesota ISPD 2019

2

2 2

S D I P

University of Minnesota ISPD 2019

Outline

• Overview of electromigration
• EM modeling
• The weakest-link model (and why it’s problematic)

3

University of Minnesota ISPD 2019

Interconnect aging

• Electromigration (EM)

4

Metal 2 Metal 1 via void Cross-section TEM image [Li, IRPS ’09]

+ −

University of Minnesota ISPD 2019

Traditional view of EM

5

+ I/O drivers +FinFETs,GAAFETs

[Jain, TVLSI June 16]

University of Minnesota ISPD 2019

Self heating

• Joule heating in wires
• Multigate FETs make things worse

– Larger degrees of self-heating, worse paths to the ambient

6

Bulk FinFET SOI FinFET GAAFET

[Chhabria, ISQED 19]

University of Minnesota ISPD 2019

Which interconnects?

• Power grids

– Largely unidirectional current

• Signal interconnects

– Bidirectional current flow – Recovery effects seen

Cu Vac e-

Signals

Cell Cell

Power Network Cell-Internal A Y

e-

DC AC

7

University of Minnesota ISPD 2019

Outline

• Overview of electromigration
• EM modeling
• The weakest-link model (and why it’s problematic)

9

University of Minnesota ISPD 2019

Black’s law

• Black’s law

– Predicts mean time to failure

• TTF follows a lognormal distribution

– For a fail fraction FF, defects in parts per million (DPPM) – Constraint on tz → Constraint on t50 → Constraint on jAVG – Joule heating → Constraint on jRMS

• Circuit-level EM constraint:

– For each wire, stay within jRMS ,max , jAVG,max

10

≈ Lognormal

University of Minnesota ISPD 2019

Physics of mortality and the Blech criterion

Atomic diffusion creates stress gradient that causes Fback-stress 11

Tensile stress at cathode (σ) Compressive stress at anode (–σ)

Blech criterion

At steady state, Felectron wind = Fback-stress

σcritcal: Critical stress needed for void formation If: At steady state, σ < σcritcal then: wire is immortal! (voids never form) σ < σcritcal⟹ 𝑲 × 𝑴 < 𝑳𝟐 (Blech criterion)

University of Minnesota ISPD 2019

Physics-based EM analysis

• Korhonen model

– Void nucleation

12

Stress at a blocking boundary (cathode) Stress evolution along the wire

𝜖𝜏 𝜖𝑢 = 𝜖 𝜖𝑦 𝜆 Fback−stress + Felectron wind

[Korhonen, JAP 1993]

University of Minnesota ISPD 2019

EM mortality: Issues with classical approach

Blech criterion if: J × L < K1 Wire immortal to EM else: wire is potentially mortal Black’s equation For potential mortal wires: TTF = K2 J n 𝐟𝐲𝐪 K3 T J : Current density L : Wire length K1 : Constant

13

Empirical model, issues for Cu Steady state approach for mortality

[Lloyd, MER ’07]

University of Minnesota ISPD 2019

EM mortality: Classical vs. filtering approach

Blech criterion if: J × L < K1 Wire immortal to EM else: wire is potentially mortal Black’s equation For potential mortal wires: TTF = K2 J n 𝐟𝐲𝐪 K3 T Filtering approach Transient state approach for mortality Physics-based, applicable for Cu

14

Empirical model, issues for Cu Steady state approach for mortality

[Lloyd, MR ’07]

University of Minnesota ISPD 2019

EM mortality: Mechanical stress evolution

Atomic diffusion creates stress gradient that causes Fback-stress

Tensile stress at cathode (σ) Compressive stress at anode (–σ)

Blech criterion presumes steady state between Felectron wind and Fback-stress

σcritical σsteady state 𝝉 < 𝝉critical

throughout the lifetime. EM-safe! Potentially mortal by Blech criterion

tlifetime 𝝉(tlifetime)

1. Practical EM mortality: relative to the product lifetime 2. Transient stress evolution instead of steady state

Stress (σ) at cathode (MPa) Time (years)

Cu atoms

15

University of Minnesota ISPD 2019

EM mortality: Modeling transient stress

• Blech criterion assumes

𝝐𝝉 𝝐𝒖 = 𝟏

Stress at cathode, 𝝉(t), 2 options: 1. Semi-infinite (SI): 2. Finite (F): 𝝐𝝉 𝝐𝒖 = 𝝐 𝝐𝒚 𝝀 Fback−stress + Felectron wind 𝝉(t) = 𝑲 𝑴 𝜷𝟑 𝟐 𝟑 − ෍

𝒐=𝟏 ∞

𝒇 𝒏𝒐𝟑

−𝒏n

𝟑 𝒖 𝜷𝟒

𝑴𝟑

EM equation Efficient, but overestimates stress Inefficient, but accurate prediction

Wire length, L 16

𝝉(t) = 𝜷𝟐𝑲 𝒖

L=75µm

Extension to interconnect trees using [Park, IRPS10]

University of Minnesota ISPD 2019

Sequential mortal wire filtration

17

University of Minnesota ISPD 2019

Sequential mortal wire filtration

18

M1 ⊃ M2 ⊃ M3

𝝉(t) = 𝜷𝟐𝑲 𝒖

𝝉(t) = 𝑲 𝑴 𝜷𝟑 𝟐 𝟑 − ෍

𝒐=𝟏 ∞

𝒇 𝒏𝒐𝟑

−𝒏n

𝟑 𝒖 𝜷𝟒

𝑴𝟑

University of Minnesota ISPD 2019

Potential Mortal wires from the Blech criterion

IBMPG case study: PG2 mortal wire distribution

19

0.2 0.4 0.6 0.8 1 1.2 20 40 60 80 Current density (MA/cm2) Length (µm) Mortal wires Blech criterion Potential mortal wires

University of Minnesota ISPD 2019

Immortal wires filtered out using pessimistic Filter 2 (SI)

20

0.2 0.4 0.6 0.8 1 1.2 20 40 60 80 Current density (MA/cm2) Length (µm) Mortal wires Filter 2 (SI) Blech criterion Potential mortal wires

𝑲𝑻𝑱

𝑛𝑏𝑦

Product lifetime = 10 years Temperature (T) = 105C

IBMPG case study: PG2 mortal wire distribution

University of Minnesota ISPD 2019

Immortal wires filtered out using pessimistic Filter 2 (SI) & accurate Filter 3 (F)

IBMPG case study: PG2 mortal wire distribution

21

0.2 0.4 0.6 0.8 1 1.2 20 40 60 80 Current density (MA/cm2) Length (µm) Mortal wires Filter 2 (SI) Filter 3 (F) Blech criterion

Product lifetime = 10 years Temperature (T) = 105C 𝑲𝑻𝑱

𝑛𝑏𝑦

Actual mortal wires

University of Minnesota ISPD 2019

What about lines with branches? Vias?

• Flux Divergence

– Current flow in neighboring wire affects EM flux – Use effective current for EM

• The above is approximate

– There’s a physics-based version for this too

22

2J J JEM (Y) = 2J + J X Y Ta barrier

[Park, IRPS10]

University of Minnesota ISPD 2019

Outline

• Overview of electromigration
• EM modeling
• The weakest-link model (and why it’s problematic)

23

University of Minnesota ISPD 2019

Circuit impact

• Conventional way to overcome EM

– Constraint on tz → Constraint on t50 → Constraint on jAVG – Joule heating → Constraint on jRMS

• Circuit-level EM constraint:

– For each wire, stay within jRMS ,max , jAVG,max

• Weakest-link model

24

University of Minnesota ISPD 2019

Handling catastrophic errors

• A simple analysis of an n-component system

– Fi = probability of failure of the ith component – 1 – Fi = probability that the ith component works – n = number of components in the system – (1 – Fi)n = probability that all n components work – Probability of system failure = 1 – (1 – Fi)n

• Implicit assumptions

– All failures are catastrophic – All failures are equally serious – All failures are independent

25

University of Minnesota ISPD 2019

Interconnect redundancy

• Several on-chip interconnect systems are built to be redundant

Power grids Clock grids

• A system fails when it’s key parameters fail – and NOT at first failure!

University of Minnesota ISPD 2019

Electromigration in power grids

• Power grids are built to contain redundancies!
• 8

1 2 2

• 3

6

• 13

Worst ∆V(mV) ∆R/R = 50%

A better failure criterion:

[Mishra, DAC13]

University of Minnesota ISPD 2019

Analyzing redundancy

• Two component system: one of

the two fails first

[Jain, IRPS15]

University of Minnesota ISPD 2019

Analyzing redundancy

• Two-component system: one of

the two fails first

• Post-failure: current goes

through intact component

[Jain, IRPS15]

University of Minnesota ISPD 2019

Fail Fraction TTF

Reliability under changing stress

Two parallel leads –𝐺

1(𝑢)

A single lead – 𝐺2(𝑢)

Shifted CDF: 𝐺

2(𝑢 −

𝜀1) System CDF

[Jain, IRPS15]

University of Minnesota ISPD 2019

Fail Fraction TTF

Reliability under changing stress

CDF: 𝐺

1(𝑢)

Unshifted CDF: 𝐺2(𝑢)

Shifted CDF: 𝐺

2(𝑢 −

𝜀1) System CDF

[Jain, IRPS15]

University of Minnesota ISPD 2019

Fail Fraction TTF

Reliability under changing stress

CDF: 𝐺

1(𝑢)

Unshifted CDF: 𝐺2(𝑢) Shifted CDF: 𝐺2(𝑢 − 𝜀1) System CDF

[Jain, IRPS15]

University of Minnesota ISPD 2019

System impact for a clock grid

Circuit Delay time

Y A Vss

Vdd

[Jain, IRPS15]

University of Minnesota ISPD 2019

System impact for a clock grid

Circuit Delay

Y A Vss

Vdd R1 R1 fails

time

[Jain, IRPS15]

University of Minnesota ISPD 2019

System impact for a clock grid

Circuit Delay

Y A Vss

Vdd R1 R2 R1 fails R2 fails

time

[Jain, IRPS15]

University of Minnesota ISPD 2019

System impact for a clock grid

Circuit Delay

Y A Vss

Vdd R1 R2 R3 R1 fails R2 fails R3 fails

time

[Jain, IRPS15]

University of Minnesota ISPD 2019

Quantitative evaluation

0.1 FF criteria WLA TTF This approach time (a. u.) FF

[Jain, IRPS15]

University of Minnesota ISPD 2019

EM and stress

• Blech effect

– Back stress opposes electron wind – Some wires are “immortal” due to back-stress

(jL) < (jL)critical → “immortal wire”

• Other sources of stress – thermomechanical stress

38

+ −

e- flow time=0 time>>0

FEM µ J

Typical Cu interconnect

[Mishra, DAC16]

University of Minnesota ISPD 2019

Thermomechanical stress in power grid

• Caused by thermal expansion mismatch between various layers of

the interconnect system

• Evaluate using Finite Element Method (FEM)
• FEM: Numerical, computationally expensive

39

Various layers in typical copper interconnect

[Mishra, DAC16]

University of Minnesota ISPD 2019

Stress analysis of power grid vias (contd.)

Thermal stress for every via can vary depending on:

– Position of the via array in the power grid – Position of the via in the via array – Via array configuration (e.g., 4x4, 8x8 via array)

40 160 210 260 1 2

Hydrostatic stress (MPa)

x (µm) T-shaped Plus-shaped L-shaped

Plus-shaped, T-shaped, and L- shaped 4x4 via array

University of Minnesota ISPD 2019

Stress analysis of power grid vias (contd.)

Thermal stress for every via can vary depending on:

– Position of the via array in the power grid – Position of the via in the via array – Via array configuration (e.g., 4x4, 8x8 via array)

41

Three configurations with the same area

180 200 220 240 260 280 1 2

Hydrostatic Stress (MPa)

x (µm) 8x8 4x4 1x1

1x1 4x4 8x8

30MPa stress difference = ~30% change in lifetime

University of Minnesota ISPD 2019

Via array performance and redundancy

42

Cumulative percentile Time to failure (TTF) (years)

Via arrays with same resistance

0.25 0.5 0.75 1 8 10 12 14 4x4 via 2x2 via

4x4 via 2x2 via More vias Better for TTF When does the via array fail?

[Mishra, DAC16]

University of Minnesota ISPD 2019

IMBPG1: TTF for various failure criteria

Failure criteria for:

1. System (power grid) failure

• Weakest-link: Conventional

method, implies 1st failure

• Our criterion: 10% IR-drop

2. Sub-system (via array) failure

• Weakest-link: 1st via failure
• Our criterion: 8th via failure

43

[Mishra, DAC16]

University of Minnesota ISPD 2019

Conclusion

• EM is an important problem for current/future

technologies

• Critical issue in high-current density scenarios

– Lower metal levels – Analog blocks – Potential within-cell issues – Higher on-chip temperatures exacerbate the challenge

• Leveraging redundancy for EM mitigation is essential

44

University of Minnesota ISPD 2019

Thank you!

45

University of Minnesota ISPD 2019

Backup

46

University of Minnesota ISPD 2019

”AC EM”

Bidirectional pulsed current

• Mathematical average = 0
• Electromigration point of

view, failures are seen, but at much higher lifetime

• Define a new ‘recovered’

current criteria:

3
