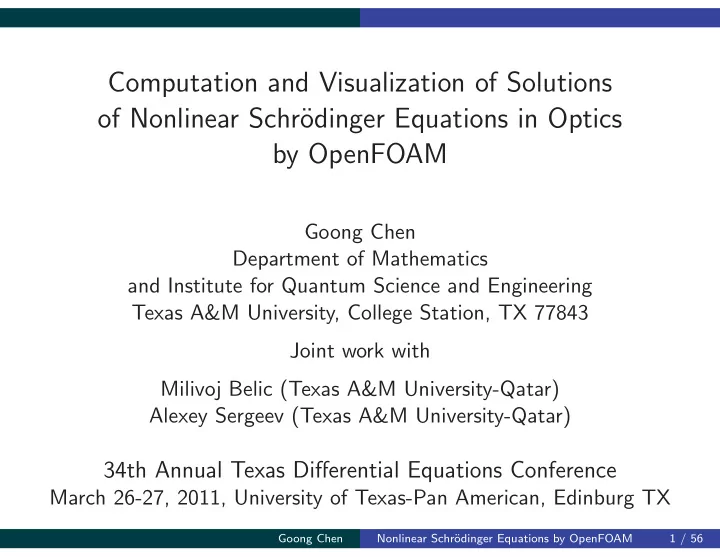

Computation and Visualization of Solutions

• f Nonlinear Schr¨
• dinger Equations in Optics

by OpenFOAM

Goong Chen Department of Mathematics and Institute for Quantum Science and Engineering Texas A&M University, College Station, TX 77843 Joint work with Milivoj Belic (Texas A&M University-Qatar) Alexey Sergeev (Texas A&M University-Qatar)

34th Annual Texas Differential Equations Conference

March 26-27, 2011, University of Texas-Pan American, Edinburg TX

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

1 / 56

Abstract

A large number of optical phenomena are modeled as an initial-boundary value problem governed by the nonlinear Schr¨

• dinger equation. In this

talk, we will show numerical computational results for several nonlinear

• ptical dynamic processes containing various forms of nonlinearities. The

numerical scheme is based on a parabolic marching in time and a finite-volume method adapted from heat equation in the fluid-dynamics software OpenFOAM. Supported in part by Texas Norman Hackman Advanced Research Program #010366-0149-2009 from the Texas Higher Education Coordinating Board, and Qatar National Research Fund (QNRF) National Priority Research Program Grant #NPRP09-462-1-074.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

2 / 56

Introduction

Introduction

OpenFOAM (http://www.OpenFOAM.com) is a free, open source computational fluid dynamics (CFD) software package produced by a commercial company, OpenCFD Ltd. It has a large user base across most areas of engineering and science, from both commercial and academic

• rganizations. Here, FOAM means Field Operation and Manipulation.

Running OpenFOAM consists of

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

3 / 56

Introduction

Introduction

OpenFOAM (http://www.OpenFOAM.com) is a free, open source computational fluid dynamics (CFD) software package produced by a commercial company, OpenCFD Ltd. It has a large user base across most areas of engineering and science, from both commercial and academic

• rganizations. Here, FOAM means Field Operation and Manipulation.

Running OpenFOAM consists of generating polyhedral mesh for use in Finite Volume Method;

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

3 / 56

Introduction

Introduction

OpenFOAM (http://www.OpenFOAM.com) is a free, open source computational fluid dynamics (CFD) software package produced by a commercial company, OpenCFD Ltd. It has a large user base across most areas of engineering and science, from both commercial and academic

• rganizations. Here, FOAM means Field Operation and Manipulation.

Running OpenFOAM consists of generating polyhedral mesh for use in Finite Volume Method; executing a numerical solver for the given differential equation,

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

3 / 56

Introduction

Introduction

OpenFOAM (http://www.OpenFOAM.com) is a free, open source computational fluid dynamics (CFD) software package produced by a commercial company, OpenCFD Ltd. It has a large user base across most areas of engineering and science, from both commercial and academic

• rganizations. Here, FOAM means Field Operation and Manipulation.

Running OpenFOAM consists of generating polyhedral mesh for use in Finite Volume Method; executing a numerical solver for the given differential equation, displaying results.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

3 / 56

Introduction

Many important phenomena in optics are modeled by the nonlinear Schr¨

• dinger equation (NLSE):

i ∂Ψ ∂t + ∆Ψ + F

• |Ψ|2

Ψ = 0 (1) with Dirichlet or Neumann boundary conditions, and initial conditions.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

4 / 56

Mesh generation

Mesh generation

blockMesh is one of the mesh-generating utilities in OpenFOAM. Listing 1 shows a typical file blockMeshDict that is used to construct a mesh on a cylinder consisting of five curvilinear hexagonal blocks.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

5 / 56

Mesh generation

Listing 1. Content of blockMeshDict file containing specifications of hexagonal blocks and their grading in order to construct a mesh on a cylinder. The radius of cylinder is R = 1 and the length L = 4. The OpenFOAM header of the file is not shown to save space. See http://www.openfoam.com/docs/user/blockMesh.php for a tutorial

• n blockMesh utility.

convertToMeters 1 . 0 ; v e r t i c e s ( ( 0 . 5 0 0) (0 −0.5 0) ( −0.5 0 0) (0 0.5 0) (1 0 0) (0 −1 0) (−1 0 0) (0 1 0) ( 0 . 5 0 4) (0 −0.5 4)

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

6 / 56

Mesh generation

( −0.5 0 4) (0 0.5 4) (1 0 4) (0 −1 4) (−1 0 4) (0 1 4) ) ; b l o c k s ( hex (8 9 10 11 0 1 2 3) (16 16 32) simpleGrading (1 1 1) hex (8 12 13 9 0 4 5 1) (16 16 32) simpleGrading (1 1 1) hex (9 13 14 10 1 5 6 2) (16 16 32) simpleGrading (1 1 1) hex (10 14 15 11 2 6 7 3) (16 16 32) simpleGrading (1 1 1) hex (11 15 12 8 3 7 4 0) (16 16 32) simpleGrading (1 1 1) ) ; edges ( arc 4 5 (0.707 −0.707 0) arc 5 6 ( −0.707 −0.707 0) arc 6 7 ( −0.707 0.707 0) arc 7 4 (0.707 0.707 0)

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

7 / 56

Mesh generation

arc 12 13 (0.707 −0.707 4) arc 13 14 ( −0.707 −0.707 4) arc 14 15 ( −0.707 0.707 4) arc 15 12 (0.707 0.707 4) ) ; patches ( w a l l bound ( (0 1 2 3) (0 4 5 1) (1 5 6 2) (2 6 7 3) (3 7 4 0) (8 9 10 11) (8 12 13 9) (9 13 14 10) (10 14 15 11) (11 15 12 8) (4 5 13 12) (5 6 14 13)

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

8 / 56

Mesh generation

(6 7 15 14) (7 4 12 15) ) ) ; mergePatchPairs ( ) ;

The result of mesh generation is visualized by a paraFoam utility subroutine as shown on Fig. 1.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

9 / 56

Mesh generation

Figure: A mesh for a cylinder constructed with use of blockMesh utility controlled by blockMeshDict file, see Listing 1. The cylinder is divided in four prism-like blocks and a central block, which is a rectangular parallelepiped with a 16 × 16 × 32 grading. Four side blocks are curvilinear hexahedrons with a similar grading.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

10 / 56

The heat equation

The heat equation

Presently, OpenFOAM itself does not contain subroutines for NLSE. However, a close analogue of NLSE available in OpenFOAM is the heat equation ∂T ∂t − D ∆T = 0 (2) where D is a coefficient of thermal conductivity and T is temperature. Here, we give an example of the use of laplacianFoam solver for this equation. The temperature at initial time t = 0 is given as T(x, y, z)(t=0) = exp

• − 1

16

• (x − 0.4)2 − y2 − z2

. (3) This function is calculated by a separate program. The results are written into the file T, see Listing 2. The file T is placed in the subfolder 0 which is designated for the storage of the initial data.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

11 / 56

The heat equation

Listing 2. Content of the file T with initial conditions data for the tempera-

• ture. 40954 numbers were skipped to save space. boundaryField section

at the end specifies zero gradient (Neumann) boundary conditions.

dimensions [0 0 0 1 0 0 0 ] ; i n t e r n a l F i e l d nonuniform Li s t <s c a l a r > 40960 ( 8.95663 e−22 9.02248 e−22 8.97853 e−22 . . . 0.319731 0.333965 0.340724 ) ; } } boundaryField {

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

12 / 56

The heat equation

bound { type z e r o G r a d i e n t ; } }

Plot of the temperature at the initial time is shown in Figure 2.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

13 / 56

The heat equation

Figure: Gaussian distribution of temperature at initial time t = 0 given by equation (3). Blue color correspons to T = 0, and red to T = 1. The cylinder is sliced in order to show the interior.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

14 / 56

The heat equation

The solver laplacianFoam.C of this equation is given in Listing 3. Notice that “fvm::laplacian” means that the Laplacian is calculated implicitly as a matrix, and an implicit Euler method of integration is used. Listing 3. Solving the heat equation

#include ”fvCFD .H” i n t main ( i n t argc , char ∗ argv [ ] ) { # include ” setRootCase .H” # include ” createTime .H” # include ” createMesh .H” # include ” c r e a t e F i e l d s .H” Info < < ”\ n C a l c u l a t i n g temperature d i s t r i b u t i o n \n” << endl ; while ( runTime . loop ( ) ) { Info < < ”Time = ” << runTime . timeName () << n l << endl ; # include ” readSIMPLEControls .H” for ( i n t nonOrth =0; nonOrth<=nNonOrthCorr ; nonOrth++) { s o l v e

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

15 / 56

The heat equation

( fvm : : ddt (T) − fvm : : l a p l a c i a n (DT, T) ) ; } # include ” w r i t e .H” Info < < ” ExecutionTime = ” << runTime . elapsedCpuTime () << << ” ClockTime = ” << runTime . elapsedClockTime () << << n l << endl ; } Info < < ”End\n” << endl ; return 0; }

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

16 / 56

The heat equation

The time and write control input data are given in Listing 4. Note that time marches from t = 0 to t = 2 with a time step of ∆t = 0.001 and write time interval 0.005. Listing 4. Time and write control data organized in controlDict file. See http://www.openfoam.com/docs/user/controlDict.php for explana- tion of keyword entries.

a p p l i c a t i o n laplacianFoam ; startFrom startTime ; startTime 0; stopAt endTime ; endTime 2; deltaT 0 . 0 0 1 ; w r i t e C o n t r o l runTime ; w r i t e I n t e r v a l 0 . 0 0 5 ; purgeWrite 0; writeFormat a s c i i ; w r i t e P r e c i s i o n 6; writeCompression uncompressed ; timeFormat g e n e r a l ;

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

17 / 56

The heat equation

t i m e P r e c i s i o n 6; runTimeModifiable yes ;

The input constant D is given by Listing 5, i.e. in this case D = 1. Numbers in square brackets specify dimensionality of the heat transfer constant, m2/sec. Listing 5. Transport properties organized in transportProperties file.

DT DT [ 0 2 −1 0 0 0 0 ] 1;

Numerical results are shown on Fig. 3.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

18 / 56

The heat equation

Figure: Results of calculations as visualized by paraFoam utility. Heat distribution at initial time t = 0 is shown at the upper left. Subsequent panels show calculated temperature distribution at t = 0.05, 0.1, and 0.25. Total computation time on a laptop is around one minute.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

19 / 56

Modification for NLSE

Modification for NLSE

The heat equation numerical solver is now modified in order to allow a non-zero imaginary part. Real and imaginary parts of the wave function are stored as a three dimensional vector (Re Ψ, Im Ψ, 0) which is denoted as T, see Listing 6. The identity matrix I corresponds to multiplying by real one, and the antisymmetric matrix II by imaginary i. Notice that “fvc::laplacian” means that the Laplacian is calculated explicitly as a value, i.e., we use an explicit Euler method of integration. The reason of using the explicit method is our so-far inability to easily adjust an implicit method for the case of two coupled equations (for real and imaginary parts).

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

20 / 56

Modification for NLSE

Listing 6. Modification of laplacianFoamM.C solver by replacing a scalar variable T by a vector variable T for storing both real and imag- inary parts of the function. The non-linearity is represented by cu- bic and quintic terms, ((CA*II+CA*EPSILON*I)&T)*magSqr(T) and ((CB*II-CB*MU*I)&T)*pow(magSqr(T),2).

#include ”fvCFD .H” i n t main ( i n t argc , char ∗ argv [ ] ) { # include ” setRootCase .H” # include ” createTime .H” # include ” createMesh .H” # include ” c r e a t e F i e l d s .H” Info < < ”\ nSolving non−l i n e a r Schrodinger equation i d p s i / dt − i DELTA p s i + (CA − i EPSILON) | p s i |ˆ2 p s i − (CB + i MU) t e n s o r I (1 , 0 , 0 , 0 , 1 , 0 , 0 , 0 , 0 ) ; t e n s o r I I (0 , −1, 0 , 1 , 0 , 0 ,

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

21 / 56

Modification for NLSE

0 , 0 , 0 ) ; while ( runTime . loop ( ) ) { Info < < ”Time = ” << runTime . timeName () << n l << endl ; # include ” readSIMPLEControls .H” for ( i n t nonOrth =0; nonOrth<=nNonOrthCorr ; nonOrth++) { s o l v e ( −fvm : : ddt (T) + (( C0∗ I I+C0∗BETA∗ I )& f v c : : l a p l a c i a n (T)) + DELTA∗T + ((CA∗ I I+CA∗EPSILON∗ I )&T)∗ magSqr (T) − ((CB∗ I I −CB∗MU∗ I )&T)∗pow( magSqr (T) ,2) ) ; } # include ” w r i t e .H” Info < < ” ExecutionTime = ” << runTime . elapsedCpuTime () << << ” ClockTime = ” << runTime . elapsedClockTime () << << n l << endl ; } Info < < ”End\n” << endl ;

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

22 / 56

Modification for NLSE

return 0; }

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

23 / 56

Modification for NLSE

We now introduce seven parameters C0, C1, C2, β, δ, ǫ, and µ in order to accommodate a more general equation i ∂Ψ ∂t +C0(1−iβ)∆Ψ−iδΨ+C1(1−iǫ)|Ψ|2Ψ−C2(1+iµ)|Ψ|4Ψ = 0, (4) If the equation has “Kerr-type” nonlinearity, i.e. F(|u|2) = g|u|2 in (1), then C0 = 1, C1 = g, and C2 = β = δ = ǫ = µ = 0.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

24 / 56

Courant number

Courant number

An explicit method can suffer from numerical instability in case when the Courant number C0∆t/(∆x)2 (where C0 is a coefficient in front of the Laplacian) is larger than one, where ∆x is grid spacing. Fig. 4 shows the

• ccurrence of numerical of instability that starts at spots where the grid

spacing is exceptionally small. Finally, the code gives ”floating point

• verflow” numerical error. Parameter of equation (1) is g = 0. The

cylindrical domain is the same as before, with radius R = 1, length L = 4, with the same mesh as in Section 4.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

25 / 56

Courant number

Figure: Numerical divergence caused by Courant number larger than 1. The subfigures show calculated absolute value of the wave function of equation (1). The time step is ∆t = 1.8 · 10−5. Numerical instability starts to develop at t = 0.002 in a region where the grid spacing is smallest. Then, it spreads to an entire region. Coefficient in front of Laplacian is set to C0 = 10, and the nonlinearity is set to zero.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

26 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

Nonlinear dynamical phenomena

Here, we consider the NLSE with two non-linear, cubic and quintic, terms. The equation to solve is i ∂Ψ ∂t + ∆Ψ + C1|Ψ|2Ψ − C2|Ψ|4Ψ = 0, (5) with the Dirichlet boundary condition. If the constants C1 and C2 are positive, then the equation describes a self-guiding light beam organized in a solitonic structure [2, 3], with two transverse coordinates x, y and the third coordinate t in the direction of the beam propagation. There are four variables, x, y, z, and t. The cubic nonlinearity, |Ψ|2Ψ, induces an effect of self-focusing, while the quintic term |Ψ|4Ψ induces that of de-focusing. In order for a spatial soliton to become stable, the cubic and quintic non-linearities must have opposite signs. We illustrate this behavior by numerical simulations with various parameters C1 and C2.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

27 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

Initial conditions, mesh, and time step

The equation is computed inside a ball of radius 20 with the center at the

• rigin. The mesh is obtained from a cubic grid 128 × 128 × 128 by

applying the OpenFOAM tool snappyHexMesh, see Figure 5.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

28 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

Figure: A mesh for the ball obtained from a cubic 128 × 128 × 128 mesh after applying the OpenFOAM tool snappyHexMesh. The ball is cross-sectioned by a plane, to show the interior of the mesh.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

29 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

The initial condition is given as Ψ(t=0) = A(x, y, z) e− (x−x0)2+(y−y0)2+(z−z0)2

2R2

, (6) x0 = 0.1, y0 = 0.2, z0 = 0, R = 7, (7) and A(x, y, z) = 1 + 0.1 x + iy (x2 + y2)1/2 (8) where the factor A(x, y, z) is multiplied in order to break rotation symmetry. The time step is chosen as ∆t = 0.0025 that is around 50% of maximal possible time step for which Courant number allows convergence of the

• method. The function is computed up to tmax = 15, with 6000 time steps.

Execution time is about 12 hours.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

30 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

A linear Schr¨

• dinger equation

We first treat equation (5) for the case C1 = C2 = 0 (the linear case), i.e., i ∂Ψ

∂t + ∆Ψ = 0. As it is expected, the wave packet slowly disperses with

time, but remains Gaussian, see Figure 6.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

31 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

Figure: Numerical solution of the linear Schr¨

• dinger equation i ∂Ψ

∂t + ∆Ψ = 0.

Density plot shows absolute value of the function. Blue color corresponds to |Ψ| = 0, and red color to maximal possible absolute value at t = 0. Wave packet slowly disperses with time.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

32 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

A self-focusing case

Equation (5) is computed for the case of C1 = 1 and C2 = 0, i.e. i ∂Ψ

∂t + ∆Ψ + |Ψ|2Ψ = 0. The positive cubic non-linearity causes a

self-focusing effect. Singularity develops, and part of the wave function blows up, see Figure 7.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

33 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

Figure: Numerical solution of the NLSE i ∂Ψ

∂t + ∆Ψ + |Ψ|2Ψ = 0. There are

two plots combined together, a contour plot of |Ψ| (a ball), and a density plot on the sphere sectioned at x = 8. Wave packet shrinks with time and blows up.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

34 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

Similarly, equation (5) is solved for the case of C1 = 0 and C2 = −1, i.e., i ∂Ψ

∂t + ∆Ψ + |Ψ|4Ψ = 0. Again, the quintic non-linearity causes

self-focusing effects with final blow up, see Figure 8.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

35 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

Figure: Solution of the NLSE i ∂Ψ

∂t + ∆Ψ + |Ψ|4Ψ = 0. Wave packet shrinks

with time and finally blows up.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

36 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

A defocusing case

Defocusing occurs when the equation takes the form i ∂Ψ

∂t + ∆Ψ − |Ψ|2Ψ = 0. Figure 9 shows the case of C1 = −1 and C2 = 0,

and Figure 10 the case of C1 = 0 and C2 = −1. De-focusing causes the wave function to spread, and finally disperse over the volume.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

37 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

Figure: Solution of the NLSE i ∂Ψ

∂t + ∆Ψ − |Ψ|2Ψ = 0. Wave packet blows up

and finally disperses over the entire domain of the ball.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

38 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

Figure: Solution of the NLSE i ∂Ψ

∂t + ∆Ψ − |Ψ|4Ψ = 0. The non-linearity

causes the wave packet to defocus. Finally, it disperses over the entire domain of the ball.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

39 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

Stable case

Stabilization occurs when cubic and quintic non-linearities have opposite

• signs. Figure 11 shows the case of C1 = C2 = 1, i.e., the NLSE

i ∂Ψ

∂t + ∆Ψ + |Ψ|2Ψ − |Ψ|4Ψ = 0. The wave packet becomes more

compact with time, and finally stabilizes.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

40 / 56

Nonlinear dynamical phenomena Modeling equation Initial conditions, mesh, and time step A lin

Figure: Solution of the NLSE with combined cubic-quintic nonlinearities of

• pposite signs, i ∂Ψ

∂t + ∆Ψ + |Ψ|2Ψ − |Ψ|4Ψ = 0 corresponding to a stable

• soliton. Wave packet originally excretes small fractions of the wave function,

and finally becomes stable. There are two plots combined together, a contour plot of |Ψ| (a ball), and a density plot on the sphere sec attioned x = 8.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

41 / 56

Dynamics of the NLSE over a rectangular domain

Dynamics of the NLSE over a rectangular domain

Here, we consider the initial condition Ψ(t=0) = e− x2+y2

16

[1 + 0.01 cos(πz/5)] , (9) We consider (5) with C1 = C2 = 1. The rectangular parallelepiped is square-shaped in (x, y)-plane with size of the side of square a = 48, and has length L = 72 in z-direction. The results are shown in Fig. 12.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

42 / 56

Dynamics of the NLSE over a rectangular domain

Figure: Dynamic snapshots of the numerical solution of the NLSE i ∂Ψ

∂t + ∆Ψ + |Ψ|2Ψ − |Ψ|4Ψ = 0 with a cylindrical-like initial condition given

by equation (9). The panels show calculated absolute value of the wave function with increasing values of time. The plot is a combination of a contour plot with sliced wave function in three planes given by equations x = 6, y = −24, and z = 36. The mesh grading is 96 × 96 × 144. The time step is ∆t = 0.02. Execution time to tmax = 300 (15000 time steps) equals to 55000 seconds.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

43 / 56

Dynamics of the NLSE over a rectangular domain

The results on a domain with L = 144 are shown on Fig. 13.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

44 / 56

Dynamics of the NLSE over a rectangular domain

Figure: Visualization of solutions of the NLSE i ∂Ψ

∂t + ∆Ψ + |Ψ|2Ψ − |Ψ|4Ψ = 0 with the initial condition given by (9). The

panels show calculated absolute value of the wave function cross sections of the with increasing with? time. The plot is a combination of a contour plot with sliced wave function in three planes given by planes x = 6, y = −24, and z = 72. The mesh grading is 96 × 96 × 288. The time step is ∆t = 0.02. Execution time to tmax = 160 (8000 time steps) equals 58000 second.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

45 / 56

Dynamics of the NLSE over a rectangular domain

We also tried to solve the equation for smaller z-length of the region, in anticipation that for a sufficiently short cylinder an asymptotic pattern of the solution would emerge. However, in all considered cases we se no asymptotically stable pattern formations. The results for L = 36 are shown

• n Fig. 14, and for L = 18 are shown on Fig. 15.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

46 / 56

Dynamics of the NLSE over a rectangular domain

Figure: Visualization of solution of the NLSE i ∂Ψ

∂t + ∆Ψ + |Ψ|2Ψ − |Ψ|4Ψ = 0

with the initial condition given by (9). The length of the cylinder is chosen shorter than on previous examples that are shown on Figures 12 and 13.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

47 / 56

Dynamics of the NLSE over a rectangular domain

Figure: Visualization of solution of the NLSE i ∂Ψ

∂t + ∆Ψ + |Ψ|2Ψ − |Ψ|4Ψ = 0

with the initial condition given by (9). The length of the cylinder is chosen even shorter than the previous example in Figure 14.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

48 / 56

Dynamics of the NLSE over a rectangular domain

In addition, we tried to solve the same equation for a plane-like initial conditions Ψ(t=0) = e− z2

16 [1 + 0.01 sin(πx/5) + 0.01 sin(πy/4)] ,

(10) The results are shown on Fig. 16. For small time, the function almost does not have dependence on x and y coordinates, but finally it becomes essentially three-dimensional because of instability.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

49 / 56

Dynamics of the NLSE over a rectangular domain

Figure: Visualization of solution of the NLSE i ∂Ψ

∂t + ∆Ψ + |Ψ|2Ψ − |Ψ|4Ψ = 0

with the initial condition given by (10). The size of the rectangular parallelepiped is 72 × 72 × 96. Mesh grading is 144 × 144 × 96.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

50 / 56

Dynamics of the NLSE over a rectangular domain

Finally, we tried to solve a two-dimensional equation i ∂Ψ(x, y) ∂t + ∆Ψ(x, y) +

• |Ψ(x, y)|2

Ψ(x, y) = 0 (11) with the initial condition Ψ(t=0) = e− y2

R2 [1 + 0.001 sin(πx/3)] ,

(12) The results for the square size a = 24 and R = 4 are shown on Fig. 17.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

51 / 56

Dynamics of the NLSE over a rectangular domain

Figure: Solution of a two-dimensional NLSE i ∂Ψ

∂t + ∆Ψ + |Ψ|2Ψ = 0 on a

square 24 × 24 with the initial condition given by (12). Mesh grading is 512 × 512 × 1. Since a one-dimensional soliton does not collapse, the pattern stays stable in y-direction, until instabilities in x-direction break translational

• symmetry. Since in two dimensions solitons exhibit self-focusing and collapse,

the pattern finally diverges.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

52 / 56

A Ginzburg–Landau equation (a 2D case)

A Ginzburg–Landau equation (a 2D case)

The equation takes the form of (13): i ∂Ψ ∂t + (1 − iβ)∆Ψ − iδΨ + (1 − iǫ)|Ψ|2Ψ − (1 + iµ)|Ψ|4Ψ = 0, (13) with zero Neumann (zero flux) boundary conditions. The constants in equation (13) are as follows, β = 0.05, δ = −0.01, ǫ = 0.45, µ = −0.8. (14) The equation is solved in two dimensions inside a square of size 96 with the center at the origin. The mesh is 256 × 256 × 1.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

53 / 56

A Ginzburg–Landau equation (a 2D case)

The initial condition is given as Ψ(t=0) = A(x, y) A0e− (x−x0)2+(y−y0)2

2R2

, (15) A0 = 0.87, x0 = 4, y0 = 2, R = 4.03, (16) and A(x, y) = 1 + 0.1 x + iy (x2 + y2)1/2 (17) where the A(x, y, z) term is multiplied in order to break rotation symmetry. The time step is chosen as ∆t = 0.01 that is around 50% of maximal possible time step for which Courant number allows convergence of the

• method. The function was computed up to tmax = 1000.

Results of calculation are shown on Figure 18. With passing of time, the solution becomes elongated and starts rotating. The radial symmetry of the function breaks at around time t = 500.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

54 / 56

A Ginzburg–Landau equation (a 2D case)

Figure: Solution of Ginzburg–Landau equation given by equation (15) with initial condition given by equation (17) At small times, the solution is a Gaussian-like, with radial symmetry. Then, soliton elongates in one direction and starts rotating.

Click to start animation

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

55 / 56

Bibliography

• C. Sulem and P.-L. Sulem. The NLSE. Self-focusing and wave
• collapse. Springer, 1999.
• V. Skarka, D. V. Timotijevi´

c, and N. B. Aleksi´

• c. Journal of Optics A:

Pure and Applied Optics, vol. 10, 075102, 2008.

• N. B. Aleksi´

c, V. Skarka, D. V. Timotijevi´ c, and D. Gauthier. Phys.

• Rev. A, vol. 75, 061802(R), 2007.

Goong Chen Nonlinear Schr¨

• dinger Equations by OpenFOAM

56 / 56
