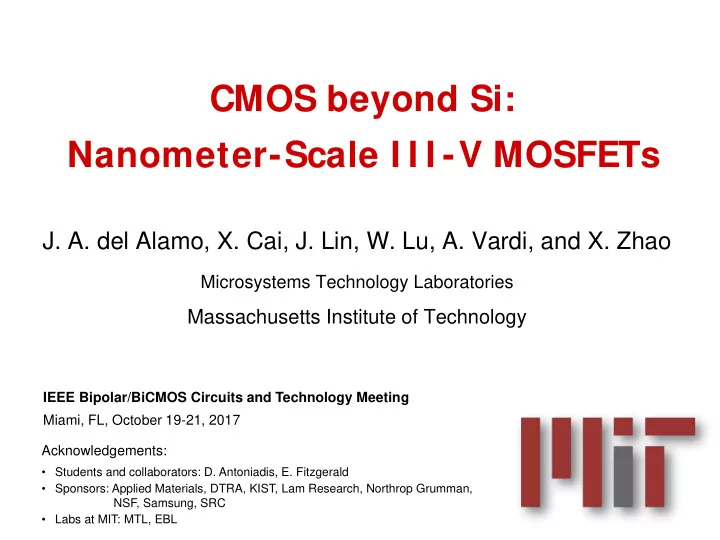

CMOS beyond Si: Nanometer-Scale I I I -V MOSFETs

• J. A. del Alamo, X. Cai, J. Lin, W. Lu, A. Vardi, and X. Zhao

Microsystems Technology Laboratories

Massachusetts Institute of Technology

IEEE Bipolar/BiCMOS Circuits and Technology Meeting Miami, FL, October 19-21, 2017 Acknowledgements:

• Students and collaborators: D. Antoniadis, E. Fitzgerald
• Sponsors: Applied Materials, DTRA, KIST, Lam Research, Northrop Grumman,

NSF, Samsung, SRC

• Labs at MIT: MTL, EBL

Moore’s Law at 50: the end in sight?

2

3

Moore’s Law

4

?

How far can Si support Moore’s Law?

The problem:

Transistor scaling  Voltage scaling  Performance suffers

5

Transistor current density:

What can we do about this?

Intel microprocessors Intel microprocessors

Supply voltage:

6

Moore’s Law: it’s all about MOSFET scaling

• 1. New device structures with improved scalability:
• 2. New materials with improved transport characteristics:

n-channel: Si  Strained Si  SiGe  InGaAs p-channel: Si  Strained Si  SiGe  Ge  InGaSb

Planar bulk MOSFET Thin-body SOI MOSFET Nanowire MOSFET FinFET

7

I I I -V electronics in your pocket!

8

Historical evolution: I nGaAs High-Electron Mobility Transistor

Transconductance (gm=dID/dVGS):

9

I nGaAs MOSFETs vs. HEMTs

*

*inversion-mode

Transconductance (gm=dID/dVGS):

10

I nGaAs MOSFETs vs. HEMTs

Lin, EDL 2016

What happened here?

*

*inversion-mode

gm=3.45 mS/μm

Transconductance (gm=dID/dVGS):

11

Huang, APL 2005

ALD eliminates residual native oxides that pin Fermi level  “Self cleaning” Clean, smooth interface without native oxides

Atomic Layer Deposition (ALD)

• f gate oxide
• First with Al2O3, then with other high-K dielectrics
• First in GaAs, then in other III-Vs

n-MOSFETs in Intel’s nodes at nominal voltage

Planar Si and I nGaAs MOSFET Benchmark

12

Comparisons always fraught with danger…

Transconductance exceeds Si MOSFETs

I nGaAs FinFETs

13

FinFETs

Bottom-up I nGaAs FinFETs

14

Si

Waldron, VLSI Tech 2014 Aspect-Ratio Trapping Fiorenza, ECST 2010 Epi-grown fin inside trench Sun, VLSI Tech 2017

I nGaAs FinFETs @ MI T

15

Vardi, DRC 2014, EDL 2015, IEDM 2015

Key enabling technologies: BCl3/SiCl4/Ar RIE + digital etch

• Sub-10 nm fin width
• Aspect ratio > 20
• Vertical sidewalls

I nGaAs FinFETs @ MI T

16

Vardi, VLSI Tech 2016

• Si-compatible process
• Contact-first, gate-last process
• Fin etch mask left in place  double-gate MOSFET

Vardi, EDL 2016

InAlAs InGaAs

n+-InGaAs

W/Mo Lg SiO2 HSQ High-K InP δ - Si InP Mo Mo HSQ High-K InGaAs

17

Most aggressively scaled FinFET

Wf=7 nm, Lg=30 nm, Hc=40 nm (AR=5.7), EOT=0.6 nm: Vardi, EDL 2016 At VDS=0.5 V:

• gm=900 µS/µm
• Ron=320 Ω.µm
• Ssat=100 mV/dec
• 0.4
• 0.2

0.0 0.2 0.4 200 400 600 800 1000 VDS=0.5 V

gm max=900 µS/µm

gm [µS/µm] VGS [V]

• 0.5 -0.4 -0.3 -0.2 -0.1 0.0

0.1 0.2 0.3 0.4 1E-9 1E-8 1E-7 1E-6 1E-5 1E-4 1E-3

VDS=50 mV DIBL=90 mV/V

Id [A/µm] VGS [V]

Ssat=100 mV/dev VDS=500 mV

0.0 0.1 0.2 0.3 0.4 0.5 100 200 300 400 500 Id [µA/µm]

VDS [V] VGS=-0.5 to 0.75 ∆VGS=0.25 V

Current normalized by 2xHc

18

100 200 300 400 500 600 700 50 100 150 200 250 A: Al2O3, EOT=2.8 nm B:Al2O3/HfO2, EOT=1 nm C: HfO2, EOT=0.6 nm Ssat [mV/dec] Lg [nm]

EOT↓

60 mV/dec 100 200 300 400 500 600 700 200 400 600 800 1000 1200 1400 1600

EOT↓

VDS=0.5 V Wf=20-22 nm

gm [µS/µm] Lg [nm]

Classical scaling with Lg and EOT

Lg and EOT scaling (Wf~ 20 nm)

Vardi, EDL 2016

100 1000 50 100 150

Wf=7 nm Wf=12 nm Wf=17 nm Wf=22 nm

Ssat,min [mV/dec] Lg [nm] 60 mV/dec

Fin-width scaling (EOT= 0.6 nm)

19

• Non-ideal fin width scaling
• Sources:
• High Dit (~5x1012 cm-2.eV-1)?
• mobility degradation?
• line edge roughness?

Contaminated by gate leakage

100 200 300 400 500 600 200 400 600 800 1000 1200 1400 1600 7 ∆Wf= 5 nm gm max [µS/µm] Lg [nm] Wf=22 nm

Vardi, EDL 2016

20 40 60 5 10 15 20

0.45 2.2 0.32 1 1.8 0.57 0.8 5.7 3.3 2.3 1.8

InGaAs FinFETs

5.3 4.3 Intel Si FinFETs (VDD=0.8 V)

gm/Wf [mS/µm] Wf [nm]

0.63 0.6 0.23 0.66 1 0.18

I nGaAs FinFET benchmarking

20

gm normalized by fin width

• First InGaAs FinFETs with Wf<10 nm
• Doubled gm over earlier InGaAs FinFETs
• Short of Si FinFETs  sidewall quality?

Our work (VDS=0.5 V)

Wf

Target

channel aspect ratio

See latest at IEDM 2017!

21

I nGaAs Vertical Nanowire MOSFETs

VNW MOSFET

22

Vertical nanowire MOSFET: ultimate scalable transistor

Vertical NW MOSFET:  uncouples footprint scaling from Lg, Lspacer, and Lc scaling Lc Lg Lspacer

Key enabling technologies:

• RIE = BCl3/SiCl4/Ar chemistry
• Digital Etch (DE) =

self-limiting O2 plasma oxidation + H2SO4 or HCl oxide removal

23

• Radial etch rate=1 nm/cycle
• Sub-20 nm NW diameter
• Aspect ratio > 10
• Smooth sidewalls

RIE + 5 cycles DE

Zhao, IEDM 2013 Zhao, EDL 2014 Zhao, IEDM 2014

I nGaAs Vertical Nanowires @ MI T

24

I nGaAs VNW-MOSFETs by top-down approach @ MI T

Top-down approach: flexible and manufacturable

n+ InGaAs, 70 nm i InGaAs, 80 nm n+ InGaAs, 300 nm

Starting heterostructure: n+: 6×1019 cm-3 Si doping

VNW-MOSFET I -V characteristics: D= 40 nm

25

Single nanowire MOSFET:

• Lch= 80 nm
• 3 nm Al2O3 (EOT = 1.5 nm)
• 0.2

0.0 0.2 0.4 0.6 10

• 10

10

• 9

10

• 8

10

• 7

10

• 6

10

• 5

10

• 4

10

• 3

Vds=0.5 V

Vgs(V) Is (A/µm)

Vds=0.05 V

0.0 0.1 0.2 0.3 0.4 0.5 50 100 150 200 250 300

Vgs=-0.2 V to 0.7 V in 0.1 V step

Vds (V)

Is (µA/µm)

• 0.2

0.0 0.2 0.4 0.6 100 200 300 400 500 600 700 800 Vgs(V) gm (µS/µm) Vd= 0.5 V

gm,pk=720 μS/μm

Slin = 70 mV/dec Ssat = 80 mV/dec DIBL = 88 mV/V

Zhao, CSW 2017

Benchmark with Si/ Ge VNW MOSFETs

26

• InGaAs competitive with Si
• Need to demonstrate VNW MOSFETs with D<10 nm

20 40 60 80 100 200 400 600 800 1000 1200 1400 1V 1 V

1

1 V 1.2 V 1.2 V

gm,pk (µS/µm) Si/Ge InGaAs Diameter (nm)

Peak gm of InGaAs (VDS=0.5 V), Si and Ge VNW MOSFETs

Target

Our work (VDS=0.5 V)

I nGaAs VNW Mechanical Stability for D< 10 nm

27

Yield = 0%

Broken NW

Difficult to reach 10 nm VNW diameter due to breakage 8 nm InGaAs VNWs after 7 DE cycles:

I nGaAs VNW Mechanical Stability for D< 10 nm

28

Yield = 0%

Broken NW

Difficult to reach 10 nm VNW diameter due to breakage Water-based acid is problem:

Surface tension (mN/m):

• Water: 72
• Methanol: 22
• IPA: 23

Solution: alcohol-based digital etch

Alcohol-Based Digital Etch

29

10% HCl in IPA Yield = 97% 10% HCl in DI water Yield = 0%

Alcohol-based DE enables D < 10 nm

Broken NW

Radial etch rate: 1.0 nm/cycle Radial etch rate: 1.0 nm/cycle

8 nm InGaAs VNWs after 7 DE cycles: Lu, EDL 2017

D= 5.5 nm VNW arrays

30

90% yield

10% H2SO4 in methanol

• H2SO4:methanol yields 90% at D=5.5 nm!
• Viscosity matters: methanol (0.54 cP) vs. IPA (2.0 cP)

I nGaAs Digital Etch

31

First demonstration of D=5 nm diameter InGaAs VNW (Aspect Ratio > 40)

32 0.0 0.1 0.2 0.3 0.4 0.5 50 100 150 200 Vgs= 0 V to 0.6 V in 0.1 V step

Ron= 5500 Ω⋅µm

Mo contact D = 15 nm 300

• C N2 RTA

Vds (V)

Id (µA/µm)

Latest! D= 15 nm I nGaAs VNW MOSFET

Single nanowire MOSFET:

• Lch= 80 nm
• 2.5 nm Al2O3 (EOT = 1.3 nm)

Zhao, IEDM 2017

Benchmark with Si/ Ge VNW MOSFETs

33

Most aggressively scaled VNW MOSFET ever Peak gm of InGaAs (VDS=0.5 V), Si and Ge VNW MOSFETs

Target

Our latest work (VDS=0.5 V)

Even better results at IEDM 2017!

I nGaAs Vertical Nanowires on Si by direct growth

34

Selective-Area Epitaxy (SAE) Au seed Vapor-Solid-Liquid (VLS) Technique InAs NWs on Si by SAE Riel, MRS Bull 2014 Riel, IEDM 2012

VNW MOSFETs: path for III-V integration

• n Si for future CMOS

35

Vertical nanowire MOSFET for 5 nm node

Yakimets, TED 2015 Bao, ESSDERC 2014

Vertical NW:  power, performance and area gains w.r.t. Lateral NW or FinFET

5 nm node

30% area reduction in 6T-SRAM 19% area reduction in 32 bit multiplier

Conclusions

1. Great recent progress on planar, fin and nanowire InGaAs MOSFETs 2. Device performance still lacking for 3D architecture designs 3. III-V Vertical-Nanowire MOSFETs: most likely architecture for future integration with Si 4. Many, MANY issues to work out: sub-10 nm fin/nanowire fabrication, self-aligned contacts,

device asymmetry, introduction of mechanical stress, VT control,

sidewall roughness, device variability, BTBT and parasitic HBT gain, oxide

trapping, self-heating, reliability, NW survivability, co-integration on n- and p-channel devices on Si,

interface states, metal routing, contact resistance < 10-9 Ω.cm-2, off-state leakage, TDDB, etc.…
