FPAA: FPGA Extension SoC FPAA SoC FPAA: Computing SoC Dev Board Large Scale FPAA Devices utilize high density of Programmable and Configurable components (often the same components) FG circuits enable in one device: Programmable Memory

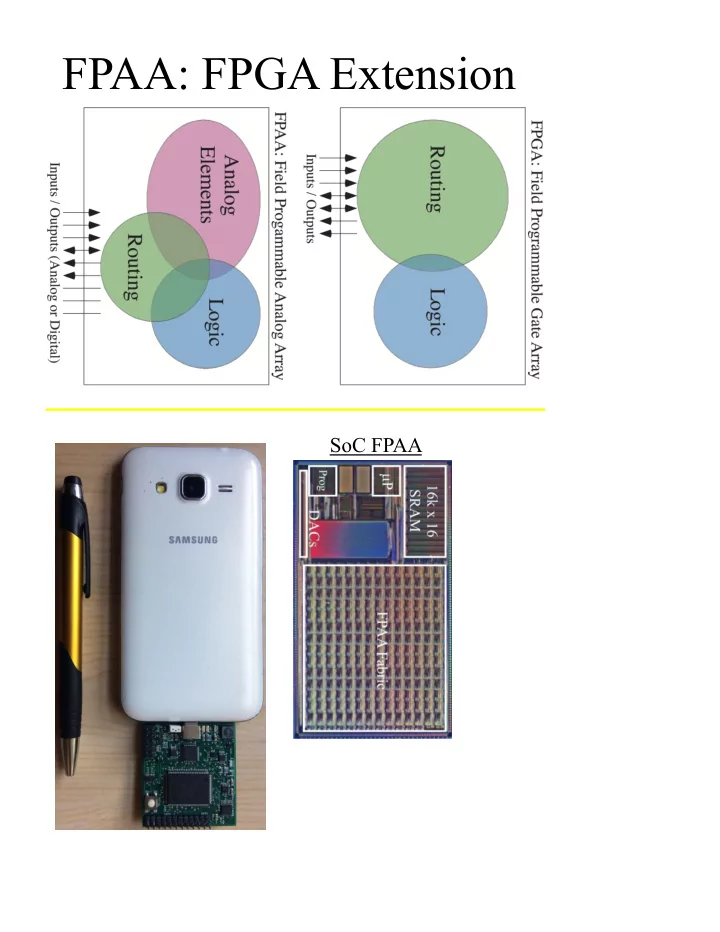

FPAA: FPGA Extension SoC FPAA
SoC FPAA: Computing SoC Dev Board
Large Scale FPAA Devices utilize high density of Programmable and Configurable components (often the same components) FG circuits enable in one device: • Programmable Memory • Transistor for Computation • Potential adaptation • FG 10 year lifetime, 10-100 µ V) • Electron Tunneling (erasure) • pFET channel Hot-Electron Injection (precision programming)
FPAA Routing Manhattan Geometry Crossbar FG Switches
RASP 3.0: First SoC FPAA IC (2016) SoC FPAA
Analog Low-Level SoC FPAA Infrastructure FPAA Tools FPAA Tools Tools FPAA Education High-Level Remote Circuit / System Application FPAA Tools [MSE 2015,17, FIE2016] SoC FPAA Build on SoC FPAA [JLPEA2016] [JLPEA2016] SoC FPAA Hardware Abstraction Built-in (calibration, Self Test mismatch) [TVLSI2017] [TVLSI2016] PC Board FG Programming Infrastructure on SoC FPAA Hardware [EWME2016] FPAA [TVLSI2016] Further Compatible Scaling SoC FPAA (350nm,130nm, SoC FPAA 40nm,etc.) ICs [JLPEA2016]
