Massachusetts Water Resources Authority Presentation to Board of Directors MWRAs Dam Safety Program 2005 - 2015 March 11, 2015 Dams and Dikes By The Numbers 27 Individual Structures Spread across 18 geographic locations Representing:

slide-1

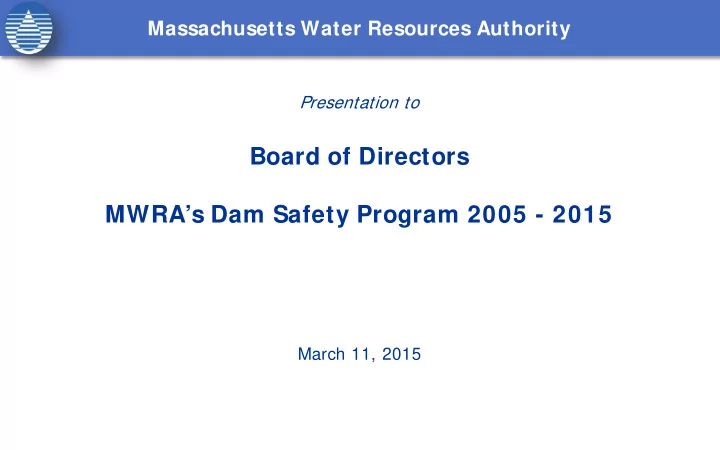

SLIDE 1

Massachusetts Water Resources Authority

Presentation to

Board of Directors MWRA’s Dam Safety Program 2005 - 2015

March 11, 2015

slide-2
SLIDE 2

27 Individual Structures

– Spread across 18 geographic locations – Representing: 17 High Hazard Class dams 8 Significant Hazard Class dams 2 Low Hazard Class dams – Dams range in age (149 - 60 years old)

Dams and Dikes By The Numbers

74

slide-3
SLIDE 3

MWRA/ DCR Dams under MA Office of Dam Safety Jurisidiction

75

slide-4
SLIDE 4
  • Administered by DCR- Office of Dam Safety (ODS)
  • Requires biennial inspections
  • Modeled on Federal Regulations:

– US Army Corps of Engineers – FEMA Dam Safety Regulations

76

slide-5
SLIDE 5
  • 2004 MOU - specified roles of MWRA and DCR on dams:

– DCR Routine Maintenance and Smaller Dams – MWRA Capital Maintenance/Improvements Large Dams MWRA-DCR MOU

77

slide-6
SLIDE 6

Emergency I nspections 2005 – “laundry

ry list ” of dam issues

78

slide-7
SLIDE 7

Required Studies: – Hydrology and Hydraulics (H&H) – Seepage and Stability (S&S) – Safety Inspections (Phase I’s) – Emergency Action Plans Led to Major Improvements at: – Spillways – Earthworks – Masonry needs – Tree Clearing

I nspections Determine Dam Needs

79

Dams Improvements 2005 - 2015 Dams Capital Projects Crest Gate $ 5,400,000.00 Wachusett Dam Promenade - PCB $ 2,220,000.00 Wachusett Dam Face - PCB $ 4,300,000.00 Dam Safety Mods (5 dams): $ 3,443,440.00 Dams Major Maintenance Projects Quabbin Spillway Repointing $ 157,827.00 South Dike Tree Removal 1 $ 352,950.00 South Dike Tree Removal 2 $ 100,000.00 North Dike Tree Removal $ 395,000.00 Foss Dam Tree Removal 1 $ 60,000.00 Foss Dam Tree Removal 2 $ 70,000.00 Blue Hill Dam Repairs $ 88,800.00 Fells Trees 1 $ 129,310.00 Fells Trees 2 $ 42,173.00 Norumbega Trees $ 135,900.00 Goodnouh Dike Tailwater Analysis $ 28,650.00 Quabbin Spillway Fence Rehab $ 400,000.00 Foss Dam Stump removal $ 12,531.00 Dam Safety Tech Assist Consulting Emergency Inspections 2005 $ 50,000.00 T.O. Dam Safety Inspections 2006 $ 66,135.00 T.O. for Fells Dam seeps analysis $ 12,955.00 H&H Analyses $ 60,011.00 Sudbury Spillway Insp. + weepholes $ 15,000.00 Dams Inundation Mapping $ 17,912.00 Emergency Action Plans Updates $ 54,000.00 OP-160 (incl inspections) $ 172,017.00 OP-228 (incl inspections) $ 166,500.00 Subtotal Dams $ 17,951,111.00

slide-8
SLIDE 8

80

I nspections I dentify Required Studies, Which Reveal Needs

slide-9
SLIDE 9

Major Spillway Projects

81

slide-10
SLIDE 10

Wachusett Reservoir, Dam and Spillway

Wachusett Dam Wachusett Spillway Wachusett North Dike

slide-11
SLIDE 11

Wachusett Dam 1908

Updated H&H 2007

slide-12
SLIDE 12

Wachusett Spillway Dismantling and New Sill

slide-13
SLIDE 13

After

Wachusett Spillway Crest Gate I nstalled

Before

slide-14
SLIDE 14

Wachusett spillway east berm construction Before After

Wachusett Auxiliary spillway under construction

Spillway Constriction

slide-15
SLIDE 15

87

Quabbin Spillway Repointing and Grouting

Limits of work

Note grout tube

slide-16
SLIDE 16

88

Quabbin Spillway Repointing and Grouting

Downstream crest stone before Downstream crest after

slide-17
SLIDE 17

89

Wachusett Open Channel Lower Dam - Substantial mortar loss and offset training wall stones

Before After

slide-18
SLIDE 18

Major Earthwork Projects

90

slide-19
SLIDE 19

Before In process North Dike Structural Stabilization of Historic Failure Zone

slide-20
SLIDE 20

Spot Pond Dam Armoring – in-house project

slide-21
SLIDE 21

93

Chestnut Hill Dam I mprovements

Hydroseed Remove old CBs, fill depressions, re-grade toe area

slide-22
SLIDE 22

Major Masonry Projects

94

slide-23
SLIDE 23

95

Wachusett Dam Promenade PCB Demo/ rebuild

slide-24
SLIDE 24

Wachusett Dam PCB remediation and power washing

During After

Cleaned Uncleaned efflorescence

slide-25
SLIDE 25

Wachusett Dam Improvements

New drainage groins New piezometers Dam face cleaned and repointed Before After

slide-26
SLIDE 26

98

Foss Reservoir Spillway - repointing

slide-27
SLIDE 27

99

Foss Dam Gatehouse interior masonry grouting/ repointing

Repointing and Injection grouting Leakage through stone joints Steel plate for protection against erosion

  • f mortar
slide-28
SLIDE 28

Weston Reservoir Dam Parapet Wall

slide-29
SLIDE 29

101

Sudbury Dam/ Spillway Masonry Repointing

slide-30
SLIDE 30

102

Sudbury Spillway I nspection and Weep Hole Maintenance

slide-31
SLIDE 31

103

Chestnut Hill Dam riprap improvements – left abutment

Missing riprap Resetting riprap

slide-32
SLIDE 32

Major Tree Work

slide-33
SLIDE 33

ODS Policies

10 5

slide-34
SLIDE 34

106

Tree Roots are bad for Earthen Dams

slide-35
SLIDE 35

107

Proper Stumping/ backfill Critical to the I ntegrity of the Dam

slide-36
SLIDE 36

1904 Weston Reservoir Dam 2010 2010 2011 Dam Crest Dam Crest

slide-37
SLIDE 37

Earthen dam 09.22.11

Weston Reservoir Dam

slide-38
SLIDE 38

Earthen dam 09.23.11

Weston Reservoir Dam

slide-39
SLIDE 39

10.04.11 Earthen dam

Weston Reservoir Dam

slide-40
SLIDE 40

Weston Reservoir Dam

slide-41
SLIDE 41

113

Fells Dams, Stoneham

slide-42
SLIDE 42

Fells Reservoir Dam # 8 Tree Removal

slide-43
SLIDE 43

Fells Reservoir Dam # 6, # 7 tree and riprap work

Before After

slide-44
SLIDE 44

North Dike treeless condition

Wachusett Reservoir circa 1930 drought

South Dike treeless condition

slide-45
SLIDE 45

Rock outcrop. Note dense tree cover

South Dike Comparison

1904 2010

slide-46
SLIDE 46

Crest – note dense tree cover

South Dike Comparison

1904 2010

slide-47
SLIDE 47

119

South Dike 2010 – Tree Removal Zones and in 2011

Completed 2015 project – remove remaining trees

slide-48
SLIDE 48

South Dike

slide-49
SLIDE 49

121

South Dike Crest Before and After

slide-50
SLIDE 50

South Dike Final Grading and Hydroseed

slide-51
SLIDE 51

North Dike Tree Removal

slide-52
SLIDE 52

124

North Dike Tree Clearing

slide-53
SLIDE 53

Dike 3

Norumbega Dam/ Dikes Tree Removal

Before After

slide-54
SLIDE 54

MWRA /DCR Dam Condition Ratings

  • Significant Rehabilitation/Upgrades Completed
  • 2006- Dams Ranged from “Fair – Satisfactory”
  • 2014, Dams upgraded. Now range from “Satisfactory – Good”

126

MWRA Dam I mprovements

slide-55
SLIDE 55
  • Foss Reservoir Spillway – increase capacity and/or armor the

earthen embankment. Pending ODS review on options.

  • Install new piezometers at earthen dams lacking them: (North

Dike and South Dike, Weston, Fells, Norumbega, Ware Diversion, Foss, Schencks, Chestnut Hill).

  • Continue to meet ODS Biennial Phase I safety inspections’

schedule.

127

What’s next on the Horizon for Dam Safety Needs

slide-56
SLIDE 56

Wachusett el. 396.07’ on 04.01.10 @1.6 BGD

slide-57
SLIDE 57

129

Quabbin Spilling @ 0.6 BGD on 04.05.10

slide-58
SLIDE 58

Foss in spill @ 250 MGD Sudbury in spill 03.29.10 @ 200 MGD

Sudbury System Dams Under High I nflows

slide-59
SLIDE 59

Thank you.
