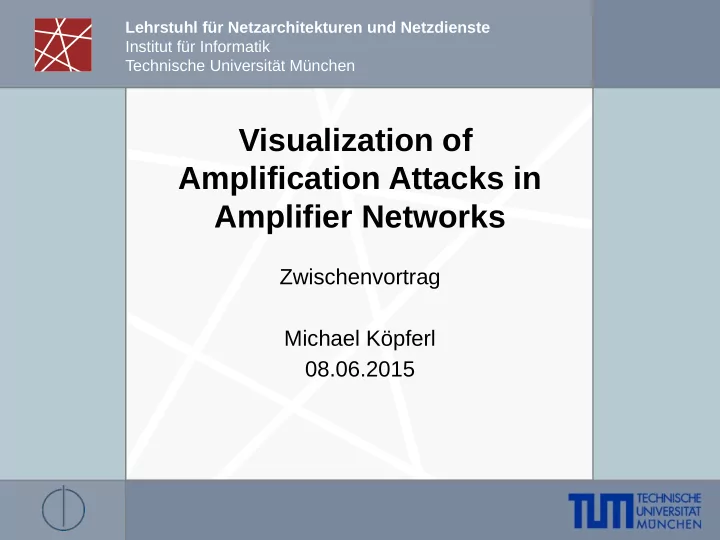

Lehrstuhl für Netzarchitekturen und Netzdienste Institut für Informatik Technische Universität München

Visualization of Amplification Attacks in Amplifier Networks

Zwischenvortrag Michael Köpferl 08.06.2015

slide-2
SLIDE 2

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

2

Agenda  Motivation  Research Questions  Approach  Challenges  Schedule and final steps

slide-3
SLIDE 3

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

3

Addressed problem and its motivation  Amplification Attack

  • Spoofed source IP (Victim’s IP)
  • Server with amplifying service

 Impact to amplifier network and Victim

  • Amplifier network:
  • Block from Victim’s network
  • Traffic => costs
  • Legal problems
  • Victim: Denial of Service
slide-4
SLIDE 4

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

4

Research questions (1/5) How to effectively visualize amplification attacks such that a network operator can easily detect them?  Time Series Graph  Visualize delta (average and current traffic)  Send notification by e-mail

slide-5
SLIDE 5

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

5

Research questions (2/5) How to recognize, which internal and external systems and networks are affected?  group detected attacks  Top-X list  network map

slide-6
SLIDE 6

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

6

Research questions (3/5) How to react accordingly by shutting down or limiting access to systems or services?  Evaluate visualization / react to warning … and …  Block / rate limit access  Shutdown specific systems  Fix bugs

slide-7
SLIDE 7

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

7

Research questions (4/5) How can an attack be investigated later in detail to learn from it?  Prelude IDS as data storage  Visualization and raw data

  • Evaluate grouped data
  • Evaluate IP header and packet content

 Specific timeframes  Search history

slide-8
SLIDE 8

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

8

Research questions (5/5) Does the visualization help to identify false positives or false negatives?  Idea for false negatives:

  • Lower amplification factors
  • Lower minimum traffic

 Idea for false positives:

  • Delta visualization
  • evaluate visualization manually
  • apply additional knowledge
slide-9
SLIDE 9

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

9

Approach (Software)

Prewikka

  • Web interface to access the Prelude DB
  • => amplification graphs

Prelude (SIEM)

  • Stores data in MySQL DB
  • => store additional data
  • => support anonymization
  • Alerts the network operator

Suricata (IDS)

  • Detects amplification attacks
  • Alerts Prelude via IDMEF interface
  • Logs additional data to file
  • detection rule
slide-10
SLIDE 10

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

10

Approach (Development Setup) Test / Development Setup

slide-11
SLIDE 11

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

11

Approach (Visualization) Visualization  D3.js (Data Driven Documents)  Data export from Prelude DB into CSV

  • useful SELECTs and aggregation necessary
  • DB connector script to be used by D3.js

SQL -> CSV

slide-12
SLIDE 12

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

12

Visualization Demo

slide-13
SLIDE 13

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

13

Visualization Demo

slide-14
SLIDE 14

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

14

Challenges Additional challenges that appeared during the work  Stability of Suricata while logging to Prelude

  • hardware problem with the iLab room => VM setup

 Storing of Domain Names

  • concept developed, will be added to Prelude DB

 Anonymization Question

  • concept developed, will be implemented in a cron

job to be called regularly that anonymizes old data

slide-15
SLIDE 15

Visualization of Amplification Attacks in Amplifier Networks – Michael Köpferl – 08.06.2015

15

Schedule

slide-16
SLIDE 16

Lehrstuhl für Netzarchitekturen und Netzdienste Institut für Informatik Technische Universität München

FIN

Visualization of Amplification Attacks in Amplifier Networks

  • Zwischenvortrag -

Questions? Michael Köpferl - 08.06.2015
