PUBLIC OPEN HOUSE US-62 WIDEN, RESURFACE & BRIDGE REPLACEMENT THROUGH BRIGGS, OK JUNE 1 ST , 2017 BRIGGS ELEMENTARY SCHOOL, 5:00 PM-7:00 PM BACKGROUND SCOPE ENVRIONMENTAL DESIGN PURPOSE Meeting Purpose: Inform the public about the

slide-1
SLIDE 1

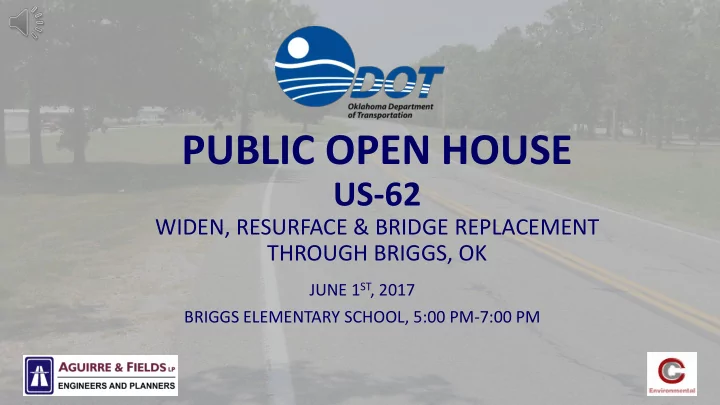

PUBLIC OPEN HOUSE

US-62

WIDEN, RESURFACE & BRIDGE REPLACEMENT THROUGH BRIGGS, OK

JUNE 1ST, 2017 BRIGGS ELEMENTARY SCHOOL, 5:00 PM-7:00 PM

slide-2
SLIDE 2

PURPOSE

BACKGROUND SCOPE ENVRIONMENTAL DESIGN

Meeting Purpose:

Inform the public about the proposed improvements to approximately 2.6 miles of US-62 through Briggs, OK.

  • Objectives:
  • Discuss the need for the project
  • Present the proposed improvements
  • Solicit public input and comments

Project Purpose:

To improve safety along this segment of US-62.

slide-3
SLIDE 3

EXISTING ROADWAY

  • Two, 12-foot driving lanes
  • Posted 55 MPH
  • No shoulders
  • Steep side slopes
  • Inadequate cross-slopes
  • Skewed intersections with

poor sight distances

  • Poor bridge box condition
  • High accident rate

BACKGROUND SCOPE ENVRIONMENTAL DESIGN

Skewed, dangerous intersection No shoulders & steep slope Skewed, dangerous intersection, poor sight distance Deteriorating bridge

slide-4
SLIDE 4

ACCIDENT DATA

SUB-HEADING

  • Text
  • Text

BACKGROUND SCOPE ENVRIONMENTAL DESIGN

Current traffic (2016): 3,978 vehicles/day Future traffic (2036): 5,610 vehicles/day 2 – Fatality accidents 88 – Injury accidents Fatality Rate per 100,000,000 veh. miles = 1.49 State Wide Average for similar roadway = 2.66 – Fatality accident – Injury accident

slide-5
SLIDE 5

PROJECT SCOPE

BACKGROUND SCOPE ENVRIONMENTAL DESIGN SUMMARY

  • Improve safety along this segment of US-62
  • Improve roadway design to meet new standards
  • Minimize right-of-way & environmental impacts
  • Replace the East Branch Briggs Creek box-bridge

STUDY AREA

slide-6
SLIDE 6

ENVIRONMENTAL REVIEW

BACKGROUND SCOPE ENVRIONMENTAL DESIGN SUMMARY

PROCESS – Study & Assess:

  • Relocations & Right-of-Way Concerns
  • Cultural Resources Issues
  • Tribal Interests
  • Community Facilities
  • Hazardous Waste Sites
  • Noise Impacts
  • Wetlands & Stream Impacts
  • Endangered Species
  • Floodplains
  • Parks & Recreational Areas
  • Farmlands
slide-7
SLIDE 7

ENVIRONMENTAL REVIEW

BACKGROUND SCOPE ENVRIONMENTAL DESIGN SUMMARY

Relocations & Right-of-Way

  • A mix of impacts to homes & businesses

Cultural Resources Concerns

  • Sequoyah Indian Weavers building

Community Facilities

  • Cobb Family Cemetery
  • Free Holiness Church
  • Cedar Tree Baptist Church
  • Cherokee Baptist Association campground

Hazardous Waste Sites

  • Two underground storage sites
  • Salvage yard

Wetland Impacts

  • Minimal

Stream Impacts

  • Two crossings

Endangered Species

  • 9 federally listed species
  • Least tern
  • Piping plover
  • Red knot
  • Neosho mucket clam
  • Rabbitsfoot clam
  • American burying beetle
  • Gray bat
  • Northern long-eared bat
  • Ozark big-eared bat
slide-8
SLIDE 8

ENVIRONMENTAL REVIEW

BACKGROUND SCOPE ENVRIONMENTAL DESIGN

slide-9
SLIDE 9

PROPOSED IMPROVEMENTS

BACKGROUND SCOPE ENVRIONMENTAL DESIGN

Roadway Widening

  • 11-foot driving lanes
  • Add 3 ½ -foot shoulders
  • Add 11-foot center turn lane
  • Improve safety slopes
  • Correct drainage issues
  • Ditches
  • Cross-drains

Roadway widening will match and tie into previous project at the beginning.

Safety Slope 11’ Driving Lane 11’ Turning Lane 11’ Driving Lane Safety Slope 3 ½‘ Shoulders 3 ½’ Shoulders

slide-10
SLIDE 10

PROPOSED IMPROVEMENTS

BACKGROUND SCOPE ENVRIONMENTAL DESIGN

Curve Modifications

  • Current curves do not have

adequate cross-slope for the design speed.

  • Increased cross-slopes will be

utilized on these curves to comply with new design standards.

  • These modifications will allow

for a safer and more comfortable drive.

EXISTING CROSS-SLOPE NEW CROSS-SLOPE

slide-11
SLIDE 11

PROPOSED IMPROVEMENTS

BACKGROUND SCOPE ENVRIONMENTAL DESIGN

Intersections with poor sight distances will be re-aligned to allow for improved sight distance for turning onto US-62.

E748 Rd E748 Rd

N Oakdale Dr. N Oakdale Dr. E 751 Rd E 751 Rd

CURRENT PROPOSED

Intersection Modifications

slide-12
SLIDE 12

PROPOSED IMPROVEMENTS

BACKGROUND SCOPE ENVRIONMENTAL DESIGN

Intersection Modifications

CURRENT PROPOSED

Sequoyah Indian Weaver’s Building N Briggs Flat Rd. S 562 Rd. S 562 Rd. Sequoyah Indian Weaver’s Building

slide-13
SLIDE 13

PROPOSED IMPROVEMENTS

BACKGROUND SCOPE ENVRIONMENTAL DESIGN

Reinforced Concrete Box (RCB)

  • Replaces deteriorated bridge box over East

Branch of Briggs Creek

  • Wider bridge to improve traffic safety

Offset Alignment at End of Project

  • 8-foot offset to north
  • Only at east end of project, rest of

project to remain on existing alignment

  • Avoids cemetery
  • Minimized right-of-way necessary
slide-14
SLIDE 14

DURING CONSTRUCTION

BACKGROUND SCOPE ENVRIONMENTAL DESIGN

  • US-62 will remain open during construction.
  • Utilize temporary pavement detour at east end of project during
  • ffset and phased bridge construction.
  • Access will be maintained to all residences & businesses.
slide-15
SLIDE 15

NEXT STEP

Review Public Comments Received Complete Environmental Document Finalize Design Plans Right-of-Way & Utility Relocation

Programmed: Federal Fiscal Year 2017*

Construction

Programmed: Federal Fiscal Year 2018*

* Subject to funding availability.

1 2 3 4 5

slide-16
SLIDE 16

THANK YOU

Leave your comment form here tonight Mail your comments to ODOT:

Oklahoma Department of Transportation Environmental Programs Division 200 NE 21st Street Oklahoma City, OK 73105

Fax your comments to: (405) 522-5193 Email you comments to: environment@ODOT.org Submit online at: www.ODOT.org/PublicMeetings PLEASE SUBMIT COMMENTS BY: JUNE 15TH, 2017
