Presentation On Inverter Technology 24 th June 2014, New Delhi Sanjay Goyal Daikin Airconditioning India Pvt. Limited Daikin Air conditioning India Pvt Ltd Daikin Worldwide Daikin Industries, Ltd is one of leading air conditioner Daikin

slide-1

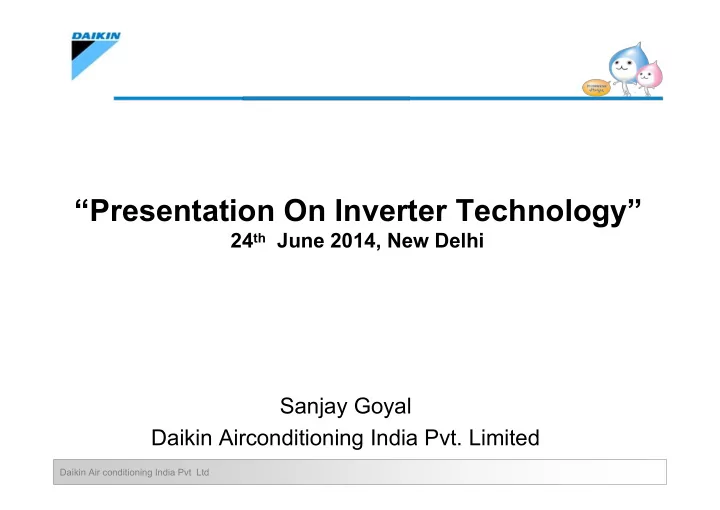

SLIDE 1

Daikin Air conditioning India Pvt Ltd

Sanjay Goyal Daikin Airconditioning India Pvt. Limited

“Presentation On Inverter Technology”

24th June 2014, New Delhi

slide-2
SLIDE 2

Daikin Air conditioning India Pvt Ltd

Daikin Worldwide

Daikin Industries, Ltd is one of leading air conditioner

  • manufactures. Our product range is from residential to

commercial air conditioners. Daikin has over 56,000 employees at 210 group companies around the world. Daikin Air-Conditioning India was established in 2000.

Chemicals 8% Other

3%

Sales per business unit FY13

Air conditioners, heat pumps, refrigeration

89%

Daikin Industries Ltd.

  • Turnover: 17,831 million USD
  • No. of employees: 56,240
  • Start of business: 1924

(FY2013 Consolidated)

Daikin Group Worldwide

11,440 10,599 16,857 10,739 6,605

Total manpower : 56,240

51 57 33 40 29

slide-3
SLIDE 3

Daikin Air conditioning India Pvt Ltd

Integrated Manufacturer

Air-conditioner Air-conditioner Refrigeran Refrigerant DAIKIN is the only one company in the world which produces air-conditioner, compressor and refrigerant Compressor Compressor

slide-4
SLIDE 4

Daikin Air conditioning India Pvt Ltd

Technologies for Energy Technologies for Energy Conservation Conservation

  • Inverter Technology
  • Energy Efficient Refrigerant
slide-5
SLIDE 5

Daikin Air conditioning India Pvt Ltd

Japan

Inverter share: 100%

Oceania

Inverter share: 85%

China

Inverter share: 50%

India

Inverter share: 5%

Global Inverter Penetration Ratio Global Inverter Penetration Ratio

Based on Daikin’s internal estimate

slide-6
SLIDE 6

Daikin Air conditioning India Pvt Ltd

Sales Breakdown by Category –India 2013 Sales Breakdown by Category –India 2013

Indian RAC Market approx: 3.5Mn units, Currently Inverter AC Share is only 5% 2 & 3-Star products account for 62% ratio

slide-7
SLIDE 7

Daikin Air conditioning India Pvt Ltd

Inverter Technology Inverter Technology

  • Technology
  • Components
  • Benefits
  • Savings
slide-8
SLIDE 8

Daikin Air conditioning India Pvt Ltd

An Air Conditioner bearing inverter tag uses a variable-frequency drive to control the speed of the motor and thus the compressor. It consumes at least 30% less (it can go to 50% or more) electricity depending on various factors like the outside temperature ,purpose for which the AC is used, Hence it uses less amount of electricity. Inverter is a device which supplies variable frequency of power supply on equipments. Thanks to this function , motor revolution speed can be controlled and it leads to reduce energy consumption.

Inverter Technology : Basic Inverter Technology : Basic

slide-9
SLIDE 9

Daikin Air conditioning India Pvt Ltd

How It works….! How It works….!

Inverter power control Non-inverter type air-conditioner

slide-10
SLIDE 10

Daikin Air conditioning India Pvt Ltd

Non-inverter vs. inverter

Power consumption

Each restart means starting over from scratch, so consumes extra power.

Power consumption

The inverter system eliminates waste caused by frequent restarting.

Average power consumption is low.

Average power consumption Average power consumption

Non-inverter Inverter

slide-11
SLIDE 11

Daikin Air conditioning India Pvt Ltd

Soft Start

  • Soft starter is making electrical installation work much simpler.
  • At startup, Inverter raises frequency smoothly.
  • “Eliminating the starting current spike”.

Soft Start

  • Soft starter is making electrical installation work much simpler.
  • At startup, Inverter raises frequency smoothly.
  • “Eliminating the starting current spike”.

Benefits : Soft Start Benefits : Soft Start

slide-12
SLIDE 12

Daikin Air conditioning India Pvt Ltd

Swing compressor

  • Smoothly swinging piston reduces refrigerant gas leakage and

minimizes loss of energy due to friction.

Rotary Swing

Swing Rotary Swing fish Piston Suction Discharg e Suction Blade Roller Discharg e

slide-13
SLIDE 13

Daikin Air conditioning India Pvt Ltd

High-efficiency compressor motor

Principles of AC motor and DC motor

Type AC motor DC motor Conventional Reluctance Outline To rotate motor, electric current must also run through internal coil. Large power consumption Ferrite magnet is placed on surface to rotate motor No internal coil or electric current, so efficiency is higher than AC. But low rotation force because iron inside is not working. Neodymium magnet is buried inside, whose magnetism causes internal iron to have rotating force. High rotating force with low power High efficiency Internal structure

Motor coil Ｓ

Coil

Ｎ Ｓ Ｎ Ｎ Ｓ Ｓ Ｎ 鉄 Motor coil Ferrite magnet (100% power) Motor coil Ｓ Ｎ

Iron Iron Iron Iron

Iron (30% power) Neodymium magnet (70% power)

End ring

Bar

End ring

slide-14
SLIDE 14

Daikin Air conditioning India Pvt Ltd

High-efficiency compressor motor

  • The strongest Neodymium magnet is adopted.

Ferrite magnet Neodymium magnet

slide-15
SLIDE 15

Daikin Air conditioning India Pvt Ltd

Quick Cooling

  • Inverter air conditioner take “less time to cool the room”.
  • At startup, full power is used to achieve the set temperature quickly.

Quick Cooling

  • Inverter air conditioner take “less time to cool the room”.
  • At startup, full power is used to achieve the set temperature quickly.

Precise Temperature Control

  • Reduces “temperature fluctuations”
  • Gives greater comfort

Precise Temperature Control

  • Reduces “temperature fluctuations”
  • Gives greater comfort

Benefits : Quick Cooling and Temperature Control Benefits : Quick Cooling and Temperature Control

slide-16
SLIDE 16

Daikin Air conditioning India Pvt Ltd

Inverter : Long Term Benefits Inverter : Long Term Benefits

  • It translates to approx. 1516 additional units of electricity every Year.

Potential Electricity Savings : Non inverter Technology Products to

Inverter Technology

Model AC (TON) Power input (KW) Operation Energy Consumption (KWH - Unit) Energy Consumption (KWH - Unit) Hours Day Month Unit Unit 2-Star 1.5 1.71 8.0 30.0 8.0 3,283.2 3,283.2 Inv 1.32 8.0 30.0 8.0 2,524.8 1,767.4

slide-17
SLIDE 17

Daikin Air conditioning India Pvt Ltd

National Energy Saving National Energy Saving

  • The estimated total sales of AC for 2013-2014 is to a tune of 3.5

million.

  • This figure , according to estimates will rise to 7.4 million by the

year 2018 given the current growth rate.

  • Presuming, all the ACs are of inverter type only, the total saving of

power would be 74,00,000 X 1516KWH = 11 TWh/Year

  • One 500Mw coal fired power plant at 100 PLF produces

4.38TWh/Year ( 500 X1000 X 1000 X 365 X 24)

  • In other words the savings of power translates to total production of

electricity equivalent to 3 power plants of 500MW each -- that the economy can do away with. Consider the saving of forests, mineral wealth etc.

The enormous potential of energy saving is available as more and more inverter technology is adopted.

slide-18
SLIDE 18

Daikin Air conditioning India Pvt Ltd

Inverter with Energy Efficient Refrigerant

slide-19
SLIDE 19

Daikin Air conditioning India Pvt Ltd

19

Candidates for the next generation working fluids

HCFC R22 R410A R32 HFC R717(NH3) R290（Propane） Non-HFC R744（CO2）

Refrigerants

R407C R1234yf

Properties

Pcond (MPa)

  • Vol. Cool.

Capacity (vs R22) ODP GWP (IPCC4th）

1.73 100 100 0.05 1810 2.72 141 92 2090 2.80 160 97 675 1.78 116 106 1.53 83 98 <3 10 243 41 1 1.86 102 99 1770 1.16 57 90 4 HFO-Mix ？ ？ ？ ？

Theoretical COP (vs R22)

Refrigerant Candidates for stationary A/C

Flamm- ability Toxi- city

Non Low Non Low Non Low Low Low Low Low Low High High Low Non Low Low Low

slide-20
SLIDE 20

Daikin Air conditioning India Pvt Ltd

20

20

300 700 1100 1500 1900 2300 2700 3100 3500 200 300 400 500 600 Enthalpy kJ/kg Pressure kPa

R32 R410A R22

P-h Chart (R22/R410A/R32)

Comparison of cycles of refrigerants

Refrigerating effect of R32 increases 1.6 times to R22 or R410A

slide-21
SLIDE 21

Daikin Air conditioning India Pvt Ltd

21

R32 can Reduce Direct Impact

R32 can reduce CO2 eq. emissions by 75%

1810 675 500 1000 1500 2000 2500 R R 2 2 2 2 R R 4 4 1 1 A A R R 3 3 2 2 1810 472 500 1000 1500 2000 2500 R R 2 2 2 2 R R 4 4 1 1 A A R R 3 3 2 2

GWP Charge ratio % Modified GWP

GWP values are based on IPCC4th report. GWP values are based on IPCC4th report.

2027 2090

R 32 has the benefits of favorable GWP and reduced charge size

slide-22
SLIDE 22

Daikin Air conditioning India Pvt Ltd

  • R32 is 10% more energy efficient than conventional

refrigerant at the same volume.

  • Potential of Refrigeration capacity :1.6 times of R410A
  • Lower pressure loss, when capacity is same, leads to

thinner piping diameter.

  • GWP of R32 is 675, which is 1/3 of that of conventional

refrigerants such as R410A and R22. Also, it can reduce charge volume by about 30% when optimized. All together it can reduce GWP by 75% in total.

Energy Efficient Refrigerant Energy Efficient Refrigerant

slide-23
SLIDE 23

Daikin Air conditioning India Pvt Ltd

■Outline: Outline: Daikin also conducted tests at 8 places, 4 in Mumbai and 4 in Chennai, to compare the actual operational performance of R22 non-inverter and R32 inverter units. Equipment details: Cooling Capacity: 5.2 kW, EER: 3.00, Refrigerant Volume R22 0.9Kg, R32 0.75Kg

■Result Result

On average, the R32 inverter units achieved a 30% increase in energy efficiency while refrigerant charge volume is reduced by about 20% compared to R22 non-inverter units.

Actual Performance Test on Equipment Actual Performance Test on Equipment

slide-24
SLIDE 24

Daikin Air conditioning India Pvt Ltd

Potential Reductions in CO2 Emissions Potential Reductions in CO2 Emissions

It is possible to reduce CO2 emissions significantly, thanks to the high energy efficiency achieved by inverter technology and the energy –efficient R32 refrigerant.

■ ■Assumption: Assumption: The sales of R32 inverter air conditioners becomes 70% of total sales if R32 inverter equipment increases by 10% every year. ■ ■Potential CO2 Reduction: Potential CO2 Reduction: Emissions reductions in 2020 could be potentially total around 17 million tCO2. Cumulative reductions between 2014 and 2020 are estimated at 47, million tCO2.

slide-25
SLIDE 25

Daikin Air conditioning India Pvt Ltd

Conclusion

  • The potential of reduction of electricity consumption by

air conditioners is high. Inverter and R32 are the technologies to increase energy efficiency of equipment.

  • Inverter technology can increase energy efficiency by

30% compared to non-inverter.

  • R32 is 10% more energy efficient than conventional

refrigerant at the same volume. GWP of R32 is 675, which is 1/3 of conventional ones.

  • When inverter and R32 refrigerant are applied to high-end

model, potential increase of energy efficiency will be significant.

25

slide-26
SLIDE 26

Daikin Air conditioning India Pvt Ltd

Thank you!!
