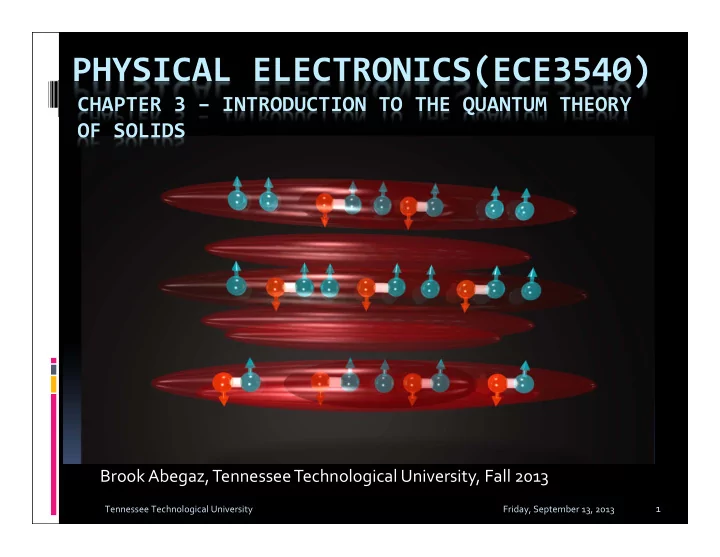

PHYSICAL ELECTRONICS(ECE3540)

Brook Abegaz, Tennessee Technological University, Fall 2013

Friday, September 13, 2013 Tennessee Technological University

1

CHAPTER 3 – INTRODUCTION TO THE QUANTUM THEORY OF SOLIDS

Chapter 3 – Introduction to the Quantum Theory of Solids

• Chapter 2: application of quantum mechanics

and Schrodinger’s wave equation to determine the behavior of electrons in the presence of various potential functions.

• an electron bound to an atom or bound

within a finite space can take on only discrete values of energy; Energies are quantized!

• Pauli Exclusion Principle: only one electron is

allowed to occupy any given quantum state.

Friday, September 13, 2013 Tennessee Technological University

2

Chapter 3 – Introduction to the Quantum Theory of Solids

• Chapter 3: generalization of these concepts to

the electron in a crystal lattice.

• Determine the properties of electrons in a crystal

lattice, and to determine the statistical characteristics of the very large number of electrons in a crystal.

• Since current in a solid is due to the net flow of

charge, it is important to determine the response

• f an electron in the crystal to an applied

external force, such as an electric field.

Friday, September 13, 2013 Tennessee Technological University

3

Allowed and Forbidden Energy Bands

• The

energy

• f

the bound electron is quantized: Only discrete values of electron energy are allowed.

• It is possible to extrapolate the single‐atom

results to a crystal and qualitatively derive the concepts of allowed and forbidden energy bands.

Friday, September 13, 2013 Tennessee Technological University

4

Allowed and Forbidden Energy Bands

Friday, September 13, 2013 Tennessee Technological University

5

Allowed and Forbidden Energy Bands

Friday, September 13, 2013 Tennessee Technological University

6

Formation of Energy Bands

• The wave functions of the two atom electrons
• verlap, which means that the two electrons

will interact. This interaction or perturbation results in the discrete quantized energy level splitting into two discrete energy levels.

Friday, September 13, 2013 Tennessee Technological University

7

Friday, September 13, 2013 Tennessee Technological University

8

Kronig‐Penney Model

• The concept of allowed and forbidden energy

bands can be developed more rigorously by considering quantum mechanics and Schrodinger’s wave equation.

• The result forms the basis for the energy‐band

theory of semiconductors.

• The solution to Schrodinger’s wave equation, for

a one‐dimensional single crystal lattice, is made more tractable by considering a simpler potential function in the Kronig–Penney model, which is used to represent a one‐dimensional single‐crystal lattice.

Friday, September 13, 2013 Tennessee Technological University

9

Kronig‐Penney Model

• For a single crystalline lattice, the Kronig Penney

model gives the relation between the wave number parameter k=2π/λ, total energy E (through the parameter α2=2mE/ħ2), and the potential barrier bV0.

• It is not a solution of Schrodinger’s wave equation

but gives the conditions for which Schrodinger’s wave equation will have a solution. where a = width of the region, b = width of the barrier, and Vo = amplitude of the potential barrier.

Friday, September 13, 2013 Tennessee Technological University

10

Friday, September 13, 2013 Tennessee Technological University

11

Electrical Condition in Solids

• Covalent bonding of Silicon determines how

the Silicon crystal is formed.

• As the temperature increases some valence

electrons of the Si atom can break the covalent bond structure and jump into the conduction band.

Friday, September 13, 2013 Tennessee Technological University

12

Electrical Condition in Solids

• In terms of the k‐space diagram:

Friday, September 13, 2013 Tennessee Technological University

13

Electrical Condition in Solids

• Drift Current: electric current due to applied

electric field.

• for a collection of positively charged ions having:

a) Volume density N(cm‐3) b) Average drift velocityVd(cm/s)

• Drift Current Density
• a collection of positively charged ions with a

volume density N (cm−3) and an average drift velocity vd (cm/s), then the drift current density would be:

Friday, September 13, 2013 Tennessee Technological University

14

Electron Effective Mass

• Movement of electrons in a lattice affects the mass
• f electrons, which results in a different movement
• f electrons than in a free space.
• Effective mass is a parameter that relates the

quantum mechanical results to classical force

• equations. The parameter m , called the effective

mass, takes into account the particle mass and also takes into account the effect of the internal forces.

• If E is the energy of the electron at the conduction

band, E is the applied electric field, e is the charge of the electron, and a its acceleration, then:

Friday, September 13, 2013 Tennessee Technological University

15

Quantum Theory of Solids in 3D

• Particular characteristics of three dimensional

crystals in terms of E versus k plots, band gap energy and effective mass are studied.

• The distance between atoms varies as the

direction through the crystal changes, for e.g. in [100] planes and in [110] plane directions.

• Different directions encounter different potential

patterns and thus different k space boundaries.

• For crystal lattices, the E versus k diagram is

plotted such as [100] direction is along the +k axis and [111] direction is along the –k axis.

Friday, September 13, 2013 Tennessee Technological University

16

Quantum Theory of Solids in 3D

• Direct Band Gap Semiconductors = semiconductor

lattice whose minimum conduction band energy and maximum valence band energy occurs at the same k. Example is GaAs.

• Transition between a valence band state and

conduction band state occurs without a change in Crystal Momentum.

• These materials are better suited for semiconductor

lasers and optical devices.

• Indirect Band Gap Semiconductors = semiconductor

lattice whose minimum conduction band energy and maximum valence band energy occurs at different k. Example are Si, Ge, GaP, AlAs.

Friday, September 13, 2013 Tennessee Technological University

17

Quantum Theory of Solids in 3D

Friday, September 13, 2013 Tennessee Technological University

18

Density of States Function

• Aim
• We want to find density of carriers in a

semiconductor

• 1st find the number of available states at each

energy level.

• 2nd find the number of electrons by

multiplying number of states with the probability of occupancy.

Friday, September 13, 2013 Tennessee Technological University

19

Density of States Function

• It involves determining the density of allowed

energy states as a function of energy in order to calculate the electron and hole concentrations.

• It is important to find out the available number
• f electrons and holes available for conduction

and to describe the V‐I characteristics in a semiconductor.

• Density of states in a semiconductor equals

density of number of solutions of Schrödinger’s wave equation to unit volume and energy.

Friday, September 13, 2013 Tennessee Technological University

20

Density of States Function

• In a crystal lattice, if a potential function V(x,

y, z) exists as a potential well such as:

 V(x, y, z) = 0 for 0 < x < a, 0 < y < a, 0 < z < a

and V(x, y, z) = ∞ otherwise, (a free electron confined to three-dimensional infinite potential well), Using wave number k = nπ/a, and therefore n = nx + ny + nz,

Friday, September 13, 2013 Tennessee Technological University

21

Density of States Function

• Now, distance between two quantum states:
• Volume Vk of a single quantum state:
• Differential volume is (4πk2)dk because total volume = 4/3 πk3.
• Differential density of quantum states in space which is also
• where 2 is for two spin states allowed for each quantum state,

1/8 is for positive regions of each quantum state kx, ky, kz , 4πk2dk is the differential volume, and (π/a)3 = volume of one quantum state.

Friday, September 13, 2013 Tennessee Technological University

22

Density of States Function

• Substitute k2, k and dk/dE as
• To find:
• This gives the total number of Quantum States

between E and dE. Then dividing by the volume a3 gives the density of quantum states as a function of energy.

Friday, September 13, 2013 Tennessee Technological University

23

Density of States Function

• This equation gives the density of allowed

electron quantum states using the model of a free electron with mass m, bounded in a three dimensional infinite potential well.

• In general, for semi‐conductors, density of

allowed energy states equals

 in conduction band:‐  In valence band:‐

Friday, September 13, 2013 Tennessee Technological University

24

Statistical Mechanics

• There are three distribution laws determining

the distribution of particles among energy states:

1.

Maxwell‐Boltzmann



Particles are considered to be distinguishable and numbered.

2.

Bose‐Einstein



Particles are indistinguishable with no limit to the number of particles per energy state.

3.

Fermi‐Dirac Probability Function



Particles in a crystalline lattice are indistinguishable and also only one particle is allowed per each quantum state. Electrons in a crystal obey the Fermi‐Dirac function.

Friday, September 13, 2013 Tennessee Technological University

25

Statistical Mechanics

• is the Fermi‐Dirac distribution function

where:

 N(E) = total # of electrons per unit volume  g(E) = # of quantum states per unit volume  EF = Fermi energy level.  fF(E) = ratio of filled to total quantum states.

Friday, September 13, 2013 Tennessee Technological University

26

Statistical Mechanics

• An approximation to Fermi‐Dirac function is

Maxwell‐Boltzmann where:‐

Friday, September 13, 2013 Tennessee Technological University

27

Exercise

• 1. Let T = 300K. Determine the probability of

finding an electron at an energy level of 3kT higher (above) than the Fermi energy EF of the electron.

• 2. Assume the Fermi energy level is 0.3 eV

below the conduction band energy Ec. Assume T = 300K.

a)

Determine the probability of a state being

• ccupied by an electron at E = Ec + kT/4.

b)

Find the probability of a state being occupied by an electron at E = Ec + kT.

Friday, September 13, 2013 Tennessee Technological University

28

Solution

• 1. Using Fermi‐Dirac function at 3kT higher

energy level:

Friday, September 13, 2013 Tennessee Technological University

29

Solution

• 2. Using Fermi‐Dirac function at E = Ec + kT/4

and at E = Ec + kT where EF = Ec – 0.3eV Substituting, we find, a) 7.26*10‐6 and b) 3.43*10‐6.

Friday, September 13, 2013 Tennessee Technological University

30

Picture Credits

• Semiconductor Physics and Devices, Donald

Neaman, 4th Edition, McGraw Hill Publications.

• Spin up and spin down of Lithium atom in 1D array
• f tubes, Courtsey: Professor Randall G. Hulet,

Rice University
