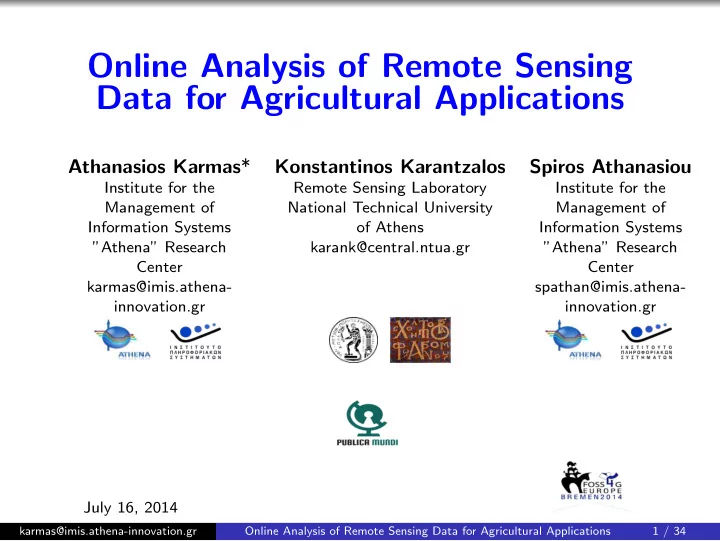

Online Analysis of Remote Sensing Data for Agricultural Applications

Athanasios Karmas* Konstantinos Karantzalos Spiros Athanasiou

Institute for the Remote Sensing Laboratory Institute for the Management of National Technical University Management of Information Systems

  • f Athens

Information Systems ”Athena” Research karank@central.ntua.gr ”Athena” Research Center Center karmas@imis.athena- spathan@imis.athena- innovation.gr innovation.gr July 16, 2014

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 1 / 34

slide-2
SLIDE 2

Motivation

Exploit Big Earth Observation (EO) Data → Various Sensors, Various Platforms → Various Spatial, Spectral, Temporal properties Make EO data a mainstream → Numerous (new) users → Easy, ready-to-use geospatial products Goal: Geospatial Information, Create Accurate Maps

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 2 / 34

slide-3
SLIDE 3

Problem to Solve

Easy access to EO data archives Process Multimodal data from various sensors Develop efficient Services Offer validated Products → Direct processing and analysis of data, online wherever needed → Efficient spatiotemporal modelling and monitoring (agriculture, urban environment, natural disasters, crisis management and assessment)

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 3 / 34

slide-4
SLIDE 4

Problem to Solve

Agricultural Applications Crop monitoring Precision farming Creation of accurate agricultural maps Validated products and agricultural maps → Site-specific decisions → In time → Regardless of the areal extent or the ease of physical access

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 4 / 34

slide-5
SLIDE 5

Technologies

Rasdaman Array DBMS for data storage OGC WCPS interface standard GeoExt/OpenLayers javascript libraries

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 5 / 34

slide-6
SLIDE 6

Developed Platform (I)

RemoteAgri Web GIS System → Visualization Services → Analysis Services Utilizes the Landsat 8 dataset → Open Data → Multispectral, multitemporal satellite imagery → Fairly good spatial resolution (30m/pixel) Landsat 8 raw data are downloaded, stored and pre-processed automatically

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 6 / 34

slide-7
SLIDE 7

Developed Platform (II)

Core functionality → Rasdaman Array DBMS → OGC WCPS interface standard Key features → Vegetation Detection → Canopy Estimation → Water Stress Estimation Fully covers Greek territory with Landsat 8 imagery → New dataset every - apprx. - 16 days → 40 scenes per dataset, averaging apprx. 80GB uncompressed

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 7 / 34

slide-8
SLIDE 8

RemoteAgri WebGIS System

Automated col- lection of newly acquired datasets Extract com- pressed and archive raw data Radiometric corrections (ToA) Rasdaman PetaScope WCPS queries Vegetation Detection, Canopy & Water Stress Estimation GeoExt/OpenLayers Pre-processing Web Client

Figure: The components of the RemoteAgri WebGIS system.

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 8 / 34

slide-9
SLIDE 9

Implementation Details (I)

Automated Collection & Preprocessing subsystems Automated acquisition through Web Harvesting Archive and extract compressed data Preprocessing to convert to ToA reflectance Ingestion in rasdaman

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 9 / 34

slide-10
SLIDE 10

Implementation Details (II)

Rasdaman Storage of Landsat 8 multispectral data Suitable data types definition Array types defined with open bounds

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 10 / 34

slide-11
SLIDE 11

Implementation Details (III)

Web Client OpenLayers library GeoExt library Client side scripts → User interaction → Metadata search → Construction of WCPS queries → Communication with the Server

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 11 / 34

slide-12
SLIDE 12

Implementation Details (IV)

Developed Agricultural Queries → WCPS interface standard Vegetation Detection Canopy Estimation Water Stress Estimation

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 12 / 34

slide-13
SLIDE 13

Vegetation Detection

Calculates NDVI Index Creates binary map that distinguishes vegetation from soil and urban environment

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 13 / 34

slide-14
SLIDE 14

Canopy Estimation

Further classification based on NDVI Zoning the different canopy levels Monitor vegetation health and growth

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 14 / 34

slide-15
SLIDE 15

Water Stress Estimation

At satellite temperature values Converted to Celsius Degrees Color map that distinguishes different temperature levels The higher the temperature the higher the probability of water stress in irrigated croplands Must be interpreted in close correlation with the Canopy Estimation query

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 15 / 34

slide-16
SLIDE 16

Use Case Scenario

An agricultural association → Overall state of crops → Ability to provide site-specific information Irrigated croplands in Axios Delta area in Central Macedonia → Rice summer crops (70%) → Cotton and corn crops follow

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 16 / 34

slide-17
SLIDE 17

Results (I)

  • a. 24/6/2013
  • b. 10/7/2013
  • c. 26/7/2013
  • d. 11/8/2013

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 17 / 34

slide-18
SLIDE 18

Results (II)

  • a. 24/6/2013
  • b. 10/7/2013
  • c. 26/7/2013
  • d. 11/8/2013

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 18 / 34

slide-19
SLIDE 19

Use Case Scenario(II)

Canopy Estimation → Crop vigour and state → Site-specific decisions → Vegetation life cycle monitor

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 19 / 34

slide-20
SLIDE 20

Results (III)

  • a. 24/6/2013
  • b. 10/7/2013
  • c. 26/7/2013
  • d. 11/8/2013

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 20 / 34

slide-21
SLIDE 21

Results (IV)

  • a. 24/6/2013
  • b. 10/7/2013
  • c. 26/7/2013
  • d. 11/8/2013

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 21 / 34

slide-22
SLIDE 22

Use Case Scenario (III)

Water Stress Estimation → Temperature Map → Information about irrigation failures → Examine if other factors are responsible for high temperature

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 22 / 34

slide-23
SLIDE 23

Results (V)

  • a. 24/6/2013
  • b. 10/7/2013
  • c. 26/7/2013
  • d. 11/8/2013

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 23 / 34

slide-24
SLIDE 24

Conclusion & Future Perspectives

Demonstrated the combination of various FOSS technologies Presented a robust framework with real time analysis potential → Bulk ingestion of geodata from various sensors → Further development of the Web Client → Incorporation of other OGC interface standards → Location based services

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 24 / 34

slide-25
SLIDE 25

Thank You!

Online Analysis of Remote Sensing Data for Agricultural Applications

Athanasios Karmas* Konstantinos Karantzalos Spiros Athanasiou

Institute for the Remote Sensing Laboratory Institute for the Management of National Technical University Management of Information Systems

  • f Athens

Information Systems ”Athena” Research karank@central.ntua.gr ”Athena” Research Center Center karmas@imis.athena- spathan@imis.athena- innovation.gr innovation.gr

July 16, 2014

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 25 / 34

slide-26
SLIDE 26

Questions

Questions ?

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 26 / 34

slide-27
SLIDE 27

Demo

RemoteAgri WebGIS ikaros.survey.ntua.gr/remoteagri Demonstration purposes RemoteAgri Walkthrough

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 27 / 34

slide-28
SLIDE 28

Demo

RGB

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 28 / 34

slide-29
SLIDE 29

Demo

RGB 543

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 29 / 34

slide-30
SLIDE 30

Demo

RGB 654

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 30 / 34

slide-31
SLIDE 31

Demo

Vegetation Detection

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 31 / 34

slide-32
SLIDE 32

Demo

Canopy Estimation

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 32 / 34

slide-33
SLIDE 33

Demo

Water Stress Estimation

karmas@imis.athena-innovation.gr Online Analysis of Remote Sensing Data for Agricultural Applications 33 / 34

slide-34
SLIDE 34

The End !
