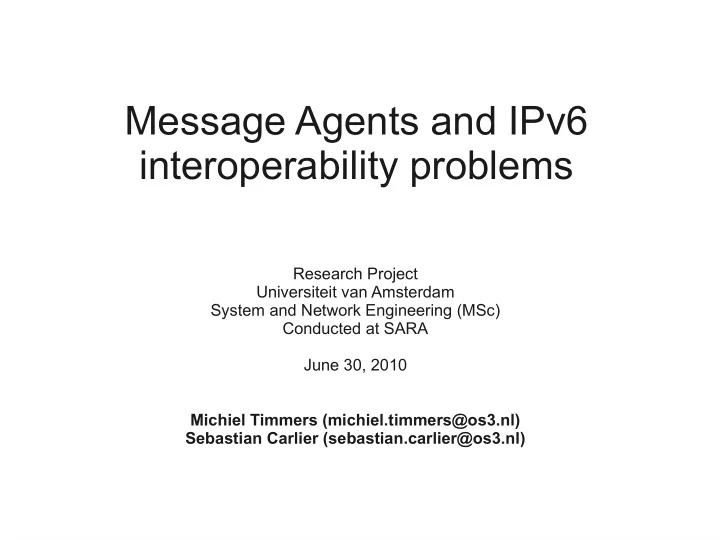

Message Agents and IPv6 interoperability problems Research Project Universiteit van Amsterdam System and Network Engineering (MSc) Conducted at SARA June 30, 2010 Michiel Timmers (michiel.timmers@os3.nl) Sebastian Carlier

slide-1
SLIDE 1

Message Agents and IPv6 interoperability problems

Research Project Universiteit van Amsterdam System and Network Engineering (MSc) Conducted at SARA June 30, 2010 Michiel Timmers (michiel.timmers@os3.nl) Sebastian Carlier (sebastian.carlier@os3.nl)

slide-2
SLIDE 2

2 / 33

Contents

  • Research Question
  • Why
  • Intro
  • Design problems with MX records in IPv4/IPv6
  • Implementation problems on clients
  • Things to keep in mind
  • Question
slide-3
SLIDE 3

3 / 33

Research Question

What e-mail architecture components and configurations introduce connectivity problems in an IPv4/IPv6 mixed environment?

slide-4
SLIDE 4

4 / 33

Why

IPv6 on your public facing services will only become more and more important. Therefore study is needed to see where problems

  • riginate to be able to fix or avoid them.
slide-5
SLIDE 5

5 / 33

Test environment

  • SARA network
  • /28 for IPv4 and /64 for IPv6
  • OS3 Lab
  • /27 for IPv4 and /64 for IPv6
  • Approximately 20 machines
  • Ubuntu 10.04, Windows, Mac OSX 10.6
  • Exim, Sendmail, Postfix, Exchange 2007 SP1
slide-6
SLIDE 6

6 / 33

Message Agents - Intro

Client (aMUA) Client (rMUA) SMTP Relay MTA MTA Mail Delivery (IMAP/POP3)

slide-7
SLIDE 7

7 / 33

Address Selection

IPv6 IPv6 IPv6 IPv6 IPv4 IPv4 IPv4 Step 1 Step 2 Message Agent Message Agent Step 3

slide-8
SLIDE 8

8 / 33

DNS A and AAAA

  • Round robin for load balancing your services:
  • With MXs of equal preference
  • With multiple A or AAAA records
  • RFC 3484 brakes this behaviour
  • Longest matching prefix (section 6, rule 9)
  • Draft “Things To Be Considered for RFC 3484 Revision”
  • RFC 3484 does not recognize private IPv4 addresses

as native (Section 6, rule 7)

slide-9
SLIDE 9

9 / 33

SMTP Relay - Problems

client SMTP Relay IPv4-only MTA: brainbird.nl IPv4/IPv6 From: user@skimbee.net (IPv6) To: unknown_user@brainbird.nl (IPv4/IPv6)

slide-10
SLIDE 10

10 / 33

SMTP Relay - Problems

client SMTP Relay IPv4-only From: user@skimbee.net (IPv6) To: unknown_user@brainbird.nl (IPv4/IPv6) MTA: brainbird.nl IPv4/IPv6 Client will send message to SMTP Relay

slide-11
SLIDE 11

11 / 33

SMTP Relay - Problems

client SMTP Relay IPv4-only Try to send it to mx10 using IPv4 From: user@skimbee.net (IPv6) To: unknown_user@brainbird.nl (IPv4/IPv6) MTA: brainbird.nl IPv4/IPv6

slide-12
SLIDE 12

12 / 33

SMTP Relay - Problems

client SMTP Relay IPv4-only From: user@skimbee.net (IPv6) To: unknown_user@brainbird.nl (IPv4/IPv6) MTA: brainbird.nl IPv4/IPv6 Recipient address rejected: User unknown

slide-13
SLIDE 13

13 / 33

SMTP Relay - Problems

client SMTP Relay IPv4-only MTA: brainbird.nl IPv4/IPv6 MTA: skimbee.net IPv6-only From: user@skimbee.net (IPv6) To: unknown_user@brainbird.nl (IPv4/IPv6) E-mail error needs to be send to sender, Not possible as domain is IPv6-only

slide-14
SLIDE 14

14 / 33

SMTP Relay - Problems

client SMTP Relay IPv4-only E-mail does not reach receiver and error code does not get returned to sender MTA: skimbee.net IPv6-only From: user@skimbee.net (IPv6) To: unknown_user@brainbird.nl (IPv4/IPv6) MTA: brainbird.nl IPv4/IPv6

slide-15
SLIDE 15

15 / 33

MX Routing - Problems

SMTP Relay IPv4-only From: user@skimbee.net To: unknown_user@brainbird.nl IPv4/IPv6 mx10 IPv4/IPv6 mx30 relay IPv6-only mx20 relay mx10 is down

slide-16
SLIDE 16

16 / 33

MX Routing - Problems

IPv4/IPv6 mx30 relay IPv6-only mx20 relay No connectivity possible between SMTP Relay and mx20 From: user@skimbee.net To: unknown_user@brainbird.nl SMTP Relay IPv4-only IPv4/IPv6 mx10

slide-17
SLIDE 17

17 / 33

MX Routing - Problems

IPv4/IPv6 mx30 relay IPv6-only mx20 relay Deliver to mx30 From: user@skimbee.net To: unknown_user@brainbird.nl SMTP Relay IPv4-only IPv4/IPv6 mx10

slide-18
SLIDE 18

18 / 33

MX Routing - Problems

IPv4/IPv6 mx30 relay IPv6-only mx20 relay From: user@skimbee.net To: unknown_user@brainbird.nl mx10 is still down SMTP Relay IPv4-only IPv4/IPv6 mx10

slide-19
SLIDE 19

19 / 33

MX Routing - Problems

IPv4/IPv6 mx30 relay IPv6-only mx20 relay From: user@skimbee.net To: unknown_user@brainbird.nl Deliver to mx20 SMTP Relay IPv4-only IPv4/IPv6 mx10

slide-20
SLIDE 20

20 / 33

MX Routing - Problems

IPv4/IPv6 mx30 relay IPv6-only mx20 relay From: user@skimbee.net To: unknown_user@brainbird.nl mx10 is still down SMTP Relay IPv4-only IPv4/IPv6 mx10

slide-21
SLIDE 21

21 / 33

MX Routing - Problems

IPv4/IPv6 mx30 relay IPv6-only mx20 relay From: user@skimbee.net To: unknown_user@brainbird.nl E-mail error needs to be send to sender, Not possible as domain is IPv4-only SMTP Relay IPv4-only IPv4/IPv6 mx10 MTA: skimbee.net IPv4-only

slide-22
SLIDE 22

22 / 33

MX Routing - Problems

IPv4/IPv6 mx30 relay IPv6-only mx20 relay From: user@skimbee.net To: unknown_user@brainbird.nl E-mail does not reach receiver and error code does not get returned to sender SMTP Relay IPv4-only IPv4/IPv6 mx10

slide-23
SLIDE 23

23 / 33

Implementation problems on clients

  • Most of the implementation problems were

found on the client side

  • Clients don't implement RFC 3484 correctly
  • Windows will end up with the same metric for

tunnels and native

  • Outlook 2007/2010 does not fall back to IPv4
  • Apple Mac OSX 10.6 is broken by design...
slide-24
SLIDE 24

24 / 33

Apple's mDNSResponder

  • Introduced in Mac OSx 10.6 (Snow Leopard)
  • Simultaneous query for A and AAAA
  • to speed up connectivity if there are DNS lookup

problems

Query: A Query: AAAA Mac OSX 10.6 DNS Resolver

slide-25
SLIDE 25

25 / 33

Apple's mDNSResponder

  • Introduced in Mac OSx 10.6 (Snow Leopard)
  • Simultaneous query for A and AAAA
  • to speed up connectivity if there are DNS lookup

problems

  • Only accepts first response

Return: A Return: AAAA Mac OSX 10.6 DNS Resolver

slide-26
SLIDE 26

26 / 33

Apple's mDNSResponder

  • This does not comply with RFC 3484.
  • Twice the amount of DNS queries on your resolver.
  • Clients will randomly access over IPv4 or IPv6

depending on what record is returned first.

  • This breaks many things
  • No fall back possible!!!
  • Problems when only AAAA is available but A

“NOERROR” is returned first.

slide-27
SLIDE 27

27 / 33

Conclusion

  • Reflecting back on our research question:

What e-mail architecture components and configurations introduce connectivity problems in an IPv4/IPv6 mixed environment?

slide-28
SLIDE 28

28 / 33

Conclusion - MTA

  • No implementation problems.
  • Problems in IPv4/IPv6 mixed environments

when doing MX routing. RFC 3974.

  • Make sure YOU have implemented Dual-Stack

(IPv4/IPv6) so in all situations MTAs can reach you.

slide-29
SLIDE 29

29 / 33

Conclusion - MUA

  • Clients will give the biggest problems.
  • Be careful before announcing AAAA for your SMTP

Relay and POP3/IMAP services.

  • Use a controlled environment to test impacted

behaviour

slide-30
SLIDE 30

30 / 33

Keep in mind

  • Transition mechanism are unreliable and

unpredictable

  • Do not configure them on a server (disable them on

Windows Server 2008).

  • Do not make any services available over transition

mechanism, like configuring an AAAA that points to a Teredo interface!!!!

  • RFC 4941 - Privacy addresses.
  • Double the amount of monitoring.
slide-31
SLIDE 31

31 / 33

Acknowledgments

  • SARA
  • Ronald van der Pol
  • Freek Dijkstra
slide-32
SLIDE 32

32 / 33

Questions?

slide-33
SLIDE 33

33 / 33

References

  • Wiki for this research
  • Apple IPv6 problems
  • Things To Be Considered for RFC 3484 Revision
