CPE/CSC 580-S06 Artificial Intelligence Intelligent Agents Planning Agents Chapter Overview planning problems from problem solving to planning representations for planning problems states, goals, actions, plans partial-order planning


slide-1
SLIDE 1

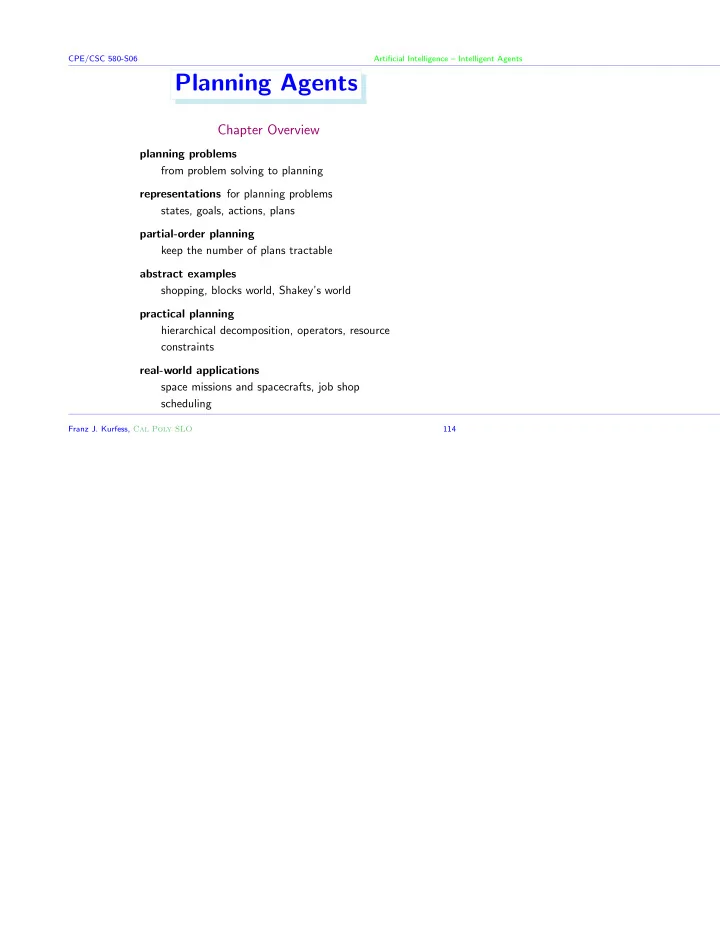

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Planning Agents

Chapter Overview

planning problems from problem solving to planning representations for planning problems states, goals, actions, plans partial-order planning keep the number of plans tractable abstract examples shopping, blocks world, Shakey’s world practical planning hierarchical decomposition, operators, resource constraints real-world applications space missions and spacecrafts, job shop scheduling

Franz J. Kurfess, Cal Poly SLO 114

slide-2
SLIDE 2

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Search-Based Problem Solver

review from earlier chapter

actions represented by programs that generate successor state descriptions states complete state descriptions are required goals goal test, heuristic functions as black boxes plans a solution is a sequence of actions search algorithm generates only contiguous sequences

Franz J. Kurfess, Cal Poly SLO 115

slide-3
SLIDE 3

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Planning Problems

from problem solving to planning

reasoning process structured more flexibly any part of the problem can be worked on planning and execution no necessary connection between the order of planning and the order of execution decisions important or obvious decisions can be made first hierarchical decomposition divide-and-conquer strategy a plan is split up into largely independent subplans

Franz J. Kurfess, Cal Poly SLO 116

slide-4
SLIDE 4

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

hierarchical decomposition only works if the sub-problems are indepen- dent Counterexample: Eight-puzzle, where the goal consists of interdependent subgoals

Franz J. Kurfess, Cal Poly SLO 116

slide-5
SLIDE 5

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Representations

for planning problems

states the world is described through logical conditions goals conjunctions of literals, possibly with variables actions described via operators, with preconditions and effects plans sequences of actions This representation is close to the Strips language,

  • ne of the first planning systems

Franz J. Kurfess, Cal Poly SLO 117

slide-6
SLIDE 6

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Example: [?] p. 343

Franz J. Kurfess, Cal Poly SLO 117

slide-7
SLIDE 7

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

States

the world decomposed into logical conditions

specification conjunctions of function-free ground literals: predicates applied to possibly negated constant symbols no functions, no variables completeness state descriptions may be incomplete closed-world assumption any conditions not explicitly mentioned are assumed to be false Examples Lost & Stuck for a disoriented, immobile agent (At (Truck-1, SLO) & At (Truck-2, SF)) for a truck scheduling problem

Franz J. Kurfess, Cal Poly SLO 118

slide-8
SLIDE 8

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

restricted expressiveness achieved better computational efficiency

Franz J. Kurfess, Cal Poly SLO 119

slide-9
SLIDE 9

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Goals

partially specified state that satisfies some condition

specification conjunction of positive ground literals goal satisfaction a state s satisfies a goal g if the states contains all the atoms in g, and possibly others Example Lost & Stuck & Out-Of-Fuel & Tired satisfies the (undesirable) goal Lost & Stuck

Franz J. Kurfess, Cal Poly SLO 120

slide-10
SLIDE 10

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Actions

preconditions must hold before the operator is applied, and the effects are the expected

  • utcome

precondition conjunction of function-free positive literals state what must be true in a state before an action can be executed

  • perator

describes the operations to be executed in order to achieve the expected outcome effects conjunction of function-free literals state what is expected to be true after the action is executed (the operator is applied) for better readability, an add list is used for positive literals, variables in the precondition and effects must also appear in the parameter list of the operator

Franz J. Kurfess, Cal Poly SLO 121

slide-11
SLIDE 11

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Action Schema Example

drive a truck from one location to another

Action(Drive(t, from, to), PRECOND: At(t, from) AND Truck(t) AND Location(from) AND Location (to) EFFECT: At(t,to) AND NOT At(t, from))

Franz J. Kurfess, Cal Poly SLO 122

slide-12
SLIDE 12

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Plan

a sequence of actions

modification of states positive literals that appear in the effect of an action are added to the modified state, and negative literals are removed common assumption sometimes called Strips assumption literals not mentioned in the effect remain unchanged applicable actions can be performed in any state that meets the precondition solution for a planning problem plan that specifies actions leading from an initial state to a goal state

Franz J. Kurfess, Cal Poly SLO 123

slide-13
SLIDE 13

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Operators

descriptions of actions

description name for an action precondition conjunction of atoms that must be true effect conjunction of literals describing the changed situation Graphical representation box for the action preconditions above, effects below

Franz J. Kurfess, Cal Poly SLO 124

slide-14
SLIDE 14

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

[?] p. 343

Franz J. Kurfess, Cal Poly SLO 124

slide-15
SLIDE 15

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Situation Space

traversed in order to reach the goal

progression planning searches forward from initial to goal situation

  • ften inefficient due to high branching factor

and huge state space regression planning searches backward from goal to initial situation possible because only partial descriptions of states are needed complicated for conjunctions of goals

Franz J. Kurfess, Cal Poly SLO 125

slide-16
SLIDE 16

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Partial Plan

simple, incomplete plan

  • perators

work on plans: add steps, impose ordering, instantiate variables, . . . refinement operators constraints are added to a partial plan equivalent to the elimination of possible plans modification operators plans are modified incorrect plans can be “debugged”

Franz J. Kurfess, Cal Poly SLO 126

slide-17
SLIDE 17

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Partial-Order Planning

keep the search focused

partial order leave some ordering decisions open total order sequential list of steps, or linearization of a plan

Franz J. Kurfess, Cal Poly SLO 127

slide-18
SLIDE 18

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Solution

executable plan that achieves the goal

complete every precondition of every step is satisfied consistent no contradictions in the ordering or binding constraints

Franz J. Kurfess, Cal Poly SLO 128

slide-19
SLIDE 19

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Plans

important aspects

plan steps each step is one of the operators for the problem

  • rdering constraints

temporal order of the steps variable binding constraints no conflicts in instantiations causal links record the purpose of steps graphical notation: boxes and arrows

Franz J. Kurfess, Cal Poly SLO 129

slide-20
SLIDE 20

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Shopping

as an abstract planning problem

initial plan start situation, goal situation partial plan insert steps that can be resolved right away partial order plan don’t worry about the particular sequence of steps solution complete plan with all necessary ordering and binding constraints see [?], pp. 349 ff

Franz J. Kurfess, Cal Poly SLO 130

slide-21
SLIDE 21

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Truck Delivery

simplified practical planning problem

Init(At(C1, SLO) AND At(C2, SF) AND (C3, SB) AND C4 (AG) AND At(T1, SLO) AND At(T2, SF) AND Cargo(C1) AND Cargo(C2) AND Truck(T1) AND Truck(T2) AND Location(SLO) AND Location(SF) AND Location(SB) AND Location(AG)) Goal(At(C1, SF) AND At (C2, SB)) Action(Load(c, t, l) PRECOND: At(c, l) AND At(t, l) AND Cargo(c) AND Truck(t) AND Location(l) EFFECT: On(c, t) AND NOT At(c, l) Action(Unload(c, t, l) PRECOND: On(c, t) AND At(t, l) AND Cargo(c) AND Truck(t) AND Location(l) EFFECT: NOT On(c, t) AND At(c, l) Action(Drive(t, from, to) PRECOND: AND At(t, from ) AND Truck(t) AND Location(from) AND Location(to) EFFECT: NOT At(t, from) AND At(t, to) simplified Strips program

Franz J. Kurfess, Cal Poly SLO 131

slide-22
SLIDE 22

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Blocks World

states

  • bjects and their positions

goals particular spatial relations between objects actions

  • perators for moving blocks

plans sequences of block movements

Franz J. Kurfess, Cal Poly SLO 132

slide-23
SLIDE 23

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Blocks World

in Strips

Init(On(A, Table) AND On(B, Table) AND On(C, Table) AND Block(A) AND Block(B) AND Block(C) AND Clear(A) AND Clear(B) AND Clear(C)) Goal(On(A, B) AND On(B, C)) Action(Move(b, x, y), PRECOND: On(b,x) AND Clear(b) AND Clear(y) AND Block(b) AND NEQ(B,x) AND NEQ(b,y) AND NEQ(x,y), EFFECT: On(B,y) AND Clear(x) AND NOT On(b,x) AND NOT Clear(y)) Action(MoveToTable(b, x) PRECOND: On(b,x) AND Clear(b) AND Block(b) AND NEQ(b,x) EFFECT: On(b, Table) AND Clear(x) AND NOT On(b,x)) simplified Strips program

Franz J. Kurfess, Cal Poly SLO 133

slide-24
SLIDE 24

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Practical Planners

  • perate in complex, realistic domains

planning methods language and algorithms must be extended search must be focused for specific domains real-world limitations resources, time, uncertainty

Franz J. Kurfess, Cal Poly SLO 134

slide-25
SLIDE 25

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Hierarchical Decomposition

different levels of abstraction

abstract operators can be decomposed into a group of steps primitive operator can be directly executed

Franz J. Kurfess, Cal Poly SLO 135

slide-26
SLIDE 26

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Language Extensions

  • perators classified into

primitive nonprimitive decomposition methods similar to subroutines or macros for operators Action Description Language (ADL) more expressive than Strips allows positive and negative literals in states

  • pen world assumption

also disjunctions, quantified variables in goals built-in equality types Planning Domain Description Language (PDDL) standard syntax for various planning formalisms includes sublanguages for Strips, PDDL, . . . requires modification of the planner

Franz J. Kurfess, Cal Poly SLO 136

slide-27
SLIDE 27

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Resource Constraints

representation and execution

resources can be produced and consumed measures numeric values for quantifying resources temporal constraints time is just another resource

Franz J. Kurfess, Cal Poly SLO 137

slide-28
SLIDE 28

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Distributed Problem Solving

collaboration among agents to achieve a common goal

example problems tasks that seem suitable for distribution task sharing

  • ne agents offloads some of his tasks onto other

agents result sharing several agents work on the same task, and their results are combined

Franz J. Kurfess, Cal Poly SLO 138

slide-29
SLIDE 29

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Distributed Planning

specialization of distributed problem solving

distributed formulation of plans the planning process itself is distributed generation of plans for distributed activities the plan is generated in such a way that the activities it specifies can be executed in a distributed way distributed plan representation methods for representing distributed plans in a coordinated manner distributed execution of plans combining coordination, planning, and execution

Franz J. Kurfess, Cal Poly SLO 139

slide-30
SLIDE 30

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Centralized Planning

for distributed plans

partial order planning no strict ordering is required between actions these actions may be executed in parallel via threads decomposition of a plan into subgoals subplans should be self-contained synchronization between subplans frequently via communication subplan allocation different subplans are allocated to individual agents can become complex for heterogeneous agents plan execution individual agents execute their subplans may involve monitoring by the centralized

Franz J. Kurfess, Cal Poly SLO 140

slide-31
SLIDE 31

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

planner

Franz J. Kurfess, Cal Poly SLO 141

slide-32
SLIDE 32

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Distributed Planning

for centralized plans

cooperative planning several agents work on the same plan mostly interesting for very large or complex plans variation of distributed problem solving where the problem happens to be a planning task task decomposition identification of largely independent subtasks that can be tackled by individual agents or teams of agents task distribution allocation of subtasks to (teams of) agents subtask execution individual agents work on their specific tasks result sharing contributions by individual agents are collected

Franz J. Kurfess, Cal Poly SLO 142

slide-33
SLIDE 33

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

and synthesized into one comprehensive plan

Franz J. Kurfess, Cal Poly SLO 143

slide-34
SLIDE 34

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Distributed Planning

for distributed plans

planning process and plan execution are distributed combines challenges from both approaches relatively immature field many different approaches, but not much systematicity

Franz J. Kurfess, Cal Poly SLO 144

slide-35
SLIDE 35

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Plan Merging

coordination of multiple individual plans

inherently distributed task no central agency to coordinate the planning task each agent has its own plan, but they are willing to coordinate their activities identification of conflicts resource utilization expected results resolution of conflicts analysis of the individual plans for conflicts centralized or distributed approaches variation of reachability analysis, which relies on the possibly intractable enumeration of states identification of unsafe states emphasis on actions performed by the agents assumes that the “action space” is less complicated than the state space

Franz J. Kurfess, Cal Poly SLO 145

slide-36
SLIDE 36

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Distributed Hierarchical Planning

variation of iterative plan formulation

levels of abstraction agents formulate their plans at different levels

  • nly higher levels are shared

can reduce the overall search space substantially by pruning away many details conflicts it is assumed that conflicts can be recognized and hopefully resolved at higher levels is not always the case

Franz J. Kurfess, Cal Poly SLO 146

slide-37
SLIDE 37

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Negotiation

in distributed planning

resolution of conflicts

  • nce conflicts are discovered, the agents

involved negotiate a plan that solves the conflicts usually based on utility functions for agents may require the revision of plans preserves the autonomy of agents extension of the planning space negotiation often results in an even larger state space for the planning problem self-interested agents negotiation assumes that agents are willing to cooperate incentives can be introduced to encourage cooperation even for self-interested agents

Franz J. Kurfess, Cal Poly SLO 147

slide-38
SLIDE 38

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Distributed Plan Representation

abstract description language for plans

compatibility of plans among different agents agents may use different planning systems with various plan representation schemes plan components many of the individual components of a plan may require their own description languages (environment, agent capabilities, resources, plots, subplans, . . . ) communication protocols necessary for the exchange of plans not sufficient for the description of plans knwoledge exchange languages in principle capable of representing and exchanging plans, in practice they may be too general

Franz J. Kurfess, Cal Poly SLO 148

slide-39
SLIDE 39

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Distributed Planning and Execution

pre-planning coordination may impose constraints on the possible actions

  • f agents

sometimes formulated as social laws in general, agents may inform each other about their plans post-planning coordination coordination of plans during execution agents may formulate contingency plans in advance, and choose the appropriate branch during execution interleaving planning, coordination, execution continual revision of plans in response to coordination decisions

  • bservation-based plan coordination

agents that can’t communicate can infer each

Franz J. Kurfess, Cal Poly SLO 149

slide-40
SLIDE 40

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

  • ther’s plans

Franz J. Kurfess, Cal Poly SLO 150

slide-41
SLIDE 41

CPE/CSC 580-S06 Artificial Intelligence – Intelligent Agents

Summary

Planning Agents

planning problems from problem solving to planning representations for planning problems states, goals, actions, plans partial-order planning keep the number of plans tractable abstract examples shopping, blocks world, Shakey’s world practical planning hierarchical decomposition, operators, resource constraints real-world applications space missions and spacecrafts, job shop scheduling

Franz J. Kurfess, Cal Poly SLO 151
