LIVING SHORELINES Bret M. Webb, PhD, PE, DCE August 28, 2018 GCRL Science Caf Series Ocean Springs, MS LIVING SHORELINES Bret M. Webb, PhD, PE, DCE August 28, 2018 ENGINEERING GCRL Science Caf Series Ocean Springs, MS Navigation

slide-1

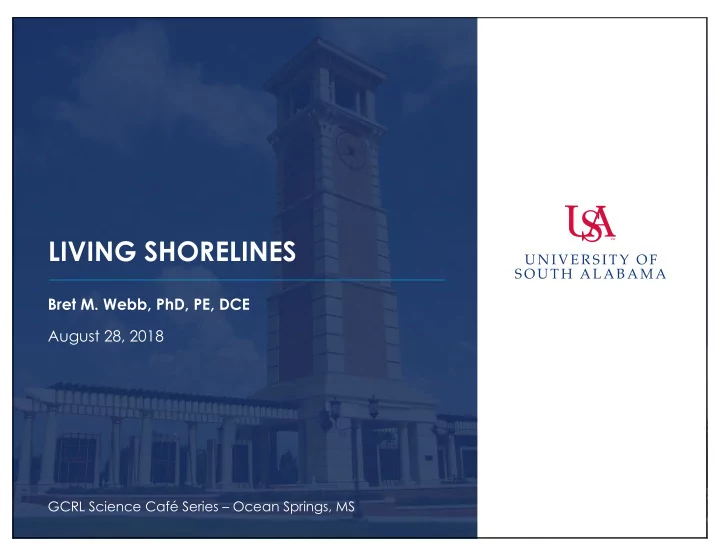

SLIDE 1

LIVING SHORELINES

Bret M. Webb, PhD, PE, DCE August 28, 2018

GCRL Science Café Series – Ocean Springs, MS

slide-2
SLIDE 2

LIVING SHORELINES

Bret M. Webb, PhD, PE, DCE August 28, 2018

GCRL Science Café Series – Ocean Springs, MS

ENGINEERING

slide-3
SLIDE 3

Navigation

3

Lessons

Who to Include Project Scale Implementation Flexibility Keys to Success

III.

Considerations

Design Environment Stressor ID Artificial Reefs Constructed Marshes Sandy Shorelines

II.

Background

What are living shorelines? Why use them? What are the technical challenges? What are the major

  • bstacles?

I.

August 28, 2018 | GCRL Science Cafe Series

slide-4
SLIDE 4

Living Shorelines…

4

August 28, 2018 | GCRL Science Cafe Series

  • I. Background
slide-5
SLIDE 5
  • I. Background

Shoreline Armoring

5

How did we get here? Population growth Residential development “Like dominoes” Undeveloped parcels >90% chance it will be armored

August 28, 2018 | GCRL Science Cafe Series

slide-6
SLIDE 6
  • I. Background

Shoreline Armoring

6

How did we get here? Population growth Residential development “Like dominoes” Undeveloped parcels >90% chance it will be armored

August 28, 2018 | GCRL Science Cafe Series

slide-7
SLIDE 7
  • I. Background

Shoreline Armoring

7

How did we get here? Population growth Residential development “Like dominoes” Undeveloped parcels >90% chance it will be armored

August 28, 2018 | GCRL Science Cafe Series

slide-8
SLIDE 8
  • I. Background

Shoreline Armoring

8

How did we get here? Population growth Residential development “Like dominoes” Undeveloped parcels >90% chance it will be armored

August 28, 2018 | GCRL Science Cafe Series

slide-9
SLIDE 9
  • I. Background

Living Shorelines

9

What are they? Natural approach to shoreline stabilization Uses appropriate organic materials Enough structure to accomplish goals, restore ecological and geological functions

August 28, 2018 | GCRL Science Cafe Series

Morris Landing, North Carolina

slide-10
SLIDE 10
  • I. Background

Living Shorelines

10

Why use them?

Maintain natural shoreline function Preservation of the intertidal zone Water polishing A majority of shoreline retreat/erosion occurs slowly

  • ver time

August 28, 2018 | GCRL Science Cafe Series

Orange Beach, Alabama

slide-11
SLIDE 11
  • I. Background

Living Shorelines

11

What are the technical challenges? Predictable performance Long-term resilience Using non-standard materials/devices Site-specific design Accounting for climate stressors

August 28, 2018 | GCRL Science Cafe Series

Mobile Bay, Alabama

slide-12
SLIDE 12
  • I. Background

Living Shorelines

12

What are the obstacles?

Availability of qualified contractors Technology transfer Need for engineering ($) Permitting options, restrictions Stupid and untrustworthy people

August 28, 2018 | GCRL Science Cafe Series

Gulf Breeze, Florida

slide-13
SLIDE 13

‘Living shorelines’ use oyster shells and marsh grass to reverse coastal erosion

13

August 28, 2018 | GCRL Science Cafe Series

https://www.pbs.org/newshour/show/living-shorelines-use-oyster-shells-and-marsh-grass-to-reverse-coastal-erosion

slide-14
SLIDE 14
  • II. Technical Stuff

Living Shorelines…

14

August 28, 2018 | GCRL Science Cafe Series

slide-15
SLIDE 15
  • II. Considerations

15

Design Environment

Get to know your site…

What are the critical coastal processes? What is the intended function? What needs to change in

  • rder to facilitate that

function or habitat?

August 28, 2018 | GCRL Science Cafe Series

Magnolia Beach, Fairhope

slide-16
SLIDE 16
  • II. Considerations

16

Stressor ID

What’s the problem? Identify the stressors…

  • Waves
  • Currents
  • Sea Level Rise
  • Water Quality
  • Sediment Supply

August 28, 2018 | GCRL Science Cafe Series

Mobile Bay, Alabama

slide-17
SLIDE 17
  • II. Considerations

17

Artificial Reefs

Tradeoffs… Reefs as breakwaters… Intertidal vs. subtidal reefs Agitation Material properties Location and predation

August 28, 2018 | GCRL Science Cafe Series

Little Bay Project, Bayou La Batre

slide-18
SLIDE 18
  • II. Considerations

18

Constructed Marshes

Edge vs. Interior Edge erosion protection Construction Containment Wave tolerance Salt tolerance

August 28, 2018 | GCRL Science Cafe Series

Little Bay Project, Bayou La Batre

slide-19
SLIDE 19
  • II. Considerations

19

Sandy Shorelines

Stabilization w/o trapping Low bank vs. high bank Sand transport pathways Trapping of longshore sand transport Barriers to cross-shore transport

August 28, 2018 | GCRL Science Cafe Series

Mon Louis Island, Alabama

slide-20
SLIDE 20
  • III. Lessons Learned

Living Shorelines…

20

August 28, 2018 | GCRL Science Cafe Series

slide-21
SLIDE 21
  • III. Lessons Learned

21

Coastal Scientists Coastal Ecologists Coastal Engineers

Who to Include

Interdisciplinary

The most successful projects will include coastal scientists, coastal engineers, and coastal ecologists… especially when those projects are ecosystem scale

August 28, 2018 | GCRL Science Cafe Series

We want to be here!

Kari Servold

slide-22
SLIDE 22
  • III. Lessons Learned

22

Project Scale

Success at all scales

Success can be scale independent…

August 28, 2018 | GCRL Science Cafe Series

Dog River Park – Boat Launch

slide-23
SLIDE 23
  • III. Lessons Learned

23

Flexibility

Things change…

Things change during a project, so it’s best to remain flexible throughout the process…

August 28, 2018 | GCRL Science Cafe Series

Old Oak Tree

slide-24
SLIDE 24
  • III. Lessons Learned

24

Keys to Success

Stem to stern

The most successful projects are those that are properly planned BEFORE a contractor is selected… Get your best plan together at the time of the funding request…

August 28, 2018 | GCRL Science Cafe Series

Offshore Reef, Mobile Bay

slide-25
SLIDE 25
  • III. Lessons Learned

25

Good Example

Good Project

Project Green Shores Appropriate expertise Good design Stakeholder engagement Highly visible

August 28, 2018 | GCRL Science Cafe Series

Pensacola, Florida

slide-26
SLIDE 26
  • III. Lessons Learned

26

Good Example

Bad Project

No design “Demonstration” project Use of non-standard approaches Lack of experienced coastal practitioners

August 28, 2018 | GCRL Science Cafe Series

Mobile Bay

slide-27
SLIDE 27
  • III. Lessons Learned

27

Good Example

Bad Project

“Marsh restoration” project Re-establish prior shoreline, create tidal marsh, tidal creeks, etc. Converted ~1500 feet of sandy bay shoreline to continuous rock structure

August 28, 2018 | GCRL Science Cafe Series

Mobile Bay

slide-28
SLIDE 28
  • III. Lessons Learned

28

Bad Example

Good Project

Best project you will never know about or see Project designed using standard coastal engineering tools Removed as result of law suits, enforcement action, etc.

August 28, 2018 | GCRL Science Cafe Series

Mobile Bay

slide-29
SLIDE 29
  • IV. Resources (the hidden content)

Living Shorelines…

29

August 28, 2018 | GCRL Science Cafe Series

slide-30
SLIDE 30

Resources…

30

Homeowners Guide

A Guide for (Alabama) Property Owners

Strategies Regulatory Framework Project Costs Material Selection

August 28, 2018 | GCRL Science Cafe Series

slide-31
SLIDE 31

Resources…

31

Contractor Guide

Introduction to Living Shoreline Management Practices

Elements Advantages Suitability & Selection Analysis & Design Examples

August 28, 2018 | GCRL Science Cafe Series

LIVING SHORELINES

A TECHNICAL GUIDE FOR CONTRACTORS IN ALABAMA & MISSISSIPPI An Introduction to Living Shoreline Management Practices 2016

slide-32
SLIDE 32

Resources…

32

August 28, 2018 | GCRL Science Cafe Series

http://www.southce.org/bwebb/?p=2381

slide-33
SLIDE 33

Shameless Advertisement…

33

! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! ! !

Edited&by:&Webb,&DeBerry,&and&Hardaway&

& Living&shorelines,&or&nature;based&shoreline&stabilization,&require&an&adequate&assessment&of& site;specific&ecological&needs&and&the&appropriate&application&of&coastal&engineering& principles&to&ensure&a&sustainable&and&successful&design.&However,&there&is&little&published& information&that&describes&these&basic&needs&and&the&regional&variations&that&exist&around& the&country.&This&much;needed&book&fills&a&gap&in&the&existing&literature&related&to&how&best& to&meet&the&ecological&and&engineering&needs&of&living&shorelines.&

Living&Shorelines:&Design&Principles&of& Ecology&and&Engineering&

J . & R o s s & P u b l i s h i n g &

New Book Coming Soon

Living Shorelines: Fundamentals

  • f Engineering & Ecology

National Overview Regional Chapters Case Studies Lessons Learned

August 28, 2018 | GCRL Science Cafe Series

slide-34
SLIDE 34

Shameless Advertisement…

34

Federal Highway Administration

Nature-Based Solutions for Coastal Highway Resilience

White Paper Regional Peer Exchanges Implementation Guide Pilot Projects & Partnerships

August 28, 2018 | GCRL Science Cafe Series

slide-35
SLIDE 35

Coastal ecosystem restoration, at any scale, requires an integration of coastal ecology and coastal engineering to be truly successful.

35

August 28, 2018 | GCRL Science Cafe Series

Dauphin Island East End
