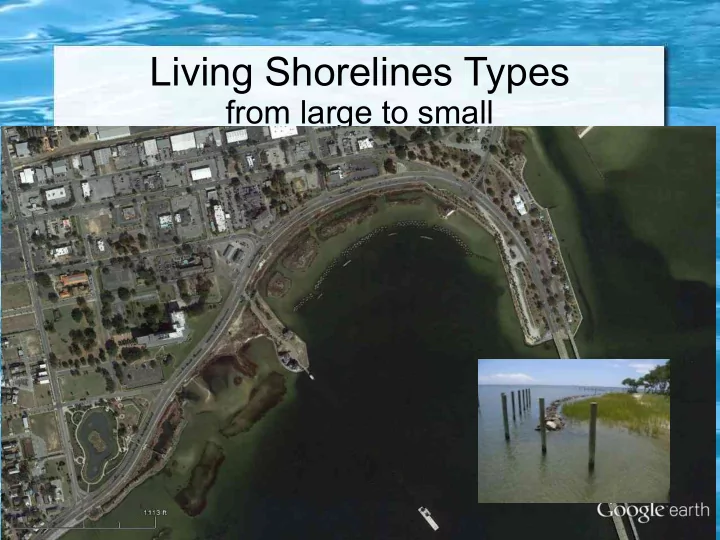

Living Shorelines Types from large to small Downsizing a Living Shoreline; Retail-scale Options for Private Properties on Exposed, Rapidly-Eroding Coasts David d. McGehee, P.E., D.CE Emerald Ocean Engineering LLC and Taylor Chips
SLIDE 2
SLIDE 3
Project Location
SLIDE 4
Existing Conditions
SLIDE 5
Owner's Mission
Reduce Upland/Shoreline Erosion Maintain Recreational Beach Be a Good Neighbor Utilize a Living Shoreline (“. . . like Project Greenshores”)
SLIDE 6
Average Erosion @ Project 1997 - 2013 ~ 2 ft/yr
Over 1 ft/mo from 2008 - 2010
SLIDE 7
Site Analysis
Calculated Net LST Potential (cu yd / yr)
SLIDE 8
LST potential shows accumulation:
Why isn't the project accreting? No southern sediment supply If shorelines are retreating, where is all that eroded sand going? Offshore
(see offshore profiles)
SLIDE 9
CONCEPTS
SLIDE 10
Design Challenges/Design Strategies
Optimize reef bw performance to:
Eliminate/reduce upland erosion & offshore transport Sill; dissipate high steep waves; pass low long waves Maintain the saltmarsh Average Hs < Hth (Douglas & Stout, 2004) Permit adequate longshore transport Salient good; tombolo bad; bobcat OK Adapt to sea level rise Rise with it: 1) maintenance {cheap}; 2) oysters {free} Survive extreme events Stay low; stay flat
SLIDE 11
Design profile
SLIDE 12
DESIGN PLAN
SLIDE 13
03/13/16
Voluntary Adaptive Management Plan
SLIDE 14
CONSTRUCTION
SLIDE 15
Cost Comparison
For 155 ft of shoreline protection: Traditional Bulkhead - $40-60 K Living Shoreline – $ 70 K Offshore Emergent Breakwater > $100 K
SLIDE 16
State-mandated Monitoring
11 Profiles extending ~200'
- ffshore
250' N & S of project bounds Neighborhood seminars Semi-annually, 3 yrs
SLIDE 17
SLIDE 18
SLIDE 19
SLIDE 20
SLIDE 21
SLIDE 22
SLIDE 23
1Week Post Construction
SLIDE 24
I Week Post Construction
SLIDE 25
1 Year Post Construction
SLIDE 26
1 Year Post Construction
SLIDE 27
Missions Accomplished ! (?)
OWNER'S DESIGNER'S
- Reduce erosion
√
- Recreational beach √
- Neighborly
√√
- Living Shoreline √√√
- Reduce erosion
A
- Maintain saltmarsh
A
- Allow LST
C ??
- Survive
Incomplete
- Adapt to SLR
– Cheap
A
– Free
D
SLIDE 28
LESSONS
- Saltmarsh vegetation can thrive on
exposed bay shorelines
- Submerged Reef BW perform well in
X-shore dominated shorelines
- Submerged reef BW can be:
– Reef habitat as valuable as marsh – Breakwaters as effective as emergent bw
SLIDE 29
??Questions??
Low tide visitor ↑ High tide visitor →
SLIDE 30
Offshore Profiles => Offshore Trx. 15 yrs upland erosion ~ Vol. > P0
SLIDE 31
Profile 4S – Local Effects (LST-o-meter)
