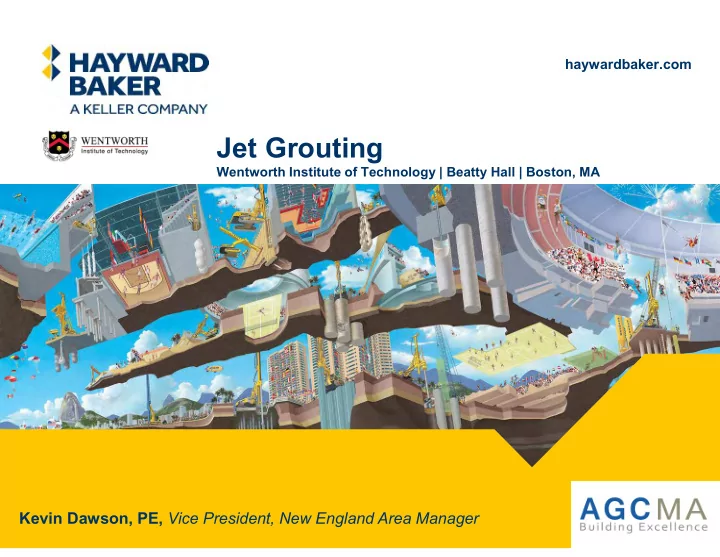

haywardbaker.com Jet Grouting Wentworth Institute of Technology | Beatty Hall | Boston, MA Kevin Dawson, PE, Vice President, New England Area Manager Presentation Overview Overview of jet grout underpinning Overview of risk and reward

SLIDE 1

haywardbaker.com

Jet Grouting

Wentworth Institute of Technology | Beatty Hall | Boston, MA

Kevin Dawson, PE, Vice President, New England Area Manager

SLIDE 2

Presentation Overview

Overview of jet grout underpinning
Overview of risk and reward of jet grout underpinning
Project Summary - Holyoke Medical Center
Conclusions

SLIDE 3

An erosion based ground improvement system used to create in situ cemented geometries of soil and binder (Soilcrete).

Jet grouting is…

SLIDE 4

SLIDE 5

SLIDE 6

Existing Footings

~ Soilcrete ~

SLIDE 7

Risks and Rewards of Jet Grout Underpinning Versus Pit Underpinning

Rewards

Reduced schedule
Reduced cost
Adaptable to challenging

geometry Risks:

Heave/settlement
Ability to measure structure

response and react

SLIDE 8

Risk Reward Relationship

SLIDE 9

Holyoke Medical Center Emergency Department Expansion

Owner – Holyoke Medical Center Architect - SMRT Construction Manager – G. Greene Construction Site Contractor – A.J. Virgilio Underpinning Contractor – Hayward Baker, Inc.

SLIDE 10

SLIDE 11

SLIDE 12

Installed Liquid Level Settlement Monitoring System

SLIDE 13

Test Column Installation

SLIDE 14

Confirmed Geometry

SLIDE 15

Jet Grout Production

SLIDE 16

Drilled Tiebacks Through Soilcrete

SLIDE 17

Final Excavation

SLIDE 18

SLIDE 19

SLIDE 20

SLIDE 21

SLIDE 22

SLIDE 23
