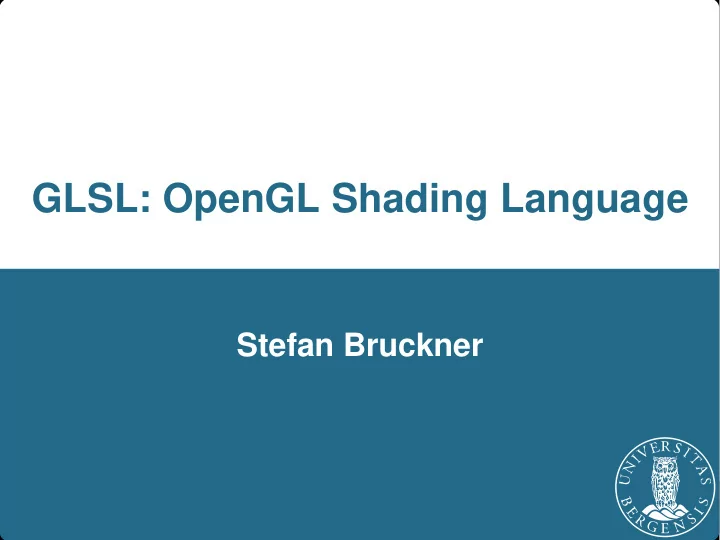

GLSL: OpenGL Shading Language

Stefan Bruckner

GLSL: Intro

OpenGL Shading Language (GLSL)

Current version 4.2

Specification:

http://www.opengl.org/documentation/specs/

High level shading language

Compiles directly to the available hardware Previously: program in assembly for every vendor

GLSL Version OpenGL Version 1.10.59 2.0 1.20.8 2.1 1.30.10 3.0 1.40.08 3.1 1.50.11 3.2 3.30.6 3.3 4.00.9 4.0 4.10.6 4.1 4.20.6 4.2

GLSL: Intro

GLSL Version OpenGL Version Changes Year 1.10.59 2.0

Vertex Arrays

2004 1.20.8 2.1

Added PBO

2006 1.30.10 3.0

New render targets/FBO/VBO

2008 1.40.08 3.1

New matrix standards

• No ftransform()!

2009 1.50.11 3.2

GS/layout

2009 3.30.6 3.3

Occlusion queries/sampler objects

2010 4.00.9 4.0

Individual blend equations for each color output/texture buffers/TS

2010 4.10.6 4.1

Atomic counters/bind programs individually to programmable stages/viewport arrays

2010 4.20.6 4.2

Read and write images/binding points from GLSL/TFO with instanced rendering

2011

GLSL: Intro

Shader programs are programs that run in parallel

• n the

graphics card to render graphics

Newest cards (NVIDIA 560, 2011) has 512 stream processors that are divided between the different shader types In theory 512 pixels can be colored at the same time

GLSL

Shader stream processors are grouped by pairs of 8 (8x2)

GLSL

Graphics Pipeline

VS TS GS FS

GLSL: Shader Programs

GLSL: Shader Programs

Types of shader programs

Vertex Program Tessellation Program (latest addition) Geometry Program Fragment Program

Output from vertex program is used as input to tessellation/geometry program Output from geometry program is used as input to fragment program

Vertex Tessellation Geometry Fragment

GLSL: Vertex Program

Operates on vertices

Input: vertex Output: vertex

Used for

Moving/Displacing vertices Defining/Modifying normals Texture coordinates Changing color of vertices Note: vertices/texture coord./normals arrive untransformed (in object coordinate system)

in vec4 position; void main(void) { gl_Position = position; }

[2D Wave map displacement]

GLSL: Tesselation Program

Operates on vertices

Input: a patch (quads, triangles, lines) Output: subdivide the patch into (thousands of) primitives of the patch type

Used for

Subdivision of primitives/patches LOD primitives Terrain rendering Parametric surfaces

control: layout(vertices = 4) out; uniform float inner_level; uniform float outer_level; #define id gl_InvocationID void main(){ gl_TessLevelInner[0] = inner_level; gl_TessLevelInner[1] = inner_level; gl_TessLevelOuter[0] = outer_level; gl_TessLevelOuter[1] = outer_level; gl_TessLevelOuter[2] = outer_level; gl_TessLevelOuter[3] = outer_level; gl_out[id].gl_Position = gl_in[id].gl_Position; } eval: layout(quads, equal_spacing, ccw) in; uniform mat4 projection; uniform mat4 modelview; void main(){ float u = gl_TessCoord.x; float v = gl_TessCoord.y; float omu = 1-u; float omv = 1-v; gl_Position = projection * modelview * *Func (omu, omv gl_in[0].gl_Position, gl_in[1].gl_Position ,gl_in[2].gl_Position,gl_in[3].gl_Position);}

[Triangle tessellation]

GLSL: Geometry Program

Operates on vertices

Input: vertices (a fixed number) Output: vertices/lines/polygons

Used for

Creating new vertices/lines/polygons Changing color for each primitive Defining/Modifying normals for each primitive Texture coordinates for each primitive

geometry: layout(triangles) in; layout(triangle_strip, max_vertices = 3) out; void main(){ gl_Position = gl_in[0].gl_Position; EmitVertex(); gl_Position = gl_in[1].gl_Position; EmitVertex(); gl_Position = gl_in[2].gl_Position; EmitVertex(); EndPrimitive(); }

VS GS [Sphere splatting]

GLSL: Fragment Program

Operates on fragments

Input: fragment location/color/normal/texturecoord Output: fragment color, opacity (+fragment depth)

Used for

Setting the color of pixels Calculating depth values Note: no automatic lighting or texturing

fragment:

• ut vec4 fragment;

void main(){ fragment = CalcShading(); }

[Depth of field]

GLSL: Program Chain Example

OpenGL draws one vertex

Vertex program chooses a color according to a texture

GLSL: Program Chain Example

Geometry program takes the vertex and uses it as a center for a sphere

Emits triangles for this sphere with color and correct normals and texture coordinates

GLSL: Program Chain Example

Fragment program fills the triangles using texturing and phong shading

GLSL: Setting up

Create a program

glCreateProgram()

Returns a program object reference Shader objects will be attached to this program

You can create several programs and attach the same shader to multiple programs

Create a Shader

glCreateShader(type)

GL_VERTEX_SHADER GL_GEOMETRY_SHADER GL_FRAGMENT_SHADER GL_TESS_CONTROL_SHADER GL_TESS_EVALUATION_SHADER

Returns a shader object reference

GLSL: Setting up

Upload the source

glShaderSource(sid, n, *src, *srclen)

Attaching a shader to a program

glAttachShader(pid, sid)

Compiling

glCompileShader(sid)

Linking the program

glLinkProgram()

Starting a program is done like this:

glUseProgram(pid) glUseProgram(0) //no program’s used

GLSL: Setting up

Detaching shaders

glDetachShader(pid, sid)

Deleting shaders and programs

glDeleteShader(sid) glDeleteProgram(pid)

GLSL: Uniforms and Attributes

A shader program can receive data through uniforms and attributes Uniforms

Variables that apply to all vertices and does not change over a primitive

Attributes

Variables that can change from vertex to vertex Similar to glColor(…) and glNormal(…) Interpolated between vertices

GLSL: Data Types

GLSL supports many different data types

Single value

bool, int, float

2 element vectors

bvec2, vec2, ivec2

3 element vectors

bvec3, vec3, ivec3

4 element vectors

bvec4, vec4, ivec4

GLSL: Data Types

Matrices

mat2, mat3, mat4

Textures

sampler1D, sampler2D, sampler3D

Structs

struct name {…};

Others

Texture arrays, texture buffers and depth textures

GLSL: Variables

Defining variables

bvec2 b = bvec2(true, false); vec3 n = vec3(1.0, 0.0, 0.0); mat2 m = mat2(1.0, 0.0, 0.0, 1.0);

struct light { vec3 position; vec3 color; };

GLSL: Vectors

There are different ways of accessing the values of a vector

vec4 v = vec4(…); float a = v.x; or v.r; or v.s; float b = v.y; or v.g; or v.t; float c = v.z; or v.b; or v.p; float d = v.w; or v.a; or v.q;

Swizzling

vec4 v = vec4(a, b, c, d); vec4 n = v.xxyy; //n = {a, a, b, b} vec2 j = v.zw; //j = {c, d}

GLSL: Matrices

Matrices also have different ways of accessing the values

mat4 m = … float m00 = m[0][0]; //column 0, row 0 vec4 clm = m[1]; // column 1

GLSL: Qualifiers

GLSL has several qualifiers to define the type variable

const – a compile time constant attribute – a variable that changes per vertex. Only applies to vertex shaders uniform – a variable that may change per vertex. Can only be changed outside of a glBegin/glEndblock varying – interpolated data. A value that has been defined in a vertex shader will be interpolated over the primitive.

GLSL: Setting Attributes and Uniforms

• ut vec2 coord; //varying attribute

uniform mat4 projmat; //uniform attribute attribute float weight; //per vertex attribute uniform sampler2D depth; //texture2D In OpenGL we need to do this to set a uniform

GLuint glGetUniformLocation(pid, “projmat”)

Returns a location to the variable

To set a value

glUniform<1234><fi>(GLint loc, GLfloat v0, …) glUniform<1234><fi>v(GLint loc, GLsizei n, GLfloat v) glUniformMatrix<234>fv(GLuint loc, GLsizei count, GLboolean transpose, GLfloat *v)

GLSL: Setting Attributes and Uniforms

The procedure for setting an attribute is similar

GLint glGetAttribLocation(GLuint program, char *name)

Setting the attribute

glVertexAttrib<1234><fi>(GLint loc, GLfloat v0, …) glVertexAttrib<1234><fi>v(GLint loc, GLfloat v)

Texture

In GLSL you refer to a texture using a sampler but in OpenGL you define them using integers

glUniform1i(ul, n)

n is the number of the texture unit the texture is bound to

GLSL: Setting Attributes and Uniforms

Setting structs in our program

ul = glGetUniformLocation(pid, “lighting.position”) glUniform3f(ul, x, y, z) ul = glGetUniformLocation(pid, “lighting.color”) glUniform3f(ul, r, g, b)

GLSL: Operators

Most math functions are available and valid for the built in data types

vec4 v; vec4 w; mat4 m; vec4 q = v * w + v / 2.0 + w * 3.0; mat4 c = q * m

Also special methods such as sin, cos, log, sqrt, abs, min, max, dot, length, cross, normalize, ftransform

GLSL: Built-in variables

OpenGL < 3.1

OpenGL has several built-in attributes

gl_Vertex – vertex defined by glVertex gl_Color – color defined by glColor gl_Normal – normal defined by glNormal …

And built-in uniforms

gl_ModelViewMatrix gl_ProjectionMatrix gl_TextureMatrix …

OpenGL > 3.1

layout(location=0) in vec4 vertices; layout(binding=1) uniform mat4 projmat;

GLSL: Language

The basic C language with a few extensions and limitations

discard;

Discard this fragment without writing to the color buffer

• r depth buffer

void main()

Main function in every shader

You can define your own functions

Your can return all types except for arrays Function parameters has qualifiers

in (default) – the parameter is for in data

• ut – the parameter is for outputting data

inout – both for input and output

No dynamic arrays

GLSL: Language

To access a texture

texture<123>D(sampler, p)

Where p has the same number of dimensions as the texture type

Currently plenty of specialized functions!

Look into the manual

Google “OpenGL shading language”

[Normal displacement texture]

GLSL: Draw Buffers

Fragment shaders support output to several drawbuffers

Instead of writing to gl_FragColor Write to gl_FragData[x]

x is from 0 to the number of drawbuffers – 1

The drawbuffers have been configured in OpenGL

GLenum buffers[] = {GL_COLORATTACHMENTx_EXT, …) glDrawBuffers(n, buffers) Since GLSL v1.50

• ut vec4 MyFragColor;

[Shadow mapping]

GLSL: Hello World

//Minimal vertex program #version 140 void main() { gl_Position = gl_ProjectionMatrix * gl_ModelViewMatrix * gl_Vertex; gl_Position = ftransform(); } //Minimal fragment program void main() { gl_FragColor = vec4(…); }

GLSL: Hello World

//Minimal vertex program #version 150 uniform mat4 proj; uniform mat4 view; layout (location = 0)in vec3 inPosition; void main() { gl_Position = proj * view * vec4(inPosition,1.0); } //Minimal fragment program layout(location=0) out vec4 fragment; void main() { fragment = vec4(…); } // Vertex position

glGenBuffers(1, &buffer[0]); glBindBuffer(GL_ARRAY_BUFFER, buffer[0]); glBufferData(GL_ARRAY_BUFFER, vertices. size() * 3*sizeof(float), &vertices[0], GL_STATIC_DRAW); glEnableVertexAttribArray(0); glBindBuffer(GL_ARRAY_BUFFER, buffer[0]); glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 0, BUFFER_OFFSET(0));

Geometry and Tessellation Shader

GLSL: Geometry Vs. Tessellation

Geometry Shader

Conversion between different geometries Example

From triangles to points, lines From points to a triangles, quads, etc.

Tesselation Shader

More geometry of the same sort

From a line to lines From a triangle patch to triangles From a quad patch to (isolines or) quads

No primitives with adjacency!

[Level of details]

GLSL: Geometry

Geometry shader

Input: vertices in a primitive from VS or TS Output: new set of vertices and primitives In data

vec4 gl_in[ ].gl_Position; layout(points) in; layout(triangle_strip, max_vertices = 3) out;

Out data

gl_Position = func1(gl_in[0].gl_Position); EmitVertex(); gl_Position = func2(gl_in[0].gl_Position); EmitVertex(); gl_Position = func3(gl_in[0].gl_Position); EmitVertex(); EndPrimitive();

GLSL: Geometry

Example: sphere splatting [Lampe,07]

Fast rendering of spheres in the image space Input: points + radiuses

VS GS FS

GLSL: Geometry

Example: sphere splatting [Lampe,07]

Fast rendering of spheres in the image space Input: points + radiuses

//GS layout(points) in; layout(triangle_strip, max_vertices = 4) out;

• ut vec2 coord;

void main() { float radius = gl_in[0].gl_Position.a; vec4 p = gl_in[0].gl_Position; p.a = 1.0; coord = vec2( -1,-1 ); gl_Position = projmod * (p + vec4(-radius,-radius,0,0)) ; EmitVertex(); coord = vec2( -1,1 ); gl_Position = projmod * (p + vec4(-radius,radius,0,0)) ; EmitVertex(); coord = vec2( 1,-1 ); gl_Position = projmod * (p + vec4(radius,-radius,0,0)) ;EmitVertex(); coord = vec2( 1,1 ); gl_Position = projmod * (p + vec4(radius,radius,0,0)) ;EmitVertex(); EndPrimitive(); } // in C glBegin(GL_POINTS); glVertex4f(…); glVertex4f(…); glVertex4f(…);…. glEnd();

//FS void main() { float len = length( coord ); if (len>1.0) discard; … }

GLSL: Tessellation

Tesselation uses a new graphics primitive GL_PATCHES

glBegin(GL_PATCHES); glVertex3f(…); glVertex3f(…); glEnd()

Vertex values do not need to be coordinates glPatchParameteri(GL_PATCH_VERTICES, num);

How many vertices per patch

GLSL: Tessellation

Tessellation control shader

Input: num of vertices in a patch from VS Output: Prepare control points and how much to tessellate (tessellation level) Input vertices (coordinates) are transformed to surface coordinates Tesselation level can be specified according to

Surface curvature, eye-object distance, screen-space spanning, etc.

GLSL: Tessellation

Tessellation control shader In data

vec4 gl_in[0..num-1].gl_Position; float gl_in[0..num-1].gl_PointSize; size in pixels float gl_in[0..num-1].gl_ClipDistance[ ]; vertex distance from clipping planes 0.0 lies on the plane int gl_InvocationID Output vertex we are working on gl_out[gl_InvocationID] int gl_PatchVerticesIn; Number of vertices in a patch int gl_PrimitiveID; Current patch ID; Up to the number of patches sent

GLSL: Tessellation

Tessellation control shader

Out data

Number of control points

layout(vertices = N) out;

vec4 gl_out[0..N-1].gl_Position; float gl_out[0..N-1].gl_PointSize; float gl_out[0..N-1].gl_ClipDistance[ ]; patch out float gl_TessLevelOuter[4];

Tessellation of outer edges

patch out float gl_TessLevelInner[2];

Tessellation of inner edges

Another patch variables

patch out float patch_area;

GLSL: Tessellation

Tessellation control shader

TCS instances run independently TCS[i] can read data from TCS[j] They can be synchronized via barrier()

Must not be called from loops, switch, if, .. Ex: compute locale curvatures and store it in

GLSL: Tessellation

Tessellation primitive generator

Cannot be programmed Looks at tessellation levels and outputs lines, triangles, quads in barycentric coordinates (u,v,w)

u,v for lines and quads u,v,w for triangles

GLSL: Tessellation

Tessellation evaluation shader

Reads (u,v,w) coordinates and the output coordinates from TCS and

Creates output coordinates (x,y,z) Interpolates attributes Applies displacement

One instance of TES per output vertex from TCS

If No TCS is used

glPatchParameterfv(GL_DEFAULT_OUTER_LEVEL, float level[4]); glPatchParameterfv(GL_DEFAULT_INNER_LEVEL, float level[2]);

GLSL: Tessellation

Tessellation evaluation shader

Reads (u,v,w) coordinates and the output coordinates from TCS and

Creates output coordinates (x,y,z) Interpolates attributes Applies displacement

Ex: layout(triangles, equal_spacing, cw) in;

What to form? Spacing? Orientation? Points at output vertex?

GLSL: Tessellation

Tessellation evaluation shader

In data

layout(triangles, equal_spacing, cw) in; gl_in[] = gl_out[] from TCS

vec4 gl_in[0..N-1].gl_Position; float gl_in[0..N-1].gl_PointSize; float gl_in[0..N-1].gl_ClipDistance[ ];

in int gl_PatchVerticesIn; in int gl_PrimitiveID in vec3 gl_TessCoord;

Out data

vec4 gl_Position; float gl_PointSize; float gl_ClipDistance[ ];

GLSL: Tessellation

Example: Cubic Bezier Curve

GLSL: Tessellation

Example: Cubic Bezier Curve

TCS can determine the tessellation level TPG produces u, from (u,v,w) TES computes position (x,y,z) based on u

GLSL: Tessellation

Example: Cubic Bezier Curve

OpenGL call for input patch

GLSL: Tessellation

Example: Cubic Bezier Curve

TCS

GLSL: Tessellation

Example: Cubic Bezier Curve

TCS

GLSL: Tessellation

Example: Cubic Bezier Curve

TES

GLSL: Tessellation

Example: Cubic Bezier Curve

gl_TessLevelOuter[1] = 3 gl_TessLevelOuter[1] = 10 gl_TessLevelOuter[1] = 100
