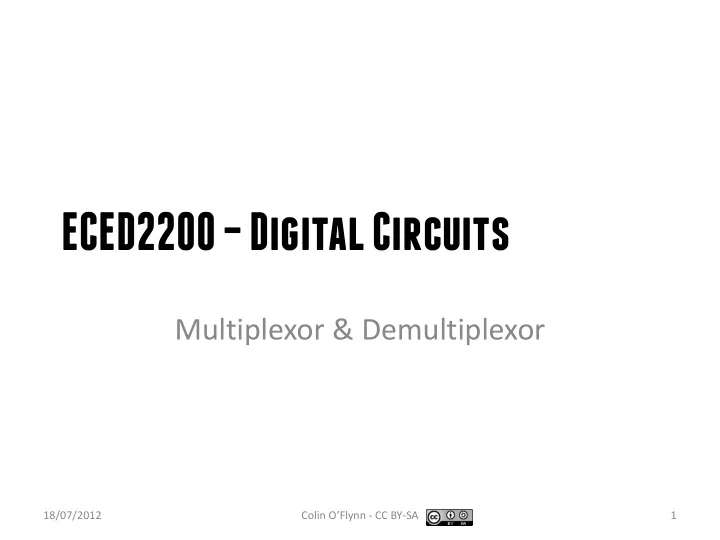

ECED2200 – Digital Circuits

Multiplexor & Demultiplexor

18/07/2012 Colin O’Flynn - CC BY-SA 1

SLIDE 2

General Notes

See updates to these slides: www.newae.com/teaching
These slides licensed under ‘Creative Commons Attribution-ShareAlike 3.0

Unported License’

These slides are not the complete course – they are extended in-class
You will find the following references useful, see

www.newae.com/teaching for more information/links:

– The book “Bebop to the Boolean Boogie” which is available to Dalhousie Students – Course notes (covers almost everything we will discuss in class) – Various websites such as e.g.: www.play-hookey.com – The book “Contemporary Logic Design”, which was used in previous iterations of the class and you may have already

18/07/2012 Colin O’Flynn - CC BY-SA 2

SLIDE 3

Multiplexor/Demultiplexor

18/07/2012 Colin O’Flynn - CC BY-SA 3

SLIDE 4

What is a Multiplexor?

18/07/2012 Colin O’Flynn - CC BY-SA 4

SLIDE 5

2:1 Mux

18/07/2012 Colin O’Flynn - CC BY-SA 5

2:1 Mux

I0 I1 S0 Q0

SLIDE 6

4:1 Mux

18/07/2012 Colin O’Flynn - CC BY-SA 6

4:1 Mux

I0 I1 S0 Q0 I2 I3 S1

SLIDE 7

Equations of Mux

18/07/2012 Colin O’Flynn - CC BY-SA 7

S1 S0 Q0 I0 1 I1 1 I2 1 1 I3

SLIDE 8

8:1 Mux

18/07/2012 Colin O’Flynn - CC BY-SA 8

8:1 Mux

I0 I1 S0 Q0 I2 I3 S1 I4 I5 I6 I7 S2

SLIDE 9

Mux as Design Block

18/07/2012 Colin O’Flynn - CC BY-SA 9

A B C Y 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

SLIDE 10

Mux as Design Block

18/07/2012 Colin O’Flynn - CC BY-SA 10

A B C Y 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

8:1 Mux

I0 I1 S0 Q0 I2 I3 S1 I4 I5 I6 I7 S2 A B C 1 1 1 1

SLIDE 11

Mux as a Design Block

18/07/2012 Colin O’Flynn - CC BY-SA 11

8:1 Mux

I0 I1 S0 Y I2 I3 S1 I4 I5 I6 I7 S2 A B C

SLIDE 12

What is a Demultiplexor?

18/07/2012 Colin O’Flynn - CC BY-SA 12

SLIDE 13

2:4 Decoder / Demux

18/07/2012 Colin O’Flynn - CC BY-SA 13

2:4 Decoder

E I0 Q0 I1 Q1 Q2 Q3

2:4 Demux

D S0 Q0 S1 Q1 Q2 Q3 Inputs Address Select

SLIDE 14

Notation Information

When using ‘Enable’ (tie to ‘1’), we have a
decoder. When inputting data, we have

demultiplexor (demux).

Naming:

– Decoder/demux named by “control signals:outputs” (e.g.: 2:4) – Mux named by “inputs:outputs” (e.g.: 4:1)

18/07/2012 Colin O’Flynn - CC BY-SA 14

SLIDE 15

Decoder as a Design Block

18/07/2012 Colin O’Flynn - CC BY-SA 15

3:8 Decoder

E=‘1’ I0 Q0 I1 Q1 Q2 Q3 I2 Q4 Q5 Q6 Q7 A B C

SLIDE 16

Decoder as a Minterm Generator

18/07/2012 Colin O’Flynn - CC BY-SA 16

3:8 Decoder

E=‘1’ I0 Q0 I1 Q1 Q2 Q3 I2 Q4 Q5 Q6 Q7 A B C

A•B•C A•B•C A•B•C A•B•C A•B•C A•B•C A•B•C A•B•C

SLIDE 17

TRI-STATE GATES

18/07/2012 Colin O’Flynn - CC BY-SA 17

SLIDE 18

Inverter

18/07/2012 Colin O’Flynn - CC BY-SA 18

SLIDE 19

3-State Buffer

18/07/2012 Colin O’Flynn - CC BY-SA 19

A E Q 1 1 1 1 Z 1 Z

SLIDE 20

Uses for 3-State Buffers

18/07/2012 Colin O’Flynn - CC BY-SA 20

SLIDE 21

References

See class notes “Beyond Simple Logic Gates” (page 133)

18/07/2012 Colin O’Flynn - CC BY-SA 21
