Veesta World Co. Veesta World Co. V-PLC 9000 V-PLC9000 Product Series Veesta Universal PLC & Veesta Universal PLC & Universal PLC & Teleprotection Teleprotection Teleprotection Veesta-PLC9000 ( Version 1.0 ) 1 V-PLC9000

slide-1
SLIDE 1

1

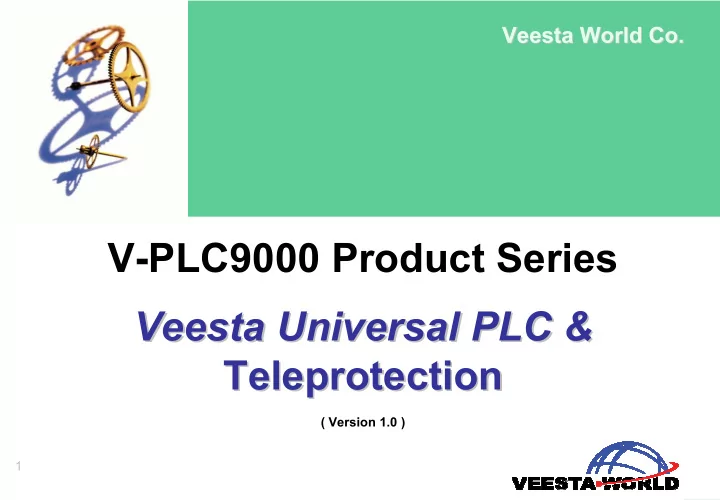

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series Veesta Universal PLC & Veesta Universal PLC & Teleprotection Teleprotection

( Version 1.0 )

Veesta World Co. Veesta World Co.

slide-2
SLIDE 2

2

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (1)

V-PLC9000 Product Series is family of devices:

  • Universal PLC terminal VP-9UPT
  • Analogue channel terminal VP-9ACT
  • Teleprotection signalling terminal VP-9PST
  • Coupling devices

VP-9COD

  • Excellent base for future development activities
slide-3
SLIDE 3

3

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (2)

The platform, representing the base for design of various devices with different functionality

  • unified mechanical design
  • unified power supply system
  • unified system of internal communications
  • unified parameterising & diagnostic system
  • unified technology (VP-9DSP, VP-9CPLD)
  • unified HW (VP-9DSP platform & VP-9PXYZ module)
slide-4
SLIDE 4

4

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (3)

Mechanical Design

  • Standard 19’’ housing
  • EMC design of housing
  • Dimension of modules:

6U x 5(10)HE x 220 mm

  • Installation on the floor-

mounted 19’’ rack or into the cabinet with 19” swing rack

  • All connections from the

front side

299 mm 266 mm (6U height) 483 mm (standard 19'' housing)

  • o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o
  • o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o
slide-5
SLIDE 5

5

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (4)

Mechanical Design

VP-9PTLF VP-9RFPA

VP-9PRLF

Universal slot Universal slot Universal slot Universal slot Universal slot Universal slot Universal slot VP-9CPDM VP-9PSHY O M K I H G F E D C B A

V-PLC9000 COM System Made in IRAN Serial Number

VP-9PTLF VP-9RFPA

VP-9PRLF

Universal slot Universal slot Universal slot Universal slot Universal slot VP-9CPDM VP-9PSHY O M K I H G F E D C A

V-PLC9000 COM System Made in IRAN Serial Number

VP-9PSHY

483 mm (19 inch) 483 mm (19 inch)

slide-6
SLIDE 6

6

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Power Supply System

  • All power supply sources

supported

  • Redundant scheme of

power supply supported

  • Distributed internal power

supply system

  • Excellent design of power

supply modules

single power supply

  • o oo o o oo o oo o o oo oo o o oo oo o o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o oo
  • o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o

doubled (redundant) power supply

  • o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o
  • o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o

power supply modules PSHY:

Y = A : Uin = 115 / 230V AC Y = D : Uin = 48 / 60V DC Y = 1 : Uin = 110V DC Y = 2 : Uin = 220V DC Y = 4 : Uin = 24V DC

PSHY Additional power supply module PSHY Basic power supply module PSHY Power supply module

single power supply

  • o oo o o oo o oo o o oo oo o o oo oo o o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o o o oo oo o o oo o

single power supply

  • o oo o o oo o oo o o oo oo o o oo oo o o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o oo
  • o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o o o oo oo o o oo oo o o oo o oo o o
  • o o oo o oo o oo o oo o oo
  • o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o

doubled (redundant) power supply

  • o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o
  • o oo o

doubled (redundant) power supply

  • o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o
  • o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o o o oo oo o o oo oo
  • o oo oo o o oo oo o o oo o oo o oo o oo o
  • o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o oo o oo o oo o o oo oo o o oo oo o o o oo oo o o o oo oo o o oo oo o o oo o oo o oo o oo o

power supply modules PSHY:

Y = A : Uin = 115 / 230V AC Y = D : Uin = 48 / 60V DC Y = 1 : Uin = 110V DC Y = 2 : Uin = 220V DC Y = 4 : Uin = 24V DC

PSHY

  • o oo o oo o oo o oo o

power supply modules PSHY:

Y = A : Uin = 115 / 230V AC Y = D : Uin = 48 / 60V DC Y = 1 : Uin = 110V DC Y = 2 : Uin = 220V DC Y = 4 : Uin = 24V DC

PSHY Additional power supply module PSHY Basic power supply module PSHY Power supply module

slide-7
SLIDE 7

7

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Parameterizing & Diagnostic System

  • PC based parameterising & diagnostics system
  • User friendly Graphic User Interface (GUI)
  • Central parameterising & diagnostics module: CPDM module
  • Local or remote access to the equipment
slide-8
SLIDE 8

8

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Parameterizing & Diagnostic System

  • Central parameterising and

diagnostics module VP-9CPDM, providing local and remote PC access

  • 10 Mbps serial bus providing

internal communications

single power supply

  • o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o
  • o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o
  • o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o
  • o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o o

PSHY Additional power supply module CPDM Programm. & diagnostic module CPDM Programm. & diagnostic module

10 Mbps serial bus 10 Mbps serial bus

PSHY Power supply module PSHY Basic power supply module

doubled (redundant) power supply

slide-9
SLIDE 9

9

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Parameterizing & Diagnostic System Software

  • Multi-language support
  • User friendly
slide-10
SLIDE 10

10

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Technology

  • Extensive implementation of Digital Signal Processing (DSP)

and Complex Programmable Logic Devices (CPLD)

  • Excellent repeatability of DSP based characteristics in serial

production

  • Excellent temperature and time stability of DSP based

characteristics

  • Easy programmability
  • Compact design
  • EMC compatibility and safety
slide-11
SLIDE 11

11

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Hardware – DSP Platform

  • DSP platform based on C6 family of DSPs from Texas

Instruments (TMS320C6203)

  • Processing power of 2.4 BIPS
  • VP-9DEM DSP baby board
slide-12
SLIDE 12

12

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Hardware – VP-9PXYZ Module

" b a b y b o a r d " m o d u le

V-P9DEM

d ig it a l s ig n a l p r o c e s s in g ( D S P ) X = Z = E E E

p o s itio n Z

Y =

p o s itio n Y p o s itio n X

slide-13
SLIDE 13

13

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Hardware – VP-9PXYZ Module

slide-14
SLIDE 14

14

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

  • Up to 6 analogue (aPLC)
  • channel. and/or 1 digital (dPLC)

channel

  • Single-step modulation
  • Peak Envelope Power (PEP)
  • f 10 W, 20 W, 40 W or 80 W
  • Extended RF range:

from 20 kHz to 1.000 kHz

  • Full programmability without

any change of hardware

  • IEC 60495 (1993-09) compliant
  • Easy integration of teleprotection

signalling function (PSE 7)

a d d i t i

  • n

a l p

  • w

e r s u p p l y m

  • d

u l e (

  • p

t i

  • n

) b a s i c p

  • w

e r s u p p l y m

  • d

u l e

VP-9CPDM

p r

  • g

r a m m i n g a n d d i a g n

  • s

t i c m a i n t e n a n c e s p e e c h l i n k

VP-9SFC VP-9PTI

Telephone interface (“speech-plus” version only)

VP-9PMYS module (aPLC channel)

4

  • w

i r e R F b u s

m a i n t e n a n c e s p e e c h l i n k

d P L C c h a n n e l

( M O D E M )

V-9RFPA

R F I / O

( t

  • c
  • u

p l i n g e q u i p m e n t ) t e l e p h

  • n

e h a n d s e t E & M B O O S T t e l e p h

  • n

e h a n d s e t d a t a , t i m i n g , c

  • n

t r

  • l

P C

  • r

e m

  • t

e p

  • w

e r s u p p l y s

  • u

r c e

p

  • w

e r s u p p l y b u s i n t e r n a l d i g i t a l c

  • m

m u n i c a t i

  • n

b u s

e a r t h i n g ( h

  • u

s i n g ) P C

  • l
  • c

a l a l a r m r e l a y s c

  • n

t a c t s

t

  • a

l l m

  • d

u l e s

d a t a , t i m i n g , c

  • n

t r

  • l

2 / 4

  • w

; K P A X B # 1 p

  • w

e r s u p p l y s

  • u

r c e s p e e c h ( 2

  • w

/ 4

  • w

) # 3 4

  • w

A F I / O # 2 p r

  • t

e c t i

  • n

c

  • m

m a n d s a n d a u x i l i a r y s i g n a l s ( t

  • /

f r

  • m

p r

  • t

e c t i

  • n

r e l a y P R ) p r

  • t

e c t i

  • n

c

  • m

m a n d s a n d a u x i l i a r y s i g n a l s ( t

  • /

f r

  • m

p r

  • t

e c t i

  • n

r e l a y P R )

VP-9MAI

Triple 4-wire AF interface (always)

VP-9PST-A integrated TPS

function (option)

V-9PTLF V-9PRLF

VP-9PRIA or B or C

I/O module

VP-9PXYS module (dPLC channel)

VP-9SFC VP-9DIX

digital interface # 2

VP-9DIX

digital interface # 1

VP-9PST-A integrated TPS

function (option)

VP-9PRIA or B or C

I/O module

VP-9PSHY VP-9PSHY

slide-15
SLIDE 15

15

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

  • Modular design
  • Extremely compact

design

s t a n d a r d 1 9 ' ' b l i n d p l a t e

  • f

m i n i m a l 3 U h e i g h t

O P

  • R

is b a _ 9

  • e

n

  • t

h e r e q u i p m e n t i n t h e 1 9 " h

  • u

s i n g s t a n d a r d 1 9 ' ' b l i n d p l a t e

  • f

m i n i m a l 3 U h e i g h t

  • t

h e r e q u i p m e n t i n t h e 1 9 " h

  • u

s i n g

VP-9PTLF VP-9RFPA VP-9PRLF VP-9PXYS module VP-9PMES module VP-9PMPS module Universal slot Universal slot Universal slot Universal slot VP-9CPDM VP-9PSHY

V-PLC9000 COM System Made in IRAN Serial Number
slide-16
SLIDE 16

16

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

aPLC Channel

  • “standard” or

“speech-plus” version

  • Triple AF 4-w interface
  • Full programmable

universal telephone interface (“speech-plus” version only)

usable AF band speech-plus band speech 200 300 signalling & data Hz pilot (AGC & synchronization) 3720 3852 TR

fST

200 300 Hz 3720 3852 data pilot (AGC & synchronization)

STANDARD aPLC channel SPEECH-PLUS aPLC channel

slide-17
SLIDE 17

17

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

dPLC Channel

  • Programmable frequency

bandwidth BW(d) and transmission capacity C(d)

  • Wide range of digital

interfaces

  • Multi-purpose use provided

by external access multiplexer (AMUX)

frequency plan of dPLC channel multi-purpose use of dPLC channel (AMUX)

C # 1 # 2 # n # 1 # 2 # m . . . . . . speech data

  • verhead

capacity of dPLC channel; up to 96kbps

PSE 7 command signals

. . .

S01 S02 S03 S16 15 x 125Hz PILOT of dPLC channel (AGC & synchronization) & PSE 7 GUARD (4kHz, 8kHz, 12kHz or 16kHz) 1500Hz 125Hz

BW(d) = 4kHz, 8kHz, 12kHz or 16kHz

310Hz 3685Hz S04 2185Hz

fdT

slide-18
SLIDE 18

18

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

dPLC Channel

  • Bandwidth BW(d) in kHz:

4, 8, 12 or 16

  • Transmission capacity C(d) in kbps:

9.6, 14.4, 19.2, 24, 28.8, 32,48, 56, 64, 72 or 96

  • Maximal C(d) regarding to the BW(d):

BW(d) = 4 kHz: C(d)max = 24 kbps BW(d) = 8 kHz: C(d)max = 48 kbps BW(d) = 12 kHz: C(d)max = 72 kbps BW(d) = 16 kHz: C(d)max = 96 kbps

slide-19
SLIDE 19

19

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

dPLC Channel

  • dPLC channel efficiency Eff in bits / second / Hz:

Eff (bps/Hz) = C(d) (bps) / BW(d) (Hz)

  • Higher the Eff, higher the sensitivity to noise !
  • Basic rule for dPLC link planning:

Minimize Eff ! (Maximize BW(d) and minimize C(d))

slide-20
SLIDE 20

20

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

dPLC Channel

  • Digital interfaces: “baby boards” DIU, DIO

and DIA DIU: RS 232, V.35 and X.21 DIO: G.703; co-directional DIA: G.703; contra-directional

slide-21
SLIDE 21

21

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000, PLC Type Test (5)

slide-22
SLIDE 22

22

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Analogue Channel Terminal

VP-9COD l

  • c

a t i

  • n

A H V p

  • w

e r l i n e L T L T C C C C

F X S

P R P R M O D E M P A B X M O D E M

F X O

c

  • m

m u n i c a t i

  • n

l i n k l

  • c

a t i

  • n

B ( e n e r g e t i c s i t e )

a P L C c h a n n e l

VP-9UPT

a P L C c h a n n e l

R T U l

  • c

a t i

  • n

C ( m a n a g e m e n t s i t e ) VP-9UPT VP-9COD VP-9PST VP-9PST VP-9ACT

slide-23
SLIDE 23

23

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

VP-9PST Teleprotection Signalling Terminal

  • F6 modulation; guard tone / command(s) tone
  • Up to eight protection commands, transmitted in different priority

schemes

  • Flexible frequency plan
  • Direct trip, permissive trip and blocking protection schemes

supported

  • Easy integration into any channel of VP-9UPT or into VP-9ACT
  • Integrated maintenance speech channel
  • IEC 60834-1 (1999-10) compliant
slide-24
SLIDE 24

24

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Technical Data

  • Transmission times:

Direct: < 20ms Permissive: <15ms Blocking: <10ms

  • Security / Dependability

Direct: 10-6 / 10-4 Permissive: 10-4 /10-3 Blocking: 10-3/ 10-3

slide-25
SLIDE 25

25

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Command Transmission Priority

  • 3I / 4I

three / four independent (no priority) commands

  • 6P

six commands, transmitted in priority scheme

  • 22

two priority groups of commands, each group contains two independent commands

  • 42

four priority groups of commands, each group contains two independent commands

slide-26
SLIDE 26

26

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Operating Frequency Plan

Hz

3720 command signals GUARD & data (POGS=A) GUARD & data (POGS=B) 300

VP-9PST: General frequency plan; nmax = 16

. . .

Sn (n-1) x 120Hz

BWTPS (PSOT)

60Hz 60Hz

Hz

PSE 7 command signals

. . .

S01 S02 S03 S16 15 x 125Hz PILOT of dPLC channel (AGC & synchronization) & PSE 7 GUARD 4kHz, 8kHz, 12kHz

  • r

16kHz 1500Hz

fG

(POGS=B)

fG

(POGS=A) BW(d) = 4kHz, 8kHz, 12kHz or 16kHz

  • perating

frequency range 310Hz 3685Hz S04 2185Hz S01 S02 S03 S04 125Hz 120Hz 360Hz 360Hz

VP-9PST: Frequency plan – integration into dPLC channel of V-9UPT PLC Terminal Hz

3720 command signals GUARD & data (POGS=A) GUARD & data (POGS=B) 300

VP-9PST: General frequency plan; nmax = 16

. . .

Sn (n-1) x 120Hz

BWTPS (PSOT)

60Hz 60Hz

Hz

PSE 7 command signals

. . .

S01 S02 S03 S16 15 x 125Hz PILOT of dPLC channel (AGC & synchronization) & PSE 7 GUARD 4kHz, 8kHz, 12kHz

  • r

16kHz 1500Hz

fG

(POGS=B)

fG

(POGS=A)

Hz

PSE 7 command signals

. . .

S01 S02 S03 S16 15 x 125Hz PILOT of dPLC channel (AGC & synchronization) & PSE 7 GUARD 4kHz, 8kHz, 12kHz

  • r

16kHz 1500Hz

fG

(POGS=B)

fG

(POGS=A) BW(d) = 4kHz, 8kHz, 12kHz or 16kHz

  • perating

frequency range 310Hz 3685Hz S04 2185Hz S01 S02 S03 S04 125Hz 120Hz 360Hz 360Hz

VP-9PST: Frequency plan – integration into dPLC channel of V-9UPT PLC Terminal

slide-27
SLIDE 27

27

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Teleprotection Block Diagram

h a n d s e t 4

  • w

A F l i n e p

  • r

t ( P R , P L C , S C A D A ) p r

  • t

e c t i

  • n

c

  • m

m a n d s a n d a u x i l i a r y s i g n a l s

VP-9PRIA,VP-PRIB,VP-PRIC

I/O module

System modules (VP-9CPDM and one or two VP-9PSHY) not shown!

VP-9TPS Function VP-9MAI triple 4-w AF interface

maintenace speech channel

VP-9PMEE module

slide-28
SLIDE 28

28

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

VP-9PRIX I/O Module

  • Up to three PRIX I/O modules of version

VP-9PRIA (2 IN / 6 OUT), VP-9PRIB (4 IN / 4 OUT) and/or VP-9PRIC (6 IN / 2 OUT)

  • Universal binary Inputs / Outputs
  • Inputs: optocoupler
  • Outputs: solid state relay (MOSFET) or electro-mechanical

relay (EMR); programmable

  • Single component failure protection design
slide-29
SLIDE 29

29

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

VP-9PRIX I/O Module – Input Design

VP-9PRIX module (VP-9PRIA, VP-9PRIB, VP-9PRIC)

+ U GND

INPUT

IN 1 + U GND IN 2

+ +

U ext

VP-9PRIX module (VP-9PRIA, VP-9PRIB, VP-9PRIC)

+ U GND

INPUT

IN 1 + U GND IN 2

+ +

U ext

slide-30
SLIDE 30

30

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

VP-9PRIX I/O Module – Output Design

PRIX_OUTPUT-en

VP-9PRIX module (VP-9PRIA, VP-9PRIB, VP-9PRIC)

+ U GND GND

OUTPUT

U1 GND 48V + 48V + U1 DC DC GND + U + U1 U1 V M U1 + U1 OUT-F OUT-F OUT-R OUT-R OBC

+ +

U ext LOAD

slide-31
SLIDE 31

31

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000, TPS Type Test (5)

slide-32
SLIDE 32

32

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Application- Example 1

VP-9COD L T L T L T L T C C C C C C C C Access to the aPLC and/or dPLC channels and to the integrated VP-9PST TPS function (option)

V-PLC9000

PLC equipment VP-9UPT l i n k # 3 l i n k # 1 l i n k # 1 l i n k # 2 l i n k # 2 l i n k # 3 Other PLC equipment Primary equipment VP-9UPT VP-9UPT VP-9UPT VP-9UPT VP-9UPT VP-9COD VP-9COD VP-9COD VP-9TRD Location B Location C Location A HV power line #1 HV power line #2

slide-33
SLIDE 33

33

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Product Series (5)

Equipment Application

VP-9PST P R

speech & data

Location D

M O D E M

. . .

aPLC channel dPLC channel PST PR PABX FXS FXO TRUNK AD * in case of “speech-plus” version of aPLC channel only ** in case of integrated VP-9PST-A function only

V-PLC9000 PLC equipment

Third party product Other

Analogue channel of PLC link Digital channel of PLC link Protection signaling terminal Protection relay Private automatic branch exchange Subscriber - subscriber side Subscriber - exchange side Interconnection between exchanges Access Device: TDM MUX or PSNN (Packet Switched Network Node)

Location A

copper-wire TC cable

protection commands DATA

MODEM VP-9NBM

TRANSIT FXS FXO TRUNK PABX PABX PST A D SCADA PCM30 PR

  • r
  • r
  • r
  • r

2-w 2-w 2/4/6-w up to 96 kbits/s 64 kbits/s **

protection command

** *

each aPLC channel each aPLC channel dPLC channel

Universal PLC Terminal

V-PLC9000

to/from coupling device . . .

. . .

4-w 4-w

VP-9ACT

speech 4-w FXS FXO TRUNK PABX PABX

  • r
  • r

2-w 2-w 2/4/6-w DATA

VP-9NBM

TRANSIT

slide-34
SLIDE 34

34

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

V-PLC9000 Q&A

Question & Answer Question & Answer

slide-35
SLIDE 35

35

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

Veesta World Company

slide-36
SLIDE 36

36

V-PLC 9000

Veesta-PLC9000

Universal PLC & Teleprotection

Thank You

No 21. Parastoo Alley, Arasbaran St. NW-SeyyedKhandan Bridge Tehran – IRAN Tel: +98-21-22883595 Fax: +98-21-22883594 Email: info@veesta-world.com Web: http://www.veesta-world.com/ , http://www.veesta.com/
