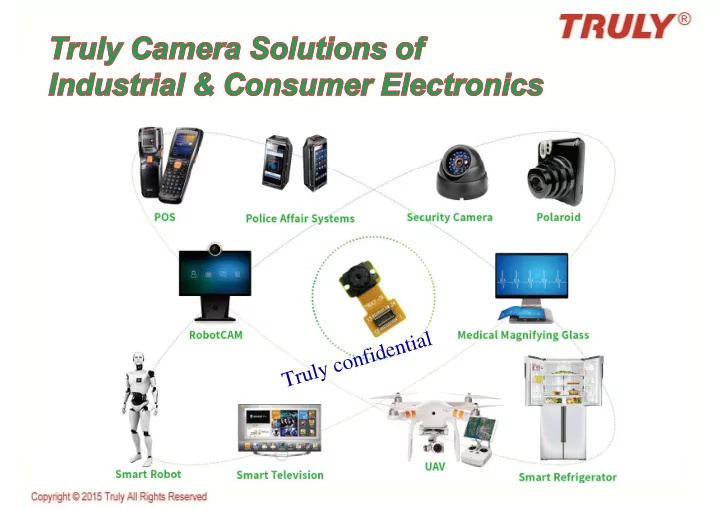

SLIDE 1
Truly confidential
SLIDE 2 What we can do
From 0.3M to 24MP
Such as special depth of field, wide FOV, Such as special depth of field, wide FOV, different interface and different size, etc.
FOV:200°
Camera + PCBA + WIFI module + Software
①
Body Detection
WIFI camera total solution
①
Body Detection
②
Body Ranging
③
Motion Detection
④
Face Detection
⑤
Gesture Detection
⑥
Food Variety and Quantity Detection
SLIDE 3
Smart Home Appliances
1、Solution of Smart Refrigerator：
Camera: 1 or several cameras take picture and video p mechanical shutter (1/1000 S) are recommend! Feature: food variety and quantity detection
2、Solution of Smart Air-condition
Camera: 1 or several cameras/high frames rate/night vision Feature: body detection/body ranging Feature: body detection/body ranging /motion detection/face detection /gesture detection/security monitoring
Some of our customers： Some of our customers：
SLIDE 4
2D Bar Code Scanner
Main application: Characteristic
2D bar code scanner Ticket info. Scanning Goods info. Scanning
Main application:
Logistics/Supermarket/Station/Library,etc Multiple shop/Store/Shoppe bill info scanning
Characteristic:
0.3-2.0M Pixel Special DOF spec p p pp g p p Stable quantity demand Long supply lifecycle
Some of our customers：
SLIDE 5 Solution of 2D Bar Code Scanner
Camera (Modules also can be custom-made.) Camera (Modules also can be custom-made.)
HI-257,1/5”, 2MP
Need to customize
For this application, since it has special requirements
UXGA@15fps, SVGA@30fps FF, YUV, Parallel
p q for the DOF, so we need to make a customized design according to different
OV7251,1/7.5”, 0.3MP
Need to customize VGA@100fps, QVGA@180fps FF, RAW, MIPI, Global shutter
- requirements. But this kind
application don’t need for high resolution camera
, , , G oba s utte
OV7740,1/5”, 0.3MP
Need to customize VGA@30fps, QVGA@60fps FF, YUV, Parallel
SLIDE 6
Gesture Control in Game Equipments
Intelligent TV Intelligent body-sense devices Intelligent TV Intelligent body sense devices
Main application：
Mainly used in intelligent systems (Eg:
Characteristic:
Achieved by strong AP software；
y g y ( g Intelligent TV/Game machines/Office devices) y g 0.3-5.0M；
SLIDE 7 Solution of Game Equipments
Camera (Modules also can be custom-made.) Camera (Modules also can be custom-made.)
OV5640,1/4”, BSI AF 5MP
( ) ( )
MT9V034,1/3”,FF
N d t t i CM8487-B500SA-E, 8.5*8.5*4.95T YUV&Raw, MIPI 2-Lane, 4P lens,F.2.8 Need to customize 0.3MP, VGA@60fps, Raw, Parallel Global shutter CM8486-B500SA-E, 8.5*8.5*4.95T
OV5640,1/4”, BSI AF 5MP
YUV&Raw, Parallel, 4P lens,F.2.8 CM9942-B500BA-E-V1, 8.5*8.5*4.6T
OV5648,1/4”,BSI+,AF 5MP
CM9942 B500BA E V1, 8.5 8.5 4.6T Raw, MIPI 2-Lane, 4P lens. F.No2.8 FHD@30fps,HD@60fps
SLIDE 8
Wearable and Sport Electronic Devices
Intelligent watch Sport DV Intelligent eyeglass Smart Bike
Main application:
Intelligent watch
Characteristic: Intelligent watch Sport DV Intelligent eyeglass Smart Bike
Intelligent watch Intelligent eyeglass Sport CAM/DV Microminiature/Ultra slim; higher frame; low power. Above 720P HD
Some of our customers： 德泰科技股份有限公司
SLIDE 9 Solution of Wearable and Sport Electronic Devices Camera (Modules also can be custom-made.) Camera (Modules also can be custom-made.)
Need to customize
OV4689,1/3”,2um pixel
Need to customize
OV2740,1/6”, 1.4um pixel
Need to customize 2MP, Raw, MIPI, FF 1080P@30fps, 720P@60fps 4MP, Raw, 4-MIPI, FF 1080P@120fps, 720P@180fps
AR0330,1/3”,2.2um pixel
Need to customize 3MP, Raw, 4-MIPI, FF Full@60fps, 1080P@60fps
SLIDE 10
Videophone
Main application: Characteristic: pp
Family life Business activities
C a acte st c
1.0-4.0M Low-light requirement
Avaya Inc.USA Polycom,Inc. Some of our customers： TYTO CARE Nax(Cypress) 深圳市万维思特科技有限公司 Avaya Inc.USA Polycom,Inc. 厦门亿联网络技术有限公司 TYTO CARE Nax(Cypress)
SLIDE 11 Solution of Videophone
Camera (Modules also can be custom-made.) Camera (Modules also can be custom-made.)
OV2710,1/2.7”, 3um pixel
Need to customize 2MP, Raw, MIPI/Parallel, FF or AF 1080P@30fps 720P@60fps
OV9732,1/4”, 3um pixel OV9732,1/4”, 3um pixel
Need to customize 1MP, Raw, MIPI/Parallel, FF 720P@30fps 1080P@30fps, 720P@60fps
MN34229,1/3”, 2.75um pixel
N d t t i 720P@30fps
AR0140,1/4”, 3um pixel AR0140,1/4”, 3um pixel
Need to customize Need to customize 2MP, Raw, 4-MIPI FF or AF 1080p@60fps, 720P@60fps Need to customize 1MP, Raw, HISPI/Parallel, FF 720P@60fps, HDR
AR0330,1/3”,2.2um pixel
Need to customize 3MP, Raw, 4-MIPI, FF or AF F ll@60f 1080P@60f
OV4689,1/3”,2um pixel
Full@60fps, 1080P@60fps
, , p
Need to customize 4MP, Raw, 4-MIPI, FF or AF 1080P@120fps, 720P@180fps
SLIDE 12
Security and surveillance
Security and surveillance Products Colliery tunnel & Cloaca detection
Main application:
Indoor alarm, Building intercom, Bank Community Supermarket
Characteristic:
0.3-2.0M L li ht i t Bank, Community, Supermarket, Colliery tunnel & Cloaca detection Low-light requirement Wide FOV Output format：Digital、NTSC、PAL p g
Some of our customers： Essence Essence
SLIDE 13 Solution of Security and surveillance
Camera (Modules also can be custom-made.) Camera (Modules also can be custom-made.)
OV7740,1/5”, 4.2um pixel
Need to customize 0 3MP YUV Parallel Full@30fps
OV9750,1/3”, 3.75um pixel
CS8488-D120SF-E, 38*38*17.37T 1.2MP, Raw, MIPI/Parallel 0.3MP, YUV, Parallel, Full@30fps
OV2710 1/2 7” 3um pixel OV7956,1/3.7”, 6um pixel
Full@60fps , High sensitivity
OV2710,1/2.7 , 3um pixel
CA8471-D200SF-E, 22*19*22.86T 2MP, Raw, MIPI 1-lane/Parallel, 1080P@30fps, 720P@60fps
, , p
CS8489-D030SF-E, 38*38*21T 0.3MP, YUV, Parallel/NTSC CVBS Full@60fps, High sensitivity
OV9732,1/4”, 3um pixel
CS8490-D100SF-E, 38*38*18.22T
AR0230,1/2.7”, 3um pixel
Need to customize 1MP, Raw, MIPI/Parallel Full@30fps Need to customize 2MP, Raw, HiSPi 4-lane /Parallel, 1080P@60fps, HDR
AR0140,1/4”, 3um pixel
Need to customize 1.0MP, Raw, HiSPi/Parallel Full@60fps , HDR @ p ,
SLIDE 14
USB Interface
Intelligent TV Scanner Notebook PC
Main application:
Characteristic:
Notebook PC, Intelligent TV, Scanner, Tablet PC, etc. 2.0M-8.0M USB2.0/3.0 interface which can support UVC support UVC
SLIDE 15 Solution of USB Interface
Scanner Camera Scanner Camera Other USB interface Camera Other USB interface Camera
2MP or 5MP
Need to customize HI-257,1/5”,FF 2MP
CM8460-B200SF-E, 6.5*6.5*3.85T YUV, Parallel, 3P lens. F.No2.8 UXGA@15fps SVGA@30fps UXGA@15fps, SVGA@30fps
,AF 5MP OV5640,1/4”, BSI,AF 5MP
CM8443-B500SA-E 8 5*8 5*4 96T
OV5640 1/4” BSI AF 5MP
CM8443-B500SA-E, 8.5 8.5 4.96T YUV&Raw, MIPI 2-Lane, 4P lens,F.2.8 CM9805-B500SA-E, 8.5*8.5*4.96T
OV5640,1/4”, BSI,AF 5MP
YUV&Raw, Parallel, 4P lens,F.2.8
P OV8865,1/3.2”,BSI2,AF 8MP
CMA079-B800BA-E, 8.5*8.5*5.2T Raw MIPI 4-Lane 5P lens F No2 2 Raw, MIPI 4-Lane, 5P lens. F.No2.2 FHD@30fps,HD@60fps
SLIDE 16
Iris Identification Camera
ATM Door security Consumer Electronics
Main application: Characteristic: Main application:
ATM, Door security, Consumer Electronics, etc.
Characteristic:
2.0M-8.0M Camera module + Algorithm
SLIDE 17 Solution of Iris Identification Camera
Camera (Modules also can be custom-made.) Camera (Modules also can be custom-made.)
CMA594-B200SF-E, 6*6*4.23T
OV8865,1/3.2”,1.4um pixel
CM8483-B800BA-E, 9.5*8.5*5.45T
l OV2740,1/6.95”, 1.12um pixel
8MP, Raw, 4-MIPI, AF, FHD@30fps FRR≤1%, FAR≤10-6 2MP, Raw, 2-MIPI, FF, FHD@60fps FRR≤1%, FAR≤10-6
um pixel OV2281,1/6.95”,1.12um pixel
CMA904-B200SF-E, 5.5*5.5*4.28T 2MP Raw 2 MIPI FF FHD@60fps 2MP, Raw, 2-MIPI, FF, FHD@60fps FRR≤1%, FAR≤10-6
SLIDE 18
Smart Robots
Solution：
Camera + PCBA + WIFI module + Software Software：body detection/body ranging/motion detection/face detection/gesture detection Software：body detection/body ranging/motion detection/face detection/gesture detection /food detection PCBA：Support WIFI, CPU-above 1G,RAM-above 200M,ROM-above 150M,（Spec. data TBD） S f t
上海东葳电子有限公司
Some of our customers：
海东葳电子有限公司
SLIDE 19 Solution of Cleaning Robots
Camera (Modules also can be custom-made.) Camera (Modules also can be custom-made.)
OV7740,1/5”,FF 0.3MP
CSA052-D030SF-E, 7.0*7.0*4.3T YUV Parallel 3P lens F No2 0
AR0330,1/3”,2.2um pixel
Need to customize 3MP, Raw, 4-MIPI, FF YUV, Parallel, 3P lens. F.No2.0 VGA@30fps 3MP, Raw, 4 MIPI, FF Full@60fps, 1080P@60fps
HI-257,1/5”,FF 2MP
CM8460-B200SF-E, 6.5*6.5*3.85T YUV, Parallel, 3P lens. F.No2.8 UXGA@15fps SVGA@30fps
OV4689,1/3”,2um pixel
Need to customize 4MP, Raw, 4-MIPI, FF 1080P@120fps, 720P@180fps UXGA@15fps, SVGA@30fps
HI-258 1/5” FF 2MP HI 258,1/5 ,FF 2MP
CM8461-B200SF-E, 6.5*6.5*3.85T YUV, MIPI, 3P lens. F.No2.8 UXGA@15fps, SVGA@30fps
SLIDE 20
POS Device
Update Solution in Planning ：
Front View Camera: 5MP AF with Iris Identification Function Rear View Camera: VGA with Bar Code Scanning Rear View Camera: VGA with Bar Code Scanning
Some of our customers：
SLIDE 21
Measuring Instruments
Solution：
High Resolution above 13MP Wider HDR Good performance in dark environment Wider HDR, Good performance in dark environment
S f t
Agricultural Measuring Instrument Industrial Measuring Instrument
Some of our customers： Prospera Technologies Inc p g
SLIDE 22
Unmanned Aerial Vehicle(UAV)
Solution：
Camera：Dual-cam/High resolution & frame rate frame rate Software： Body Detection/Face Recognition/Ranging Body Detection/Face Recognition/Ranging /Motion Detection/360 degrees view
customers：
Intelligent Aerial Video\Photo 3D Modeling Automatic obstacle avoidance
customers：
SLIDE 23
Handheld PDA
Using Handheld PDA to capture vehicles which break traffic regulations
Handheld PDA
Using Handheld PDA to gather patient’s condition
Main application:
regulations
Characteristic: pp
Logistics delivery Traffic execution H it l d l hd
Characteristic:
High pixel(≥5.0M)/ Auto focus
Stable quantity demand lif l l Hospital care and leechdom management Total station devices
Long lifecycle supply
SLIDE 24 Solution of Handheld PDA
Recommended Camera (Modules also can be
Modules also can be custom-made.)
Recommended Camera (Modules also can be
Modules also can be custom-made.)
OV5640,1/4”, BSI,AF OV8865,1/3.2”,BSI-2,AF
5MP 8MP
CM8487-B500SA-E, 8.5*8.5*4.95T YUV&Raw, MIPI 2-Lane, 4P lens,F.2.8 CMA079-B800BA-E, 8.5*8.5*5.2T Raw, MIPI 4-Lane, 5P lens. F.No2.2 Full@30fps,FHD@30fps CM8486-B500SA-E, 8.5*8.5*4.95T
OV5640,1/4”, BSI,AF
YUV&Raw, Parallel, 4P lens,F.2.8
OV8858,1/4”,AF
CM8497-B800BA-E, 8.5*8.5*4.55T Raw MIPI 4 Lane 4P lens F No2 0
OV5648,1/4”,BSI+,AF
CM9942-B500BA-E-V1, 8.5*8.5*4.6T Raw, MIPI 4-Lane, 4P lens. F.No2.0 Full@30fps,FHD@60fps Raw, MIPI 2-Lane, 4P lens. F.No2.8 FHD@30fps,HD@60fps
OV5693,1/4”,BSI-2,AF
CMA960-B500BA-E, 8.5*8.5*4.65T Raw, MIPI 2-Lane, 4P lens. F.No2.0 Full@30fps FHD@30fps Full@30fps,FHD@30fps
SLIDE 25 Solution of Tablet PC
High-end Camera High-end Camera Mid-end Camera Mid-end Camera
CMA308-B1300BA-E 8 5*8 5*5 2mm
S5K3M2,1/3.06”, AF OV5648,1/4”,BSI+, FF
13MP 5MP
CMA308 B1300BA E, 8.5 8.5 5.2mm Raw, MIPI 4-Lane, 5P lens. F.No2.0 CM8374-B500BF-E, 6.5*6.5*3.95T Raw, MIPI 2-Lane,4P, F.No2.4 Full@30fps,FHD@60fps,HD@120fps FHD@30fps,HD@60fps CMA156-B1300BA-E, 8.5*8.5*5.2mm Raw, MIPI 4-Lane, 5P lens. F.No2.0
OV13850,1/3.06”, AF S5K5E2,1/5”, FF
CM9601-B500BF-E,6.5*6.5*3.4T Full@30fps,FHD@60fps,HD@120fps Raw, MIPI 2-Lane,3P, F.No2.4 FHD@30fps,HD@60fps CMA473-B1300BA-E, 8.5*8.5*5.35mm Raw, MIPI 4-Lane, 5P lens. F.No2.2
IMX214,1/3.06”, AF
Full@30fps,FHD@60fps
(Modules also can be custom-made.)
SLIDE 26
Other Applications Camera
Solution：
2MP~24MP, AF/FF, modules also can be custom-made.
Applications Applications：
Industrial Handheld Device, Industrial phone, Smart Thermostats, 3D Printer, Site enforcement Recorder, High speed portable document scanner, Hiccough, Interphone, Infrared thermal image instrument, etc.
SLIDE 27
Some of our Customers
NAX TECHNOLOGIES HILTI 德泰科技股份有限公司
SLIDE 28
Thank you! Thank you!
