TERMINAL (Valdez) NW OF Kitimat townsite 149 oil tanker and 71 condensate tanker visits annually FG Bercha SNAME Luncheon Terminal Configuration Oil tanks: 16 total Tank Diameter 74.07 m Tank Height 24.4 m Roof Type

slide-1
SLIDE 1

FG Bercha – SNAME Luncheon

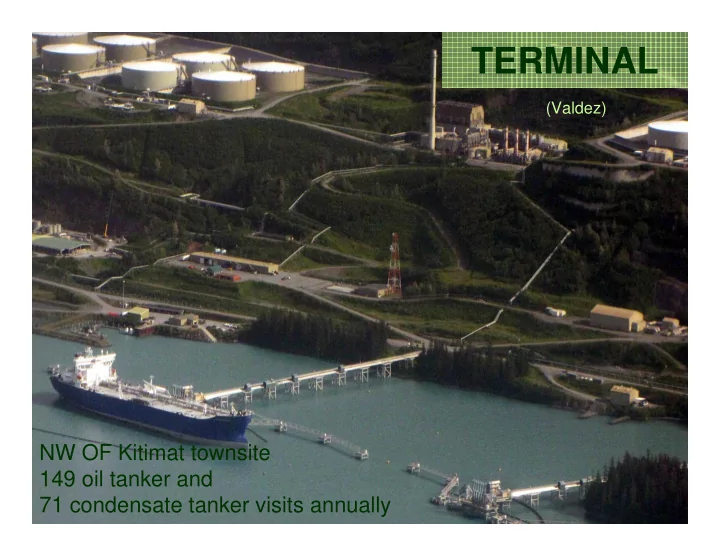

TERMINAL

NW OF Kitimat townsite 149 oil tanker and 71 condensate tanker visits annually

(Valdez)

slide-2
SLIDE 2

FG Bercha – SNAME Luncheon

Terminal Configuration

Oil tanks: 16 total

  • Tank Diameter 74.07 m
  • Tank Height 24.4 m
  • Roof Type Open-top external floating

pontoon

  • Capacity per tank 98,410 m3
  • Design Injection Flow Rate per tank

150,100 m3/day

  • Average Takeaway Flow Rate per tank

15,900 m3/hour

Condensate Tanks: 3 total

  • Tank Diameter, Tank Height, Roof Type,

Capacity per tank,

  • Design Injection Flow Rate per tank

11,130 m3/hour

  • Average Takeaway Flow Rate per tank

30,680 m3/day

slide-3
SLIDE 3

FG FG Bercha Bercha – – SNAM NAME L Lunch ncheon

  • n

Terminal Location

  • Video shown here: TERMINAL1.wmv
slide-4
SLIDE 4

FG Bercha – SNAME Luncheon

Video: Terminal Animation

  • Video shown here: Gateway Kitimat 2006 – High Level.avi
slide-5
SLIDE 5

FG Bercha – SNAME Luncheon

Terminal QRA

slide-6
SLIDE 6

FG Bercha – SNAME Luncheon

MARINE TANKERS

  • Estimated 149 oil tanker loadings and 71 condensate

tanker unloadings per year via n and s routes

slide-7
SLIDE 7

FG Bercha – SNAME Luncheon

Tanker Route and Operations

  • All vessels modern and double-hulled
  • Operational safety limits to cover

visibility, wind and sea conditions

  • Escort tugs with first response

capabilities (available to any ship in distress)

  • New advanced radar system to cover

important route sections

  • Additional navigational aids -

navigation beacons, buoys and lights in confined channel area

  • Prior to arrival in Canadian waters all

vessels will be vetted by independent, third-party agencies

  • Vessel speed reduced in the marine

channels to between 8 and 12 knots

slide-8
SLIDE 8

FG Bercha – SNAME Luncheon

Marine Tour: August 2012

  • 4 experts, 3 pilots, skipper, 34 ft cruiser,

34 knots max speed

slide-9
SLIDE 9

FG Bercha – SNAME Luncheon

Around Prince Rupert

slide-10
SLIDE 10

FG Bercha – SNAME Luncheon

Principe Sound

slide-11
SLIDE 11

FG Bercha – SNAME Luncheon

Demise of the QOTN Entrance to Kitimat Sound

Typical ferry - Crash site – Hartley Bay rescuers

slide-12
SLIDE 12

FG Bercha – SNAME Luncheon

MARINE TOUR VIDEO

  • Video shown here: MARINE1.wmv
slide-13
SLIDE 13

FG Bercha – SNAME Luncheon

Marine Tankers - Video … Later

  • Kitimat area potash plant

and Haisla culture

slide-14
SLIDE 14

FG Bercha – SNAME Luncheon

QRA of Tanker Operations

Volume TERMPOL 3.21:

Bercha Group Final Report

TERMPOL VAPOUR CLOUD MODELING AND CONDITIONAL QRA ENBRIDGE NORTHERN GATEWAY PIPELINES PROJECT Prepared for: Northern Gateway Pipelines Limited Partnership

slide-15
SLIDE 15

FG Bercha – SNAME Luncheon

TERMPOL QRA Results

Terminal Collective Risk Spectrum

1.00E-07 1.00E-06 1.00E-05 1.00E-04 1.00E-03 1 10 100 1000

Number of People (N) A n n u a l C h a n c e

  • f N
  • r M
  • re

C a s u a ltie s

Table 4-7 Probabilities of the occurrence of a CRW spill Scenario Probability per Event Remarks Number of Events per Year Frequency (per year)

  • 1. CRW-WSC

6.68E-07 Per event-15nm segment 71 3.16E-06 / nm

  • 2. CRW-WSG

5.78E-08 Per event-nm 71 4.10E-06 / nm

  • 3. CRW-KTW

1.54E-05 Per unloading. 71 1.09E-03

CRW-WSC-S-60 m in Dispersion

  • 2000
  • 1000

1000 2000 500 1000 1500 2000 2500 3000 Distance [m ] W idth [m 6000 (ppm) 12000 (ppm) 24000 (ppm)

slide-16
SLIDE 16

FG Bercha – SNAME Luncheon

REGULATORY HEARINGS

  • Edmonton: Sept 4 – 28, 2012

– Economics and risk-cost-benefits

  • Prince George: Oct 9 – Nov 28, 2012

– Pipeline and Pump station risk and impact

  • Prince Rupert: Dec 10-15, 2012 and

Feb 4 – May 18, 2013

– Terminal and Marine risk and impact

  • Ongoing today
slide-17
SLIDE 17

FG Bercha – SNAME Luncheon

Prince George Hearings

slide-18
SLIDE 18

FG Bercha – SNAME Luncheon

Transcripts and Filings are Online

Enbridge Northern Gateway Project Joint Review Panel gatewaypanel.review-examen.gc.ca

JOINT REVIEW PANEL FOR THE ENBRIDGE NORTHERN GATEWAY PROJECT COMMISSION D’EXAMEN CONJOINT DU PROJET ENBRIDGE NORTHERN GATEWAY

  • Hearing Order OH-4-2011
  • Ordonnance d’audience OH-4-2011
  • Northern Gateway Pipelines Inc.
  • Enbridge Northern Gateway Project
  • Application of 27 May 2010
  • Demande de Northern Gateway Pipelines Inc.
  • du 27 mai 2010 relative au projet
  • Enbridge Northern Gateway
  • VOLUME 94
  • Hearing held at
  • Audience tenue à
  • Columbus Community Centre
  • 7201 Domano Blvd.
  • Prince George, British Columbia
  • October 19, 2012
  • Le 19 octobre 2012
  • International Reporting Inc.
  • Ottawa, Ontario
slide-19
SLIDE 19

FG Bercha – SNAME Luncheon

So that was a brief summary And videos to come----

Thank You! Thank You!
