Aerial View of Valdez Marine Terminal Valdez Marine Terminal Currently 2 Berths in service 200,000 bph loading capacity, both with Vapor Recovery 18 Storage Tanks built originally - 510,000 bbl. each or 9.18 million bbl. total

slide-1
SLIDE 1

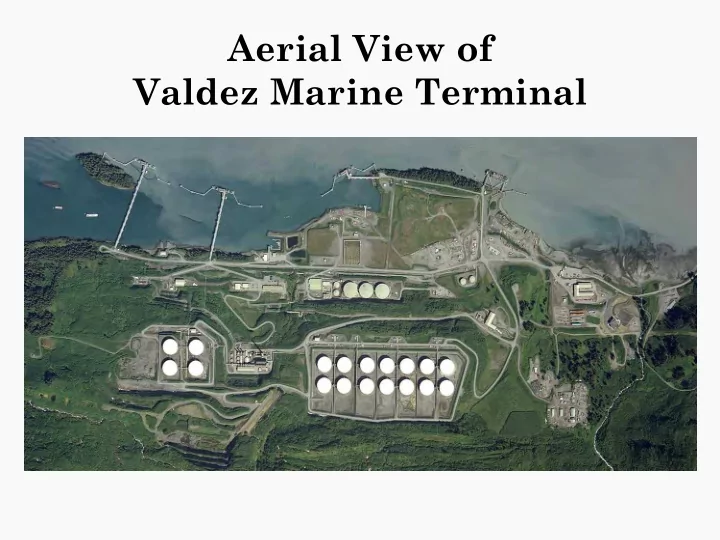

Aerial View of Valdez Marine Terminal

slide-2
SLIDE 2

Valdez Marine Terminal

  • Currently 2 Berths in

service –200,000 bph loading capacity, both with Vapor Recovery

  • 18 Storage Tanks built
  • riginally - 510,000 bbl.

each or 9.18 million bbl. total capacity

  • Currently 14 tanks in

service in east tank farm

slide-3
SLIDE 3

Tankers Loading at Berths 4 and 5

slide-4
SLIDE 4

Cathodic Protection—Berth Platform Legs

  • OK

Causeway to Berth 5

slide-5
SLIDE 5
slide-6
SLIDE 6

East Metering Facility Including Pig Trap and Back Pressure Control System

slide-7
SLIDE 7

East Tank Farm – 14 500,000-BBL Tanks

slide-8
SLIDE 8

Tanks 2, 4, and 3 at Valdez Marine Terminal

slide-9
SLIDE 9

Wintertime Operations May Require Manual Removal of Snow from Tank Tops

slide-10
SLIDE 10

Interior of Crude Oil Storage Tank

slide-11
SLIDE 11

Roof Structure of Crude-Oil Storage Tank

slide-12
SLIDE 12
slide-13
SLIDE 13

Four loading arms and

  • ne vapor arm are

visible on Berth 4. The tees at which ballast water piping separates from oil piping are also visible. Counter-weights are used to balance the arms during loading

  • perations
slide-14
SLIDE 14

Row of Five Large Vapor Compressors

slide-15
SLIDE 15

Power Vapor Facility

slide-16
SLIDE 16
slide-17
SLIDE 17

Firewater Pumps Building

Firewater intake

PWSRCAC consultant confers with Alyeska in main pumps building

slide-18
SLIDE 18

Fire Protection on Berths

Firefighting monitors on Berth 4 Tank of firefighting foam on Berth 4 Foam Pumping Shed on Berth 4 Close up of berth monitor

slide-19
SLIDE 19

Tank Farm Fire Protection

Tanks that hold foam at East Tank Farm Foam Shed that feeds the tire suppression spiders in crude oil tanks Fire hydrant above West Tank Farm

Spiders are in the bottom of crude oil storage tanks. Foam would be ejected from spiders and rise to the top of the oil to smother a fire if needed

slide-20
SLIDE 20

Trailer mounted, high volume foam /water monitor

Portable Fire Protection Assets

Fire engine in Alyeska Fire House, with hose ready to deploy

slide-21
SLIDE 21

Gleason pressure reducing valve

With water pressure around 250 psi at VMT fire hydrants, some fire engines like most from the City of Valdez need a Gleason Valve to reduce the water pressure. There are three Gleason Valves at the VMT.

slide-22
SLIDE 22

Berth fire protection

Secondary water supply to berths

Protection of Cable trays to fire monitors on berth

slide-23
SLIDE 23

One of the Three Main Diesel-Powered Fire Water Pumps

slide-24
SLIDE 24
slide-25
SLIDE 25

Interior of a Large Ballast Water Treatment Tank

slide-26
SLIDE 26

Biological Treatment Tank Microbial Treatment of Ballast Water

slide-27
SLIDE 27

Gravity Separation Tanks for Treatment

  • f Ballast Water in Winter
slide-28
SLIDE 28

Gravity Separation and Biological Treatment Tanks

slide-29
SLIDE 29
slide-30
SLIDE 30

Valdez Marine Terminal from the Water

slide-31
SLIDE 31

500-2 Response Barge

Quick Time™ and a TIFF (Uncompress ed) dec ompres sor are needed to s ee this picture.
slide-32
SLIDE 32

Heavy Snow at the Valdez Marine Terminal

slide-33
SLIDE 33

Control Console at Operational Control Center
