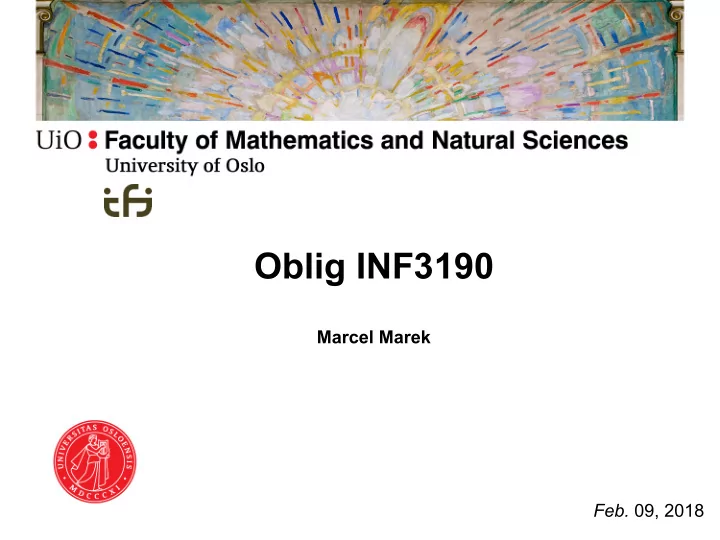

SLIDE 1
Oblig INF3190
Marcel Marek
- Feb. 09, 2018
2
Mininet
- Virtual network emulator
- Mininet CLI
- Python API
- Doc: http://mininet.org/sample-workflow/
Oblig INF3190 Marcel Marek Feb. 09, 2018 Mininet Virtual network - - PowerPoint PPT Presentation
Oblig INF3190 Marcel Marek Feb. 09, 2018 Mininet Virtual network - - PowerPoint PPT Presentation
Oblig INF3190 Marcel Marek Feb. 09, 2018 Mininet Virtual network emulator Mininet CLI Python API Doc: http://mininet.org/sample-workflow/ 2 Set up the environment local (your laptop) Install dependencies
SLIDE 2
SLIDE 3
3
Set up the environment – local (your laptop)
- Install dependencies
- apt-get install libsdl-dev libfdt-dev libpixman-1-dev libglib2.0-dev zlib1g-dev
- Setup qemu
- Download from: http://heim.ifi.uio.no/marcelma/inf3190/qemu-2.5.0.tar.bz2
- tar -xvf qemu-2.5.0.tar.bz2
- cd qemu-2.5.0/
- ./configure --disable-kvm --target-list="i386-softmmu x86_64-softmmu"
- make
- Download image for qemu and unzip it
- http://heim.ifi.uio.no/marcelma/inf3190/mininet-vm-x86_64.qcow2.zip
- Run
- ./x86_64-softmmu/qemu-system-x86_64 -hda mininet-vm-x86_64.qcow2
SLIDE 4
4
Set up the environment – local (eg 3468 Fortress lab)
- Setup qemu
- Download from: http://heim.ifi.uio.no/marcelma/inf3190/qemu-2.5.0.tar.bz2
- tar -xvf qemu-2.5.0.tar.bz2
- cd qemu-2.5.0/
- ./configure --disable-kvm --target-list="i386-softmmu x86_64-softmmu"
- make
- Download image for qemu and unzip it
- http://heim.ifi.uio.no/marcelma/inf3190/mininet-vm-x86_64.qcow2.zip
- Run
- ./x86_64-softmmu/qemu-system-x86_64 -hda mininet-vm-x86_64.qcow2
SLIDE 5
5
Set up the environment – remote (login.ifi.uio.no)
- Connect to the login server with X window forwarding
- ssh –Y login.ifi.uio.no
- Setup qemu
- Download from: http://heim.ifi.uio.no/marcelma/inf3190/qemu-2.5.0.tar.bz2
- tar -xvf qemu-2.5.0.tar.bz2
- cd qemu-2.5.0/
- ./configure --disable-kvm --target-list="i386-softmmu x86_64-softmmu"
- make
- Download image for qemu and unzip it
- http://heim.ifi.uio.no/marcelma/inf3190/mininet-vm-x86_64.qcow2.zip
- Run
- ./x86_64-softmmu/qemu-system-x86_64 -hda mininet-vm-x86_64.qcow2
SLIDE 6
6
Set up the environment – remote (openstack – www.uh-iaas.no)
- Download qemu image
- http://heim.ifi.uio.no/marcelma/inf3190/mininet-vm-x86_64.qcow2.zip
- Open www.uh-iaas.no
- Create SSH Key-pair
- https://dashboard.uh-iaas.no/dashboard/project/access_and_security/
- Upload image
- https://dashboard.uh-iaas.no/dashboard/project/images
- Create and Start instance
- https://dashboard.uh-iaas.no/dashboard/project/instances/
- Connect to your instance
- ssh –Y mininet@<IP from web>
SLIDE 7
7
Example script
class MyTopo( Topo ): "Simple topology example." def __init__( self ): "Create custom topo." # Initialize topology Topo.__init__( self ) # Add hosts A = self.addHost('A') B = self.addHost('B') C = self.addHost('C') # Add links self.addLink (A, B) self.addLink (B, C)
SLIDE 8
8
Example script continue
def Config(net, args): A = net.getNodeByName('A') B = net.getNodeByName('B') C = net.getNodeByName('C') AB = A.intf(A.name+'-eth0') BA = B.intf(B.name+'-eth0') AB.config(bw=10, delay='10ms', loss=0.0, use_tbf=False) BA.config(bw=10, delay='10ms', loss=0.0, use_tbf=False) BC = B.intf(B.name+'-eth1') CB = C.intf(C.name+'-eth0') BC.config(bw=10, delay='10ms', loss=0.0, use_tbf=False) CB.config(bw=10, delay='10ms', loss=0.0, use_tbf=False) #Enter commands here A.cmd('xterm&') B.cmd('xterm&') C.cmd('xterm&')
SLIDE 9
9
Example script continue
topo = MyTopo() net = Mininet(topo=topo, link=TCLink, controller = OVSController) net.start() Config(net,args) #dumpNodeConnections(net.hosts) net.stop()
- Complete script in /home/mininet/
SLIDE 10
10
Have a problem? Ask for help!
- Piazza, oracle sessions, email …
- It does not work.
- I compiled qemu and downloaded the image,
but when I try to run the image I get “GTK could not be initialized”. Btw I am trying this
- n my laptot (Ubuntu 16.04)
