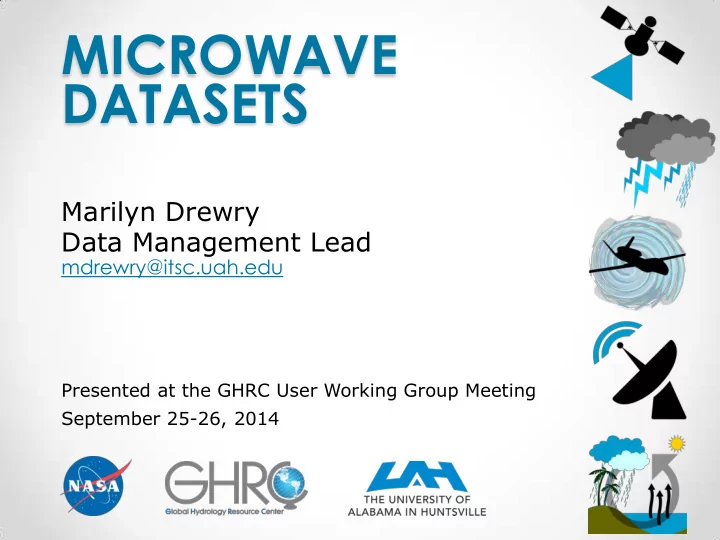

MICROWAVE DATASETS

Marilyn Drewry Data Management Lead

mdrewry@itsc.uah.edu

Presented at the GHRC User Working Group Meeting September 25-26, 2014

slide-2
SLIDE 2

Presentation Overview

  • Data Management Group Team
  • Microwave Data at GHRC
  • Satellite Microwave Datasets
  • SSM/I, SSMIS
  • Climatologies
  • TMI Wentz Ocean Products
  • MSU, AMSU
  • Airborne Microwave Datasets
  • AMPR
  • HIRAD
  • Summary Dataset Slide

9/25/14 – 9/26/14 2 User Working Group Meeting

slide-3
SLIDE 3

Data Management Team

  • Data/Metadata – Marilyn Drewry, Kaylin Bugbee
  • Review data (format, naming convention, version)
  • Define metadata for search engines: metadata survey
  • Database Administration – Mary Nair
  • Catalog metadata and publish to search engines
  • Metrics
  • Documentation – Sam Ayers (student assistant)
  • Create user documentation; include links to investigator-

provided documents

  • User Services Support – Sherry Harrison
  • Field user questions, coordinating with PI’s as needed
  • Archive – Lamar Hawkins
  • Manage on-line data stores and archive

9/25/14 – 9/26/14 3 User Working Group Meeting

slide-4
SLIDE 4

9/25/14 – 9/26/14 4

slide-5
SLIDE 5
  • GHRC and its predecessor

programs have been ingesting, processing, archiving and distributing microwave data for

  • ver 35 years
  • MSU, SSMI, AMSU, AMPR,

TMI, AMSR-E

What we serve

Microwave Data

GHRC is also recognized as one of the primary data centers for microwave data

Microwave Dataset Holdings at GHRC

  • This climate sensitive data record extends back to 1978 providing

an unbroken inventory of climate information that continues today

slide-6
SLIDE 6

Distributed Information Services for Climate and Ocean Products and Visualizations for Earth Research A NASA MEaSUREs project to create Earth system data records

  • Frank Wentz (RSS), PI, with MSFC and UAH
  • Science Objective: providing highly accurate, long-

term ocean and climate products, and services

  • Information technologies provided by UAH

Data archived at GHRC – DISCOVER products from satellite microwave sensors going back to 1987

DISCOVER MEaSUREs Project

a key source for microwave data

9/25/14 – 9/26/14 User Working Group Meeting 6

slide-7
SLIDE 7

Special Sensor Microwave Imager (SSM/I) Special Sensor Microwave Imager/Sounder (SSMIS)

9/25/14 – 9/26/14 7 User Working Group Meeting

Satellites SSM/I: DMSP F8, 10, 11, 13, 14, 15 SSMIS: F16, 17 (future F18) Parameters Cloud liquid water/ice, Precipitation, Surface winds, Water vapor Coverage Global over oceans; 1987 - present Gridded Avg Daily, 3-Day, Weekly, Monthly Format netCDF-4 Data Provider Remote Sensing Systems

http://ghrc.nsstc.nasa.gov/uso/ds_docs/ssmi_netcdf/ssmi_ssmis_dataset.html

slide-8
SLIDE 8

TRMM Microwave Imager

Wentz Ocean Products

TMI from Version 7 of RSS algorithm coming soon!

9/25/14 – 9/26/14 8 User Working Group Meeting

http://ghrc.nsstc.nasa.gov/uso/ds_docs/tmiwop/tmiwop_dataset.html

Parameters Cloud liquid water/ice, Precipitation, Surface winds, Water vapor, Sea Surface Temperature Coverage Tropical over oceans, 38N to 38S 2006 – present Format Swath data in HDF-EOS2 Data Provider Remote Sensing Systems

slide-9
SLIDE 9

Climatology Datasets

DISCOVER MEaSUREs Merged Products

Monthly 1-degree merged products from RSS

  • Available from RSS as a single 1.7 GB file
  • Available from GHRC as a set of files (monthly grids,

climatology file and cumulative trends file)

Instruments (Satellites) AMSR-E (Aqua) SSM/I, SSMIS (DMSP series) WindSat (Coriolis) Coverage Global over oceans; 1988 - present Grids included 20-year climatology (1988 – 2007) Monthly averages Cumulative trends Datasets / Parameters Precipitable water, water vapor – available Winds – metadata in review Rain – future Format netCDF-3, netCDF-4 Data Provider Remote Sensing Systems

http://ghrc.nsstc.nasa.gov/uso/ds_docs/tpw/rssm1tpwn_dataset.html

slide-10
SLIDE 10

Microwave Sounding Unit Advanced Microwave Sounding Unit

Temperature Anomalies

9/25/14 – 9/26/14 10 User Working Group Meeting

Satellites TIROS-N, NOAA-6 - 19, Aqua, Metop Parameters Atmospheric layered temperature anomalies (Low Troposphere, Mid Troposphere, Low Stratosphere) Coverage Global; 1978 - present Gridded Avg Climatology, monthly averages Format ASCII Data Provider Christy and Spencer, UAH Version 6 coming soon

http://ghrc.nsstc.nasa.gov/uso/ds_docs/msu/msul90_dataset.html

slide-11
SLIDE 11

Advanced Microwave Sounding Unit

Atmospheric Temperatures

9/25/14 – 9/26/14 11 User Working Group Meeting

Satellites NOAA-15, NOAA-16, NOAA-17 Parameters Limb-corrected atmospheric temperatures Coverage Global; 1999 - present Format Swath data in HDF-EOS2 Data Provider Spencer and Braswell, UAH

http://ghrc.nsstc.nasa.gov/uso/ds_docs/amsu_a/amsu-a_dataset.html

slide-12
SLIDE 12

Microwave Data – Airborne

Advanced Microwave Precipitation Radiometer (AMPR)

http://ghrc.nsstc.nasa.gov/uso/ds_docs/ampr/ampr_dataset.html

9/25/14 – 9/26/14 12 User Working Group Meeting

Aircraft NASA ER-2, NASA DC-8 Parameters Brightness Temperatures Format Level-1B swath data in ASCII Data Provider Brent Roberts, NASA MSFC (orig. Robbie Hood)

Field Campaigns Jacksonville 1990 CaPE 1991 TOGA COARE 1993 CAMEX-1 1993 CAMEX-2 1995 FIRE ACE 1998 CAMEX-3 1998 TRMM LBA 1999 KWAJEX 1999 CAMEX-4 2001 TCSP 2005 TC4 2007 MC3E 2011 IPHEx 2014 CaPE CAMEX-1 LBA CAMEX-3

slide-13
SLIDE 13

9/1/2010 Earl Leg 1

Microwave Data – Airborne

Hurricane Imaging Radiometer (HIRAD)

http://ghrc.nsstc.nasa.gov/uso/ds_docs/grip/griphirad/griphirad_dataset.html

9/25/14 – 9/26/14 13 User Working Group Meeting

Field Campaigns GRIP 2010 HS3 2011 (preliminary flights) 2012-2014

Aircraft WB-57, Global Hawk Parameters Brightness Temperatures, Precipitation Rate, Surface Winds Format netCDF Data Provider Dan Cecil, NASA MSFC (orig. Tim Miller, Robbie Hood)

Earl Legs 1-6

slide-14
SLIDE 14

Instrument Product Platform Start Date Stop Date Location Format SSM/I Daily Average: 3-Day Weekly Monthly DMSP F8 F10 F11 F13 F14 F15 1987-07-07 1990-12-06 1991-12-01 1995-05-01 1997-05-06 1999-12-16 1991-12-31 1997-11-14 2000-05-16 2009-11-04 2008-08-08 2011-12-31 Near Global

  • ver

Oceans netCDF SSMIS Daily Average: 3-Day Weekly Monthly DMSP F16 F17 F18 – future 2003-10-26 2006-12-14 present present Near Global

  • ver

Oceans netCDF Merged products water vapor, winds (in work), rain (future) Climatology Monthly average Aqua DMSP series Coriolis 1988-01-01 present Near Global

  • ver

Oceans netCDF TMI Wentz Ocean Products TRMM 2006-09-17 present Tropical Oceans HDF-EOS2 MSU, AMSU Monthly Temp. Anomalies & Annual Cycle:

  • Low Stratosphere
  • Low Troposphere
  • Mid Troposphere

MSU: TIROS-N NOAA series Aqua Metop 1978-01-01 present Global ASCII AMSU Atmospheric Temperatures NOAA-15 NOAA-16 NOAA-17 1999-06-11 2001-05-27 2003-01-07 present 2008-03-04 2003-12-12 Global HDF-EOS2 HDF-EOS2 Binary AMPR Brightness Temperature Aircraft 1990 2014 Mission Dependen t ASCII HIRAD Brightness Temp. Precipitation Rate Surface Winds Aircraft 2010 2014 Mission Dependen t netCDF

Microwave Dataset Reference

slide-15
SLIDE 15

Presented at the GHRC User Working Group Meeting September 25-26, 2014

REGIONAL AIR-SEA INTERACTIONS (RASI)

Interactive Climatology System Ken Keiser, Xiang Li, Shannon Flynn

University of Alabama in Huntsville

Deborah Smith

Remote Sensing Systems

slide-16
SLIDE 16

Overview

  • Project Information
  • Event Detection and Climatology Generation
  • Demonstration of Interactive Climatology System

CCMP winds showing gap winds at Tehuantepec on 03/11/1998

slide-17
SLIDE 17

RASI objectives

Regional Air-Sea Interactions (a DISCOVER MEaSUREs tool)

  • Develop automated mining solution to

extract gap wind and SST (sea surface temperature) events using microwave products.

  • Generate gap wind and SST event

climatology using the automated algorithms.

  • Distribute event climatology to users through

an interactive web application.

9/25/14 – 9/26/14 User Working Group Meeting 17

slide-18
SLIDE 18

Current Climatology Sites

Central America

slide-19
SLIDE 19

Mountain Gap Effect

9/25/14 – 9/26/14 19 User Working Group Meeting Image credit: http://www.wunderground.com/blog/24hourprof/tehuantepecer

slide-20
SLIDE 20

Coastal Upwelling

9/25/14 – 9/26/14 20 User Working Group Meeting Image credit: http://www.frf.usace.army.mil/eopTemp/eopTempWind.shtml

slide-21
SLIDE 21

Regional Air-Sea Interactions (RASI) in Central America

Ocean cooling on MW OISST product 01/22/2001

Strong gap wind over Gulf of Tehuantepec was observed from morning pass of QuikScat wind field on 01/22/2001. Coastal upwelling occurs when strong gap winds trigger intense vertical mixing

  • f the ocean. Warm surface water was

pushed by wind jet away from the coast and deep cold water and nutrients rise to the surface.

QuickScat wind vectors for 01/22/2001(morning pass)

slide-22
SLIDE 22

RASI Climatology Impacts/Uses

8-day average of SeaWIFs ChlorophyII product displayed by NASA’s Giovanni application (01/09/2001 – 01/17/2001) 8-day average of SeaWIFs ChlorophyII product displayed by NASA’s Giovanni application (01/17/2001 – 01/25/2001)

  • Gap wind-triggered air–

sea interactions may have long-lasting effects in both the ocean and atmosphere (Xie et al. 2005).

  • Documentation of this
  • rographically-induced air-

sea coupled phenomena can serve as a benchmark for accurately evaluating coupled atmospheric-

  • cean models (Xie et al.

2005).

  • This air-sea interaction

process significantly changes the regional nutrient distribution and local ecological environment.

  • 10-year climatology of

gale- and storm-force Tehuano wind events were produced using 25 km QuikSCAT wind product (Brennal et al. 2010).

slide-23
SLIDE 23

Data Products Used For RASI Analysis

  • Cross-Calibrated Multi-Platform

(CCMP) ocean surface winds product

  • Combining wind measurements

from SeaWinds, AMSR-E, TMI, SSM/I and SSMIS on DMSP using a 4D variational analysis model.

  • Global high resolution (25 km)
  • ver ocean surface.
  • 6-hourly gridded data at 0, 6, 12

and 18 Z.

  • Data available from 1987 –

2011.

  • Microwave Optimally Interpolated Sea

Surface Temperatures (OISST)

  • Daily SST data at 0.25 degree

resolution.

  • Data available 1998 to present
  • Event climatology currently covers 1998

to 2011

slide-24
SLIDE 24

Event Identification Algorithm Approach

Site-specific configurations

  • Wind and SST detection areas
  • Comparison reference points
  • Wind direction
  • Threshold wind speed
  • Event area
slide-25
SLIDE 25

RASI Interactive Climatology System

http://ghrc.nsstc.nasa.gov/rasi Online exploration and access to the climatology to support ongoing and future research

slide-26
SLIDE 26

RASI Interactive Climatology System

http://ghrc.nsstc.nasa.gov/rasi

View Events Get Data Plot Data Information Publications

slide-27
SLIDE 27

RASI View Events

27

Location Date Navigation Wind Events SST Events

slide-28
SLIDE 28

Images of Input Wind Data

28 User Working Group Meeting

Date Navigation Toggle to SST

slide-29
SLIDE 29

Images of Input SST Data

29 User Working Group Meeting

Date Navigation Toggle to Wind

slide-30
SLIDE 30

Get or Plot Climatology Parameters

30

Wind SST View/Get Data Plot Data Location Date Range

slide-31
SLIDE 31

Data and Plots

31 User Working Group Meeting

Output Options Data Listing Plot/Overlay Multiple Parameters Toggle Parameters

slide-32
SLIDE 32

32 User Working Group Meeting

Discussion

Microwave Data

  • What datasets can be added to supplement

the microwave holdings?

  • What is your preferred data format?
  • How can we improve metadata collection?
  • What pertinent information should be

added to user guides? Tools

  • What tools are needed to better serve

these datasets?

  • Would custom data analysis be useful for
  • ther cases?
  • What other data services would be useful?

Please contact GHRC User Services for any help or questions ghrcdaac@itsc.uah.edu

QuickScat wind vectors for 01/22/2001(morning pass)

9/25/14 – 9/26/14
