Navigator Licensed Microwave All-Outdoor Radio Licensed microwave that changes everything January 2019 The Power of Three Industry leader in MMW Strong reputation, loyal customers Exceptional customer support Product/market diversification

slide-1
SLIDE 1

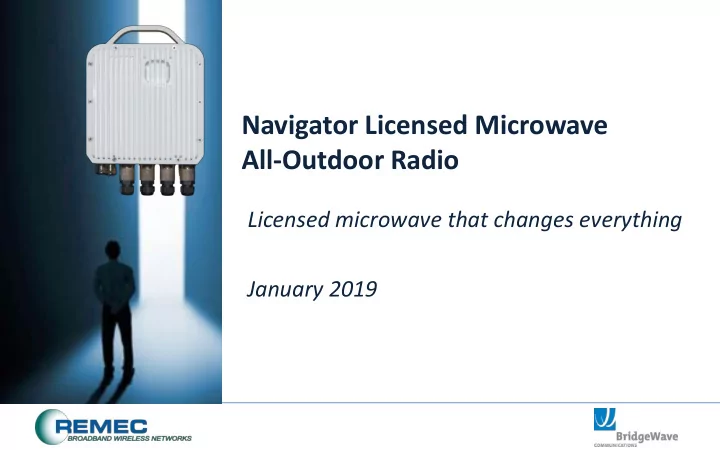

Navigator Licensed Microwave All-Outdoor Radio

Licensed microwave that changes everything January 2019

slide-2
SLIDE 2

The Power of Three

CONFIDENTIAL AND PROPRIETARY

R&D resources Financially strong Technology ownership High quality, volume manufacturing (over 1,000,000 radios shipped) Product/market diversification Global, diversified customer base Streamlined operations Strong reputation, loyal customers Industry leader in MMW Exceptional customer support

2

slide-3
SLIDE 3

Locations and Teams

CONFIDENTIAL AND PROPRIETARY

RBWN Design Center: San Diego CA Moseley Headquarters Santa Barbara CA CarrierComm Design Center: Carlsbad CA Modem ASIC / IDU RBWN Design Center: Fremont CA Moseley

RFIC Design Center: Nice, France Benchmark Manufacturing Partner Thailand

3

slide-4
SLIDE 4

RBWN: Diversified Business Units/Product Lines

CONFIDENTIAL AND PROPRIETARY

OEM BUSINES Microwave (6-38 GHz) Split Mount Radios Over 1,000,000 radios shipped! SYSTEMS INTEGRATORS Satcom Ka Band (29-31 GHz) BUCs, XCVRs Custom solutions for Satcom terminals ARSTRAT Certified! Industry FIRST 20W GaN Product! US DISTRIBUTION, INTERNATIONAL SYSTEMS INTEGRATORS/oems BridgeWave Microwave (6-38 GHz) and Millimeter Wave (60/80 GHz) Radio Products Eband Millimeter Wave (80 GHz) Radio Products Over 35,000 systems shipped!

4

slide-5
SLIDE 5

Founded in 1999 Focus on millimeter wave and microwave radio systems A division of REMEC Broadband Wireless since Dec 2013 Based in CALIFORNIA USA Headquarters in San Diego, CA, USA ISO9001-2015 Certified

About BridgeWave

CONFIDENTIAL AND PROPRIETARY

5

R&D – San Diego, CA. Headquarters, R&D, NPI, San Diego CA High Volume Production – TH

slide-6
SLIDE 6

Global Footprint: 1,000,000+ Microwave and Millimeter Wave Systems Installed in 60+ Countries

CONFIDENTIAL AND PROPRIETARY

Americas

Anguilla Canada Cayman Islands Colombia Dominican Republic Ecuador Mexico Puerto Rico

  • St. Maarten

United States

Europe

Austria Croatia Czech Republic France Germany Greece Hungary Ireland Italy Kazakhstan Lithuania Norway Portugal Russia Slovenia Spain Sweden Switzerland The Netherlands Turkey United Kingdom

Africa

Angola Libya Mozambique Namibia Nigeria South Africa Tunisia

Middle East

Bahrain Iraq Israel Jordan Kuwait Lebanon Oman Saudi Arabia United Arab Emirates

Asia/Pacific

Australia China India Indonesia Japan Malaysia New Zealand Papua New Guinea Philippines South Korea Taiwan

6

slide-7
SLIDE 7

Navigator – the Newest Member of Our Product Line

CONFIDENTIAL AND PROPRIETARY

7

slide-8
SLIDE 8

CONFIDENTIAL AND PROPRIETARY

Navigator

Built on proprietary custom ASICs to offer performance and capabilities never-before-seen in licensed microwave Optimizes networks for high capacity and offers flexibility that dramatically decrease capital and

  • perating costs…

8

slide-9
SLIDE 9

Navigator’s UNMATCHED Capabilities

  • Highest capacities – EVER – in a microwave radio
  • Enhanced range and modulation performance using built-in

advanced pre-distortion

  • Customer-replaceable diplexers for maximum cost savings/flexibility
  • Quad carriers supported in a single compact all-outdoor radio
  • First to support two frequency bands in a single all-outdoor radio
  • Modulations to 4096QAM with ultra-wide channel bandwidths to 112MHz

ETSI and 160MHz ANSI per carrier or sub-carrier

  • Integrated OMT, coupler, and dual wave guide radio options
  • Dual 10GbE interfaces
  • High Band or Low Band operation supported by a single radio
  • Adaptable antenna interface to support third-party antennas

CONFIDENTIAL AND PROPRIETARY

9

slide-10
SLIDE 10

Navigator Models

CONFIDENTIAL AND PROPRIETARY

Navigator DT Dual Transceiver Radio Navigator ST Single Transceiver Radio

Navigator DT with integrated coupler or OMT Navigator DT with dual waveguide ports Navigator DT with GPS

10

slide-11
SLIDE 11

Major Features – General Availability (GA)

  • 6, 7, 8, 11, 15, 18, and 23GHz
  • QPSK to 2048QAM
  • Balanced Capacity Mode operation
  • Bandwidth support per carrier to 112MHz

(ETSI) and 80 MHz (ANSI)

  • Two models - Dual and single transceiver
  • Navigator DT – up to 1.3Gbps
  • Navigator ST – up to 650Mbps
  • Customer-replaceable diplexers
  • Support for 3rd party antenna options
  • Same radio can be used as high band or

low band

  • Integrated OMT, coupler, or dual

waveguide output (Navigator DT)

  • Multi-channel operation & channel re-use
  • 2+0, 4+0, XPIC
  • Radio Equipment Protection
  • 1+1 HSB Navigator DT
  • Pre-amble and IFG suppression, header, and

payload compression

  • Symmetric Radio Link Aggregation
  • SyncE timing synchronization
  • AES-256 (FIPS-197 compliant)
  • PoE and Direct DC input

CONFIDENTIAL AND PROPRIETARY Navigator DT dual transceiver radio with internal OMT/coupler Navigator DT dual transceiver radio with two waveguide ports

11

slide-12
SLIDE 12

Navigator: Interface Variants

  • Navigator DT – three interface variants

1) 1 x 1 Gbps RJ45 (POE), 1 x 1 Gbps SFP 2) 1 x 1 Gbps RJ45 (POE), 1 x 1 Gbps SFP + 2 x 1/2.5 Gbps SFP (CPRI capable) 3) 1 x 1 Gbps RJ45 (POE), 1 x 1 Gbps SFP + 2 x 1/10 Gbps SFP+

  • Navigator ST – three interface variants

1) 1 x 1 Gbps RJ45 (POE), 1 x 1 Gbps SFP 2) 1 x 1 Gbps RJ45 (POE), 2 x 1/2.5G SFP 3) 1 x 1 Gbps RJ45 (POE), 2 x 1/10 Gbps SFP+

CONFIDENTIAL AND PROPRIETARY

Release 1.0

12

slide-13
SLIDE 13

Navigator DT: Comprehensive Interface Support

USB ACCESS Serial Access & Wi-Fi option BNC (RSSI) GROUND DIRECT DC POWER

1 GbE (POE)

AUX connector (MIMO)

1 GbE SFP 2 x 1 / 2.5 GbE SFP (CPRI capable)

  • r

2 x 1 / 10GbE SFP+

Optional GPS antenna at top

  • f unit (not shown)

CONFIDENTIAL AND PROPRIETARY

Release 1.0

13

slide-14
SLIDE 14

Navigator ST: Comprehensive Interface Support

USB ACCESS Serial Access & Wi-Fi option 2 x 1 / 2.5GbE SFP

  • r

2 x 1 / 10GbE SFP+ BNC (RSSI) 1 GbE (POE) GND Direct DC POWER

CONFIDENTIAL AND PROPRIETARY

Note: Navigator ST First Release will use the Navigator DT housing. Release 1.0

14

slide-15
SLIDE 15

Navigator: Customer Replaceable Diplexers

  • Navigator diplexers are customer

replaceable.

  • Simplifies logistics and field updates.
  • Radios will maintain accuracy after field

diplexer update.

  • Diplexers simply rotated to convert the

radio from High Band to Low Band

  • peration or vice versa.

Navigator DT dual transceiver radio showing two sets of diplexers along with OMT/coupler

CONFIDENTIAL AND PROPRIETARY

Release 1.0

15

slide-16
SLIDE 16

Navigator DT: OMT/Coupler

  • Integrated OMT/Coupler combines the
  • utput from Navigator DT’s dual

transceivers to a single antenna port.

  • 1+1 HSB single polarization
  • 2+0 dual polarization (XPIC)
  • 2+0 single polarization

CONFIDENTIAL AND PROPRIETARY

Navigator DT dual transceiver radio showing two sets of diplexers along with OMT/coupler Release 1.0

16

slide-17
SLIDE 17

Navigator: Flexible RF Configurations

  • By combining Navigator DT with a

built-in OMT/Coupler and an external Coupler, complex multi-channel configurations can be built.

  • 4+0 single polarization

CONFIDENTIAL AND PROPRIETARY

Navigator DT radio in 4+0 configuration Release 1.0

17

slide-18
SLIDE 18

Navigator DT Transceiver Flexibility

  • Navigator DT dual transceiver radio is also

available with two waveguide ports instead of an internal OMT or coupler.

  • Navigator DT Repeater Node requires only a

single Navigator DT radio.

  • Other radio technologies require two radios per repeater

node doubling cost and increasing site complexity.

  • Navigator DT remotely mounted in this

configuration.

  • Flexible waveguides connect each Navigator DT

transceiver to a separate antenna.

CONFIDENTIAL AND PROPRIETARY

Navigator DT dual transceiver radio also available with two waveguide ports instead of an internally combined antenna port Release 1.0

18

slide-19
SLIDE 19

Navigator DT Single Terminal Repeater

  • Navigator DT configured with two waveguide ports can be a single radio

repeater.

  • Each direction can be a different modulation and rate.
  • Add/drop of traffic supported at each node.

CONFIDENTIAL AND PROPRIETARY

Navigator DT Repeater (Dual Waveguide Port radio configuration) Navigator ST Navigator ST

Release 1.0

19

slide-20
SLIDE 20

Navigator DT Transceiver Flexibility

  • A single Navigator DT radio

configured with two waveguide ports can form a node in a protected Ethernet ring.

  • Greatly simplifies network

configurations and halves equipment requirements.

CONFIDENTIAL AND PROPRIETARY

Navigator DT Ethernet Ring Network Release 1.0

20

slide-21
SLIDE 21

Navigator: Antenna Options

  • Antenna interface bracket available

with REMEC standard interface.

  • Transition available to convert REMEC

provided antennas from rectangular to circular interfaces

  • Upgrade existing fielded antennas to support

XPIC operation.

Add-on latch brackets support the industry standard REMEC Antenna Interface

CONFIDENTIAL AND PROPRIETARY

Vendor specific add-on latches or adaptor plates will be available to customize Navigator’s antenna interface to a third party antenna interface. Simplifies and reduces cost of re-using existing antenna installations that do not support REMEC standard antenna interface.

Release 1.0

21

slide-22
SLIDE 22

Navigator: Equipment and Path Protection

  • Navigator supports sophisticated, space

efficient, and cost effective protection techniques.

  • Path protection
  • 1+0 Frequency Diversity
  • 1+0 Space Diversity
  • 2+0 Space Diversity
  • Equipment protection
  • 1+1 HSB Navigator DT
  • Single radio and no external couplers

required

  • Transceivers are protected while baseband

is shared.

Navigator DT 1+0/SD Configuration (Dual waveguide port configuration)

CONFIDENTIAL AND PROPRIETARY

Navigator DT 1+1 HSBY radio Release 1.0

22

slide-23
SLIDE 23

Navigator: Optimized GUI Interface

  • Step-by-step Radio Configuration Wizard

to facilitate setup of the radio.

  • Pre-set radio configurations included to

ease installation.

  • New configurations added automatically

to available configuration presets.

  • Advanced radio and networking

configuration also available.

CONFIDENTIAL AND PROPRIETARY

Release 1.0

23

slide-24
SLIDE 24

Navigator: Simplified Licensing

  • Simplified licensing to ease customer access to advanced features.
  • Features such as ACM and QOS are available freely with the radio.
  • Advanced Carrier Ethernet features are available with a single

license key.

  • Licenses include
  • Capacity upgrade
  • Advanced Ethernet features (RSTP, MSTP, Ethernet Line and

Ring Protection, Carrier Ethernet Transport, header and payload compression, OAM, SyncE/1588V2)

  • AES
  • XPIC
  • Radio Link Aggregation
  • CPRI
  • MIMO
  • Remote Radio Shut Down

CONFIDENTIAL AND PROPRIETARY

Release 1.0

24

slide-25
SLIDE 25

Navigator Maximum Transmission Power (dBm)*

*Transmission power is at the output of the diplexer. Specifications are subject to change.

CONFIDENTIAL AND PROPRIETARY

Modulation 6 11 15 18 23 QPSK 27 26 26 25 24 16 QAM 26 25 25 24 23 32 QAM 26 25 25 24 23 64 QAM 25 24 24 23 22 128 QAM 23 24 24 23 22 256 QAM 23 22 22 21 20 512 QAM 23 22 22 21 20 1024 QAM 22 21 21 20 19 2048 QAM 21 20 20 19 18 Frequencies, GHz

Release 1.0

25

slide-26
SLIDE 26

Navigator ANSI Throughput – Balanced Capacity Mode

CONFIDENTIAL AND PROPRIETARY

Dual Carrier (2+0, XPIC) Single Carrier (1+0) Quad Carrier (4+0, 2 x (2+0 XPIC)) Release 1.0

Modulation 10 20 29.65/30 40 50 60 80 QPSK 12 23 35 48 60 72 97 16 QAM 24 48 72 93 117 140 195 32 QAM 32 63 95 128 160 192 257 64 QAM 39 79 118 158 198 237 318 128 QAM 47 94 141 189 236 284 379 256 QAM 55 109 164 220 275 330 440 512 QAM 62 125 187 250 313 375 502 1024 QAM 70 140 210 281 351 422 564 2048 QAM 78 155 233 312 390 468 624 ANSI Channel Bandwidth (MHz) / Capacity (Mbps) Modulation 10 20 29.65/30 40 50 60 80 QPSK 23 46 70 96 120 144 194 16 QAM 48 96 144 187 233 280 390 32 QAM 63 127 190 256 320 384 514 64 QAM 79 157 236 316 395 474 636 128 QAM 94 188 282 378 473 567 758 256 QAM 109 219 328 440 550 660 880 512 QAM 125 249 374 500 625 750 1004 1024 QAM 140 280 420 562 703 843 1127 2048 QAM 155 311 466 624 780 936 1248 ANSI Channel Bandwidth (MHz) / Capacity (Mbps) Modulation 10 20 29.65/30 40 50 60 80 QPSK 46 93 139 192 240 288 388 16 QAM 96 192 288 373 467 560 780 32 QAM 127 253 380 512 640 768 1028 64 QAM 157 315 472 632 790 948 1272 128 QAM 188 376 564 756 945 1134 1516 256 QAM 219 437 656 880 1100 1320 1761 512 QAM 249 499 748 1000 1250 1500 2008 1024 QAM 280 560 840 1124 1405 1686 2254 2048 QAM 311 621 932 1248 1560 1872 2496 ANSI Channel Bandwidth (MHz) / Capacity (Mbps)

*Capacity based on RFC2544 data, 1518byte packets, IFG & Pre- amble are excluded. Specifications are subject to change.

26

slide-27
SLIDE 27

Navigator 1.1

Q1 2019

slide-28
SLIDE 28

Major Features Available in Release 1.1 (Q1 2019)

  • 6, 7, 8, 11, 13, 15, 18, 23, and 26 GHz
  • High System Gain Mode & High Capacity Mode added
  • Sub-carrier operation
  • Two sub-carriers per Navigator ST providing up to 2.75Gbps capacity per radio
  • Four sub-carriers per Navigator DT providing up to 5.5Gbps capacity per radio
  • 112MHz/160MHz bandwidth operation per carrier or sub-carrier
  • 1+1 HSB/2+2 HSB (multi-chassis)
  • Adjacent channel operation
  • Frequency flexibility (Navigator DT dual waveguide radio configuration)
  • 1588 V2
  • Radius (but Syslog in first release)

CONFIDENTIAL AND PROPRIETARY

Release 1.1

28

slide-29
SLIDE 29

Navigator DT Quad Sub-Carrier Operation in One Radio

CONFIDENTIAL AND PROPRIETARY

Release 1.1

29

slide-30
SLIDE 30

Navigator ST Dual Sub-Carrier Operation in One Radio

CONFIDENTIAL AND PROPRIETARY

Release 1.1

30

slide-31
SLIDE 31

Navigator: Multi-Chassis Equipment Protection

  • Navigator multi-chassis equipment

protection configurations. Requires two radios along with external coupler.

  • Navigator ST - 1+1 HSB
  • Navigator DT - 2+2 HSB
  • A single Navigator DT radio can also be used

for low cost 1+1 HSB configurations (supported in Release 1.0).

  • Transceivers are protected while baseband is

shared.

  • No external coupler needed.

CONFIDENTIAL AND PROPRIETARY

Release 1.1 Navigator DT radio in 2+2 HSB configuration

31

slide-32
SLIDE 32

Navigator: High System Gain & High Capacity Modes

  • Along with Balanced Capacity Mode, Navigator will support two additional

Modes – High System Gain Mode & High Capacity Mode.

  • Navigator provides optimal operating mode available whether balanced

performance, highest system gain, or highest capacity is required.

CONFIDENTIAL AND PROPRIETARY

Release 1.1

Balanced Capacity Mode High System Gain Mode High Capacity Mode

Increased system gain to maximize range or reduce antenna size while decreasing capacity. Balanced capacity and system gain. Increased capacity to maximize throughput while decreasing system gain.

System Gain Capacity System Gain Capacity System Gain Capacity

32

slide-33
SLIDE 33

Navigator Maximum Transmission Power (dBm)*

*Transmission power is at the output of the diplexer. Sub-carrier transmission power is reduced by 3dB per carrier (ETSI/ANSI requirement). Sub-carrier operation supported to 2048QAM. Specifications are subject to change.

CONFIDENTIAL AND PROPRIETARY

Release 1.1

Modulation 6 7 8 11 13 15 18 23 26 QPSK 27 27 27 26 26 26 25 24 24 16 QAM 26 26 26 25 25 25 24 23 23 32 QAM 26 26 26 25 25 25 24 23 23 64 QAM 25 25 25 24 24 24 23 22 22 128 QAM 23 23 23 24 24 24 23 22 22 256 QAM 23 23 23 22 22 22 21 20 20 512 QAM 23 23 23 22 22 22 21 20 20 1024 QAM 22 22 22 21 21 21 20 19 19 2048 QAM 21 21 21 20 20 20 19 18 18 4096 QAM 20 20 20 19 19 19 18 17 17 Frequencies, GHz

33

slide-34
SLIDE 34

Navigator ANSI Throughput – Balanced Capacity Mode

CONFIDENTIAL AND PROPRIETARY

Dual Carrier -> 2+0, XPIC Single Carrier -> 1+0 Quad Carrier -> 4+0, 2 x (2+0 XPIC) Release 1.1

*Capacity based on RFC2544 data, 1518byte packets, IFG & Pre- amble are excluded. Specifications are subject to change.

Modulation 10 20 29.65/30 40 50 60 80 150 160 QPSK 12 23 35 48 60 72 97 182 194 16 QAM 24 48 72 93 117 140 195 366 390 32 QAM 32 63 95 128 160 192 257 482 514 64 QAM 39 79 118 158 198 237 318 596 636 128 QAM 47 94 141 189 236 284 379 711 758 256 QAM 55 109 164 220 275 330 440 825 880 512 QAM 62 125 187 250 313 375 502 941 1004 1024 QAM 70 140 210 281 351 422 564 1057 1127 2048 QAM 78 155 233 312 390 468 624 1170 1248 4096 QAM 85 169 254 340 425 511 681 1276 1361 ANSI Channel Bandwidth (MHz) / Capacity (Mbps) Modulation 10 20 29.65/30 40 50 60 80 150 160 QPSK 23 46 70 96 120 144 194 364 388 16 QAM 48 96 144 187 233 280 390 731 780 32 QAM 63 127 190 256 320 384 514 964 1028 64 QAM 79 157 236 316 395 474 636 1193 1272 128 QAM 94 188 282 378 473 567 758 1421 1516 256 QAM 109 219 328 440 550 660 880 1651 1761 512 QAM 125 249 374 500 625 750 1004 1883 2008 1024 QAM 140 280 420 562 703 843 1127 2113 2254 2048 QAM 155 311 466 624 780 936 1248 2340 2496 4096 QAM 170 338 508 680 850 1022 1362 2552 2722 ANSI Channel Bandwidth (MHz) / Capacity (Mbps) Modulation 10 20 29.65/30 40 50 60 80 150 160 QPSK 46 93 139 192 240 288 388 728 776 16 QAM 96 192 288 373 467 560 780 1463 1560 32 QAM 127 253 380 512 640 768 1028 1928 2056 64 QAM 157 315 472 632 790 948 1272 2385 2544 128 QAM 188 376 564 756 945 1134 1516 2843 3032 256 QAM 219 437 656 880 1100 1320 1761 3302 3522 512 QAM 249 499 748 1000 1250 1500 2008 3765 4016 1024 QAM 280 560 840 1124 1405 1686 2254 4227 4509 2048 QAM 311 621 932 1248 1560 1872 2496 4680 4992 4096 QAM 340 676 1016 1360 1700 2044 2724 5104 5444 ANSI Channel Bandwidth (MHz) / Capacity (Mbps)

34

slide-35
SLIDE 35

Navigator Release 2.0 Q3 2019

slide-36
SLIDE 36

Major Features Available in Release 2.0 (Q3 2019)

  • 6, 7, 8, 11, 13, 15, 18, 23, 26, 32, and 38 GHz (December 2019)
  • MIMO
  • GPS
  • Adjacent Channel operation
  • Asymmetrical Radio Link Aggregation*
  • 1588 V2 timing synchronization (SyncE is available from Release 1.0)
  • Radius (Syslog is available from Release 1.0)

CONFIDENTIAL AND PROPRIETARY

36

*Symmetrical Radio Link Aggregation available in Release 1.0

slide-37
SLIDE 37

Line of Sight MIMO – Navigator DT

  • 4x4 MIMO configuration quadruples capacity per licensed channel.
  • Consists of two Navigator DT radios operating in horizontal and vertical polarizations along with two

antennas to form each radio terminal.

  • Single licensed channel.
  • Antenna separation a function of frequency and link distance.
  • Higher frequencies require smaller antenna separations.

CONFIDENTIAL AND PROPRIETARY

Release 2.0

37

slide-38
SLIDE 38

GPS Timing

  • Navigator DT is available with optional

GPS antenna.

  • Supports grand master clock

applications.

  • Required for radio MIMO operation.

CONFIDENTIAL AND PROPRIETARY

Release 2.0

38

slide-39
SLIDE 39

Asymmetrical Radio Link Aggregation*

  • Asymmetrical RLA interleaves traffic between Navigator

internal modems and allows each modem to operate at different rates.

  • Link Aggregation (LAG) distributes user traffic to each of

Navigator internal modems based on L2/L3 fields.

  • A reduced capacity link due to a fade condition will not result in

certain traffic being throttled unfairly.

  • Fallback is supported on failure of one of the carriers (e.g.

severe fade condition).

CONFIDENTIAL AND PROPRIETARY

Release 2.0

39

*Symmetrical Radio Link Aggregation available in Release 1.0

slide-40
SLIDE 40

Navigator changes everything

  • Simplifies network design
  • Speeds installation
  • Streamlines logistics management
  • Scales easily to handle traffic growth
  • Slashes capital and operating costs

CONFIDENTIAL AND PROPRIETARY

Ask us about the difference Navigator can make in your network – and in your budget!

40

slide-41
SLIDE 41

Thank you.

For more about BridgeWave’s ultra-high capacity systems, please contact your BridgeWave regional sales director or email marketing@bridgewave.com

www.bridgewave.com

CONFIDENTIAL AND PROPRIETARY

41
