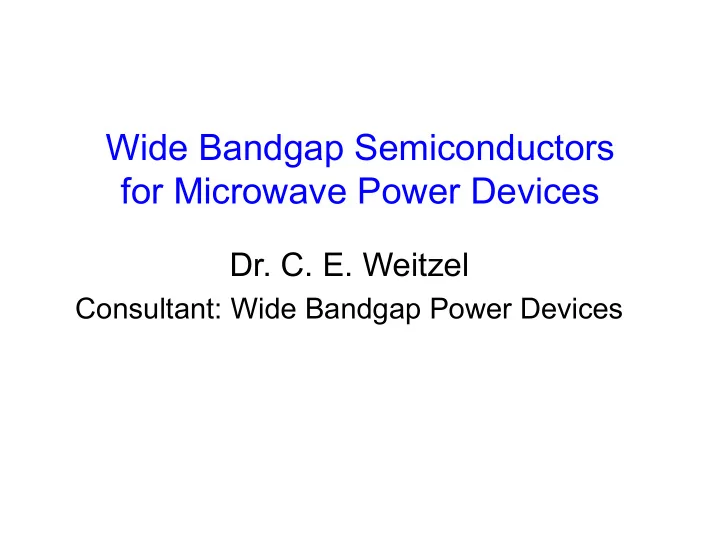

Wide Bandgap Semiconductors for Microwave Power Devices

  • Dr. C. E. Weitzel

Consultant: Wide Bandgap Power Devices

slide-2
SLIDE 2

Presentation Outline

  • Why Wide Bandgap Semiconductors?
  • SiC Microwave Power Devices
  • What are FET Field‐Plates?
  • AlGaN/GaN Microwave Power Devices
slide-3
SLIDE 3

The Rest of the Wide Bandgap story

  • SiC produced the first commercial BLUE LED’s
  • GaN produced first high brightness BLUE LED’s
  • GaN based materials enabled and dominate the

LED commercial market

  • Low intrinsic carrier concentraKon enables

significantly higher operaKng temperatures

  • GaN‐on‐Si looks promising for Switching Power

Devices to compete with silicon IGBT’s, silicon MOSFET’s, and SiC MOSFET’s.

slide-4
SLIDE 4

Why Wide Bandgap Semiconductors?

  • B. Ozpineci and L.M. Tolbert, “Comparison of Wide‐Bandgap Semiconductors for

Power Electronic ApplicaKons,” Oak Ridge NaKonal Laboratory, December 12, 2003 RelaKve Cost $ $$ $$$$$ $$$$$ $$$$ $$$$$$$$$$

slide-5
SLIDE 5
  • Wide bandgap enables high breakdown voltages
  • This enables a tradeoff between operaKng voltage and

current, but in either case boosts power handling capability

  • B. Ozpineci and L.M. Tolbert, “Comparison of Wide‐Bandgap Semiconductors for

Power Electronic ApplicaKons,” Oak Ridge NaKonal Laboratory, December 12, 2003

Diode Breakdown Voltages

slide-6
SLIDE 6
  • Wide bandgap enables lower device resistance for a given voltage
  • Lower resistance enables higher operaKng current
  • B. Ozpineci and L.M. Tolbert, “Comparison of Wide‐Bandgap Semiconductors for

Power Electronic ApplicaKons,” Oak Ridge NaKonal Laboratory, December 12, 2003

Diode Drift Region Resistance

slide-7
SLIDE 7

RF Power Density / Operating Voltage

48V

slide-8
SLIDE 8

Micropipes Result from Screw Dislocation

slide-9
SLIDE 9

Reduction of Micropipe Density / Wafer Size

slide-10
SLIDE 10

Very Low Micropipe Density SiC Wafer

slide-11
SLIDE 11
slide-12
SLIDE 12

SiC MESFET --- the first wide bandgap microwave power transistor SiC MESFET’s, SiC MOSFET’s & SiC SIT’s

slide-13
SLIDE 13
slide-14
SLIDE 14

Probably Highest SiC MESFET power density ever reported I would certainly like to know more details about this device

slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17

High power 4H‐SiC staKc inducKon transistors (SITs)

Measured staKc I‐V characterisKcs of a SIT SEM photo of a SIT device. The mesa fingers are 1 µm wide and 100 µm long. The total mesa length is 1 cm (100 fingers).

slide-18
SLIDE 18

Microsemi introduced a 2.2kW SiC SIT in Sept. 2010

slide-19
SLIDE 19

What are Field-Plates? aka - Step-Gates, Faraday Shields, Source connected Field-Plates

Field‐plate is a metal structure added to a FET between the gate and drain that increases the microwave gain and/or breakdown voltage (Si, GaAs, SiC, GaN).

slide-20
SLIDE 20

Microwave Field-Plates

  • First demonstraKon of field‐plate
  • n microwave transistor (GaAs)
  • Source connected field‐plate sits
  • n top of a dielectric
  • RF gain is increased by making the

device more unilateral

  • CGD is reduced at the expense of CGS

and CDS

  • Can also increase breakdown

voltage if properly designed

Source Drain Gate Field Plate Dielectric

slide-21
SLIDE 21

Field‐Plate increases small signal gain approx. 3 dB

slide-22
SLIDE 22

1.7 W/mm 1.5 GHz Vds = 35V

slide-23
SLIDE 23

2003

slide-24
SLIDE 24
slide-25
SLIDE 25
slide-26
SLIDE 26
slide-27
SLIDE 27

Field‐Plate increases CW gain 2 dB

slide-28
SLIDE 28
slide-29
SLIDE 29

AlGaN–GaN Field Effect Transistor

‐ the SiC MESFET “KILLER”

slide-30
SLIDE 30

Basic AlGaN‐GaN HeterojuncKon FET

Substrate: Sapphire, SiC, or Silicon

+++++++++++++++++++++

Spontaneous and Piezoelectric PolarizaKon cause +++ charge in the AlGaN. The band structure forms a quantum well at the AlGaN‐GaN interface. Electrons fill the quantum well to a very high density > 1E7 cm‐2. There is no intenKonal doping.

slide-31
SLIDE 31

Small Signal GaN HFET reported at SiC Conference in Kyoto, Japan

slide-32
SLIDE 32
slide-33
SLIDE 33
slide-34
SLIDE 34

12.6 mm AlGaN/GaN HFET 48 V 2.14 GHz 74 W 5.9 W/mm No Field Plate IMS 2006

slide-35
SLIDE 35
slide-36
SLIDE 36
slide-37
SLIDE 37
slide-38
SLIDE 38
slide-39
SLIDE 39
slide-40
SLIDE 40

AlGaN/GaN HFET 30 V 15 GHz 60 W ~ 3 W/mm IMS 2010

slide-41
SLIDE 41

Wide Bandgap Summary

  • Material properKes:

‐ high operaKng voltages ‐ high thermal conducKvity (SiC substrate)

  • SiC MESFET first wide bandgap microwave

power transistor

  • Field Plates:

‐ increased RF gain ‐ even higher operaKng voltages

  • AlGaN/GaN heterojuncKon achieves current

density > 1 x 1013 A/cm2 (SiC MESFET “killer”)

  • Heavily supported for US defense applicaKons,

but is there a “killer” commercial applicaKon??
