Mechanical descaling by high pressure water jet assoc.prof. Michal Pohanka Workshop on Pickling Solutions Technology 13th of November 2019, Dsseldorf Introduction Brno University of Technology, Czech Republic Hydraulic descaling of

slide-1
SLIDE 1

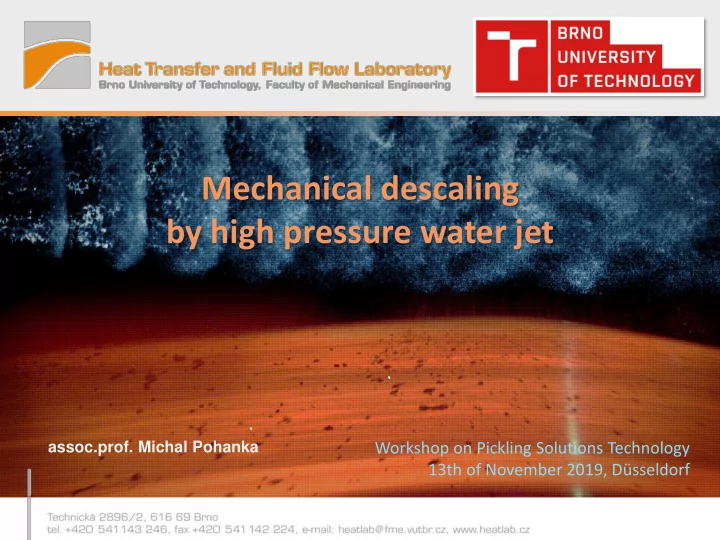

assoc.prof. Michal Pohanka

Mechanical descaling by high pressure water jet

Workshop on Pickling Solutions Technology 13th of November 2019, Düsseldorf

slide-2
SLIDE 2

www.heatlab.cz

Introduction

 Brno University of Technology, Czech Republic  Hydraulic descaling of coils of wires  Laboratory experiments

Impact pressure distribution measurement

Hydraulic descaling

EDX Analysis with a Scanning Electron Microscope

 Conclusion

slide-3
SLIDE 3

www.heatlab.cz

Brno, Czech Republic

slide-4
SLIDE 4

www.heatlab.cz

Brno University of Technology

slide-5
SLIDE 5

www.heatlab.cz

Faculty of Mechanical Engineering

slide-6
SLIDE 6

www.heatlab.cz

Secondary Cooling

Continuous Casting

Descaling Roll Cooling Product Cooling

Rolling and heat treatment Experimental research of heat transfer and heat treatment Numerical models of continuous casting, rolling and heat treatment

Contact

Heat Transfer and Fluid Flow Laboratory

slide-7
SLIDE 7

www.heatlab.cz

Descaling of coils of wires – outer diameter 1.4 m

slide-8
SLIDE 8

www.heatlab.cz

Impact pressure distribution measurement

DAQ PC Nozzle Impact area Pressure Sensor Moving Plate

Pressure Position

slide-9
SLIDE 9

www.heatlab.cz

Spray comparison – High and low pressure but same water flow rate

slide-10
SLIDE 10

www.heatlab.cz

Spray comparison – High and low pressure but same water flow rate

Video

slide-11
SLIDE 11

www.heatlab.cz

Distance 300 mm - No wires Nozzle A at 45 MPa Catalogue spray angle 45°

kPa 1 2 3 4 5 6.3 kPa 0.03 0.5 1 1.5 2 2.5 3 3.5 3.87

220 200

Nozzle B at 5 MPa Catalogue spray angle 40°

kPa 0.03 0.5 1 1.5 2 2.5 3 3.5 3.87 kPa 1 2 3 4 5 6.3

slide-12
SLIDE 12

www.heatlab.cz

2 4 6 8 10 12 14 200 mm 300 mm Impact pressure [kPa] Nozzle A Nozzle B

Impact pressure measurements without dummy wires

5MPa 45MPa 100% 92% 100% 79% Spraying distance 5MPa 45MPa

slide-13
SLIDE 13

www.heatlab.cz

Cleaning graphite coating

Nozzle A at 45 MPa Nozzle B at 5 MPa

slide-14
SLIDE 14

www.heatlab.cz

Cleaning graphite coating - Video

slide-15
SLIDE 15

www.heatlab.cz

Impact pressure distribution while spraying through wires

1 layer 6 layers

slide-16
SLIDE 16

www.heatlab.cz

One layer of wires

3.

5MPa 45MPa

6

slide-17
SLIDE 17

www.heatlab.cz

Distance 300 mm - with 6 layers of wires – 5 MPa

slide-18
SLIDE 18

www.heatlab.cz

Distance 300 mm - with 1-6 layers of wires – smaller nozzle, 45 MPa 1 layer 2 layers 4 layers 6 layers

kPa 0.2 0.4 0.6 0.8 1 1.2 1.4 kPa 0.2 0.4 0.6 0.8 1 1.2 1.4 kPa 0.2 0.4 0.6 0.8 1 1.2 1.4 kPa 0.2 0.4 0.6 0.8 1 1.2 1.4

slide-19
SLIDE 19

www.heatlab.cz

Distance 300 mm - with 1-6 layers of wires - Video

slide-20
SLIDE 20

www.heatlab.cz

Spray distances during hydraulic descaling 200 200

slide-21
SLIDE 21

www.heatlab.cz

Distance of descaling header from wires is 200 mm

slide-22
SLIDE 22

www.heatlab.cz

Reduced spray angle Spray angle 45° Spray angle 30°

kPa 0.03 0.5 1 1.5 2 2.5 3 3.5 3.87 kPa 1 2 3 4 5 6 6.7

200 110

slide-23
SLIDE 23

www.heatlab.cz

Hydraulic descaling Wire descaling using smaller nozzle at 45 MPa for steel grade 1.4571

* This is not the final surface of the product. This is surface during pickling program.

slide-24
SLIDE 24

www.heatlab.cz

EDX Analysis with a Scanning Electron Microscope

slide-25
SLIDE 25

www.heatlab.cz

EDX Analysis with a Scanning Electron Microscope

backscattered (BSE) secondary electrons (SE)

slide-26
SLIDE 26

www.heatlab.cz

EDX Analysis with a Scanning Electron Microscope

Element Wt % Inte. Error O 27.8 1.4 Si 0.4 16.0 MoL 3.9 4.7 Cr 32.2 1.0 Mn 0.3 29.4 Fe 31.3 1.3 Ni 4.0 5.3

slide-27
SLIDE 27

www.heatlab.cz

EDX Analysis with a Scanning Electron Microscope

Steel grade 1.4404

Fe Cr Ni Mo Mn Si Data sheet 16.5–18.5% 10–13% 2–2.5% ≤ 2% ≤ 1% Measured 66.4% 17.6% 11.1% 2.9% 1.3% 0.8%

slide-28
SLIDE 28

www.heatlab.cz

EDX Analysis with a Scanning Electron Microscope

Scale layer on 1.4404

Fe O Cr Ni Mo Mn Measured 31.3% 27.8% 32.2% 4.0% 3.9% 1.3%

slide-29
SLIDE 29

www.heatlab.cz

EDX Analysis with a Scanning Electron Microscope

Scale layer on 1.4404

Fe O Cr Ni Mo Measured 32.7% 20.8% 28.7% 13.5% 4.0%

slide-30
SLIDE 30

www.heatlab.cz

Conclusion Thank you for your attention… www.heatlab.cz

 Big spraying distance (200 mm and more)

 Free space

 Use bigger nozzle and smaller pressure

 Spraying through wires

 Use smaller nozzle and bigger pressure

 Hydraulic descaling is effective during pickling.
