Lecture 4 Additional Slides CSE 344, Winter 2014 Sudeepa Roy CSE 344 - Winter 2014 1 NOTE: These slides were used as a whiteboard in class, and mostly contain the same material as the lecture slides and sqlite notes. CSE 344 - Winter 2014

slide-1
SLIDE 1

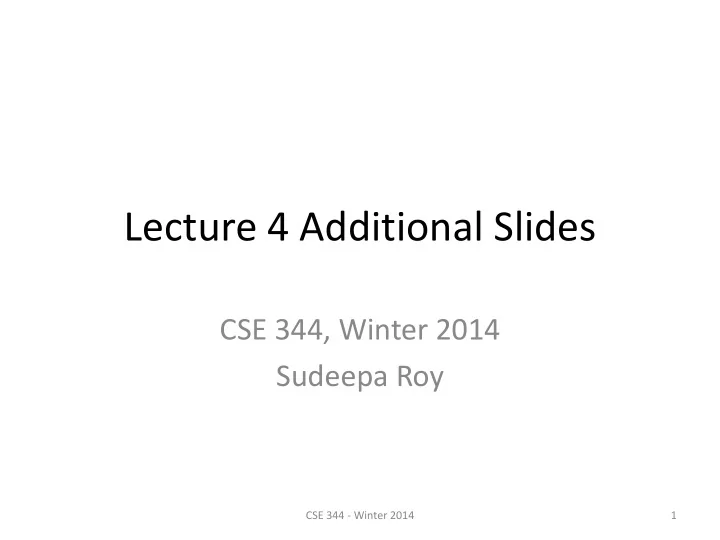

Lecture 4 Additional Slides

CSE 344, Winter 2014 Sudeepa Roy

1 CSE 344 - Winter 2014

slide-2
SLIDE 2
  • NOTE: These slides were used as a whiteboard

in class, and mostly contain the same material as the lecture slides and sqlite notes.

2 CSE 344 - Winter 2014

slide-3
SLIDE 3

Announcements

  • Webquiz 1 is due on Tuesday (01/14): 11:59 pm
  • Webquiz 2 will be posted on Wednesday (01/15):

00:00 am

  • Homework 1 is due on Thursday (01/16)
  • This Wednesday’s (01/15) office hour: 10-10:50 am,

CSE 344 (Sudeepa)

  • Lecture 5-8 (SQL) by Daniel Halperin

CSE 344 - Winter 2014 3

slide-4
SLIDE 4

Outline

  • Nulls in SQL (6.1.6)
  • Outer joins (6.3.8)
  • Aggregations (6.4.3 – 6.4.6)
  • Examples, examples, examples…

CSE 344 - Winter 2014 4

slide-5
SLIDE 5

NULL In SqLite

pname price category manufacturer Gizmo 19.99 gadget GizmoWorks PowerGizmo 29.99 gadget GizmoWorks SingleTouch 149.99 photography Canon MultiTouch 199.99 photography Hitachi SuperGizmo 49.99 gadget Hitachi iPad 5 NULL gadget Apple cname country GizmoWorks USA Canon Japan Hitachi Japan Google USA

Product Company

SELECT gadegts with price < 25 and >=25 iPad5 is nowhere!

  • Product(pname, price, category, manufacturer)
  • Company(cname, country)

5 CSE 344 - Winter 2014

slide-6
SLIDE 6

Conditions involving NULL

  • We need to evaluate in SQL conditions like

this:

  • ((price < 25) and (category = 'gadget')) or

(manufacturer = 'Apple')

  • Suppose price = 19, category = NULL, and

manufacturer = NULL

  • Is the predicate true or false?

6 CSE 344 - Winter 2014

slide-7
SLIDE 7

3-valued logic

  • FALSE = 0

– E.g. price<25 is FALSE when price=99

  • UNKNOWN = 0.5

– E.g. price<25 is UNKNOWN when price=NULL

  • TRUE = 1

– E.g. price<25 is TRUE when price=19

  • PREDICATES:

– C1 AND C2 means min(C1,C2) – C1 OR C2 means max(C1,C2) – not C means 1-C

  • Answer appears only if the truth value is TRUE
  • Does not appear if the truth value is FALSE or UNKNOWN
  • Therefore, no iPad5!

7 CSE 344 - Winter 2014

slide-8
SLIDE 8

Compute the truth value

  • Your answer in class :

= (TRUE and UNKNOWN) OR UNKNOWN = UNKNOWN OR UNKNOWN = UNKNOWN

  • ((price < 25) and (category = 'gadget‘)) or (manufacturer = 'Apple')
  • Suppose price = 19, category = NULL, and manufacturer = NULL

8 CSE 344 - Winter 2014

slide-9
SLIDE 9

OUTERJOIN

9 CSE 344 - Winter 2014

slide-10
SLIDE 10

JOIN = INNER JOIN

  • Select pname, cname from Product, Company where

manufacturer = cname;

  • Select pname, cname from Product (INNER) JOIN

Company ON manufacturer = cname;

  • Where is ipad5 or Google?

pname price category manufacturer Gizmo 19.99 gadget GizmoWorks PowerGizmo 29.99 gadget GizmoWorks SingleTouch 149.99 photography Canon MultiTouch 199.99 photography Hitachi SuperGizmo 49.99 gadget Hitachi iPad 5 NULL gadget Apple cname country GizmoWorks USA Canon Japan Hitachi Japan Google USA

Product Company

  • ptional

10 CSE 344 - Winter 2014

slide-11
SLIDE 11

LEFT OUTER JOIN

  • Include the left tuple even if there’s no match
  • Select pname, cname from Product LEFT OUTER JOIN

Company ON manufacturer = cname;

  • You should get (iPad5, null)
  • Reverse the order of relations.

pname price category manufacturer Gizmo 19.99 gadget GizmoWorks PowerGizmo 29.99 gadget GizmoWorks SingleTouch 149.99 photography Canon MultiTouch 199.99 photography Hitachi SuperGizmo 49.99 gadget Hitachi iPad 5 NULL gadget Apple cname country GizmoWorks USA Canon Japan Hitachi Japan Google USA

Product Company

11 CSE 344 - Winter 2014

slide-12
SLIDE 12

RIGHT OUTER JOIN

  • Include the right tuple even if there’s no match
  • Select pname, cname from Product RIGHT OUTER

JOIN Company ON manufacturer = cname;

  • You should get (null, Google)

pname price category manufacturer Gizmo 19.99 gadget GizmoWorks PowerGizmo 29.99 gadget GizmoWorks SingleTouch 149.99 photography Canon MultiTouch 199.99 photography Hitachi SuperGizmo 49.99 gadget Hitachi iPad 5 NULL gadget Apple cname country GizmoWorks USA Canon Japan Hitachi Japan Google USA

Product Company

12 CSE 344 - Winter 2014

slide-13
SLIDE 13

FULL OUTER JOIN

  • Include both left and right tuples even if there’s no match
  • Select pname, cname from Product (FULL) OUTER JOIN

Company ON manufacturer = cname;

  • You should get both (null, Google) and (iPad5, null)

pname price category manufacturer Gizmo 19.99 gadget GizmoWorks PowerGizmo 29.99 gadget GizmoWorks SingleTouch 149.99 photography Canon MultiTouch 199.99 photography Hitachi SuperGizmo 49.99 gadget Hitachi iPad 5 NULL gadget Apple cname country GizmoWorks USA Canon Japan Hitachi Japan Google USA

Product Company

13 CSE 344 - Winter 2014

slide-14
SLIDE 14

AGGREGATION IN SQL

14 CSE 344 - Winter 2014

slide-15
SLIDE 15

Aggregation in SQL

CSE 344 - Winter 2014 15

Other DBMSs have other ways of importing data Specify a filename where the database will be stored >sqlite3 lecture04 sqlite> create table Purchase (pid int primary key, product text, price float, quantity int, month varchar(15)); sqlite> -- download data.txt sqlite> .import data.txt Purchase

slide-16
SLIDE 16

Comment about SQLite

  • One cannot load NULL values such that they

are actually loaded as null values

  • So we need to use two steps:

– Load null values using some type of special value – Update the special values to actual null values

CSE 344 - Winter 2014 16

update Purchase set price = null where price = ‘null’

slide-17
SLIDE 17

Simple Aggregations

Five basic aggregate operations in SQL

CSE 344 - Winter 2014 17

select count(*) from Purchase select sum(quantity) from Purchase select avg(price) from Purchase select max(quantity) from Purchase select min(quantity) from Purchase

slide-18
SLIDE 18

Aggregates and NULL Values

18

insert into Purchase values(12, 'gadget', NULL, NULL, 'april') select count(*) from Purchase select count(quantity) from Purchase select sum(quantity) from Purchase select sum(quantity) from Purchase where quantity is not null; Null values are not used in aggregates Let’s try the following

CSE 344 - Winter 2014

slide-19
SLIDE 19

COUNT applies to duplicates, unless otherwise stated: SELECT Count(product) FROM Purchase WHERE price > 4.99 same as Count(*) We probably want: SELECT Count(DISTINCT product) FROM Purchase WHERE price> 4.99

Counting Duplicates

CSE 344 - Winter 2014 19

slide-20
SLIDE 20

More Examples

SELECT Sum(price * quantity) FROM Purchase SELECT Sum(price * quantity) FROM Purchase WHERE product = ‘bagel’ What do they mean ?

CSE 344 - Winter 2014 20

slide-21
SLIDE 21

Simple Aggregations

Purchase

SELECT Sum(price * quantity) FROM Purchase WHERE product = ‘Bagel’ 90 (= 60+30)

Product Price Quantity Bagel 3 20 Bagel 1.50 20 Banana 0.5 50 Banana 2 10 Banana 4 10

CSE 344 - Winter 2014 21

slide-22
SLIDE 22

GROUP BY: Grouping and Aggregation

Purchase(product, price, quantity) SELECT product, Sum(quantity) AS TotalSales FROM Purchase WHERE price > 1 GROUP BY product Let’s see what this means… Find total quantities for all sales over $1, by product.

CSE 344 - Winter 2014 22

slide-23
SLIDE 23

Grouping and Aggregation

  • 1. Compute the FROM and WHERE clauses.
  • 2. Group by the attributes in the GROUPBY
  • 3. Compute the SELECT clause:

grouped attributes and aggregates.

CSE 344 - Winter 2014 23

slide-24
SLIDE 24

1&2. FROM-WHERE-GROUPBY

Product Price Quantity Bagel 3 20 Bagel 1.50 20 Banana 0.5 50 Banana 2 10 Banana 4 10

CSE 344 - Winter 2014 24

WHERE price > 1 SELECT product, Sum(quantity) AS TotalSales FROM Purchase WHERE price > 1 GROUP BY product

slide-25
SLIDE 25
  • 3. SELECT

SELECT product, Sum(quantity) AS TotalSales FROM Purchase WHERE price > 1 GROUP BY product

Product TotalSales Bagel 40 Banana 20 Product Price Quantity Bagel 3 20 Bagel 1.50 20 Banana 0.5 50 Banana 2 10 Banana 4 10

25 CSE 344 - Winter 2014

slide-26
SLIDE 26

Other Examples

SELECT product, sum(quantity) AS SumQuantity, max(price) AS MaxPrice FROM Purchase GROUP BY product What does it mean ?

CSE 344 - Winter 2014

SELECT product, count(*) FROM Purchase GROUP BY product SELECT month, count(*) FROM Purchase GROUP BY month Compare these two queries:

26

slide-27
SLIDE 27

Need to be Careful…

SELECT product, max(quantity) FROM Purchase GROUP BY product SELECT product, quantity FROM Purchase GROUP BY product sqlite is WRONG on this query. Advanced DBMS (e.g. SQL Server) gives an error (the attribute in SELECT must appear in an aggregate function OR GROUP BY clause)

Product Price Quantity Bagel 3 20 Bagel 1.50 20 Banana 0.5 50 Banana 2 10 Banana 4 10

27 CSE 344 - Winter 2014

slide-28
SLIDE 28

What does this query do?

  • Your answer in class :

Bagel september Banana september Gizmo march Gadget march Orange may

28 CSE 344 - Winter 2014

  • select product, max(month) from purchase

group by product;

slide-29
SLIDE 29

Understanding groups -- 1

  • select * from purchase;
  • How many tuples?
  • Answer: 12

29 CSE 344 - Winter 2014

slide-30
SLIDE 30

Understanding groups -- 2

  • Your answer in class :
  • Bagel 2
  • Orange 1
  • Banana 2
  • Gadget 4
  • Gizmo 3

30 CSE 344 - Winter 2014

  • select product, count(*) from purchase group

by product;

slide-31
SLIDE 31

Understanding groups - 3

  • Your answer in class:
  • Bagel 1
  • Banana 0 (xxxxx WON’T APPEAR)
  • Orange 0 (xxxxx WON’T APPEAR)
  • Gizmo 3
  • Gadget 3

31 CSE 344 - Winter 2014

  • select product, count(*) from purchase group

by product;

Always remember that first WHERE condition is applied, then GROUP BY is performed, so these tuples with 0 value won’t appear in the results

slide-32
SLIDE 32

DISTINCT = GROUP BY

  • select month, count(*) from purchase group by month;
  • BUT AGGREGATES ARE NOT NECESSARY WITH GROUP

BY

  • select month from purchase group by month;
  • IS EQUIVALENT TO
  • select distinct month from purchase;

32 CSE 344 - Winter 2014

slide-33
SLIDE 33

Ordering Results

CSE 344 - Winter 2014

SELECT product, sum(price*quantity) as rev FROM purchase GROUP BY product ORDER BY rev desc;

33

slide-34
SLIDE 34

GROUP BY with Multiple Attributes

  • Try the query you wrote in class 
  • select pid, pname, count(*) from purchase

group by pid, pname;

CSE 344 - Winter 2014 34
