Learnings from MoCho-TIMES - Modal choice within bottom-up optimization energy system models ETSAP Meeting College Park, 10 th -11 th July 2017 Jacopo Tattini PhD Student Energy System Analysis group Motivation MoCho-TIMES model Discussion

slide-1
SLIDE 1

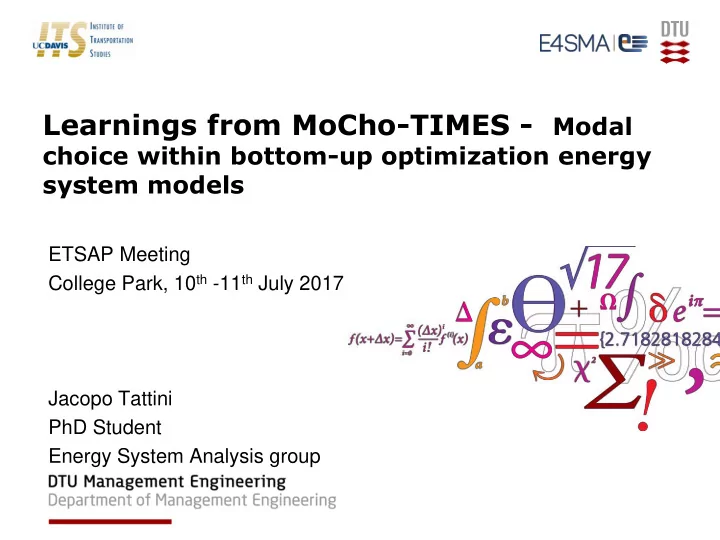

Learnings from MoCho-TIMES -

Modal choice within bottom-up optimization energy system models

ETSAP Meeting College Park, 10th -11th July 2017 Jacopo Tattini PhD Student Energy System Analysis group

slide-2
SLIDE 2

Motivation

  • Bottom-up (BU) energy system models describe in detail the technical,

economic and environmental dimensions of an energy system

  • They are weak in representing consumer behaviour: only one central-

decision maker is considered

  • The behavioural dimension is fundamental in decision making in the

transportation sector  It shall not be neglected

  • Essential to represent real households’ preferences

2 19 July 2017

Motivation MoCho-TIMES model Discussion

For more info: Venturini et al., Improvements in the representation of behaviour in integrated energy and transport models, 2017 (Under revision)

slide-3
SLIDE 3

MoCho-TIMES model

  • MoCho-TIMES (Modal Choice in TIMES) is an approach to

incorporate modal choice directly in BU optimization energy system models

  • The methodology consists in two main steps:
  • 1. Divide transport users into heterogeneous consumer groups
  • 2. Incorporate intangible costs
  • Other constraints:
  • Monetary budget
  • Availability of transport infrastructures
  • Travel Time Budget (TTB)
  • Travel patterns
  • Maximum shift potential
  • Maximum rate of shift

3 19 July 2017

For more info refer to working paper: Tattini et al., Improving the representation of modal choice into bottom-up optimization energy system models – The MoCho-TIMES model, 2017

Motivation MoCho-TIMES model Discussion

slide-4
SLIDE 4

Demand side heterogeneity

4 19 July 2017 DENMARK DENMARK EAST DENMARK WEST URBAN SUBURBAN RURAL URBAN SUBURBAN RURAL VERY LOW INCOME MEDIUM INCOME HIGH INCOME LOW INCOME VERY LOW INCOME MEDIUM INCOME HIGH INCOME LOW INCOME VERY LOW INCOME MEDIUM INCOME HIGH INCOME LOW INCOME VERY LOW INCOME MEDIUM INCOME HIGH INCOME LOW INCOME VERY LOW INCOME MEDIUM INCOME HIGH INCOME LOW INCOME VERY LOW INCOME MEDIUM INCOME HIGH INCOME LOW INCOME

Modes have different levels of service Different perceptions of levels of service

  • Heterogeneity differentiates modal perception among subgroups of transport

users

Motivation MoCho-TIMES model Discussion

Region Urbanization area Income level

Region 1 Region 2

slide-5
SLIDE 5

Intangible costs

5 19 July 2017

Intangible costs are introduced for two reasons:

  • 1. To capture other non-economic factors into the expression of the

generalized cost, accounting modal perception

  • 2. To differentiate modal perceptions across consumer groups through

monetization.

Varies across income classes Varies across types

  • f urbanisation

Motivation MoCho-TIMES model Discussion

slide-6
SLIDE 6

Overall structure of MoCho-TIMES

6 19 July 2017 NON MOTORIZED

Fuel

Consumer Group 2

Demands

Consumer Group 1 Consumer Group 24 Consumer Group 3

Travel time Infrastructure

EXISTING INFRA- STRUCTURE TRAVEL TIME BUDGET

Perceived cost

MONETARY BUDGET

...

Intangible cost CG1 Intangible cost CG24

…

Intangible cost CG2

PUBLIC TRANSPORT

Intangible cost CG1 Intangible cost CG24

…

Intangible cost CG2

PRIVATE CAR

Intangible cost CG1 Intangible cost CG24

…

Intangible cost CG2

NEW INFRA- STRUCTURE

Motivation MoCho-TIMES model Discussion

slide-7
SLIDE 7

Data requirement

7 19 July 2017

Motivation MoCho-TIMES model Discussion

  • Many new data are required:

– Spatial distribution of the population (region, type of urbanization) – Income distribution across the population – Mileage distribution across the population – LoS attributes: free travel time, congestion travel time, waiting time, walking time, access/egress time, etc – Value of time (VoT) – Infrastructure data: investment and O&M costs, capacity utilization level – Travel pattern: share of km in the urban/suburban/rural areas – Public transport fares – Car parking cost – …..

  • Need a rich and reliable data-source, consistent with the energy system

model that will incorporate modal choice

slide-8
SLIDE 8

Support model

  • The development of MoCho-TIMES requires a support model:
  • Transport model able to simulate modal choice
  • Consistent with the geographical scope of the energy system model
  • The support model is used to draw data and parameters for MoCho-TIMES
  • The transport model might have a different time horizon than the energy

system model  Assumptions required

  • In case support model is not available, a travel survey (travel diary) could be

used

8 19 July 2017

Transport Model

Motivation MoCho-TIMES model Discussion

slide-9
SLIDE 9

Reflections

  • Modal choice is determined at aggregated level, for macro clusters of

consumers, but is able to capture variability acorss population

  • Dimensions for heterogeneity is crucial
  • Finer resolution is achievable, but trade-off trade-off between model size and

representation of the population shall be pursued

  • Additional variability to modal perception achieved through the ”clones”
  • Vague spatial resolution  Focus is not trip, but entire energy system
  • Heterogeneity overcomes the “mean-decision maker” perspective
  • Perfect-information, perfect-foresight and perfect-rationality

9 19 July 2017

Motivation MoCho-TIMES model Discussion

slide-10
SLIDE 10

Shall MoCho-TIMES be incorporated into an integrated energy system model?

  • Modal shift as an option to decarbonize energy system,within a unique

model framework.

  • Effect of energy system dynamics on modal shares and vice versa
  • Transport sector is expected to become increasingly integrated into

the energy system

  • New policy and scenario analyses: effect of variations of LoS and

consumers’ perception of modes on rest of energy system and viceversa

  • Intangible costs act as a barrier to decarbonisation of the transport

sector  Required consistency across sectors Compare MoCho-TIMES and soft-linking

  • f

TIMES with external transport model (ABM+system dynamic model)

10 19 July 2017

Motivation MoCho-TIMES model Discussion

slide-11
SLIDE 11

DTU Management Engineering, Technical University of Denmark 11

Jacopo Tattini jactat@dtu.dk

…questions, suggestions?!?!

slide-12
SLIDE 12
slide-13
SLIDE 13

DTU Management Engineering, Technical University of Denmark

Soft link of TIMES-DK and LTM

13

ABM+System Dynamic

Inputs to ABM+SD model:

  • Socioeconomic description:

gender, income class, car

  • wnership, age, nr. of

children, marital status, GDP , employment

  • Infrastructure: existing and

planned

  • Average mode travel cost
  • …

Outputs from LTM (2010-2030):

  • Passenger travel demand per mode,

location, purpose (pkm)

  • Freight travel demand per mode, location,

purpose (tkm)

  • ……..

TIMES-DK Interface

Outputs from TIMES-DK:

  • Fuels prices

Iterations Modal choice in LTM and technology choice in TIMES-DK

slide-14
SLIDE 14

MoCho-TIMES vs Soft-link with external model

Soft link with transport model Advantages:

  • Transport

models have suitable structure and mathematical expression (MNL) for computing modal shares

  • Spatial disaggregated
  • Household/Individual resolution

Disadvantages:

  • Long computational time of transport

model

  • Low sensitivity to price changes
  • Iterations required?

14 19 July 2017

Motivation MoCho-TIMES model Discussion

MoCho-TIMES Advantages:

  • Wider scope of analysis, including

the energy system

  • Enables

assessing cross-sectoral influences

  • Flexible for scenario analysis
  • Catch some variability of preferences

Disadvantages:

  • Macro-clusters of consumers
  • Aggregated spatial resolution
slide-15
SLIDE 15

Disaggregated modal shares

15 19 July 2017

slide-16
SLIDE 16

Disaggregated modal shares

16 19 July 2017

slide-17
SLIDE 17

Disaggregated modal shares

17 19 July 2017

slide-18
SLIDE 18

Disaggregated modal shares

18 19 July 2017

slide-19
SLIDE 19

DTU Management Engineering, Technical University of Denmark 19 19 July 2017

Bibliography

  • Brand, C., Tran, M., Anable, J. (2012). The UK transport carbon model: An integrated life cycle approach to explore low

carbon futures. Energy Policy 41, pp. 107-124.

  • Daly, H. E., Ramea, K., Chiodi, A., Yeh, S., Gargiulo, M., Gallachóir, B. Ó. (2014). Incorporating travel behaviour and

travel time into TIMES energy system models. Applied Energy 135, pp. 429-439.

  • E3MLab/ICCS at National Technical University of Athens (2014). PRIMES-TREMOVE Transport Model, Detailed model

description.

  • Girod, B., van Vuuren, D. P., Deetman, S. (2012). Global travel within the 2 C climate target. Energy Policy 45, pp. 152-

166.

  • Horne, M., Jaccard, M., Tiedemann, K. (2005). Improving behavioral realism in hybrid energy-economy models using

discrete choice studies of personal transportation decisions. Energy Economics 27(1), pp. 59-77.

  • Karplus, V. J., Paltsev, S., Babiker, M., Reilly, J. M. (2013). Applying engineering and fleet detail to represent passenger

vehicle transport in a computable general equilibrium model. Economic Modelling 30(216), pp. 295-305.

  • Kyle, P., & Kim, S. H. (2011). Long-term implications of alternative light-duty vehicle technologies for global greenhouse

gas emissions and primary energy demands. Energy Policy 39(5), pp. 3012-3024.

  • McCollum, D. L., Wilson, C., Pettifor, H., Ramea, K., Krey, V., Riahi, K., Bertram, C., Lin, Z., Edelenbosch, O. Y., Fujisawa,
  • S. (2016). Improving the behavioral realism of global integrated assessment models: An application to consumers’ vehicle
  • choices. Transportation Research Part D: Transport and Environment, 1–10.
  • Pietzcker, R., Moll, R., Bauer, N., Luderer, G. (2010). Vehicle technologies and shifts in modal split as mitigation options

towards a 2°C climate target. Conference talk at the International Society for Ecological Economics (ISEE) 11th BIENNIAL CONFERENCE Oldernburg.

  • Pye, S., & Daly, H. (2015). Modelling sustainable urban travel in a whole systems energy model. Applied Energy 159, pp.

97-107.

  • Rich, J., Nielsen O.A., Brems, C., Hansen, C.O. (2010). Overall design of the Danish National transport model, Annual

Transport Conference at Aalborg University 2010

  • Schäfer, A., & Victor, D. G. (2000). The future mobility of the world population. Transportation Research Part A: Policy and

Practice 34(3), pp. 171-205.

  • Waisman, H. D., Guivarch, C., Lecocq, F. (2013). The transportation sector and low-carbon growth pathways: modelling

urban, infrastructure, and spatial determinants of mobility. Climate Policy 13(sup01), pp. 106-129.
