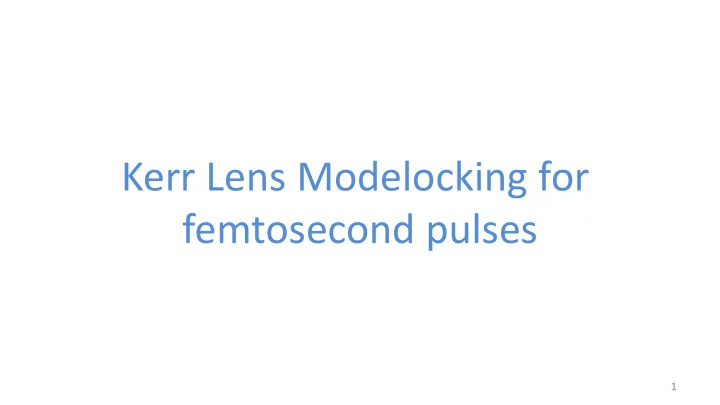

Kerr Lens Modelocking for femtosecond pulses

slide-2
SLIDE 2

Longitudinal modes: Recapitulation

Dlas = Spectral width of each mode

slide-3
SLIDE 3

Quality factor, Q

T0 = Time interval between two successive maxima  = Time for decay of amplitude to A0/e T0 <<  Dlas = Spectral width of each mode

slide-4
SLIDE 4

Longitudinal modes in a bunch

slide-5
SLIDE 5

I = A*A

Ipeak = N2E0

2

slide-6
SLIDE 6

Intensity = Modulus squared electric field

Modelocking

Ipeak = N2E0

2

slide-7
SLIDE 7

Repetition rate

Intensity = Modulus squared electric field First maximum: Second maximum: Difference in time T = t2–t1:

slide-8
SLIDE 8

Pulse duration

Intensity = Modulus squared electric field

slide-9
SLIDE 9

Pulse duration and Intensity

  • M. Didomenico, J. App. Phys. Lett. 35, (1964) 2870; Hargrove et al. Appl. Phys. Lett. 5 (1964) 4
slide-10
SLIDE 10

Transform limited pulses

Time domain Frequency domain Gaussian Gaussian

slide-11
SLIDE 11

Transform limited pulses

slide-12
SLIDE 12

Transverse modes

  • E. W. Small, Chapter 2, Topics in Fluorescence Spectroscopy, J. R. Lakowicz
slide-13
SLIDE 13

Transverse modes

  • E. W. Small, Chapter 2, Topics in Fluorescence Spectroscopy, J. R. Lakowicz

Intensity

slide-14
SLIDE 14

Kerr Effect

slide-15
SLIDE 15

Kerr Effect

Intensity-dependent refractive index

slide-16
SLIDE 16

Kerr Effect

Intensity-dependent refractive index

slide-17
SLIDE 17

Kerr Effect

Intensity-dependent refractive index Kerr lensing

slide-18
SLIDE 18

Kerr Effect

Intensity-dependent refractive index Kerr lensing Intense beam: Focused Weak beam: Not focused

slide-19
SLIDE 19

Kerr Effect

Intensity-dependent refractive index Kerr lensing Intense beam: Focused Weak beam: Not focused Pulsed light

slide-20
SLIDE 20

Kerr Effect

Intensity-dependent refractive index Kerr lensing Intense beam: Focused Weak beam: Not focused Pulsed light CW light

slide-21
SLIDE 21

Kerr Effect

Intensity-dependent refractive index Kerr lensing Intense beam: Focused Weak beam: Not focused Pulsed light CW light

slide-22
SLIDE 22

Kerr Lens Modelocking

Intensity-dependent refractive index Kerr lensing Intense beam: Focused Weak beam: Not focused Pulsed light CW light

slide-23
SLIDE 23

Chirping

Kerr lensing Intense beam: Focused Weak beam: Not focused Pulsed light CW light Courtesy:

  • J. A. Mondal, BARC
