Comparison of Elasticity and Fracture Strength of Manual, Femtosecond laser and Selective Laser Capsulotomies SHERAZ M. DAYA MD FACP FACS FRCSE FRCOphth SOON-PHAIK CHEE FRCOphth FRCS(Ed), FRCS(G), MMed(Spore) SENG EI TI FRCS(Ed),

SLIDE 1

CENTRE FOR SIGHT

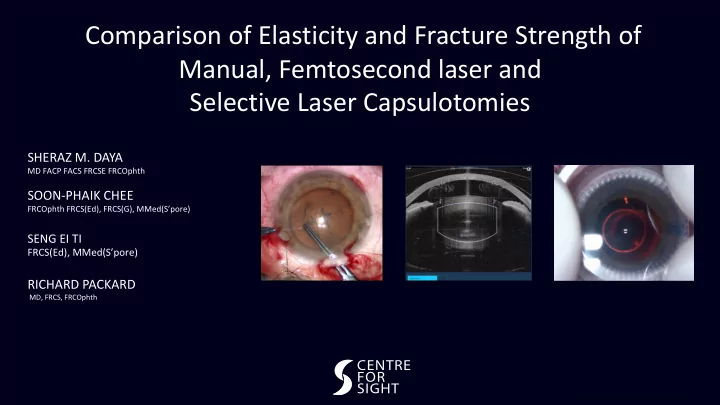

Comparison of Elasticity and Fracture Strength of Manual, Femtosecond laser and Selective Laser Capsulotomies

SHERAZ M. DAYA

MD FACP FACS FRCSE FRCOphth

SOON-PHAIK CHEE

FRCOphth FRCS(Ed), FRCS(G), MMed(S’pore)

SENG EI TI

FRCS(Ed), MMed(S’pore)

RICHARD PACKARD

MD, FRCS, FRCOphth

SLIDE 2

CENTRE FOR SIGHT

Financial Disclosure

Company Code 1. Abbott Medical Optics Inc. S 2. Bausch + Lomb C,L 3. Carl Zeiss Meditec C 4. Clarvista C 5. Ellex L 6. Excellens C, O 7. LinCor Biosciences C 8. Lumenis C 9. Medicem C 10. Nidek, Inc. C,L 11. Omeros C 12. Physiol L 13. PRN O 14. STAAR Surgical C,O 15. Strathspey Crown C 16. Scope Pharmaceuticals C 17. Rayner C

C = Consultant / Advisor E = Employee L = Lecture Fees O = Equity Owner P = Patents / Royalty S = Grant Support

SLIDE 3

CENTRE FOR SIGHT

Anterior Capsulotomy

Increased interest

– Circular, central and consistent sizing

Rapid, reproducible and affordable

– Automated devices

Femtosecond laser
Radiofrequency cautery (Zepto, Mynosys)
Selective Laser Capsulotomy (CAPSULaser, EXCEL-lens)

SLIDE 4

CENTRE FOR SIGHT

Non-pulsatile Laser Capsulotomy

CAPSULaser

SLIDE 5

CENTRE FOR SIGHT

Capsule strength

Anterior capsule tears – hazardous

– Posterior capsule involvement – up to 50%* – Lens tilt, decentration

* Marques, F. F., et al. (2006). "Fate of anterior capsule tears during cataract surgery." J Cataract

Refract Surg 32(10): 1638-1642.

SLIDE 6

CENTRE FOR SIGHT

STUDY- Purpose

Compare capsule strength

– Femtosecond Laser capsulotomy (FLACS) – Continuous curvilinear capsulorrhexis (CCC) – Selective Laser Capsulotomy (SLC)

SLIDE 7

CENTRE FOR SIGHT

Materials and Methods

Human cadaver paired eye study

– 3 GROUPS of 10 paired eyes each – Study group 1: SLC to CCC – Study group 2. CCC to FLACS – Study group 3 FLACS to SLC

Scanning electron microscopy of capsule edge

SLIDE 8

CENTRE FOR SIGHT

Parameters that affect Capsule strength

Laboratory study – influence of:

– Capsule size 4.7-5.0 vs 5.2-5.7mm- Bigger is better – Capsule continuity – discontinuous is weaker

SLIDE 9

CENTRE FOR SIGHT

Materials and Methods

All eyes, Cornea and iris removed for visibility Exclusion Criteria:

Circularity

– minor axis was less than 90% of the major axis – 4πarea of the best-fit-circle / perimeter distance from point to point being less than 90%.

Size

– outside diameter of 5.0 mm of +/- 0.2 mm.

SLIDE 10

CENTRE FOR SIGHT

Materials & Methods

Lens nucleus hydroexpressed
I/A of remaining cortex
Waxed probe inserted into bag
Zonules cut and bag removed
Instron device used to measure load

and extension to tear

STATISTICAL ANALYSIS

Wilcoxon Signed Ranks Tests

SLIDE 11

CENTRE FOR SIGHT

RESULTS: Comparative Extension and Perimeter

Extension (mm) Perimeter (mm) Load (mN) Study 1 SLC 7 ± 1 29 ± 2 277 ± 38 CCC 5 ± 1 25 ± 2 190 ± 37 Study 2 CCC 5 ± 1 24 ± 2 186 ± 37 FLACS 5 ± 1 23 ± 2 145 ± 35 Study 3 FLACS 5 ± 1 23 ± 2 148 ± 31 SLC 7 ± 1 28 ± 2 269 ± 38

SLIDE 12

CENTRE FOR SIGHT

RESULTS Group 1 SLC to CCC

0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 1 2 3 4 5 6 7 8 9 10

Threshold Perimeter (mm) Pair #

PERIMETER: SLC vs CCC

SLC CCC

p= <0.01

50 100 150 200 250 300 350 1 2 3 4 5 6 7 8 9 10

Threshold Load (mN) Pair #

LOAD: SLC vs CCC

SLC CCC

p= <0.01

p= <0.01 p= <0.01

SLIDE 13

CENTRE FOR SIGHT

RESULTS Group 2 CCC to FLACS

0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 11 12 13 14 15 16 17 18 19 20

Threshold Perimeter (mm) Pair #

PERIMETER: CCC vs FLACS

CCC FLACS

50 100 150 200 250 300 350 11 12 13 14 15 16 17 18 19 20 Threshold Load (mN) Pair #

LOAD: CCC vs FLACS

CCC FLACS

p= <0.01 p= <0.2

SLIDE 14

CENTRE FOR SIGHT

RESULTS Group 3 SLC vs FLACS

0.0 5.0 10.0 15.0 20.0 25.0 30.0 35.0 21 22 23 24 25 26 27 28 29 30 Threshold Perimeter (mm) Pair #

PERIMETER: SLC vs FLACS

SLC FLACS

p= <0.01

50 100 150 200 250 300 350 21 22 23 24 25 26 27 28 29 30 Threshold Load (mN) Pair #

PERIMETER: SLC vs FLACS

SLC FLACS

p= <0.01

p= <0.01 p= <0.01

SLIDE 15

CENTRE FOR SIGHT

RESULTS

SLC CCC FLACS

PERIMETER (mm)

28 ± 2 24 ± 2 23 ± 2

Relative to CCC

120 ± 10% 100% 95 ± 10% LOAD

(mN)

273 ± 37 186 ± 40 146 ± 32

Relative to CCC

146 ± 20% 100% 78 ± 20%

SLIDE 16

CENTRE FOR SIGHT

SEM CCC

10 µm 10 µm

SLIDE 17

CENTRE FOR SIGHT

10 µm

Figure 4C: Femtosecond Laser Assisted Cataract Surgery (FLACS)

20 µm

REGIONS OF ABERRANT HOLES

SEM - FLACS

SLIDE 18

CENTRE FOR SIGHT

SEM SLC

ANTERIOR CAPSULE

250 µm

EDGE EDGE EDGE EDGE AMORPHOUS COLLAGEN

10 µm

SLIDE 19

CENTRE FOR SIGHT

SLC Strength

1. doubling of the capsular edge thickness 2. the rolled-over folded edge which itself increases mechanical strength 3. smooth edge devoid of irregularity and defect 4. thermal change of the anterior capsule = regular ordered Collagen Type IV to amorphous collagen with increased elasticity

AMORPHOUS COLLAGEN

SLIDE 20

CENTRE FOR SIGHT

Study Strengths

1. Pairwise HUMAN cadaver eyes 2. Standardised variables: size and circularity 3. Consistent load and perimeter findings between groups (SLC vs CCC vs FLACS)

SLIDE 21

CENTRE FOR SIGHT

CONCLUSIONS

1. SLC significantly stronger than both CCC and FLACS 2. CCC significantly stronger than FLACS (not previously evaluated in human eyes) 3. SLC strength may be accounted for by SEM findings

SLIDE 22

CENTRE FOR SIGHT

Thank you…

Courtesy of Burkhard Dick
