Uniform Paving Platform Regional Asphalt Seminar, Fredericksburg, VA February 26, 2015 David P. Shiells, P.E. District Materials Engineer Why Do we Need a Uniform Paving Surface ? Rideability Smooth base = smooth surface (usually)

slide-1
SLIDE 1

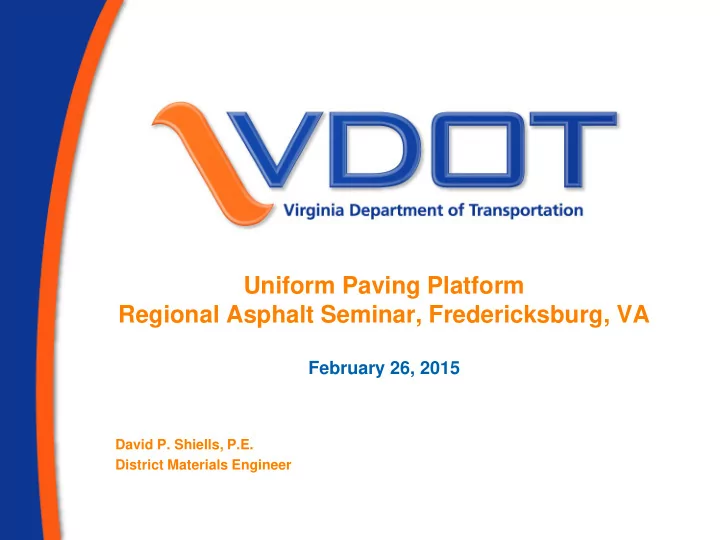

Uniform Paving Platform Regional Asphalt Seminar, Fredericksburg, VA

February 26, 2015

David P. Shiells, P.E. District Materials Engineer

slide-2
SLIDE 2

2

Why Do we Need a Uniform Paving Surface ?

Rideability

  • Smooth base = smooth surface (usually)
  • Uneven base = rough surface (always)
  • Smooth pavements last longer and are safer for motorists

Density of Surface Mix

  • Uneven support will result in uneven density
  • Density is important for longevity of pavements
slide-3
SLIDE 3

3

Life is Not Perfect…

slide-4
SLIDE 4

4

Construction is Not Perfect Either…

Good

slide-5
SLIDE 5

5

Construction is Not Perfect Either…

Good Not so good

slide-6
SLIDE 6

6

Variable Width of Base….

slide-7
SLIDE 7

7

A Little Bit of Scabbing…

slide-8
SLIDE 8

8

Variable Base Thickness…

slide-9
SLIDE 9

9

Deterioration of Milled Surfaces…

slide-10
SLIDE 10

10

What is the Solution ?

Mill Deeper

  • Contracts typically require 1.5” to 2” of milling
  • Make a second pass of the milling machine
  • Add a second layer of SM or IM mix

Patching

  • Type I - <20 sf, < 5” deep
  • Type II - >20 sf, <5” deep
  • Type III - >5” deep

Scratch/Leveling Course

  • Localized application of surface mix
  • Level depressions, scabbing or distorted areas
slide-11
SLIDE 11

Special Provision for Asphalt Concrete Scratch/Leveling Course Prior to Plant Mix Overlay

11

slide-12
SLIDE 12

12

SP for Scratch/Leveling Course

General

  • Localized application of surface mix
  • Level depressions, scabbing or distorted areas
  • The Engineer must authorize scratch/level prior to use

Definitions

  • Type I - <50% of area to be paved
  • Type II - > 50% of area to be paved

Materials

  • Same as surface mix specified
  • SM-4.75, SM-9.0, SM-9.5, etc.
  • Not for SMA !

Measurement/Payment

  • Type I - 2 x contract price for surface mix
  • Type II - 1.5 x contract price for surface mix
  • OR pay by the ton when specified as a bid item
slide-13
SLIDE 13

13

It Is Not There Yet !

slide-14
SLIDE 14

14

It Is Not There Yet !

slide-15
SLIDE 15

15

What Would You Do ?

slide-16
SLIDE 16

16

What Would You Do ?

  • A. Mill Deeper
  • B. Patch
  • C. Scratch/Level
  • D. Do Nothing
slide-17
SLIDE 17

17

What Would You Do ?

  • B. Patch
slide-18
SLIDE 18

18

What Would You Do ?

slide-19
SLIDE 19

19

What Would You Do ?

  • A. Mill Deeper
  • B. Patch
  • C. Scratch/Level
  • D. Do Nothing
slide-20
SLIDE 20

20

What Would You Do ?

  • A. Mill Deeper
slide-21
SLIDE 21

21

What Would You Do ?

slide-22
SLIDE 22

22

What Would You Do ?

  • A. Mill Deeper
  • B. Patch
  • C. Scratch/Level
  • D. Do Nothing
slide-23
SLIDE 23

23

What Would You Do ?

  • D. Do Nothing
slide-24
SLIDE 24

24

Conclusions

Uniform Paving Surface

  • Promotes smoother pavements
  • Helps with achieving uniform density

Condition of Milled Surfaces

  • Very difficult to predict during contract preparation
  • Can change with time, weather conditions and traffic
  • Old pavements are prone to stripping
  • Scabbing is a common problem

Tools to Achieve Uniform Paving Surfaces

  • Deeper milling
  • Patching
  • Scratch/level
slide-25
SLIDE 25

25

And now, the contractor’s perspective…
