Environment Remote Sensing Instructor: Prof. Prashanth Reddy Marpu SAMPLE METEOSAT SEVIRI CHANNELS 96 acquisitions per day (12 channels in each acquisition) Channel 04 (IR3.9) Channel 09 (IR10.8) MODIS Data Real-Time Monitoring of Dust Sources

slide-1

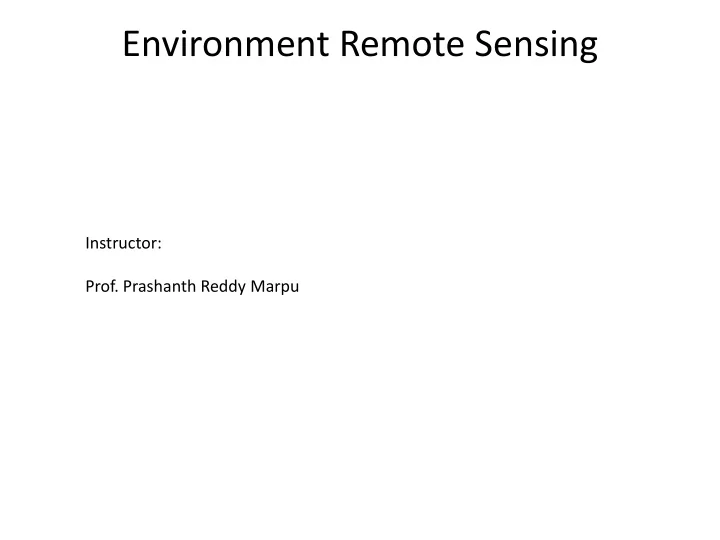

SLIDE 1

Environment Remote Sensing

Instructor:

  • Prof. Prashanth Reddy Marpu
slide-2
SLIDE 2

Channel 04 (IR3.9) Channel 09 (IR10.8)

SAMPLE METEOSAT SEVIRI CHANNELS

96 acquisitions per day (12 channels in each acquisition)

slide-3
SLIDE 3

MODIS Data

slide-4
SLIDE 4

RGB composite image captured on March 19, 2012 (Masdar Institute receiving station)

Satellite-based dust monitoring tool

Real-Time Monitoring of Dust Sources in the Region

slide-5
SLIDE 5

Recent Dust Storm MODIS Aqua Image March 18, 2012 (NASA)

Real-Time Monitoring of Dust Sources in the Region

slide-6
SLIDE 6

Recent Dust Storm MODIS Aqua Image March 19, 2012 (NASA)

Real-Time Monitoring of Dust Sources in the Region

slide-7
SLIDE 7

ASTER maps of LST, land cover and ISA percentage (Summer) ASTER maps of LST, land cover and ISA percentage (Winter)

Thermal Mapping (Abu Dhabi)

slide-8
SLIDE 8

Water Quality Assessment and Monitoring

  • Protecting seawater intakes for

major desalination plants in the United Arab Emirates: Developing an automated tool for oil spills detection and monitoring using active microwave satellite data.

  • Developing a fluorescence-

based model for MODIS Satellite to detect and monitor red tide

  • utbreaks in the Arabian Gulf.
  • Using medium and high

resolution satellite images in monitoring water quality surrounding the discharges of desalination plants in the UAE

slide-9
SLIDE 9

Water Quality Assessment and Monitoring

Monitoring water quality surrounding the discharges of desalination plants in the UAE using medium and high resolution satellite images.

10 20 30 40 50 5 10 15 20 25 30 35 40 45 50 0.05 0.1 0.15 0.2 0.25 10 20 30 40 50 5 10 15 20 25 30 35 40 45 50 0.05 0.1 0.15 0.2 0.25 10 20 30 40 50 5 10 15 20 25 30 35 40 45 50 0.05 0.1 0.15 0.2 0.25

slide-10
SLIDE 10

Example: MODIS products derived from a scene acquired over Abu Dhabi coastline

MODIS/Aqua RGB image March 20, 2005, 9:30 GMT

RGB true-color composite shows the clear atmosphere SeaDAS-derived total suspended sediment (TSS) concentrations (mg/L).

slide-11
SLIDE 11

Slides adopted from Jensen, 2007 and lecture notes of Dr. Mathias Disney, UCL Geography, University College London

REMOTE SENSING

slide-12
SLIDE 12
slide-13
SLIDE 13
slide-14
SLIDE 14

One of the first RS images using 7 Kites carrying a 23 Kg camera

slide-15
SLIDE 15
slide-16
SLIDE 16
slide-17
SLIDE 17
slide-18
SLIDE 18
slide-19
SLIDE 19
slide-20
SLIDE 20
slide-21
SLIDE 21
slide-22
SLIDE 22
slide-23
SLIDE 23

EM Spectrum

Spectrum: For the purpose of this workshop – Reflective / Emissive

VNIR SWIR MWIR LWIR

Reflective Emissive microns

Base image - http://upload.wikimedia.org/wikipedia/commons/7/7c/Atmospheric_Transmission.png

slide-24
SLIDE 24
slide-25
SLIDE 25

Electromagnetic Spectrum- Visible

slide-26
SLIDE 26
slide-27
SLIDE 27
slide-28
SLIDE 28
slide-29
SLIDE 29

Departure from blackbody radiation

slide-30
SLIDE 30
  • Spatial: the size of the field-of-view, e.g. 10 x 10 m.
  • Spectral: the number and size of spectral regions

the sensor records data in, e.g. blue, green, red, near- infrared thermal infrared, microwave (radar).

  • Temporal: how often the sensor acquires data over

the same location, e.g. every 15 min, 30 min, 12 hrs, 5 days…etc.

  • Radiometric: the sensitivity of detectors to small

differences in electromagnetic energy.

Remote Sensor Resolutions

slide-31
SLIDE 31

The Next Era of Satellite Remote Sensing Systems

Today, we are on the verge of…

1972 - 80m resolution Today - 0.6m resolution

slide-32
SLIDE 32

30 meter resolution 1982 Landsat Technology 20 meter resolution 1986 SPOT Technology 10 meter resolution 1986 SPOT Technology 1 meter resolution Technology Available Since 1999

Spatial Resolution

slide-33
SLIDE 33

WorldView

slide-34
SLIDE 34

Spectral Resolution

slide-35
SLIDE 35

Spectral Resolution

slide-36
SLIDE 36

Airborne Visible Infrared Imaging Spectrometer (AVIRIS) Data cube of Sullivan’s Island Obtained

  • n October 26, 1998

Color-infrared color composite on top

  • f the datacube was

created using three

  • f the 224 bands

at 10 nm nominal bandwidth.

slide-37
SLIDE 37

Temporal Resolution June 1, 2006 June 17, 2006 July 3, 2006

Remote Sensor Data Acquisition

16 days

Jensen, 2007

slide-38
SLIDE 38

Radiometric Resolution

4 bit (0-15) 8 bit (0-255) 16 bit (0-65535) 32 bit (0-4.3*10^10)

slide-39
SLIDE 39
slide-40
SLIDE 40
slide-41
SLIDE 41
slide-42
SLIDE 42

Remote Sensing Image Interpretation

  • 1) Visual interpretation
  • 2) Digital image processing for information

extraction from sensor data sets

slide-43
SLIDE 43

Digital image processing (computer-based)

Computer-based analysis and reprocessing of raw data into new visual or numerical products, which then are interpreted either by approach 1 or are subjected to appropriate decision-making algorithms that identify and classify the scene objects into sets of information

The techniques fall into three broad categories:

Image Restoration and Rectification Image Enhancement Image Classification

slide-44
SLIDE 44

Image representation

slide-45
SLIDE 45
slide-46
SLIDE 46

Keys for image interpretation

slide-47
SLIDE 47
slide-48
SLIDE 48
slide-49
SLIDE 49
slide-50
SLIDE 50
slide-51
SLIDE 51

What do you see?

slide-52
SLIDE 52
slide-53
SLIDE 53
slide-54
SLIDE 54
slide-55
SLIDE 55
slide-56
SLIDE 56
slide-57
SLIDE 57

Image interpretation is a combination of experience and adaptability. The following are all important while interpreting satellite images. Spectral information, Shape, Size, Texture and Context

slide-58
SLIDE 58

Classification of RS data

slide-59
SLIDE 59

What is classification?

Classification is the task of relating pixel information in a digital image to ground truth based on spectral, spatial and contextual information.

slide-60
SLIDE 60

Classification

  • Supervised
  • Requires examples based on ground truth to train the classifiers.
  • The ground truth classes may not contain pixels with similar spectra.
  • Unsupervised
  • Clusters the data and assigns the corresponding clusters to the classes based on

user input.

  • The maximally-separable clusters in spectral space may not match our perception
  • f the important classes on the landscape.
slide-61
SLIDE 61

Supervised classification

  • 1. Selecting training regions
  • 2. Training the classifier
  • 3. Validating the results based on a test set

From Lillesand, Kiefer and Chipman (2004)

slide-62
SLIDE 62

Coal fire prone areas mapping in China

slide-63
SLIDE 63

Classification

slide-64
SLIDE 64

Hyperspectral Imaging Applications

slide-65
SLIDE 65

Hyperspectral Imaging Applications

Hyperspectral imaging using an airborne platforms can be used in surveillance applications such as: 1) Camouflage target detection. 2) Search and rescue. 3) Illegal disposal of waste. 4) Monitoring water quality in the gulf (e.g., algal blooms)

slide-66
SLIDE 66
  • Dynamic changes in Landscape (Human activities, natural disasters,

changes in vegetation cover, shrinking of glaciers due to global warming, etc).

  • Need for updating maps in short intervals.
  • Earth observation (EO) data are increasingly being made available

with better resolution.

  • Need to develop efficient methods to map changes in a timely

manner and maximize the automation to process huge amounts of data.

Change Detection

slide-67
SLIDE 67

2002 2003

D = aTF - bTG

  • Determination of a and b, so that the positive correlation between U = aTF and V = bTG is minimized.
  • Canonical correlation analysis (Hotelling, 1936).
  • Fully automatic scheme gives regularized iterated MAD variates, invariant to linear/affine

transformations, orthogonal. (Nielsen et al, 1998; Nielsen, 2007)

U = aTF V = bTG

MADs 2 (R), 3 (G), 4 (B)

Multivariate Alteration Detection

slide-68
SLIDE 68

Our approach

Time 1 Time 2 Initial change mask Change detection using IR-MAD method Post-processing Change map

slide-69
SLIDE 69

Strategies for generating the ICM

  • Multispectral images
  • The data are stretched in the range of

0-255 and the maximum difference between two times, measured over all the bands, is calculated.

  • The resulting difference image is

modelled as a mixture of 3 Gaussians and a threshold is identified to eliminate strong changes.

slide-70
SLIDE 70

Multispectral change detection using IR-MAD and initial change mask.

slide-71
SLIDE 71

Experiments with ICM

Landsat ETM+ images over Juelich, Germany taken in May, June and August, 2001. Major changes due to agricultural regions. Only the human settlement areas and mining area remain unchanged.

slide-72
SLIDE 72

Experiments

May- June May- August

slide-73
SLIDE 73

Experiments

Without Mask With Mask May -June

slide-74
SLIDE 74

Experiments

slide-75
SLIDE 75

Experiments

Without Mask With Mask Automatic radiometric normalization

slide-76
SLIDE 76

Experiments

May- August Without Mask With Mask

slide-77
SLIDE 77

Experiments

Without Mask With Mask Automatic radiometric normalization

slide-78
SLIDE 78

CD with image segments

The effect of the noise is reduced and hence better projections are identified using MAD transformation.
