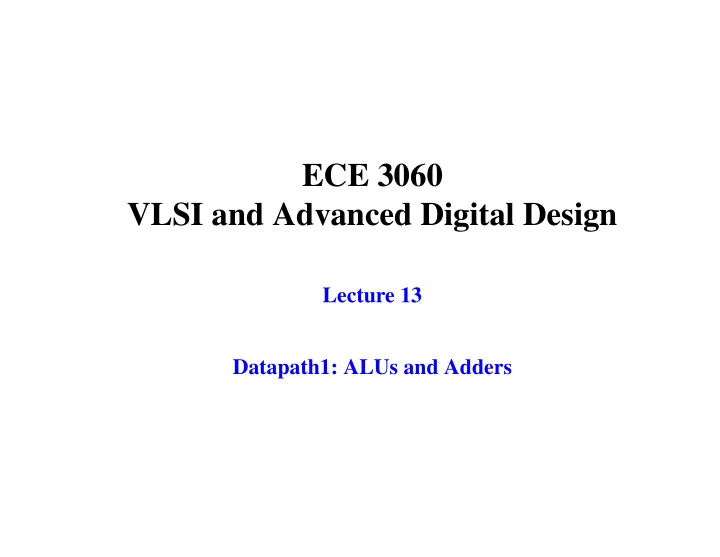

ECE 3060 VLSI and Advanced Digital Design

Lecture 13 Datapath1: ALUs and Adders

slide-2
SLIDE 2

ECE 3060 Datapath1–2

Datapath Floorplan

  • Busses run through cells
  • Pitch is matched
  • Vdd and Gnd are run horizontally
  • Current draw on Vdd and Gnd is spread in time to minimize spiking
slide-3
SLIDE 3

ECE 3060 Datapath1–3

Example Chip Floorplan

slide-4
SLIDE 4

ECE 3060 Datapath1–4

Transmission Gate Mux

I0 I1 I2 I3 Out I0 I1 I2 I3

S0 S1 S0 S1 S0 S1 S0 S1

  • Note: Two t-gates in

series do not need the internal connection between p-fet and n-fet

slide-5
SLIDE 5

ECE 3060 Datapath1–5

Function Block

  • 4x1 multiplexor can implement any function of two

variables

  • Simply place the truth table for F on the inputs of the

mux.

  • The operands A and B will select the correct value of

the function A B F S 4

slide-6
SLIDE 6

ECE 3060 Datapath1–6

Adder Cells

  • Above equations may be implemented as complex

gates

  • These equations may be manipulated to yield:

SUM A B C ⊕ ⊕ = C AB AB + ( ) C AB AB + ( ) + = CARRY AB AC BC + + = AB C A B + ( ) + = SUM ABC A B C + + ( )CARRY + =

slide-7
SLIDE 7

ECE 3060 Datapath1–7

Adder Layout

slide-8
SLIDE 8

ECE 3060 Datapath1–8

Transmission Gate Full Adder

  • Truth Table
  • When

, , and .

  • When

, , and .

  • Using the 6T XOR, this full adder uses 18T.

A B C Sum Carry 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1

2x1 Mux 2x1 Mux

A B ⊕ = SUM C = Carry B = A B ⊕ 1 = SUM C = Carry C =

slide-9
SLIDE 9

ECE 3060 Datapath1–9

Transmission Gate Adder

slide-10
SLIDE 10

ECE 3060 Datapath1–10

Carry Lookahead

  • Ripple carry delays may be unacceptable for wider

bit adders

  • There are many, many schemes for speeding up the

calculation of carry bits.

  • “Traditional CLA” designs are based upon calculating

the carry bits in parallel (this takes time because the fanin to the CLA function is )

  • Other designs are based on speeding up the ripple.

n Cin Cout Delay is proportional to n O n log ( ) O n ( )

slide-11
SLIDE 11

ECE 3060 Datapath1–11

Carry Propagate and Generate

  • A carry out

is generated from bit position , when both and are ‘1’ i.e.

  • A carry in is propagated to the carry out at bit position

when either

  • r

is ‘1’ (if both are ‘1’ will cover) e.g.

  • Thus the carryout,

Ci

1 +

i Ai Bi Gi AiBi = i Ai Bi Gi Pi Ai Bi ⊕ =

complex gate (6T)

Ci

1 +

Gi PiCi + =

slide-12
SLIDE 12

ECE 3060 Datapath1–12

Manchester Carry Chain

  • Propagate and generate sig-

nals computed in about two gate delays

  • Active low carry is propa-

gated through a chain of transmission gates

  • The three shaded areas of

the circuit are mutually exclusive, and represent , , and .

Gi Gi Pi Pi Ci Ci

1 +

Pi

Pi Gi PiGi

slide-13
SLIDE 13

ECE 3060 Datapath1–13

Alternate Implementation

  • The Manchester carry chain computation may also be

implemented with a 2x1 mux.

Pi Pi Pi Gi Ci Ci

1 +

slide-14
SLIDE 14

ECE 3060 Datapath1–14

4-bit Block

  • Signal propagation through a chain of transmission

gates must be restored after about 4 gates

  • A block propagate (bypass) circuit may be added to

further improve performance on wide adders

G0 G1 G2 G3 P0 P1 P2 P3 C0 C1 C2 C3 C 1

C4 P0 P1 P2 P3

slide-15
SLIDE 15

ECE 3060 Datapath1–15

Carry Select Adder

  • Calculate each block assuming

, and , then mux the result (4-2x1) Cin Cin

Complex gate

A3:0 B3:0 A7:4 B7:4 A7:4 B7:4 S3:0 S7:4 C8
