CSE2031 Software Tools - UNIX introduction Pawluk presented by - - PowerPoint PPT Presentation

cse2031 software tools unix introduction
SMART_READER_LITE
LIVE PREVIEW

CSE2031 Software Tools - UNIX introduction Pawluk presented by - - PowerPoint PPT Presentation

CSE2031 Software Tools - UNIX introduction Przemyslaw CSE2031 Software Tools - UNIX introduction Pawluk presented by Shakil Khan Summer 2010 Introduction to UNIX UNIX Shells Commands Overview Przemyslaw Pawluk grep family presented


slide-1
SLIDE 1

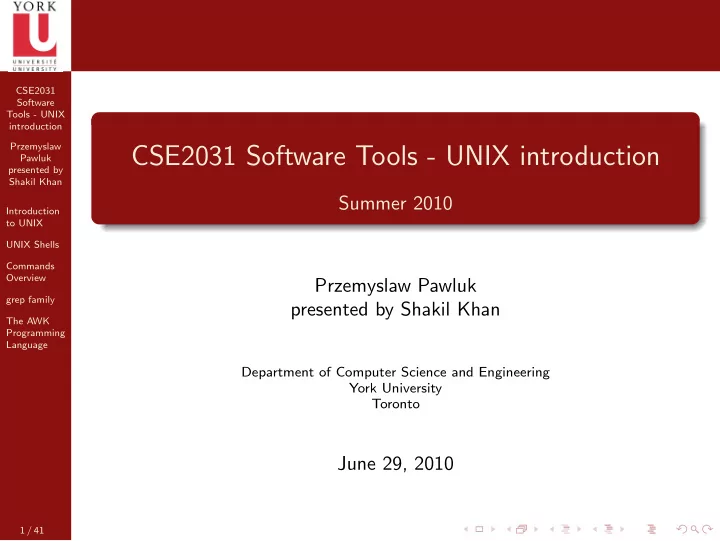

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

CSE2031 Software Tools - UNIX introduction

Summer 2010 Przemyslaw Pawluk presented by Shakil Khan

Department of Computer Science and Engineering York University Toronto

June 29, 2010

1 / 41

slide-2
SLIDE 2

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Table of contents

1

Introduction to UNIX

2

UNIX Shells

3

Commands Overview

4

grep family

5

The AWK Programming Language

2 / 41

slide-3
SLIDE 3

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Plan

1

Introduction to UNIX

2

UNIX Shells

3

Commands Overview

4

grep family

5

The AWK Programming Language

3 / 41

slide-4
SLIDE 4

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Our goal

Our goal is to see how we can use Unix as a tool for developing programs

4 / 41

slide-5
SLIDE 5

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Processes

Each running program on a Unix system is called a process Processes are identified by a number (process id or PID) Usually many processes running simultaneously Each process has a unique PID

5 / 41

slide-6
SLIDE 6

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Current Working Directory

Every process has a current working directory In a shell, the command ls shows the contents of the current working directory pwd shows the current working directory cd changes the current working directory

6 / 41

slide-7
SLIDE 7

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Path names

A path name is a reference to something in the filesystem A path name specifies the set of directories you have to pass through to find a file Directory names are separated by ’/’ in Unix Path names beginning with ’/’ are absolute path names. Path names that do not begin with ’/’ are relative path names (Start search in current working directory)

7 / 41

slide-8
SLIDE 8

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Special characters

. means ”the current directory” .. means ”the parent directory” ~ means ”home directory”

Try

1

l s .

2

l s . .

3

l s ˜

8 / 41

slide-9
SLIDE 9

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Devices in UNIX

/dev contains devices Look like files but really communicate with devices. For example: /dev/tty the terminal (or virtual terminal) you are currently using /dev/zero an input stream which returns an endless stream of null bytes (’\0’) /dev/null the bitbucket discards any input, generates no output (empty)

9 / 41

slide-10
SLIDE 10

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Use of dev/null

To discard stdout of a command: cat hello.c >/dev/null To provide no input to a command: cat </dev/null

10 / 41

slide-11
SLIDE 11

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Plan

1

Introduction to UNIX

2

UNIX Shells

3

Commands Overview

4

grep family

5

The AWK Programming Language

11 / 41

slide-12
SLIDE 12

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Shells – intro

What is shell?

Ordinary program which acts as a command interpreter and offers multiple benefits including Filename shorthand I/O redirection Personalizing the environment Programming language

12 / 41

slide-13
SLIDE 13

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Shells

There are many programs which are shells The most common Unix shells are:

Bourne shell (sh) C shell (csh) Korn shell (ksh) Also: Bourneagain shell (bash).

In this course we are mostly concerned with the Bourne shell (sh)

13 / 41

slide-14
SLIDE 14

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

How does it work?

When a command is entered shell does Process metacharacters Command line substitution Command execution

14 / 41

slide-15
SLIDE 15

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Special Characters

> >> < | – IO redirection * ? [...] – Filename shorthand ’command’ – Command substitution || && – Conditional execution (...) – Group commands & – Background processing <<tok – Here document $ – Expand value \ # ; – Escape, comment, terminator ’ " – Single/double quotes

15 / 41

slide-16
SLIDE 16

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Plan

1

Introduction to UNIX

2

UNIX Shells

3

Commands Overview

4

grep family

5

The AWK Programming Language

16 / 41

slide-17
SLIDE 17

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Commands Overview

Basic tools: ls, cp, mv, ... Advanced tools: grep, sort, cut, uniq, tr, find, xargs, sed, awk

17 / 41

slide-18
SLIDE 18

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Basic Unix Commands(1)

ls list directory content cp file copy mv file renaming, moving rm delete files mkdir create a new directory cd change directory pwd print current working directory cat print text files more print text files page by page less view text files head print first part of a text file tail print last part of a text file

18 / 41

slide-19
SLIDE 19

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Basic Unix Commands(2)

expr evaluate an expression echo display a line of text date print and set system date and time ps process status kill kill a process (send a signal) top display top CPU processes

  • d octal dump of a file

du disk usage chmod change file access permission chgrp change group ownership ln link files diff difference of two files basename base name of a full path name

19 / 41

slide-20
SLIDE 20

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Combining Commands

If we just run a command, e.g. wc then the terminal is used for stdin, stdout, and stderr by default. However, we dont need to use the

  • terminal. We can control what stdin, stdout, and stderr refer to.

The simple case is redirection using a file wc <foo/bar/file i.e. use the contents of the file "foo/bar/file" instead of the terminal for stdin wc >foo/bar/file i.e. put the output of stdout into "foo/bar/file" instead of the terminal

20 / 41

slide-21
SLIDE 21

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Pipes

We can also redirect stdout or stdin to other programs (instead of files) cat myfile | wc this takes the stdout of the cat myfile command and makes it the stdin

  • f the wc command

21 / 41

slide-22
SLIDE 22

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Shell Scripting

A shell provides Basic interactive shell Programming environment

22 / 41

slide-23
SLIDE 23

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Unix Filters

Filters are a large family of UNIX programs that: Read text input line by line Perform some transformation Write some output Simple filters: grep,cut,sort,uniq,tr $ grep ’tom’ /etc/passwd print lines containing ’tom’ Programmable filters: awk, sed $ awk ’/tom/ {print}’ /etc/passwd

23 / 41

slide-24
SLIDE 24

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Design of Filters

Each processes argument files or stdin if arguments are missing Each writes to stdout. Arguments never specify stdout, unless there is an option (e.g. -o ) Some optional arguments (I.e. options, -a -n ... ) may precede input filename(s) Error messages are written to stderr

24 / 41

slide-25
SLIDE 25

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Plan

1

Introduction to UNIX

2

UNIX Shells

3

Commands Overview

4

grep family

5

The AWK Programming Language

25 / 41

slide-26
SLIDE 26

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

grep family

grep: searches text files for pattern and prints all lines that contain that pattern egrep (expression grep): same as grep but supports full regular expressions fgrep (fast grep): searches for a string, instead of pattern

26 / 41

slide-27
SLIDE 27

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

grep

Prints out all lines in the input that match the given regular expression grep [options] pattern [file ... ] e.g. grep hello Prints out all lines of stdin containing ”hello”

Exit status

grep exits with a value: 0 if pattern found 1 if pattern not found 2 if file not found Can be used in scripts!

27 / 41

slide-28
SLIDE 28

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Frequently Used Options

  • i ignore case of letters (case insensitive search)
  • v invert search (print lines that dont match)
  • c displays count of matching lines
  • w search for expression as distinct word
  • n precede each line with line number
  • l list only input filenames where matches occur
  • h do not display filenames
  • s work silently (suppress error messages)

28 / 41

slide-29
SLIDE 29

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Regular Expressions

A regular expression is a special string (like a wildcard pattern) A compact way to represent text patterns A compact way of matching several text lines with a single string Provide a mechanism to select specific strings from a set of character strings

29 / 41

slide-30
SLIDE 30

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Basic RE vs. Extended RE

Basic

Letters and numbers are literal that is they match themselves: e.g. "foobar" matches "foobar" ’.’ matches any single character (i.e. exactly one) [xyz] matches any character in the set (ranges via ’-’) [^xyz] matches any character not in the set ’*’ matches 0 or more occurrences of last char ’?’ matches 0 or 1 occurrences of last char ’+’ matches 1 or more occurrences of the last char ’^’ matches the beginning of the line ’$’ matches the end of the line "\<" and "\>" match begin and end of a word \{n\} matches exactly n occurrences \{n,\} matches at least n occurrences \{n,m\} matches occurrences between n and m

30 / 41

slide-31
SLIDE 31

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

Interesting uses

grep -v ’^#’! Removes all lines beginning with ’#’ grep -v ’^[ ]*$’! Removes all lines which are either empty or contain only spaces (all empty lines) ls -l | grep "^[^d]"! List only files that are not directories

31 / 41

slide-32
SLIDE 32

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

fgrep

Like grep, fgrep searches for things but does not do regular expressions just fixed strings. fgrep ’hello.*goodbye’ Searches for string "hello.*goodbye" does not match it as a regular expression

32 / 41

slide-33
SLIDE 33

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

cut

Used to split lines of a file A line is split into fields Fields are separated by delimiters A common case where a delimiter is a space or tab character Default delimiter is tab

Syntax

cut [-ffields] [-ccolumns][-dcharacter] [filename ...]

33 / 41

slide-34
SLIDE 34

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

sort

sorts lines in a file Like before, if no files are given, sorts stdin and writes result to stdout By default sorts lines in ascending alphabetical order

Syntax

sort [options ... ] [file ... ]

34 / 41

slide-35
SLIDE 35

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

sotr – Options

  • r sort in reverse order (descending)
  • n treat each line as a number and sort numerically
  • kN sort based on the Nth field, e.g. -k2 or -k4
  • t: specify field separator (default space and tab)

35 / 41

slide-36
SLIDE 36

CSE2031 Software Tools - UNIX introduction Przemyslaw Pawluk presented by Shakil Khan Introduction to UNIX UNIX Shells Commands Overview grep family The AWK Programming Language

uniq

Removes repeated lines in a file

Syntax

uniq [-c] [input [output]] Notice difference in args: 1st filename is input file 2nd filename is output file

36 / 41
