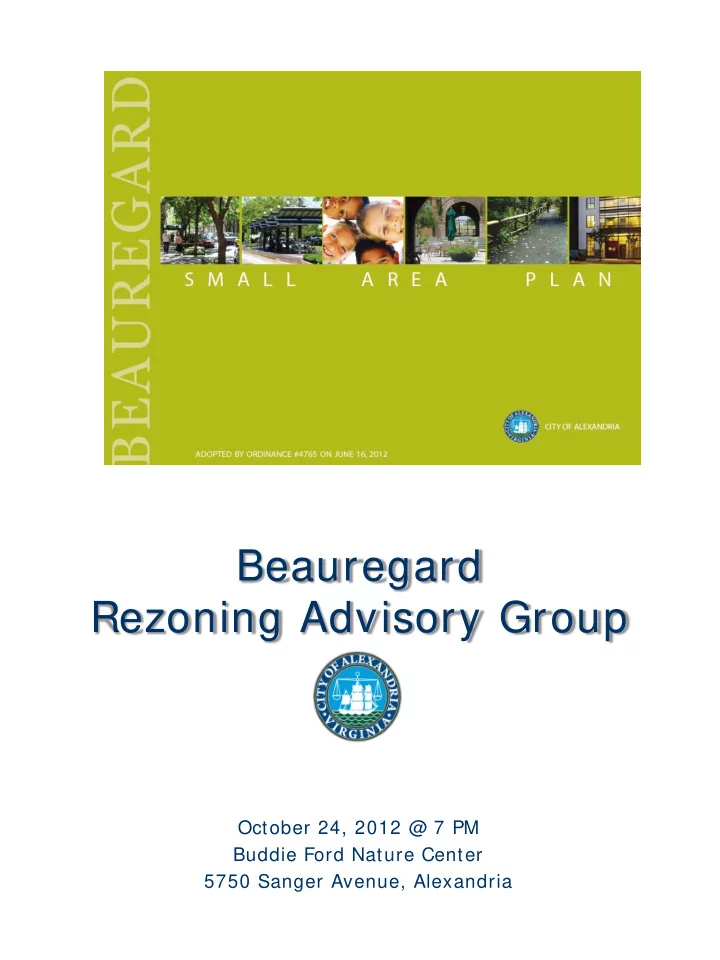

October 24, 2012 @ 7 PM Buddie Ford Nature Center 5750 Sanger Avenue, Alexandria

slide-2
SLIDE 2

2

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Agenda

I . Approval of October 1 2 0 1 2 Meeting Sum m ary I I . Discussion of Sem inary / Beauregard Alternatives Report I I I . Public Com m ent I V. Rezoning Application Subm ission( s) V. Recom m endations Matrix VI . Next Steps

slide-3
SLIDE 3

3

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

  • Review technical analysis
  • Provide recommendations and

comments (to be included with DSUP application staff reports)

Role of the Beauregard Rezoning Advisory Group

slide-4
SLIDE 4

4

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

  • No Build
  • Parallel Road
  • Traffic Circle
  • Grade Separation Options
  • Ellipse

Alternatives Analyzed

slide-5
SLIDE 5

5

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

  • VDOT
  • City of Alexandria
  • RK&K
  • AECOM
  • STV
  • Wells and Associates

Technical Review s

slide-6
SLIDE 6

6

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

No Build

  • Maintains

existing triple WB left turns

  • Adds VDOT

Short / Mid term projects

slide-7
SLIDE 7

7

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

No Build I m pacts

  • Pros:
  • Cost effective
  • Minimal Utility / ROW Impacts
  • At-grade construction
  • Maintains access to roads/ driveways
  • Compatible with proposed BRT

Operations

  • Cons:
  • Future W B queues on Sem inary

im pact I -3 9 5 ( AM peak)

  • Not pedestrian friendly
  • Weaving issues on WB Seminary
  • Doesn’t adequately address future

growth

slide-8
SLIDE 8

8

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

No Build - I m pacts

Wide Pedestrian Crossing Weave Issues WB Queues impact I-395

slide-9
SLIDE 9

9

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Parallel Road

  • Maintains existing triple WB left turns and

VDOT improvements

  • Builds parallel road from Seminary to

Beauregard Town Center

slide-10
SLIDE 10

10

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Parallel Road I m pacts

  • Pros:
  • Diverts traffic demand along Beauregard

and provides additional capacity

  • Improved weaving compared to No Build
  • At-grade construction
  • Maintains access to roads/ driveways
  • Compatible with proposed BRT

Operations

  • Cons:
  • Requires acquisition of 1 2 to 1 7

tow nhom es

  • Places more traffic on residential streets
  • Increased noise through residential areas
  • Significant ROW Cost
slide-11
SLIDE 11

11

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Parallel Road I m pacts

New Parallel Road

slide-12
SLIDE 12

12

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Traffic Circle

  • Traditional 4-legged Traffic Circle
  • Signals at each approach
  • All movements require use of circle
slide-13
SLIDE 13

13

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Traffic Circle I m pacts

  • Pros:
  • At-grade construction
  • Opportunity for gateway feature / Green

space

  • Improved weaving condition compared to

No Build

  • Maintains access to roads/ driveways
  • Compatible with proposed BRT

Operations

  • Cons:
  • Significant queues / delays to

intersections and I -3 9 5

  • Doesn’t adequately address future

growth

  • Moderate ROW impacts
slide-14
SLIDE 14

14

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Traffic Circle I m pacts

WB Queues impact I-395 Delays at Traffic Circle Approaches

slide-15
SLIDE 15

15

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Grade Separation Option 1

  • Flyover configuration with compressed

diamond interchange

  • Beauregard over Seminary
slide-16
SLIDE 16

16

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Grade Separation Option 1 I m pacts

  • Pros:
  • Minimizes delay for through traffic on

Beauregard Street

  • Gateway Opportunity
  • Pedestrian improvements at grade
  • Compatible with proposed BRT Operations
  • Cons:
  • Significant w eave/ m erge issues on W B

Sem inary, and increased accident potential

  • High Cost ( $ 4 1 .9 m ) , and Maintenance
  • Possible high delays for turning vehicles at and

pedestrians (at ramps)

  • Significant ROW impacts to Southern Towers

parking

  • Steep grades for overpass
  • Utility Impacts due to bridge / retaining walls
  • Extensive signal timing coordination
  • Not compatible with character of planned

development

slide-17
SLIDE 17

17

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Grade Separation Option 1 I m pacts

Weave Issues Steep Grade Ramp Constraints ROW / Parking Impacts

slide-18
SLIDE 18

18

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Grade Separation Option 2

  • Flyover configuration with compressed

diamond interchange

  • Seminary over Beauregard
slide-19
SLIDE 19

19

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Grade Separation Option 2 I m pacts

  • Pros:
  • Minimizes delay for through traffic on Seminary

Road

  • Gateway Opportunity
  • Pedestrian improvements at grade
  • Compatible with proposed BRT Operations
  • Cons:
  • Significant w eave/ m erge issues on EB and

W B Sem inary, and increased accident potential

  • High Cost ( $ 4 2 .3 m ) , and Maintenance
  • Possible high delays for turning vehicles at and

pedestrians (at ramps)

  • Significant ROW impacts to Southern Towers

parking

  • Steep grades for overpass
  • Utility Impacts due to bridge / retaining walls
  • Extensive signal timing coordination
  • Not compatible with character of planned

development

slide-20
SLIDE 20

20

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Grade Separation Option 2 I m pacts

Weave Issues Weave Issues Steep Grade ROW / Parking Impacts

slide-21
SLIDE 21

21

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Ellipse

  • Modified Roundabout (Maintains thru traffic
  • n Seminary)
  • Eliminates left turns to Beauregard
  • Adds storage capacity
slide-22
SLIDE 22

22

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Ellipse I m pacts

  • Pros:
  • At-grade construction
  • Gateway Opportunity
  • More storage for WB left turns
  • Better intersection operation
  • Reduced weaving issues
  • Accommodates future planned growth
  • Maintains access to roads / driveways
  • Compatible with proposed BRT operations
  • Environmental impacts / noise similar to existing

conditions

  • Maintains at-grade pedestrian / bicycle

circulation

  • Compatible with SAP recommendations
  • Cons:
  • Unconventional compared to a standard

intersection and requires special design

  • Moderate ROW impacts
slide-23
SLIDE 23

23

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Ellipse I m pacts

Right – in/Right-out; Potential signal to protect buses entering and exiting Southern Towers

Vehicular storage Pedestrian movements Crosswalk

Hilton Hotel Southern Towers Development Hekemian Development

Signal Landscaped Barrier

Tighten corner to slow vehicles and improve pedestrian visibility Tighten corner to slow vehicles and improve pedestrian visibility

Wayfinding signage

slide-24
SLIDE 24

24

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report

Com parison of Alternatives

slide-25
SLIDE 25

25

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Beauregard / Seminary Alternatives Report The Alternatives Report confirms that the Ellipse is the only alternative that accommodates the trips associated with development in the small area plan without a fatal flaw.

Sum m ary

slide-26
SLIDE 26

26

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

CDD Applications SAP Implementation

Governing Docum ents: Am ount of Detail

slide-27
SLIDE 27

27

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

CDD Applications SAP Implementation

MATRI X

slide-28
SLIDE 28

28

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

CDD Applications SAP Implementation

APPLI CATI ON SHEET

slide-29
SLIDE 29

29

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

CDD Applications SAP Implementation

APPLI CATI ON SHEET

slide-30
SLIDE 30

30

Beauregard Rezoning Advisory Group Meeting #4 Wednesday, October 24, 2012

Meeting Date Discussion

  • Wednesday, November 14th
  • Saturday, December 1st

(Design Guideline Charrette)

  • Wednesday, December 12th

Possible dates:
