I-71/I-270/Stringtown Road Interchanges PUBLIC INFORMATION MEETING FRA 71 7.45, PID 92615 May 1, 2014 Project Background Project Goals: Improve safety Reduce congestion Contributing factors: Traffic volumes will exceed

slide-1
SLIDE 1

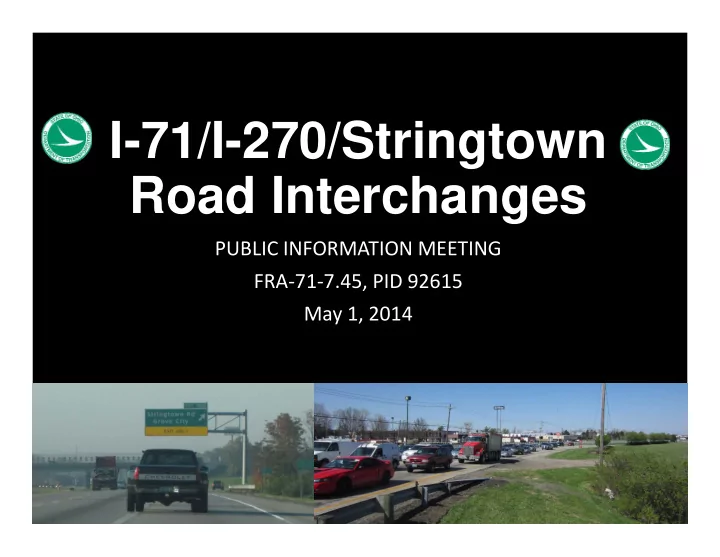

I-71/I-270/Stringtown Road Interchanges

PUBLIC INFORMATION MEETING FRA‐71‐7.45, PID 92615 May 1, 2014

slide-2
SLIDE 2

Project Background

Project Goals:

  • Improve safety
  • Reduce congestion

Contributing factors:

  • Traffic volumes will exceed

capacity

  • Weaving between I‐270 &

Stringtown

  • Weaving on the ramps at the

I‐71/I‐270 interchange

  • Backup on I‐71 at Stringtown
slide-3
SLIDE 3
slide-4
SLIDE 4

I-71/I-270 Interchange Existing Conditions

slide-5
SLIDE 5

I-71/I-270 Interchange Fully Directional

slide-6
SLIDE 6

I-71/I-270 Interchange Double Flyover

slide-7
SLIDE 7

I-71/I-270 Interchange Single Flyover

slide-8
SLIDE 8

I-71/I-270 Interchange Evaluation Matrix

slide-9
SLIDE 9

I-71 between I-270 and Stringtown Road Existing Conditions

slide-10
SLIDE 10

I-71 between I-270 and Stringtown Road Express Lanes

slide-11
SLIDE 11

I-71 between I-270 and Stringtown Road Evaluation Matrix

slide-12
SLIDE 12

I-71/Stringtown Road Interchange Existing Conditions

slide-13
SLIDE 13

I-71/Stringtown Road Interchange Partial Cloverleaf (Modified Parclo-A)

slide-14
SLIDE 14

I-71/Stringtown Road Interchange Modified Diamond

slide-15
SLIDE 15

I-71/Stringtown Road Interchange Evaluation Matrix

slide-16
SLIDE 16

Next Steps

  • Complete environmental documentation – Fall 2014
  • Stringtown Road east of I‐71 construction – Summer 2015
  • I‐71/I‐270/Stringtown Road interchange design – 2015/2016
  • Construction date to be determined based on funding
slide-17
SLIDE 17

Stations

  • Station 1 – Sign‐In Table & Study Area
  • Station 2 – I‐71/I‐270 Interchange
  • Station 3 – I‐71 between I‐270 & Stringtown Road
  • Station 4 – I‐71/Stringtown Road Interchange
  • Station 5 – Information on Creeks, Streams, & Noise
  • Station 6 – Comment Forms

Comment forms are available at the sign‐in table & comment

  • table. You may submit your comments today or mail to the

address on the back. All comments must be received by May 15, 2014 For more information, please visit www.transportation.ohio.gov/dist6
