270 NRC with Lift/Transport Presented by: Dynamic Design Pharma, Inc. Mission Viejo, California USA DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA 270 NRC Canister with Lift/Transport 1. System Overall 2. 270 NRC Canister 3.

slide-1
SLIDE 1

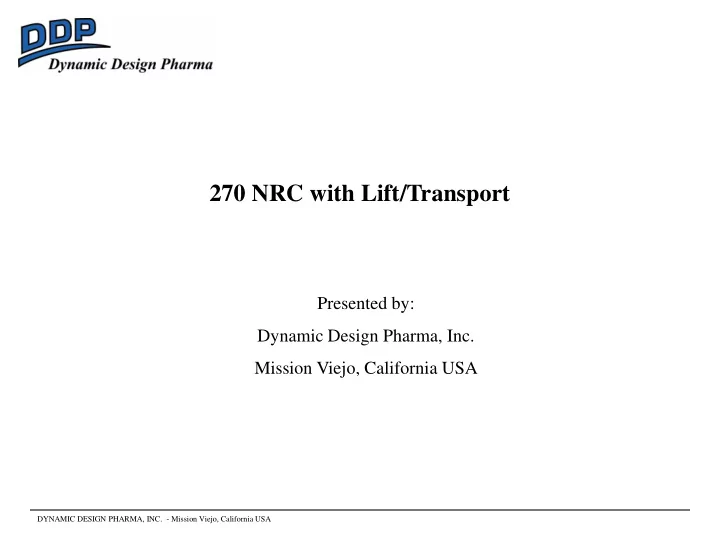

270 NRC with Lift/Transport

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Presented by: Dynamic Design Pharma, Inc. Mission Viejo, California USA

slide-2
SLIDE 2

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

270 NRC Canister with Lift/Transport

  • 1. System Overall
  • 2. 270 NRC Canister
  • 3. Lift/Transport
  • 4. Conclusion
slide-3
SLIDE 3

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

270 NRC Canister with Lift/Transport

270 NRC Canister  Lift/Transport  NRC Interface 

slide-4
SLIDE 4

Overall System Description

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

The NRC Canister allows the sterile transport and transfer of internal components without the risk of damage from handling. The Lift/Transport solidly supports and positions the NRC Canister during transport and docking operations. Together as a system, the two components provide the only truly risk-free, state-of-art handling option available on the market.

slide-5
SLIDE 5

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

270 NRC Canister with Lift/Transport

  • 1. System Overall
  • 2. 270 NRC Canister
  • 3. Lift/Transport
  • 4. Conclusion
slide-6
SLIDE 6

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

270 NRC Canister

Beta flange  NR flange   Canister Body

slide-7
SLIDE 7

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

270 NRC Canister

The 270 NRC Canister is composed of the canister body, the NR Flange onto which the La Calhene beta flange is attached and an

  • ptional internal shuttle mechanism with custom tray.

The NR Flange is DDP’s proprietary rotating flange that permits rotation of the beta flange relative to the canister body while maintaining a leak tight connection between the two. The beta flange is a standard 270 La Calhene stainless steel flange. The internal shuttle mechanism attaches to the internal side wall of the canister body and supports a perforated tray designed specifically for the application.

slide-8
SLIDE 8

270 NRC Features

  • 270 nominal port size
  • Dynamic Seal and bearing system permit rotation of beta flange relative to

the canister body

  • Turning handles are used during the docking process and require low

turning force

  • Sealing interface to La Calhene’s standard beta flange
  • Custom tray and shuttle (as required by the application)
  • Standard tri-clamp connections (as required by the application)
  • Stainless Steel construction
  • Compatible with VHP decontamination
  • Leak tight: Ammonia leak test at 250 pascal internal pressure
  • Features for interface with material handling system(s)

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

slide-9
SLIDE 9

NRC ready to dock onto RTP port

  • The NRC is moved into proximity to the alpha flange.
  • The support hook engages the mating cradle of the RTP port.
  • The operator does not have to support the NRC’s weight during docking.

NRC is docked to the RTP port

  • Once the alpha and beta flanges are placed into contact with each other, the beta flange is

rotated to complete the docking process while the canister body does not rotate, permitting the internal components to remain stationary. Alpha/beta door is opened

  • Once the docking process is completed, the alpha door is opened from inside the isolator.
  • The beta door is attached to the alpha door as it is swung into the isolator.
  • The operator has access to the internal volume of the NRC.

Access to components inside

  • The components tray is pulled out of the NRC body, it is supported at

all times by the NRC’s internal shuttle.

  • The operator has safe access to the parts held in the tray.

NRC Canister Docking Schematic

Shuttle Alpha Port Parts Tray Beta Flange

  • Fig. 4 NRC with parts tray extended

Canister Body Inside Outside Beta Flange

  • Fig. 1 NRC prior to docking onto alpha port

Alpha Port Canister Body Shuttle Parts Tray Outside Beta Door Inside Support Hook

Beta Flange

  • Fig. 2 NRC after docking to alpha port

Alpha Port Canister Body Parts Tray Shuttle Inside Outside

Alpha Port Inside Beta Flange

  • Fig. 3 NRC with alpha/beta door opened

Canister Body Shuttle Parts Tray Outside

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

slide-10
SLIDE 10

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Custom Tray inside the 270 NRC

Tray extended Tray retracted

Beta door  Beta door removal tool Beta door  Beta door removal tool

slide-11
SLIDE 11

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Custom Tray and Shuttle in 270 NRC

VHP Compatible Shuttle  Custom Tray

slide-12
SLIDE 12

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

270 NRC Canister with Lift/Transport

  • 1. System Overall
  • 2. 270 NRC Canister
  • 3. Lift/Transport
  • 4. Conclusion
slide-13
SLIDE 13

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Lift/Transport with NRC Interface

270 NRC Canister interface   Lift /Transfer System  Maneuvering handle  Lifting handle

slide-14
SLIDE 14

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Lift/Transport System

The Lift/Transport mechanism includes a vertical drive system that, via a turning handle, permits precise vertical positioning of the NRC canister during the docking process. The Lift/Transport includes a welded interface structure that supports the NRC Canister in position during transport and docking to the alpha

  • flange. This structure includes a free movement that facilitates the

docking action of the NRC canister to the RTP port.

slide-15
SLIDE 15

Lift/Transport Features

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

  • Polyurethane non-marking casters
  • Ergonomically located maneuvering handle
  • Manually operated vertical drive system
  • NRC separation lock (manually released)
  • Horizontally floating NRC canister interface
slide-16
SLIDE 16

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Lift/Transport to NRC Canister interface

NRC interface extended in docking position NRC interface retracted and locked in transport position

slide-17
SLIDE 17

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

Beta door removal tool engaged Beta door removed and supported

Beta Door Removal Tool

slide-18
SLIDE 18

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

270 NRC Canister with Lift/Transport

  • 1. System Overall
  • 2. 270 NRC Canister
  • 3. Lift/Transport
  • 4. Conclusion
slide-19
SLIDE 19

Conclusion

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA

1. The NRC Canister permits the docking process to take place without rotation of the canister and therefore without tumbling of the components inside the canister 2. The use of the Lift/Transport system to support and position the NRC Canister yields risk free handling of the components inside the canister during the transport and docking processes 3. The system creates the safest conditions for the product and operator during handling and transfer of the components inside the canister

slide-20
SLIDE 20

Thank You

Dynamic Design Pharma

DYNAMIC DESIGN PHARMA, INC. - Mission Viejo, California USA
