Team South 2020-2011 Final Presentation The ACE Mentor Program of Iowa ARCHITECTURE TEAM Junior Kemdirim Francisco Avila Joey Bahnsen Samantha Claman Overview Redeveloping the existing building with new construction and

slide-1
SLIDE 1

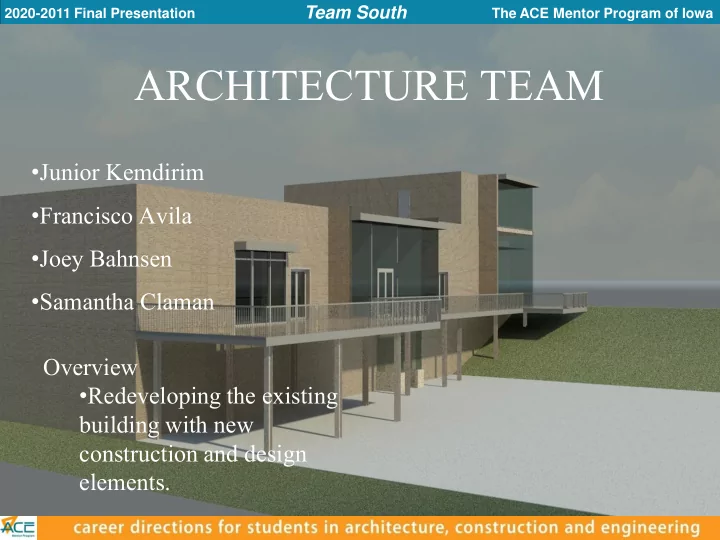

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

ARCHITECTURE TEAM

  • Junior Kemdirim
  • Francisco Avila
  • Joey Bahnsen
  • Samantha Claman

Overview

  • Redeveloping the existing

building with new construction and design elements.

slide-2
SLIDE 2

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

621 Des Moines St.

slide-3
SLIDE 3

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

slide-4
SLIDE 4

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

To reveal traces of the past building through the lens of the new design.

slide-5
SLIDE 5

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

slide-6
SLIDE 6

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

slide-7
SLIDE 7

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

slide-8
SLIDE 8

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

slide-9
SLIDE 9

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

INSPIRATION

slide-10
SLIDE 10

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

slide-11
SLIDE 11

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Second floor plan

slide-12
SLIDE 12

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Façade

slide-13
SLIDE 13

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Retaining Wall

slide-14
SLIDE 14

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Enlarged retail plan

slide-15
SLIDE 15

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Retail

slide-16
SLIDE 16

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Office

slide-17
SLIDE 17

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Enlarged gallery plan

slide-18
SLIDE 18

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Gallery

slide-19
SLIDE 19

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Enlarged café plan

slide-20
SLIDE 20

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Cafe

slide-21
SLIDE 21

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Engineering Team

  • Matt Minnick
  • Hans Messersmith Holth
  • Zach Parsons
  • Moises Contreras
  • Overview

– Structural layout – Mechanical and Plumbing – Deck – Site

slide-22
SLIDE 22

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Structural Layout Curtain Wall

  • Three columns for

support.

  • Two beams running

along the edge.

slide-23
SLIDE 23

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Structural Layout Vestibule

  • Two Beams for elevator support.
slide-24
SLIDE 24

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Plumbing

Water ter

Fixture Type Count Fixture Units Total Toilets 3 10 30 Sinks 2 2 4 Kitchen Sinks 1 4 4

Sanitary tary

Fixture Type Count Fixture Units Total Toilets 3 6 18 Sinks 2 1 2 Kitchen Sinks 1 3 3

slide-25
SLIDE 25

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

HVAC

  • 11,000 CFM Airflow
  • 57”x 87”x 161” in

basement

  • 30 tons of cooling
  • Outside condensing

unit

  • 371,000 BTU/hr

heating

  • Boiler unit in

basement

boiler Airflow unit

BASEMENT

Condensing unit

slide-26
SLIDE 26

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Deck Layout

  • Joists are spaced out 16”

from each other

  • Strength of deck relies on the

live and dead loads

  • Black beams hold more

weight so they are thicker than the other joists

slide-27
SLIDE 27

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Deck Footings

  • Columns spaced out 16’ for

cars

  • Columns in a row to make it

easy for beams to go across

slide-28
SLIDE 28

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

COLUMN

  • The deck sits on 3-2”x12” beam
  • Wood column sits on a 12”x12” concrete

base

  • The base sits on a concrete footing that has to

be a minimum of 3’- 6” below the ground due to the frost line

slide-29
SLIDE 29

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

DECK TO WALL CONNECTION

  • Joist is connected to a 2” X

16” Ledger by a Joist Hanger

  • Ledger is connected to the

wall by Masonry Lag Bolts

slide-30
SLIDE 30

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

RETAINING WALL

  • Switchback Stairs
  • Wall tapers off at the

end

  • Back fill wall with rock

to help draining

slide-31
SLIDE 31

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

PARKING LOT SITE PLAN

  • Perpendicular parking
  • 3 Storm drains
  • 2 Handicap stalls
  • Access to elevator on

parking level

slide-32
SLIDE 32

The ACE Mentor Program of Iowa 2020-2011 Final Presentation

Team South

Thanks to our Mentors!

  • Kassi Colman –

The Weitz Company

  • TJ Meyerholz-

The Weitz Company

  • Brant Bristow-

Tometich Engineering

  • Ryan Morgan-

Terracon

  • Ron Barkey-

Durrant

  • Mike Dean-

Invision

  • Nic Forbes-

Invision
